#include <UDP.h>

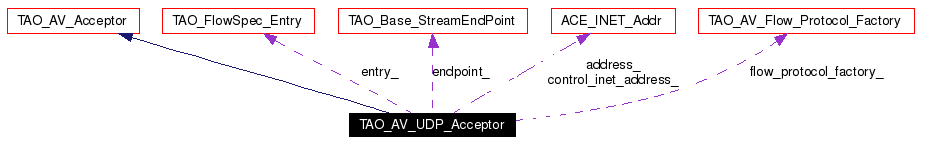

Inheritance diagram for TAO_AV_UDP_Acceptor:
Public Member Functions | |
| TAO_AV_UDP_Acceptor (void) | |
| virtual | ~TAO_AV_UDP_Acceptor (void) |
| virtual int | open (TAO_Base_StreamEndPoint *endpoint, TAO_AV_Core *av_core, TAO_FlowSpec_Entry *entry, TAO_AV_Flow_Protocol_Factory *factory, TAO_AV_Core::Flow_Component flow_comp=TAO_AV_Core::TAO_AV_DATA) |
| virtual int | open_default (TAO_Base_StreamEndPoint *endpoint, TAO_AV_Core *av_core, TAO_FlowSpec_Entry *entry, TAO_AV_Flow_Protocol_Factory *factory, TAO_AV_Core::Flow_Component flow_comp=TAO_AV_Core::TAO_AV_DATA) |
| virtual int | open_i (ACE_INET_Addr *address, int is_default_open) |
| virtual int | close (void) |
| virtual int | activate_svc_handler (TAO_AV_Flow_Handler *handler) |
Protected Attributes | |
| ACE_INET_Addr * | address_ |
| ACE_INET_Addr * | control_inet_address_ |
| TAO_Base_StreamEndPoint * | endpoint_ |
| TAO_FlowSpec_Entry * | entry_ |
| TAO_AV_Flow_Protocol_Factory * | flow_protocol_factory_ |
| TAO_AV_Core::Flow_Component | flow_component_ |
|
|
Definition at line 325 of file UDP.cpp.
00326 : address_ (0), 00327 control_inet_address_ (0) 00328 { 00329 } |
|
|
Definition at line 331 of file UDP.cpp. References TAO_FlowSpec_Entry::control_handler(), control_inet_address_, and flow_component_.
00332 {
00333 if (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL)
00334 delete this->entry_->control_handler ();
00335
00336 delete this->address_;
00337 delete this->control_inet_address_;
00338 }
|
|
|
Definition at line 341 of file UDP.cpp. References TAO_AV_Flow_Handler::event_handler(), flow_component_, TAO_AV_Core::reactor(), and TAO_AV_Flow_Handler::schedule_timer(). Referenced by open_i().
00342 {
00343 ACE_Event_Handler *event_handler = handler->event_handler ();
00344 int result = this->av_core_->reactor ()->register_handler (event_handler,
00345 ACE_Event_Handler::READ_MASK);
00346
00347 if (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL)
00348 handler->schedule_timer ();
00349
00350 return result;
00351 }
|
|
|
Implements TAO_AV_Acceptor. Definition at line 559 of file UDP.cpp.
00560 {
00561 return 0;
00562 }
|
|
||||||||||||||||||||||||
|
Implements TAO_AV_Acceptor. Definition at line 354 of file UDP.cpp. References ACE_DEBUG, flow_component_, TAO_AV_Core::get_control_flowname(), LM_DEBUG, open_i(), and TAO_debug_level.
00359 {
00360 if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"TAO_AV_UDP_Acceptor::open\n"));
00361 this->av_core_ = av_core;
00362 this->endpoint_ = endpoint;
00363 this->entry_ = entry;
00364 this->flow_component_ = flow_comp;
00365 this->flow_protocol_factory_ = factory;
00366 ACE_INET_Addr *inet_addr;
00367 if (flow_comp == TAO_AV_Core::TAO_AV_CONTROL)
00368 {
00369 this->flowname_ = TAO_AV_Core::get_control_flowname (entry->flowname ());
00370 inet_addr = (ACE_INET_Addr *) entry->control_address ();
00371 }
00372 else
00373 {
00374 this->flowname_ = entry->flowname ();
00375 inet_addr = (ACE_INET_Addr *) entry->address ();
00376 }
00377
00378 if (inet_addr != 0)
00379 {
00380 char buf[BUFSIZ];
00381 inet_addr->addr_to_string (buf,
00382 BUFSIZ);
00383
00384 if (TAO_debug_level > 0)
00385 ACE_DEBUG ((LM_DEBUG,
00386 "TAO_AV_UDP_Acceptor::open: %s\n",
00387 buf));
00388 }
00389
00390 int result = this->open_i (inet_addr, 0);
00391
00392 if (result < 0)
00393 return result;
00394 return 0;
00395 }
|
|
||||||||||||||||||||||||
|
Implements TAO_AV_Acceptor. Definition at line 398 of file UDP.cpp. References ACE_NEW_RETURN, flow_component_, TAO_AV_Core::get_control_flowname(), and open_i().
00403 {
00404 this->av_core_ = av_core;
00405 this->endpoint_ = endpoint;
00406 this->entry_ = entry;
00407 this->flow_component_ = flow_comp;
00408 this->flow_protocol_factory_ = factory;
00409 if (flow_comp == TAO_AV_Core::TAO_AV_CONTROL)
00410 {
00411 this->flowname_ = TAO_AV_Core::get_control_flowname (entry->flowname ());
00412 }
00413 else
00414 {
00415 this->flowname_ = entry->flowname ();
00416 ACE_NEW_RETURN (this->address_,
00417 ACE_INET_Addr ("0"),
00418 -1);
00419 }
00420
00421 int result = this->open_i (this->address_, 1);
00422 if (result < 0)
00423 return result;
00424
00425 return 0;
00426 }
|
|
||||||||||||
|
Definition at line 429 of file UDP.cpp. References ACE_DEBUG, ACE_NEW_RETURN, activate_svc_handler(), ACE_INET_Addr::addr_to_string(), TAO_FlowSpec_Entry::address(), TAO_FlowSpec_Entry::control_address(), TAO_FlowSpec_Entry::control_handler(), control_inet_address_, TAO_FlowSpec_Entry::control_protocol_object(), flow_component_, ACE_INET_Addr::get_host_name(), TAO_FlowSpec_Entry::get_local_control_addr(), ACE_INET_Addr::get_port_number(), TAO_FlowSpec_Entry::handler(), LM_DEBUG, TAO_AV_Flow_Protocol_Factory::make_protocol_object(), TAO_FlowSpec_Entry::protocol_object(), TAO_AV_Flow_Handler::protocol_object(), ACE_INET_Addr::set(), TAO_Base_StreamEndPoint::set_control_flow_handler(), TAO_Base_StreamEndPoint::set_flow_handler(), TAO_FlowSpec_Entry::set_local_addr(), TAO_FlowSpec_Entry::set_local_control_addr(), TAO_AV_UDP_Connection_Setup::setup(), ACE_OS::strcasecmp(), TAO_debug_level, and TAO_AV_Flow_Handler::transport(). Referenced by open(), and open_default().
00431 {
00432 int result = -1;
00433 ACE_INET_Addr *local_addr = 0;
00434
00435 TAO_AV_Flow_Handler *flow_handler = 0;
00436
00437 // if using a default address and this is the control flow component, the
00438 // handler and local address are already set in the flow spec entry
00439 if (is_default_addr &&
00440 (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL) &&
00441 (ACE_OS::strcasecmp(this->entry_->flow_protocol_str (), "RTP") == 0))
00442 {
00443 flow_handler = this->entry_->control_handler ();
00444
00445 local_addr = dynamic_cast<ACE_INET_Addr*> (this->entry_->get_local_control_addr ());
00446 }
00447 else
00448 {
00449 // this variable is only used for RTP/UDP; RFC 1889 requires an even/odd
00450 // consecutive port pair
00451 int get_new_port = 1;
00452
00453 while (get_new_port)
00454 {
00455 // assume the ports will be OK
00456 get_new_port = 0;
00457
00458 result = TAO_AV_UDP_Connection_Setup::setup (flow_handler,
00459 inet_addr,
00460 local_addr,
00461 this->entry_->is_multicast (),
00462 TAO_AV_UDP_Connection_Setup::ACCEPTOR);
00463
00464 if (result < 0)
00465 {
00466 ACE_DEBUG((LM_DEBUG,"(%N,%l) Error during connection setup: %d\n", result));
00467 }
00468
00469 local_addr->set (local_addr->get_port_number (),
00470 local_addr->get_host_name ());
00471
00472 if (is_default_addr)
00473 {
00474 if ((ACE_OS::strcasecmp(this->entry_->flow_protocol_str (), "RTP") == 0) &&
00475 (this->flow_component_ == TAO_AV_Core::TAO_AV_DATA))
00476 {
00477 if (is_default_addr && local_addr->get_port_number ()%2 != 0)
00478 {
00479 // RTP port should be even
00480 delete local_addr;
00481 delete flow_handler;
00482 get_new_port = 1;
00483 }
00484 else
00485 {
00486 ACE_INET_Addr *local_control_addr;
00487 TAO_AV_Flow_Handler *control_flow_handler = 0;
00488
00489 ACE_NEW_RETURN (this->control_inet_address_,
00490 ACE_INET_Addr ("0"),
00491 -1);
00492
00493 TAO_AV_UDP_Connection_Setup::setup(control_flow_handler,
00494 this->control_inet_address_,
00495 local_control_addr,
00496 this->entry_->is_multicast (),
00497 TAO_AV_UDP_Connection_Setup::ACCEPTOR);
00498
00499 if (local_control_addr->get_port_number () !=
00500 local_addr->get_port_number () +1)
00501 {
00502 delete this->control_inet_address_;
00503 delete local_addr;
00504 delete flow_handler;
00505 delete local_control_addr;
00506 delete control_flow_handler;
00507 get_new_port = 1;
00508 }
00509 else
00510 {
00511 this->entry_->control_address (this->control_inet_address_);
00512 this->entry_->set_local_control_addr (local_control_addr);
00513 this->entry_->control_handler (control_flow_handler);
00514 }
00515 }
00516 }
00517 }
00518 }
00519 }
00520
00521 TAO_AV_Protocol_Object *object =
00522 this->flow_protocol_factory_->make_protocol_object (this->entry_,
00523 this->endpoint_,
00524 flow_handler,
00525 flow_handler->transport ());
00526 flow_handler->protocol_object (object);
00527
00528 if (this->flow_component_ == TAO_AV_Core::TAO_AV_DATA)
00529 {
00530 this->endpoint_->set_flow_handler (this->flowname_.c_str (),flow_handler);
00531
00532 this->entry_->protocol_object (object);
00533 this->entry_->set_local_addr (local_addr);
00534 this->entry_->handler (flow_handler);
00535 //this->entry_->address (inet_addr);
00536 this->entry_->address (local_addr);
00537 }
00538 else
00539 {
00540 this->endpoint_->set_control_flow_handler (this->flowname_.c_str (),flow_handler);
00541
00542 this->entry_->control_protocol_object (object);
00543 this->entry_->set_local_control_addr (local_addr);
00544 this->entry_->control_handler (flow_handler);
00545 }
00546
00547 char buf[BUFSIZ];
00548 local_addr->addr_to_string (buf,BUFSIZ);
00549 if (TAO_debug_level > 0)
00550 ACE_DEBUG ((LM_DEBUG,
00551 "TAO_AV_UDP_ACCEPTOR::open:%s \n",
00552 buf));
00553
00554 // call activate svc handler.
00555 return this->activate_svc_handler (flow_handler);
00556 }
|
|
|
Reimplemented from TAO_AV_Acceptor. |
|
|
Definition at line 169 of file UDP.h. Referenced by open_i(), and ~TAO_AV_UDP_Acceptor(). |
|
|
|
|
|
|
|
|
Definition at line 173 of file UDP.h. Referenced by activate_svc_handler(), open(), open_default(), open_i(), and ~TAO_AV_UDP_Acceptor(). |
|
|
|
