ACE_TLI Class Reference

Defines the member functions for the base class of the ACE_TLI abstraction. More...

#include <TLI.h>

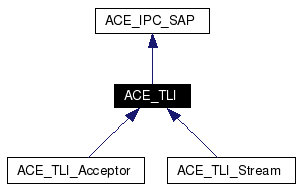

Inheritance diagram for ACE_TLI:

Inheritance graph
[legend]
Collaboration diagram for ACE_TLI:

Collaboration graph
[legend]
List of all members.

Public Member Functions

ACE_HANDLE open (const char device[], int oflag=O_RDWR, struct t_info *info=0)
 Initialize a TLI endpoint.

int close (void)
 Close a TLI endpoint and release resources.

int set_option (int level, int option, void *optval, int optlen)
 Set underlying protocol options.

int get_option (int level, int option, void *optval, int &optlen)
 Get underlying protocol options.

int look (void) const
int rcvdis (struct t_discon *=0) const
int snddis (struct t_call *=0) const
int sndrel (void) const
int rcvrel (void) const
int get_local_addr (ACE_Addr &) const
 Return our local endpoint address.

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Member Functions

 ACE_TLI (void)
 Default constructor.

 ~ACE_TLI (void)
 Destructor.

 ACE_TLI (const char device[], int oflag=O_RDWR, struct t_info *info=0)
 Initialize a TLI endpoint.

Detailed Description

Defines the member functions for the base class of the ACE_TLI abstraction.

Definition at line 55 of file TLI.h.

Constructor & Destructor Documentation

ACE_TLI::ACE_TLI (  void   )  [protected]


Default constructor.

Definition at line 34 of file TLI.cpp.

References ACE_NEW, and ACE_TRACE.

00035 {
00036   ACE_TRACE ("ACE_TLI::ACE_TLI");
00037 #if defined (ACE_HAS_SVR4_TLI)
00038 // Solaris 2.4 ACE_TLI option handling is broken.  Thus, we must do
00039 // the memory allocation ourselves...  Thanks to John P. Hearn
00040 // (jph@ccrl.nj.nec.com) for the help.
00041
00042   this->so_opt_req.opt.maxlen = sizeof (opthdr) + sizeof (long);
00043   ACE_NEW (this->so_opt_req.opt.buf,
00044            char[this->so_opt_req.opt.maxlen]);
00045
00046   this->so_opt_ret.opt.maxlen = sizeof (opthdr) + sizeof (long);
00047   ACE_NEW (this->so_opt_ret.opt.buf,
00048            char[this->so_opt_ret.opt.maxlen]);
00049
00050   if (this->so_opt_ret.opt.buf == 0)
00051     {
00052       delete [] this->so_opt_req.opt.buf;
00053       this->so_opt_req.opt.buf = 0;
00054       return;
00055     }
00056 #endif /* ACE_HAS_SVR4_TLI */
00057 }

ACE_TLI::~ACE_TLI (  void   )  [protected]


Destructor.

Definition at line 70 of file TLI.cpp.

References ACE_TRACE.

00071 {
00072   ACE_TRACE ("ACE_TLI::~ACE_TLI");
00073 #if defined (ACE_HAS_SVR4_TLI)
00074   if (this->so_opt_req.opt.buf)
00075     {
00076       delete [] this->so_opt_req.opt.buf;
00077       delete [] this->so_opt_ret.opt.buf;
00078       this->so_opt_req.opt.buf = 0;
00079       this->so_opt_ret.opt.buf = 0;
00080     }
00081 #endif /* ACE_HAS_SVR4_TLI */
00082 }

ACE_TLI::ACE_TLI (  const char  device[],
int  oflag = O_RDWR,
struct t_info *  info = 0
)  [protected]


Initialize a TLI endpoint.

Definition at line 84 of file TLI.cpp.

References ACE_ERROR, ACE_LIB_TEXT, ACE_TRACE, LM_ERROR, and open().

00085 {
00086   ACE_TRACE ("ACE_TLI::ACE_TLI");
00087   if (this->open (device, oflag, info) == ACE_INVALID_HANDLE)
00088     ACE_ERROR ((LM_ERROR,
00089                 ACE_LIB_TEXT ("%p\n"),
00090                 ACE_LIB_TEXT ("ACE_TLI::ACE_TLI")));
00091 }

Member Function Documentation

int ACE_TLI::close (  void   )


Close a TLI endpoint and release resources.

Reimplemented in ACE_TLI_Acceptor, and ACE_TLI_Stream.

Definition at line 109 of file TLI.cpp.

References ACE_TRACE, ACE_IPC_SAP::get_handle(), ACE_IPC_SAP::set_handle(), and ACE_OS::t_close().

Referenced by ACE_TLI_Acceptor::close().

00110 {
00111   ACE_TRACE ("ACE_TLI::close");
00112   int result = 0; // Geisler: result must be int
00113
00114   if (this->get_handle () != ACE_INVALID_HANDLE)
00115     {
00116       result = ACE_OS::t_close (this->get_handle ());
00117       this->set_handle (ACE_INVALID_HANDLE);
00118     }
00119   return result;
00120 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_TLI::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_TLI_Acceptor, and ACE_TLI_Stream.

Definition at line 27 of file TLI.cpp.

References ACE_TRACE.

00028 {
00029 #if defined (ACE_HAS_DUMP)
00030   ACE_TRACE ("ACE_TLI::dump");
00031 #endif /* ACE_HAS_DUMP */
00032 }

int ACE_TLI::get_local_addr (  ACE_Addr &   )  const


Return our local endpoint address.

Definition at line 94 of file TLI.cpp.

References ACE_TRACE, ACE_Addr::get_addr(), ACE_Addr::get_size(), and ACE_OS::t_getname().

00095 {
00096   ACE_TRACE ("ACE_TLI::get_local_addr");
00097   struct netbuf name;
00098
00099   name.maxlen = sa.get_size ();
00100   name.buf    = (char *) sa.get_addr ();
00101
00102   if (ACE_OS::t_getname (this->get_handle (), &name, LOCALNAME) == -1)
00103     return -1;
00104   else
00105     return 0;
00106 }

int ACE_TLI::get_option (  int  level,
int  option,
void *  optval,
int &  optlen
)


Get underlying protocol options.

Definition at line 191 of file TLI.cpp.

References ACE_NEW_RETURN, ACE_TRACE, ENOTSUP, ACE_OS::memcpy(), ACE_OS::t_optmgmt(), and t_optmgmt().

00192 {
00193   ACE_TRACE ("ACE_TLI::get_option");
00194 #if defined (ACE_HAS_XTI)
00195   // ret will get the option requested in req.
00196   struct t_optmgmt req, ret;
00197   ACE_NEW_RETURN (req.opt.buf, char[sizeof (struct t_opthdr)], -1);
00198 #  if (_XOPEN_SOURCE - 0 >= 500)
00199   auto_ptr<char> req_opt_buf_p (reinterpret_cast<char*> (req.opt.buf));
00200 #  else
00201   ACE_Auto_Array_Ptr<char> req_opt_buf_p (req.opt.buf);
00202 #  endif /* XPG5 vs XPG4 */
00203   struct t_opthdr *opthdr =
00204     reinterpret_cast<struct t_opthdr *> (req.opt.buf);
00205   ACE_NEW_RETURN (ret.opt.buf, char[sizeof (struct t_opthdr) + optlen], -1);
00206 #  if (_XOPEN_SOURCE - 0 >= 500)
00207   auto_ptr<char> ret_opt_buf_p (reinterpret_cast<char*> (ret.opt.buf));
00208 #  else
00209   ACE_Auto_Array_Ptr<char> ret_opt_buf_p (ret.opt.buf);
00210 #  endif /* XPG5 vs XPG4 */
00211
00212   req.flags = T_CURRENT;
00213   req.opt.len = sizeof *opthdr;
00214   ret.opt.maxlen = sizeof (struct t_opthdr) + optlen;
00215   opthdr->level = level;
00216   opthdr->name  = option;
00217   opthdr->len   = sizeof (*opthdr);    // Just the header on the request
00218   if (ACE_OS::t_optmgmt (this->get_handle (), &req, &ret) == -1)
00219     return -1;
00220   else
00221     {
00222       opthdr = reinterpret_cast<struct t_opthdr *> (ret.opt.buf);
00223       if (opthdr->status == T_NOTSUPPORT)
00224         {
00225           errno = ENOTSUP;
00226           return -1;
00227         }
00228       else
00229         {
00230           ACE_OS::memcpy (optval, &opthdr[1], optlen);
00231           return 0;
00232         }
00233     }
00234
00235 #elif defined (ACE_HAS_SVR4_TLI)
00236   struct opthdr *opthdr = 0; /* See <sys/socket.h> for details on this format */
00237
00238   this->so_opt_req.flags = T_CHECK;
00239   this->so_opt_ret.opt.len = sizeof *opthdr + OPTLEN (optlen);
00240
00241   if (this->so_opt_ret.opt.len > this->so_opt_ret.opt.maxlen)
00242     {
00243 #if !defined (ACE_HAS_SET_T_ERRNO)
00244       t_errno = TBUFOVFLW;
00245 #else
00246       set_t_errno (TBUFOVFLW);
00247 #endif /* ACE_HAS_SET_T_ERRNO */
00248       return -1;
00249     }
00250
00251   opthdr        = (struct opthdr *) this->so_opt_req.opt.buf;
00252   opthdr->level = level;
00253   opthdr->name  = option;
00254   opthdr->len   = OPTLEN (optlen);
00255   if (ACE_OS::t_optmgmt (this->get_handle (), &this->so_opt_req, &this->so_opt_ret) == -1)
00256     return -1;
00257   else
00258     {
00259       ACE_OS::memcpy (optval, OPTVAL (opthdr), optlen);
00260       return 0;
00261     }
00262 #else
00263   ACE_UNUSED_ARG (level);
00264   ACE_UNUSED_ARG (option);
00265   ACE_UNUSED_ARG (optval);
00266   ACE_UNUSED_ARG (optlen);
00267   return -1;
00268 #endif /* ACE_HAS_SVR4_TLI */
00269 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_TLI::look (  void   )  const


Definition at line 12 of file TLI.inl.

References ACE_TRACE, and ACE_OS::t_look().

Referenced by ACE_TLI_Stream::active_close(), ACE_TLI_Connector::connect(), and ACE_TLI_Acceptor::handle_async_event().

00013 {
00014   ACE_TRACE ("ACE_TLI::look");
00015   return ACE_OS::t_look (this->get_handle ());
00016 }

ACE_HANDLE ACE_TLI::open (  const char  device[],
int  oflag = O_RDWR,
struct t_info *  info = 0
)


Initialize a TLI endpoint.

Definition at line 60 of file TLI.cpp.

References ACE_TRACE, ACE_IPC_SAP::get_handle(), and ACE_IPC_SAP::set_handle().

Referenced by ACE_TLI(), ACE_TLI_Connector::connect(), and ACE_TLI_Acceptor::open().

00061 {
00062   ACE_TRACE ("ACE_TLI::open");
00063   if (oflag == 0)
00064     oflag = O_RDWR;
00065   this->set_handle (ACE_OS::t_open ((char *) device, oflag, info));
00066
00067   return this->get_handle ();
00068 }

ACE_INLINE int ACE_TLI::rcvdis (  struct t_discon *  = 0  )  const


Definition at line 20 of file TLI.inl.

References ACE_TRACE, and ACE_OS::t_rcvdis().

Referenced by ACE_TLI_Connector::connect(), and ACE_TLI_Acceptor::handle_async_event().

00021 {
00022   ACE_TRACE ("ACE_TLI::rcvdis");
00023   return ACE_OS::t_rcvdis (this->get_handle (), discon);
00024 }

ACE_INLINE int ACE_TLI::rcvrel (  void   )  const


Definition at line 36 of file TLI.inl.

References ACE_TRACE, and ACE_OS::t_rcvrel().

Referenced by ACE_TLI_Stream::active_close(), and ACE_TLI_Stream::passive_close().

00037 {
00038   ACE_TRACE ("ACE_TLI::rcvrel");
00039   return ACE_OS::t_rcvrel (this->get_handle ());
00040 }

int ACE_TLI::set_option (  int  level,
int  option,
void *  optval,
int  optlen
)


Set underlying protocol options.

Definition at line 123 of file TLI.cpp.

References ACE_NEW_RETURN, ACE_TRACE, ACE_OS::memcpy(), ACE_OS::t_optmgmt(), and t_optmgmt().

Referenced by ACE_TLI_Connector::connect(), and ACE_TLI_Acceptor::open().

00124 {
00125   /* Set up options for ACE_TLI */
00126   ACE_TRACE ("ACE_TLI::set_option");
00127
00128 #if defined (ACE_HAS_XTI)
00129   // ret will get the negotiated option back after attempting to set it.
00130   // Assume this will fit in the requested size.
00131   struct t_optmgmt req, ret;
00132   ACE_NEW_RETURN (req.opt.buf, char[sizeof (struct t_opthdr) + optlen], -1);
00133 #  if (_XOPEN_SOURCE - 0 >= 500)
00134   auto_ptr<char> req_opt_buf_p (reinterpret_cast<char*> (req.opt.buf));
00135 #  else
00136   ACE_Auto_Array_Ptr<char> req_opt_buf_p (req.opt.buf);
00137 #  endif /* XPG5 vs XPG4 */
00138   struct t_opthdr *opthdr =
00139     reinterpret_cast<struct t_opthdr *> (req.opt.buf);
00140   ACE_NEW_RETURN (ret.opt.buf, char[sizeof (struct t_opthdr) + optlen], -1);
00141 #  if (_XOPEN_SOURCE - 0 >= 500)
00142   auto_ptr<char> ret_opt_buf_p (reinterpret_cast<char*> (ret.opt.buf));
00143 #  else
00144   ACE_Auto_Array_Ptr<char> ret_opt_buf_p (ret.opt.buf);
00145 #  endif /* XPG5 vs XPG4 */
00146
00147   req.flags = T_NEGOTIATE;
00148   req.opt.len = sizeof *opthdr + optlen;
00149   ret.opt.maxlen = req.opt.len;
00150   opthdr->level = level;
00151   opthdr->name  = option;
00152   opthdr->len   = req.opt.len;   // We only request one option at a time.
00153   ACE_OS::memcpy (&opthdr[1], optval, optlen);
00154   return ACE_OS::t_optmgmt (this->get_handle (), &req, &ret);
00155
00156 #elif defined (ACE_HAS_SVR4_TLI)
00157   struct opthdr *opthdr = 0; /* See <sys/socket.h> for info on this format */
00158
00159   this->so_opt_req.flags = T_NEGOTIATE;
00160   this->so_opt_req.opt.len = sizeof *opthdr + OPTLEN (optlen);
00161
00162   if (this->so_opt_req.opt.len > this->so_opt_req.opt.maxlen)
00163     {
00164 #  if !defined (ACE_HAS_SET_T_ERRNO)
00165       t_errno = TBUFOVFLW;
00166 #  else
00167       set_t_errno (TBUFOVFLW);
00168 #  endif /* ACE_HAS_SET_T_ERRNO */
00169       return -1;
00170     }
00171
00172   opthdr = reinterpret_cast<struct opthdr *> (this->so_opt_req.opt.buf);
00173   opthdr->level = level;
00174   opthdr->name  = option;
00175   opthdr->len   = OPTLEN (optlen);
00176   ACE_OS::memcpy (OPTVAL (opthdr), optval, optlen);
00177
00178   return ACE_OS::t_optmgmt (this->get_handle (),
00179                             &this->so_opt_req,
00180                             &this->so_opt_ret);
00181 #else
00182   ACE_UNUSED_ARG (level);
00183   ACE_UNUSED_ARG (option);
00184   ACE_UNUSED_ARG (optval);
00185   ACE_UNUSED_ARG (optlen);
00186   return -1;
00187 #endif /* ACE_HAS_XTI, else ACE_HAS_SVR4_TLI */
00188 }

ACE_INLINE int ACE_TLI::snddis (  struct t_call *  = 0  )  const


Definition at line 28 of file TLI.inl.

References ACE_TRACE, and ACE_OS::t_snddis().

00029 {
00030   ACE_TRACE ("ACE_TLI::snddis");
00031   return ACE_OS::t_snddis (this->get_handle (), call);
00032 }

ACE_INLINE int ACE_TLI::sndrel (  void   )  const


Definition at line 44 of file TLI.inl.

References ACE_TRACE, and ACE_OS::t_sndrel().

Referenced by ACE_TLI_Stream::active_close(), and ACE_TLI_Stream::passive_close().

00045 {
00046   ACE_TRACE ("ACE_TLI::sndrel");
00047   return ACE_OS::t_sndrel (this->get_handle ());
00048 }

Member Data Documentation

ACE_TLI::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_TLI_Acceptor, and ACE_TLI_Stream.

Definition at line 87 of file TLI.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:31:34 2006 for ACE by doxygen 1.3.6
