ACE_SPIPE_Stream Class Reference

Defines the methods in the abstraction. More...

#include <SPIPE_Stream.h>

Inheritance diagram for ACE_SPIPE_Stream:

Inheritance graph
[legend]

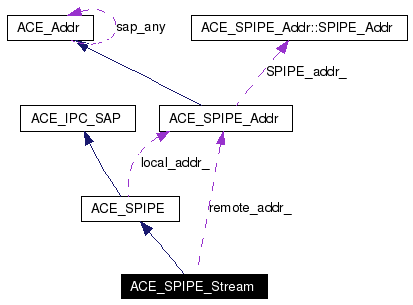

Collaboration diagram for ACE_SPIPE_Stream:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_SPIPE_Addr PEER_ADDR

Public Member Functions

 ACE_SPIPE_Stream (void)
 Default constructor.

int get_remote_addr (ACE_SPIPE_Addr &remote_sap) const
 Obtain the address of whom we are connected with.

int send_handle (ACE_HANDLE handle) const
 Send an open FD to another process.

int recv_handle (ACE_HANDLE &handle) const
 Recv an open FD from another process.

int recv_handle (strrecvfd &recvfd) const
 Recv an open FD from another process.

ssize_t send_n (const void *buf, size_t len) const
 Send bytes, keep trying until are sent.

ssize_t recv_n (void *buf, size_t len) const
 Recv bytes, keep trying until are received.

ssize_t send (const void *buf, size_t len) const
 Send bytes via STREAM pipes using "band" mode.

ssize_t recv (void *buf, size_t len) const
 Recv bytes via STREAM pipes using "band" mode.

ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int flags=0) const
 Send and via STREAM pipes.

ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *flags) const
 Recv and via STREAM pipes.

ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int band, int flags) const
 Send bytes via STREAM pipes using "band" mode.

ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *band, int *flags) const
 Recv bytes via STREAM pipes using "band" mode.

ssize_t send (const iovec iov[], int len) const
 Send iovecs via the OS "gather-write" operation.

ssize_t recv (iovec iov[], int len) const
 Recv iovecs via the OS "scatter-read" operation.

ssize_t send (size_t len,...) const
ssize_t recv (size_t len,...) const
ssize_t send (const void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Send bytes via Win32 using overlapped I/O.

ssize_t recv (void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Recv bytes via Win32 using overlapped I/O.

ssize_t sendv (const iovec iov[], int len) const
 Send an of size to the stream.

ssize_t sendv_n (const iovec iov[], int len) const
ssize_t recvv_n (iovec iov[], int len) const
 Receive an of size to the stream.

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Attributes

ACE_SPIPE_Addr remote_addr_

Friends

class ACE_SPIPE_Acceptor
class ACE_SPIPE_Connector

Detailed Description

Defines the methods in the abstraction.

is the buffer to write from or receive into. is the number of bytes to transfer.

The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK.

The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

Methods with parameter are I/O vector variants of the I/O operations.

The and operations use "message" semantics rather than "bytestream" semantics.

Definition at line 53 of file SPIPE_Stream.h.

Member Typedef Documentation

typedef ACE_SPIPE_Addr ACE_SPIPE_Stream::PEER_ADDR


Definition at line 152 of file SPIPE_Stream.h.

Constructor & Destructor Documentation

ACE_SPIPE_Stream::ACE_SPIPE_Stream (  void   )


Default constructor.

Definition at line 26 of file SPIPE_Stream.cpp.

00027 {
00028   // ACE_TRACE ("ACE_SPIPE_Stream::ACE_SPIPE_Stream");
00029 }

Member Function Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_SPIPE_Stream::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_SPIPE.

Definition at line 17 of file SPIPE_Stream.cpp.

References ACE_TRACE.

00018 {
00019 #if defined (ACE_HAS_DUMP)
00020   ACE_TRACE ("ACE_SPIPE_Stream::dump");
00021 #endif /* ACE_HAS_DUMP */
00022 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int ACE_SPIPE_Stream::get_remote_addr (  ACE_SPIPE_Addr &  remote_sap  )  const


Obtain the address of whom we are connected with.

Definition at line 17 of file SPIPE_Stream.inl.

References ACE_TRACE, and remote_addr_.

Referenced by ACE_UPIPE_Acceptor::accept().

00018 {
00019   ACE_TRACE ("ACE_SPIPE_Stream::get_remote_addr");
00020   remote_sap = this->remote_addr_;
00021   return 0;
00022 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  void *  buf,
size_t  len,
ACE_OVERLAPPED *  overlapped
)  const


Recv bytes via Win32 using overlapped I/O.

Definition at line 231 of file SPIPE_Stream.inl.

References ACE_OVERLAPPED, ACE_TRACE, and ACE_OS::read().

00233 {
00234   ACE_TRACE ("ACE_SPIPE_Stream::recv");
00235   return ACE_OS::read (this->get_handle (),
00236                        (char *) buf, n,
00237                        overlapped);
00238 }

ssize_t ACE_SPIPE_Stream::recv (  size_t  len,
...
)  const


This is an interface to ::readv, that doesn't use the struct iovec explicitly. The ... can be passed as an arbitrary number of (char *ptr, int len) tuples. However, the count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

Definition at line 74 of file SPIPE_Stream.cpp.

References ACE_NEW_RETURN, ACE_TRACE, iovec::iov_base, iovec::iov_len, ACE_OS::readv(), and ssize_t.

00075 {
00076   ACE_TRACE ("ACE_SPIPE_Stream::recv");
00077   va_list argp;
00078   int total_tuples = static_cast<int> (n / 2);
00079   iovec *iovp;
00080 #if defined (ACE_HAS_ALLOCA)
00081   iovp = (iovec *) alloca (total_tuples * sizeof (iovec));
00082 #else
00083   ACE_NEW_RETURN (iovp,
00084                   iovec[total_tuples],
00085                   -1);
00086 #endif /* !defined (ACE_HAS_ALLOCA) */
00087
00088   va_start (argp, n);
00089
00090   for (int i = 0; i < total_tuples; i++)
00091     {
00092       iovp[i].iov_base = va_arg (argp, char *);
00093       iovp[i].iov_len  = va_arg (argp, int);
00094     }
00095
00096   ssize_t result = ACE_OS::readv (this->get_handle (), iovp, total_tuples);
00097 #if !defined (ACE_HAS_ALLOCA)
00098   delete [] iovp;
00099 #endif /* !defined (ACE_HAS_ALLOCA) */
00100   va_end (argp);
00101   return result;
00102 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  iovec  iov[],
int  len
)  const


Recv iovecs via the OS "scatter-read" operation.

Definition at line 94 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::readv().

00095 {
00096   ACE_TRACE ("ACE_SPIPE_Stream::recv");
00097   return ACE_OS::readv (this->get_handle (), iov, n);
00098 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  ACE_Str_Buf *  cntl,
ACE_Str_Buf *  data,
int *  band,
int *  flags
)  const


Recv bytes via STREAM pipes using "band" mode.

Definition at line 80 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::getpmsg().

00081 {
00082   ACE_TRACE ("ACE_SPIPE_Stream::recv");
00083   return ACE_OS::getpmsg (this->get_handle (), (strbuf *) cntl, (strbuf *) data, band, flags);
00084 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  ACE_Str_Buf *  cntl,
ACE_Str_Buf *  data,
int *  flags
)  const


Recv and via STREAM pipes.

Definition at line 66 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::getmsg().

00067 {
00068   ACE_TRACE ("ACE_SPIPE_Stream::recv");
00069   return ACE_OS::getmsg (this->get_handle (), (strbuf *) cntl, (strbuf *) data, flags);
00070 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  void *  buf,
size_t  len
)  const


Recv bytes via STREAM pipes using "band" mode.

Definition at line 52 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::read().

Referenced by recv_handle(), and send_handle().

00053 {
00054   ACE_TRACE ("ACE_SPIPE_Stream::recv");
00055   return ACE_OS::read (this->get_handle (), (char *) buf, n);
00056 }

ACE_INLINE int ACE_SPIPE_Stream::recv_handle (  strrecvfd &  recvfd  )  const


Recv an open FD from another process.

Definition at line 209 of file SPIPE_Stream.inl.

References ACE_NOTSUP_RETURN, ACE_TRACE, and ACE_OS::ioctl().

00210 {
00211   ACE_TRACE ("ACE_SPIPE_Stream::recv_handle");
00212 #if defined (ACE_HAS_STREAM_PIPES)
00213   return ACE_OS::ioctl (this->get_handle (), I_RECVFD, (void *) &recvfd);
00214 #else
00215   ACE_UNUSED_ARG (recvfd);
00216   ACE_NOTSUP_RETURN (-1);
00217 #endif /* ACE_HAS_STREAM_PIPES */
00218 }

ACE_INLINE int ACE_SPIPE_Stream::recv_handle (  ACE_HANDLE &  handle  )  const


Recv an open FD from another process.

Definition at line 151 of file SPIPE_Stream.inl.

References ACE_NOTSUP_RETURN, ACE_TRACE, ENXIO, ACE_OS::getpid(), ACE_OS::ioctl(), pid_t, recv(), send(), ACE_OS::socket(), and ssize_t.

00152 {
00153   ACE_TRACE ("ACE_SPIPE_Stream::recv_handle");
00154 #if defined (ACE_HAS_STREAM_PIPES)
00155   strrecvfd recvfd;
00156
00157   if (ACE_OS::ioctl (this->get_handle (), I_RECVFD, (void *) &recvfd) == -1)
00158     return -1;
00159   else
00160     {
00161       handle = recvfd.fd;
00162       return 0;
00163     }
00164 #elif defined (ACE_WIN32) && \
00165       (defined (ACE_HAS_WINSOCK2) && (ACE_HAS_WINSOCK2 != 0))
00166   pid_t procID = ACE_OS::getpid();
00167   WSAPROTOCOL_INFO protInfo;
00168   ssize_t res;
00169   res = this->send(&procID, sizeof(procID));
00170   if (res != sizeof(procID))
00171   {
00172     if(res != -1)
00173         errno = ENXIO;
00174     return -1;
00175   }
00176   res = this->recv(&protInfo, sizeof(protInfo));
00177   if (res != sizeof(protInfo))
00178   {
00179     if(res != -1)
00180         errno = ENXIO;
00181      return -1;
00182   }
00183   handle = ACE_OS::socket (FROM_PROTOCOL_INFO, FROM_PROTOCOL_INFO, FROM_PROTOCOL_INFO,
00184                            &protInfo, 0, 0);
00185   if (handle == ACE_INVALID_HANDLE)
00186   {
00187     return -1;
00188   }
00189   // Since it does not matter what the data is, just send something to
00190   // synchronize the end of the exchange
00191   res = this->send(&procID, sizeof(procID));
00192   if (res != sizeof(procID))
00193   {
00194     if(res != -1)
00195         errno = ENXIO;
00196     return -1;
00197   }
00198   return 0;
00199 #else
00200   handle = handle;
00201   ACE_NOTSUP_RETURN (-1);
00202 #endif /* ACE_HAS_STREAM_PIPES */
00203 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv_n (  void *  buf,
size_t  len
)  const


Recv bytes, keep trying until are received.

Definition at line 38 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE::read_n().

00039 {
00040   ACE_TRACE ("ACE_SPIPE_Stream::recv_n");
00041   return ACE::read_n (this->get_handle (), buf, n);
00042 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::recvv_n (  iovec  iov[],
int  len
)  const


Receive an of size to the stream.

Definition at line 253 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::readv().

00255 {
00256   ACE_TRACE ("ACE_SPIPE_Stream::recvv_n");
00257   // @@ Carlos, can you please update this to call the
00258   // new ACE::recvv_n() method that you write?
00259   return ACE_OS::readv (this->get_handle (),
00260                         iov,
00261                         n);
00262 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const void *  buf,
size_t  len,
ACE_OVERLAPPED *  overlapped
)  const


Send bytes via Win32 using overlapped I/O.

Definition at line 221 of file SPIPE_Stream.inl.

References ACE_OVERLAPPED, ACE_TRACE, and ACE_OS::write().

00223 {
00224   ACE_TRACE ("ACE_SPIPE_Stream::send");
00225   return ACE_OS::write (this->get_handle (),
00226                         (const char *) buf, n,
00227                         overlapped);
00228 }

ssize_t ACE_SPIPE_Stream::send (  size_t  len,
...
)  const


Send N char *ptrs and int lengths. Note that the char *'s precede the ints (basically, an varargs version of writev). The count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

Definition at line 37 of file SPIPE_Stream.cpp.

References ACE_NEW_RETURN, iovec::iov_base, iovec::iov_len, ssize_t, and ACE_OS::writev().

00038 {
00039   // ACE_TRACE ("ACE_SPIPE_Stream::send");
00040   va_list argp;
00041   int total_tuples = static_cast<int> (n / 2);
00042   iovec *iovp;
00043 #if defined (ACE_HAS_ALLOCA)
00044   iovp = (iovec *) alloca (total_tuples * sizeof (iovec));
00045 #else
00046   ACE_NEW_RETURN (iovp,
00047                   iovec[total_tuples],
00048                   -1);
00049 #endif /* !defined (ACE_HAS_ALLOCA) */
00050
00051   va_start (argp, n);
00052
00053   for (int i = 0; i < total_tuples; i++)
00054     {
00055       iovp[i].iov_base = va_arg (argp, char *);
00056       iovp[i].iov_len  = va_arg (argp, int);
00057     }
00058
00059   ssize_t result = ACE_OS::writev (this->get_handle (), iovp, total_tuples);
00060 #if !defined (ACE_HAS_ALLOCA)
00061   delete [] iovp;
00062 #endif /* !defined (ACE_HAS_ALLOCA) */
00063   va_end (argp);
00064   return result;
00065 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const iovec  iov[],
int  len
)  const


Send iovecs via the OS "gather-write" operation.

Definition at line 87 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::writev().

00088 {
00089   ACE_TRACE ("ACE_SPIPE_Stream::send");
00090   return ACE_OS::writev (this->get_handle (), iov, n);
00091 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const ACE_Str_Buf *  cntl,
const ACE_Str_Buf *  data,
int  band,
int  flags
)  const


Send bytes via STREAM pipes using "band" mode.

Definition at line 73 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::putpmsg().

00074 {
00075   ACE_TRACE ("ACE_SPIPE_Stream::send");
00076   return ACE_OS::putpmsg (this->get_handle (), (strbuf *) cntl, (strbuf *) data, band, flags);
00077 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const ACE_Str_Buf *  cntl,
const ACE_Str_Buf *  data,
int  flags = 0
)  const


Send and via STREAM pipes.

Definition at line 59 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::putmsg().

00060 {
00061   ACE_TRACE ("ACE_SPIPE_Stream::send");
00062   return ACE_OS::putmsg (this->get_handle (), (strbuf *) cntl, (strbuf *) data, flags);
00063 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const void *  buf,
size_t  len
)  const


Send bytes via STREAM pipes using "band" mode.

Definition at line 45 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::write().

Referenced by recv_handle(), and send_handle().

00046 {
00047   ACE_TRACE ("ACE_SPIPE_Stream::send");
00048   return ACE_OS::write (this->get_handle (), (const char *) buf, n);
00049 }

ACE_INLINE int ACE_SPIPE_Stream::send_handle (  ACE_HANDLE  handle  )  const


Send an open FD to another process.

Definition at line 103 of file SPIPE_Stream.inl.

References ACE_NOTSUP_RETURN, ACE_TRACE, ENXIO, ACE_OS::ioctl(), recv(), send(), ACE_OS::set_errno_to_wsa_last_error(), and ssize_t.

00104 {
00105   ACE_TRACE ("ACE_SPIPE_Stream::send_handle");
00106 #if defined (ACE_HAS_STREAM_PIPES)
00107   return ACE_OS::ioctl (this->get_handle (), I_SENDFD, (void *) handle);
00108 #elif defined (ACE_WIN32) && \
00109       (defined (ACE_HAS_WINSOCK2) && (ACE_HAS_WINSOCK2 != 0)) && \
00110        !defined (ACE_HAS_WINCE)   /* CE4 has WS2 but not WSADuplicateSocket */
00111   DWORD procID;
00112   WSAPROTOCOL_INFO protInfo;
00113   ssize_t res;
00114   res = this->recv(&procID, sizeof(procID));
00115   if (res != sizeof(procID))
00116   {
00117     if(res != -1)
00118         errno = ENXIO;
00119     return -1;
00120   }
00121   if (::WSADuplicateSocket ((SOCKET)handle, procID, &protInfo) == -1)
00122   {
00123     ACE_OS::set_errno_to_wsa_last_error();
00124       return -1;
00125   }
00126   res = this->send(&protInfo, sizeof(protInfo));
00127   if (res != sizeof(protInfo))
00128   {
00129     if(res != -1)
00130         errno = ENXIO;
00131     return -1;
00132   }
00133   // This is just for synchronization, we will ignore the data
00134   res = this->recv(&procID, sizeof(procID));
00135   if (res != sizeof(procID))
00136   {
00137     if(res != -1)
00138         errno = ENXIO;
00139     return -1;
00140   }
00141   return 0;
00142 #else
00143   handle = handle;
00144   ACE_NOTSUP_RETURN (-1);
00145 #endif /* ACE_HAS_STREAM_PIPES */
00146 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::send_n (  const void *  buf,
size_t  len
)  const


Send bytes, keep trying until are sent.

Definition at line 28 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE::write_n().

00029 {
00030   ACE_TRACE ("ACE_SPIPE_Stream::send_n");
00031   return ACE::write_n (this->get_handle (), buf, n);
00032 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::sendv (  const iovec  iov[],
int  len
)  const


Send an of size to the stream.

Definition at line 267 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE_OS::writev().

00269 {
00270   ACE_TRACE ("ACE_SPIPE_Stream::sendv");
00271   return ACE_OS::writev (this->get_handle (),
00272                          iov,
00273                          n);
00274 }

ACE_INLINE ssize_t ACE_SPIPE_Stream::sendv_n (  const iovec  iov[],
int  len
)  const


Send an of size to the stream. Will block until all bytes are sent or an error occurs.

Definition at line 241 of file SPIPE_Stream.inl.

References ACE_TRACE, and ACE::writev_n().

00243 {
00244   ACE_TRACE ("ACE_SPIPE_Stream::sendv_n");
00245   return ACE::writev_n (this->get_handle (),
00246                         iov,
00247                         n);
00248 }

Friends And Related Function Documentation

friend class ACE_SPIPE_Acceptor [friend]


Definition at line 56 of file SPIPE_Stream.h.

friend class ACE_SPIPE_Connector [friend]


Definition at line 57 of file SPIPE_Stream.h.

Member Data Documentation

ACE_SPIPE_Stream::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_SPIPE.

Definition at line 158 of file SPIPE_Stream.h.

ACE_SPIPE_Addr ACE_SPIPE_Stream::remote_addr_ [private]


Definition at line 161 of file SPIPE_Stream.h.

Referenced by ACE_SPIPE_Acceptor::accept(), ACE_SPIPE_Connector::connect(), and get_remote_addr().

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:30:06 2006 for ACE by doxygen 1.3.6
