ACE_Asynch_Write_Stream Class Reference

This class is a factory for starting off asynchronous writes on a stream. This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Write_Stream:

Inheritance graph

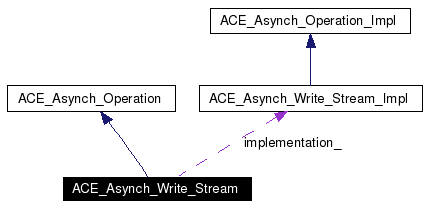

Collaboration diagram for ACE_Asynch_Write_Stream:

Collaboration graph
List of all members.

Public Member Functions

 ACE_Asynch_Write_Stream (void)
 A do nothing constructor.

virtual ~ACE_Asynch_Write_Stream (void)

int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int write (ACE_Message_Block &message_block, size_t bytes_to_write, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Operation_Implimplementation (void) const

Protected Attributes

 Implementation class that all methods will be forwarded to.

Detailed Description

This class is a factory for starting off asynchronous writes on a stream. This class forwards all methods to its implementation class.

Once {open} is called, multiple asynchronous {writes}s can started using this class. An ACE_Asynch_Write_Stream::Result will be passed back to the {handler} when the asynchronous write completes through the {ACE_Handler::handle_write_stream} callback.

Definition at line 424 of file Asynch_IO.h.

Constructor & Destructor Documentation

ACE_Asynch_Write_Stream::ACE_Asynch_Write_Stream void   )

A do nothing constructor.

Definition at line 252 of file Asynch_IO.cpp.

00253   : implementation_ (0)
00254 {
00255 }

ACE_Asynch_Write_Stream::~ACE_Asynch_Write_Stream void   )  [virtual]


Definition at line 257 of file Asynch_IO.cpp.

00258 {
00259   // Delete the implementation.
00260   delete this->implementation_;
00261   this->implementation_ = 0;
00262 }

Member Function Documentation

ACE_Asynch_Operation_Impl * ACE_Asynch_Write_Stream::implementation void   )  const [virtual]

Return the underlying implementation class.

(this should be protected...)

Implements ACE_Asynch_Operation.

Reimplemented in ACE_Asynch_Write_File.

Definition at line 315 of file Asynch_IO.cpp.

00316 {
00317   return this->implementation_;
00318 }

int ACE_Asynch_Write_Stream::open ACE_Handler handler,
const void *  completion_key = 0,
ACE_Proactor proactor = 0

Initializes the factory with information which will be used with each asynchronous call. If ({handle} == ACE_INVALID_HANDLE), {ACE_Handler::handle} will be called on the {handler} to get the correct handle.

Reimplemented from ACE_Asynch_Operation.

Reimplemented in ACE_Asynch_Write_File.

Definition at line 265 of file Asynch_IO.cpp.

References ACE_Proactor::create_asynch_write_stream(), ACE_Asynch_Operation::get_proactor(), and ACE_Asynch_Operation::open().

00269 {
00270   // Get a proactor for/from the user.
00271   proactor = this->get_proactor (proactor, handler);
00273   // Now let us get the implementation initialized.
00274   if ((this->implementation_ = proactor->create_asynch_write_stream ()) == 0)
00275     return -1;
00277   // Call the <open> method of the base class.
00278   return ACE_Asynch_Operation::open (handler,
00279                                      handle,
00280                                      completion_key,
00281                                      proactor);
00282 }

int ACE_Asynch_Write_Stream::write ACE_Message_Block message_block,
size_t  bytes_to_write,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN

This starts off an asynchronous write. Upto {bytes_to_write} will be written from the {message_block}. Upon successful completion of the write operation, {message_block}'s {rd_ptr} is updated to reflect the data that was written. Priority of the operation is specified by {priority}. On POSIX4-Unix, this is supported. Works like {nice} in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth. On Win32, this argument is a no-op. {signal_number} is the POSIX4 real-time signal number to be used for the operation. {signal_number} ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. This argument is a no-op on non-POSIX4 systems.

Definition at line 285 of file Asynch_IO.cpp.

References ACE_Asynch_Write_Stream_Impl::write().

00290 {
00291   return this->implementation_->write (message_block,
00292                                        bytes_to_write,
00293                                        act,
00294                                        priority,
00295                                        signal_number);
00296 }

Member Data Documentation

ACE_Asynch_Write_Stream_Impl* ACE_Asynch_Write_Stream::implementation_ [protected]

Implementation class that all methods will be forwarded to.

Reimplemented in ACE_Asynch_Write_File.

Definition at line 483 of file Asynch_IO.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:20:00 2006 for ACE by doxygen 1.3.6
