ACE_Asynch_Result Class Reference

An interface base class which allows users access to common information related to an asynchronous operation. More...

#include <Asynch_IO.h>

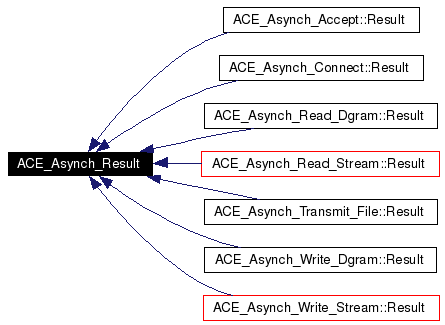

Inheritance diagram for ACE_Asynch_Result:

Inheritance graph
[legend]
Collaboration diagram for ACE_Asynch_Result:

Collaboration graph
[legend]
List of all members.

Public Member Functions

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation.

const void * act (void) const
 ACT associated with the operation.

int success (void) const
 Did the operation succeed?

const void * completion_key (void) const
unsigned long error (void) const
 Error value if the operation fails.

ACE_HANDLE event (void) const
unsigned long offset (void) const
unsigned long offset_high (void) const
int priority (void) const
int signal_number (void) const
virtual ~ACE_Asynch_Result (void)
 Destructor.


Protected Member Functions

 ACE_Asynch_Result (ACE_Asynch_Result_Impl *implementation)
ACE_Asynch_Result_Impl * implementation (void) const
 Get the implementation class.


Protected Attributes

ACE_Asynch_Result_Impl * implementation_
 Implementation class.

Detailed Description

An interface base class which allows users access to common information related to an asynchronous operation.

An interface base class from which you can obtain some basic information like the number of bytes transferred, the ACT associated with the asynchronous operation, indication of success or failure, etc. Subclasses may want to store more information that is particular to the asynchronous operation it represents.

Definition at line 105 of file Asynch_IO.h.

Constructor & Destructor Documentation

ACE_Asynch_Result::~ACE_Asynch_Result (  void   )  [virtual]


Destructor.

Definition at line 82 of file Asynch_IO.cpp.

00083 {
00084   // Proactor deletes the implementation when the <complete> finishes.
00085 }

ACE_Asynch_Result::ACE_Asynch_Result (  ACE_Asynch_Result_Impl *  implementation  )  [protected]


Constructor. This implementation will not be deleted. The implementation will be deleted by the Proactor.

Definition at line 77 of file Asynch_IO.cpp.

00078   : implementation_ (implementation)
00079 {
00080 }

Member Function Documentation

const void * ACE_Asynch_Result::act (  void   )  const


ACT associated with the operation.

Definition at line 24 of file Asynch_IO.cpp.

References ACE_Asynch_Result_Impl::act(), and implementation().

Referenced by ACE_Asynch_Acceptor< HANDLER >::handle_accept(), ACE_Asynch_Connector< HANDLER >::handle_connect(), and ACE_POSIX_Asynch_Transmit_Handler::handle_write_stream().

00025 {
00026   return this->implementation ()->act ();
00027 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL size_t ACE_Asynch_Result::bytes_transferred (  void   )  const


Number of bytes transferred by the operation.

Definition at line 18 of file Asynch_IO.cpp.

References ACE_Asynch_Result_Impl::bytes_transferred(), and implementation().

Referenced by ACE_POSIX_Asynch_Transmit_Handler::handle_read_file(), and ACE_POSIX_Asynch_Transmit_Handler::handle_write_stream().

00019 {
00020   return this->implementation ()->bytes_transferred ();
00021 }

const void * ACE_Asynch_Result::completion_key (  void   )  const


This is the ACT associated with the handle on which the Asynch_Operation takes place.

On WIN32, this returns the ACT associated with the handle when it was registered with the I/O completion port.

@ This is not implemented for POSIX4 platforms. Returns 0.

Definition at line 36 of file Asynch_IO.cpp.

References ACE_Asynch_Result_Impl::completion_key(), and implementation().

00037 {
00038   return this->implementation ()->completion_key ();
00039 }

unsigned long ACE_Asynch_Result::error (  void   )  const


Error value if the operation fails.

Definition at line 42 of file Asynch_IO.cpp.

References ACE_Asynch_Result_Impl::error(), and implementation().

Referenced by ACE_Asynch_Acceptor< HANDLER >::handle_accept(), and ACE_Asynch_Connector< HANDLER >::handle_connect().

00043 {
00044   return this->implementation ()->error ();
00045 }

ACE_HANDLE ACE_Asynch_Result::event (  void   )  const


On WIN32, this returns the event associated with the OVERLAPPED structure.

This returns ACE_INVALID_HANDLE on POSIX4-Unix platforms.

Definition at line 48 of file Asynch_IO.cpp.

References ACE_Asynch_Result_Impl::event(), and implementation().

00049 {
00050   return this->implementation ()->event ();
00051 }

ACE_Asynch_Result_Impl * ACE_Asynch_Result::implementation (  void   )  const [protected]


Get the implementation class.

Reimplemented in ACE_Asynch_Read_Stream::Result, ACE_Asynch_Write_Stream::Result, ACE_Asynch_Read_File::Result, ACE_Asynch_Write_File::Result, ACE_Asynch_Accept::Result, ACE_Asynch_Connect::Result, ACE_Asynch_Transmit_File::Result, ACE_Asynch_Read_Dgram::Result, and ACE_Asynch_Write_Dgram::Result.

Definition at line 88 of file Asynch_IO.cpp.

References implementation_.

Referenced by act(), bytes_transferred(), completion_key(), error(), event(), offset(), offset_high(), priority(), signal_number(), and success().

00089 {
00090   return this->implementation_;
00091 }

unsigned long ACE_Asynch_Result::offset (  void   )  const


This really makes sense only when doing file I/O.

On WIN32, these are represented in the OVERLAPPED datastructure.

@ On POSIX4-Unix, offset_high should be supported using aiocb64.

Definition at line 54 of file Asynch_IO.cpp.

References implementation(), and ACE_Asynch_Result_Impl::offset().

00055 {
00056   return this->implementation ()->offset ();
00057 }

unsigned long ACE_Asynch_Result::offset_high (  void   )  const


Definition at line 60 of file Asynch_IO.cpp.

References implementation(), and ACE_Asynch_Result_Impl::offset_high().

00061 {
00062   return this->implementation ()->offset_high ();
00063 }

int ACE_Asynch_Result::priority (  void   )  const


Priority of the operation.

On POSIX4-Unix, this is supported. Priority works like {nice} in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth.

On Win32, this is a no-op.

Definition at line 66 of file Asynch_IO.cpp.

References implementation(), and ACE_Asynch_Result_Impl::priority().

00067 {
00068   return this->implementation ()->priority ();
00069 }

int ACE_Asynch_Result::signal_number (  void   )  const


POSIX4 real-time signal number to be used for the operation. {signal_number} ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. By default, ACE_SIGRTMIN is used to issue {aio_} calls. This is a no-op on non-POSIX4 systems and returns 0.

Definition at line 72 of file Asynch_IO.cpp.

References implementation(), and ACE_Asynch_Result_Impl::signal_number().

00073 {
00074   return this->implementation ()->signal_number ();
00075 }

int ACE_Asynch_Result::success (  void   )  const


Did the operation succeed?

Definition at line 30 of file Asynch_IO.cpp.

References implementation(), and ACE_Asynch_Result_Impl::success().

Referenced by ACE_Asynch_Acceptor< HANDLER >::handle_accept(), ACE_Asynch_Connector< HANDLER >::handle_connect(), ACE_POSIX_Asynch_Transmit_Handler::handle_read_file(), and ACE_POSIX_Asynch_Transmit_Handler::handle_write_stream().

00031 {
00032   return this->implementation ()->success ();
00033 }

Member Data Documentation

ACE_Asynch_Result_Impl* ACE_Asynch_Result::implementation_ [protected]


Implementation class.

Reimplemented in ACE_Asynch_Read_Stream::Result, ACE_Asynch_Write_Stream::Result, ACE_Asynch_Read_File::Result, ACE_Asynch_Write_File::Result, ACE_Asynch_Accept::Result, ACE_Asynch_Connect::Result, ACE_Asynch_Transmit_File::Result, ACE_Asynch_Read_Dgram::Result, and ACE_Asynch_Write_Dgram::Result.

Definition at line 184 of file Asynch_IO.h.

Referenced by implementation().

The documentation for this class was generated from the following files:
