Adapt classes that implement the "busy lock" protocol, to conform /// to the ACE Lock interface. More...

#include <ESF_Busy_Lock.h>

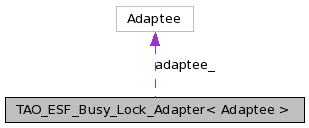

Collaboration diagram for TAO_ESF_Busy_Lock_Adapter< Adaptee >:

Public Member Functions
	TAO_ESF_Busy_Lock_Adapter (Adaptee *adaptee)
	Constructor.
The ACE_Lock methods
Check the documentation in ace/Synch.h for details.
int	remove (void)
int	acquire (void)
int	tryacquire (void)
int	release (void)
int	acquire_read (void)
int	acquire_write (void)
int	tryacquire_read (void)
int	tryacquire_write (void)
Private Attributes
Adaptee *	adaptee_

Detailed Description

template<class Adaptee>
class TAO_ESF_Busy_Lock_Adapter< Adaptee >

Adapt classes that implement the "busy lock" protocol, to conform /// to the ACE Lock interface.

The ACE Lock interface allows us to use any mutex-like object with the ACE synchronization components (such as guards, Lock_Adapter, etc.). One of the synchronization protocols used in the event services uses the following protocol:

To acquire the lock the busy method of the object is invoked.
To release the lock the idle method of the object is invoked.
Any changes performed while the lock is held are delayed until all the locks are released, i.e. the last call to idle executes the changes.

Definition at line 42 of file ESF_Busy_Lock.h.

Constructor & Destructor Documentation

template<class T>

TAO_ESF_Busy_Lock_Adapter< T >::TAO_ESF_Busy_Lock_Adapter ( T * adaptee )

Constructor.

Definition at line 8 of file ESF_Busy_Lock.inl.

  :  adaptee_ (adaptee)
{
}

Member Function Documentation

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::acquire ( void )

Definition at line 21 of file ESF_Busy_Lock.cpp.

{
  return this->adaptee_->busy ();
}

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::acquire_read ( void )

Definition at line 39 of file ESF_Busy_Lock.cpp.

{
  return this->adaptee_->busy ();
}

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::acquire_write ( void )

Definition at line 45 of file ESF_Busy_Lock.cpp.

{
  return this->adaptee_->busy ();
}

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::release ( void )

Definition at line 33 of file ESF_Busy_Lock.cpp.

{
  return this->adaptee_->idle ();
}

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::remove ( void )

Definition at line 15 of file ESF_Busy_Lock.cpp.

{
  return 0;
}

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::tryacquire ( void )

Definition at line 27 of file ESF_Busy_Lock.cpp.

{
  return this->adaptee_->busy ();
}

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::tryacquire_read ( void )

Definition at line 51 of file ESF_Busy_Lock.cpp.

{
  return this->adaptee_->busy ();
}

template<class T >

int TAO_ESF_Busy_Lock_Adapter< T >::tryacquire_write ( void )

Definition at line 57 of file ESF_Busy_Lock.cpp.

{
  return this->adaptee_->busy ();
}

Member Data Documentation

template<class Adaptee>

Adaptee* TAO_ESF_Busy_Lock_Adapter< Adaptee >::adaptee_ [private]

Definition at line 38 of file ESF_Busy_Lock.h.

The documentation for this class was generated from the following files:
