TAO_Notify_Timer_Reactor Class Reference

Reactor::instance based timer. The timers are dispatched by the main thread. More...

#include <Timer_Reactor.h>

Inheritance diagram for TAO_Notify_Timer_Reactor:

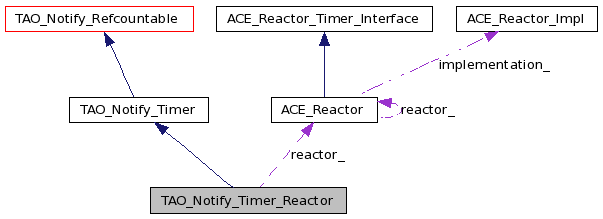

Collaboration diagram for TAO_Notify_Timer_Reactor:

List of all members.

Public Types
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Timer_Reactor >	Ptr
Public Member Functions
	TAO_Notify_Timer_Reactor (void)
	Constructor.
virtual	~TAO_Notify_Timer_Reactor ()
	Destructor.
virtual long	schedule_timer (ACE_Event_Handler *handler, const ACE_Time_Value &delay_time, const ACE_Time_Value &interval)
	Schedule a timer.
virtual int	cancel_timer (long timer_id)
	Cancel Timer.
Protected Attributes
ACE_Reactor *	reactor_
	The instance reactor that we use.
Private Member Functions
virtual void	release (void)
	Release.

---

Detailed Description

Reactor::instance based timer. The timers are dispatched by the main thread.

Definition at line 34 of file Timer_Reactor.h.

---

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Timer_Reactor > TAO_Notify_Timer_Reactor::Ptr

Reimplemented from TAO_Notify_Timer.

Definition at line 37 of file Timer_Reactor.h.

---

Constructor & Destructor Documentation

TAO_Notify_Timer_Reactor::TAO_Notify_Timer_Reactor

(

void

)

Constructor.

Definition at line 16 of file Timer_Reactor.cpp.

  :reactor_ (0)
{
  // Get the ORB
  CORBA::ORB_var orb = TAO_Notify_PROPERTIES::instance()->orb ();

  this->reactor_ =  orb->orb_core ()->reactor ();
}

TAO_Notify_Timer_Reactor::~TAO_Notify_Timer_Reactor

(

)

[virtual]

Destructor.

Definition at line 25 of file Timer_Reactor.cpp.

{
}

---

Member Function Documentation

int TAO_Notify_Timer_Reactor::cancel_timer

(

long

timer_id

)

[virtual]

Cancel Timer.

Implements TAO_Notify_Timer.

Definition at line 45 of file Timer_Reactor.cpp.

{
  return this->reactor_->cancel_timer (timer_id);
}

void TAO_Notify_Timer_Reactor::release

(

void

)

[private, virtual]

Release.

Implements TAO_Notify_Refcountable.

Definition at line 30 of file Timer_Reactor.cpp.

{
  delete this;
  //@@ inform factory
}

long TAO_Notify_Timer_Reactor::schedule_timer	(	ACE_Event_Handler *	handler,
		const ACE_Time_Value &	delay_time,
		const ACE_Time_Value &	interval
	)			[virtual]

Schedule a timer.

Implements TAO_Notify_Timer.

Definition at line 37 of file Timer_Reactor.cpp.

{
  return this->reactor_->schedule_timer (handler, 0, delay_time, interval);
}

---

Member Data Documentation

ACE_Reactor* TAO_Notify_Timer_Reactor::reactor_ [protected]

The instance reactor that we use.

Definition at line 55 of file Timer_Reactor.h.

---

The documentation for this class was generated from the following files:

• Timer_Reactor.h
• Timer_Reactor.cpp
