CORBA::Request Class Reference

CORBA::Request. More...

#include <Request.h>

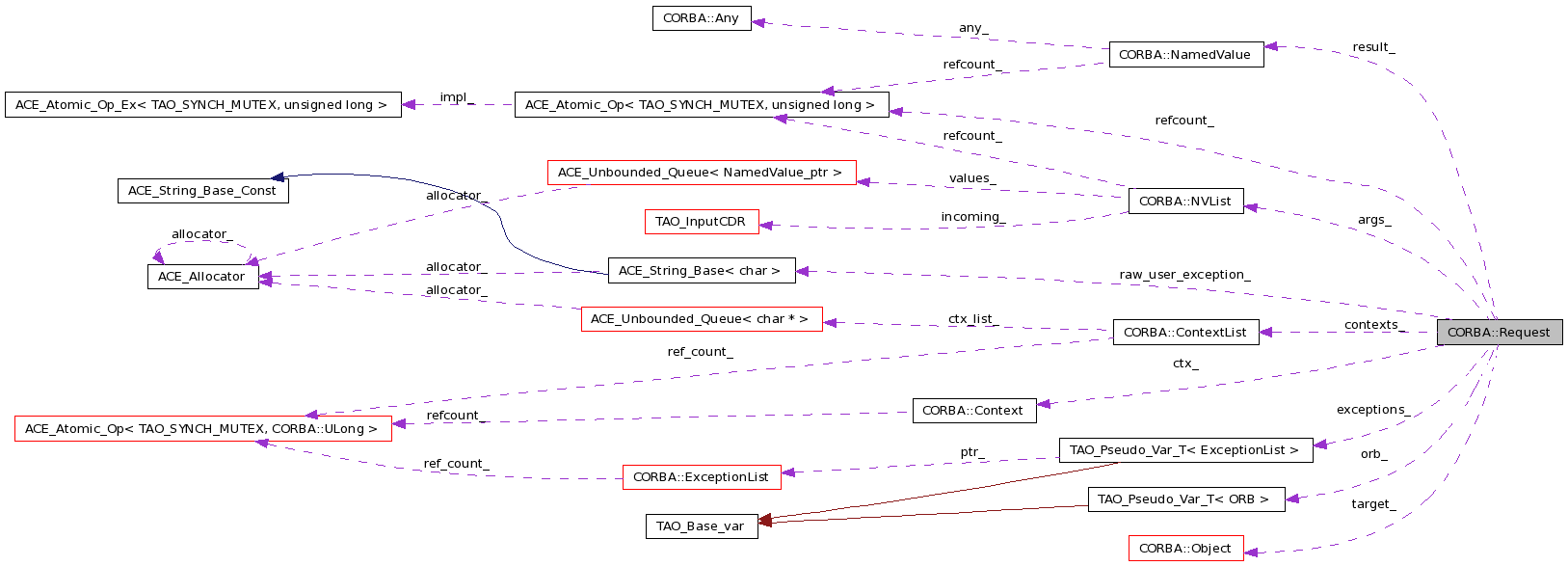

Collaboration diagram for CORBA::Request:
Collaboration graph
[legend]

List of all members.

Public Types

typedef CORBA::Request_ptr _ptr_type
typedef CORBA::Request_var _var_type
typedef CORBA::Request_out _out_type

Public Member Functions

CORBA::Object_ptr target (void) const
 Return the target of this request.
const CORBA::Char * operation (void) const
 Return the operation name for the request.
CORBA::NVList_ptr arguments (void)
 Return the arguments for the request.
CORBA::NamedValue_ptr result (void)
 Return the result for the request.
CORBA::ExceptionList_ptr exceptions (void)
 Return the exceptions resulting from this request.
CORBA::Context_ptr ctx (void) const
 Accessor for the Context member.
void ctx (CORBA::Context_ptr)
 Mutator for the Context member.
CORBA::ContextList_ptr contexts (void)
void set_return_type (CORBA::TypeCode_ptr tc)
 Initialize the return type.
CORBA::Any & return_value (void)
 Returns reference to Any for extraction using >>=.
void invoke (void)
 Perform method resolution and invoke an appropriate method.
void send_oneway (void)
 Send a oneway request.
void handle_response (TAO_InputCDR &incoming, GIOP::ReplyStatusType reply_status)
 Callback method for deferred synchronous requests.
void sendc (CORBA::Object_ptr handler)
CORBA::ULong _incr_refcnt (void)
CORBA::ULong _decr_refcnt (void)
void _tao_lazy_evaluation (bool lazy_evaluation)
 Set the lazy evaluation flag.
int _tao_byte_order (void) const
 Get the byte order member.
void _tao_byte_order (int byte_order)
 Set the byte order member.
void raw_user_exception (TAO_InputCDR &cdr)
ACE_CString & raw_user_exception (void)
 Accessor for the input stream containing the exception.
CORBA::Boolean response_received (void)
Argument manipulation helper functions.

Arg adders, one for each type of parameter, with and without optional name. Returns reference to Any for insertion using <<=.

CORBA::Any & add_in_arg (void)
CORBA::Any & add_in_arg (const char *name)
CORBA::Any & add_inout_arg (void)
CORBA::Any & add_inout_arg (const char *name)
CORBA::Any & add_out_arg (void)
CORBA::Any & add_out_arg (const char *name)
The 'deferred synchronous' methods.

The 'deferred synchronous' methods.

void send_deferred (void)
void get_response (void)
CORBA::Boolean poll_response (void)

Static Public Member Functions

static void _tao_reply_stub (TAO_InputCDR &_tao_reply_cdr, Messaging::ReplyHandler_ptr _tao_reply_handler, CORBA::ULong reply_status)
static CORBA::Request * _duplicate (CORBA::Request *)
 Pseudo object methods.
static CORBA::Request * _nil (void)

Private Member Functions

 Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op, CORBA::NVList_ptr args, CORBA::NamedValue_ptr result, CORBA::Flags flags, CORBA::ExceptionList_ptr exceptions)
 Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op)
 ~Request (void)

Private Attributes

CORBA::Object_ptr target_
 Target object.
CORBA::ORB_var orb_
 Pointer to our ORB.
const char * opname_
 Operation name.
CORBA::NVList_ptr args_
 Parameter list.
CORBA::NamedValue_ptr result_
 Result of the operation.
CORBA::Flags flags_
 Invocation flags.
CORBA::ExceptionList_var exceptions_
 List of exceptions raised by the operation.
CORBA::ContextList_ptr contexts_
 List of the request's result's contexts.
CORBA::Context_ptr ctx_
 Context associated with this request.
ACE_Atomic_Op< TAO_SYNCH_MUTEX,
unsigned long > 		refcount_
 Reference counting.
TAO_SYNCH_MUTEX lock_
 Protect the response_received_.
bool lazy_evaluation_
 If not zero then the NVList is not evaluated by default.
CORBA::Boolean response_received_
 Set to true upon completion of invoke() or handle_response().
int byte_order_
 Can be reset by a gateway when passing along a request.
ACE_CString raw_user_exception_

Friends

class ::TAO_Dynamic_Adapter_Impl

Detailed Description

CORBA::Request.

Provides a way to create requests and populate it with parameters for use in the Dynamic Invocation Interface.

Definition at line 73 of file Request.h.

Member Typedef Documentation

typedef CORBA::Request_out CORBA::Request::_out_type

Definition at line 202 of file Request.h.

typedef CORBA::Request_ptr CORBA::Request::_ptr_type

Definition at line 200 of file Request.h.

typedef CORBA::Request_var CORBA::Request::_var_type

Definition at line 201 of file Request.h.

Constructor & Destructor Documentation

CORBA::Request::Request ( CORBA::Object_ptr  obj,
CORBA::ORB_ptr  orb,
const CORBA::Char *  op,
CORBA::NVList_ptr  args,
CORBA::NamedValue_ptr  result,
CORBA::Flags  flags,
CORBA::ExceptionList_ptr  exceptions
) [private]

Definition at line 54 of file Request.cpp.

  : target_ (CORBA::Object::_duplicate (obj)),
    orb_ (CORBA::ORB::_duplicate (orb)),
    opname_ (CORBA::string_dup (op)),
    args_ (CORBA::NVList::_duplicate (args)),
    result_ (CORBA::NamedValue::_duplicate (result)),
    flags_ (flags),
    // env_ (env),
    exceptions_ (CORBA::ExceptionList::_duplicate (exceptions)),
    contexts_ (0),
    ctx_ (CORBA::Context::_nil ()),
    refcount_ (1),
    lazy_evaluation_ (false),
    response_received_ (false),
    byte_order_ (TAO_ENCAP_BYTE_ORDER)
{
  if (this->exceptions_.in () == 0)
    {
      CORBA::ExceptionList *tmp = 0;
      ACE_NEW (tmp,
               CORBA::ExceptionList);

      this->exceptions_ = tmp;
    }
}

CORBA::Request::Request ( CORBA::Object_ptr  obj,
CORBA::ORB_ptr  orb,
const CORBA::Char *  op
) [private]

Definition at line 86 of file Request.cpp.

  : target_ (CORBA::Object::_duplicate (obj)),
    orb_ (CORBA::ORB::_duplicate (orb)),
    opname_ (CORBA::string_dup (op)),
    flags_ (0),
    // env_ (env),
    contexts_ (0),
    ctx_ (CORBA::Context::_nil ()),
    refcount_ (1),
    lazy_evaluation_ (false),
    response_received_ (false),
    byte_order_ (TAO_ENCAP_BYTE_ORDER)
{
  CORBA::ExceptionList *tmp = 0;
  ACE_NEW (tmp,
           CORBA::ExceptionList);

  this->exceptions_ = tmp;

  ACE_NEW (this->args_,
           CORBA::NVList);

  ACE_NEW (this->result_,
           CORBA::NamedValue);
}

CORBA::Request::~Request ( void   )  [private]

Definition at line 114 of file Request.cpp.

{
  ACE_ASSERT (refcount_ == 0);

  ::CORBA::release (this->target_);
  ::CORBA::string_free ((char*) this->opname_);
  this->opname_ = 0;
  ::CORBA::release (this->args_);
  ::CORBA::release (this->result_);
}

Member Function Documentation

CORBA::ULong CORBA::Request::_decr_refcnt ( void   )

Definition at line 42 of file Request.cpp.

{
  CORBA::ULong const new_count = --this->refcount_;

  if (new_count == 0)
    delete this;

  return new_count;
}

static CORBA::Request* CORBA::Request::_duplicate ( CORBA::Request *   )  [static]

Pseudo object methods.

CORBA::ULong CORBA::Request::_incr_refcnt ( void   )

Definition at line 36 of file Request.cpp.

{
  return ++this->refcount_;
}

CORBA::Request_ptr CORBA::Request::_nil ( void   )  [static]

Definition at line 38 of file Request.inl.

{
  return 0;
}

int CORBA::Request::_tao_byte_order ( void   )  const

Get the byte order member.

Definition at line 160 of file Request.inl.

{
  return this->byte_order_;
}

void CORBA::Request::_tao_byte_order ( int  byte_order  )

Set the byte order member.

Definition at line 166 of file Request.inl.

{
  this->byte_order_ = byte_order;
}

void CORBA::Request::_tao_lazy_evaluation ( bool  lazy_evaluation  )

Set the lazy evaluation flag.

Definition at line 154 of file Request.inl.

{
  this->lazy_evaluation_ = lazy_evaluation;
}

void CORBA::Request::_tao_reply_stub ( TAO_InputCDR &  _tao_reply_cdr,
Messaging::ReplyHandler_ptr  _tao_reply_handler,
CORBA::ULong  reply_status
) [static]

Definition at line 260 of file Request.cpp.

{
  // Retrieve Reply Handler object.
  TAO_DII_Reply_Handler* reply_handler =
    dynamic_cast<TAO_DII_Reply_Handler*> (rh);

  // Exception handling
  switch (reply_status)
    {
    case TAO_AMI_REPLY_OK:
    case TAO_AMI_REPLY_NOT_OK:
      {
        reply_handler->handle_response(_tao_in);
        break;
      }
    case TAO_AMI_REPLY_USER_EXCEPTION:
    case TAO_AMI_REPLY_SYSTEM_EXCEPTION:
      {
        reply_handler->handle_excep (_tao_in, reply_status);
        break;
      }
    case TAO_AMI_REPLY_LOCATION_FORWARD:
    case TAO_AMI_REPLY_LOCATION_FORWARD_PERM:
      {
        reply_handler->handle_location_forward (_tao_in, reply_status);
        break;
      }
    }
}

CORBA::Any& CORBA::Request::add_in_arg ( const char *  name  )
CORBA::Any & CORBA::Request::add_in_arg ( void   )

Definition at line 94 of file Request.inl.

{
  return this->args_->add_element (CORBA::ARG_IN)->any_;
}

CORBA::Any & CORBA::Request::add_inout_arg ( void   )

Definition at line 106 of file Request.inl.

{
  return this->args_->add_element (CORBA::ARG_INOUT)->any_;
}

CORBA::Any& CORBA::Request::add_inout_arg ( const char *  name  )
CORBA::Any & CORBA::Request::add_out_arg ( void   )

Definition at line 118 of file Request.inl.

{
  return this->args_->add_element (CORBA::ARG_OUT)->any_;
}

CORBA::Any& CORBA::Request::add_out_arg ( const char *  name  )
CORBA::NVList_ptr CORBA::Request::arguments ( void   )

Return the arguments for the request.

Definition at line 58 of file Request.inl.

{
  return this->args_;
}

CORBA::ContextList_ptr CORBA::Request::contexts ( void   )

Return a list of the request's result's contexts. Since TAO does not implement Contexts, this will always be 0.

Definition at line 79 of file Request.inl.

{
  return this->contexts_;
}

CORBA::Context_ptr CORBA::Request::ctx ( void   )  const

Accessor for the Context member.

Definition at line 142 of file Request.inl.

{
  return this->ctx_;
}

void CORBA::Request::ctx ( CORBA::Context_ptr  ctx  )

Mutator for the Context member.

Definition at line 148 of file Request.inl.

{
  this->ctx_ = ctx;
}

CORBA::ExceptionList_ptr CORBA::Request::exceptions ( void   )

Return the exceptions resulting from this request.

Definition at line 72 of file Request.inl.

{
  return this->exceptions_.in ();
}

void CORBA::Request::get_response ( void   )

Definition at line 294 of file Request.cpp.

{
  while (!this->response_received_)
    {
      (void) this->orb_->perform_work ();
    }

  if (this->lazy_evaluation_)
    {
      this->args_->evaluate ();
    }
}

void CORBA::Request::handle_response ( TAO_InputCDR &  incoming,
GIOP::ReplyStatusType  reply_status
)

Callback method for deferred synchronous requests.

Definition at line 341 of file Request.cpp.

{
  // If this request was created by a gateway, then result_
  // and/or args_ are shared by a CORBA::ServerRequest, whose
  // reply must be in the same byte order as the reply we are
  // handling here. So we set the member to be accessed later.
  this->byte_order_ = incoming.byte_order ();

  switch (reply_status)
  {
    case GIOP::NO_EXCEPTION:
      if (this->result_ != 0)
        {
          // We can be sure that the impl is a TAO::Unknown_IDL_Type.
          this->result_->value ()->impl ()->_tao_decode (incoming);
        }

      this->args_->_tao_incoming_cdr (incoming,
                                      CORBA::ARG_OUT | CORBA::ARG_INOUT,
                                      this->lazy_evaluation_);

      {
        ACE_GUARD (TAO_SYNCH_MUTEX,
                   ace_mon,
                   this->lock_);

        this->response_received_ = true;
      }

      break;
    case GIOP::USER_EXCEPTION:
    case GIOP::SYSTEM_EXCEPTION:
    case GIOP::LOCATION_FORWARD:
    case GIOP::LOCATION_FORWARD_PERM:
    default:
      // @@ (JP) Don't know what to do about any of these yet.
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT ("(%P|%t) unhandled reply status\n")));
  }
}

void CORBA::Request::invoke ( void   )

Perform method resolution and invoke an appropriate method.

If the method returns successfully, its result is placed in the result argument specified on create_request. The behavior is undefined if this Request has already been used with a previous call to invoke>, send>, or .

Note:
A default argument is set, but please note that this not recommended as the user may not be able to propagate the exceptions.

Definition at line 133 of file Request.cpp.

{
  TAO::NamedValue_Argument _tao_retval (this->result_);

  TAO::NVList_Argument _tao_in_list (this->args_,
                                     this->lazy_evaluation_);

  TAO::Argument *_tao_arg_list [] = {
    &_tao_retval,
    &_tao_in_list
  };

  TAO::DII_Invocation_Adapter _tao_call (
       this->target_,
       _tao_arg_list,
       sizeof( _tao_arg_list ) / sizeof( TAO::Argument* ),
       this->opname_,
       static_cast<CORBA::ULong> (ACE_OS::strlen (this->opname_)),
       this->exceptions_.in (),
       this);

  _tao_call.invoke (0, 0);

  // If we returned without an exception being thrown the response
  // (if any) is assumed to be received.
  this->response_received_ = true;

  // If this request was created by a gateway, then result_
  // and/or args_ are shared by a CORBA::ServerRequest, whose
  // reply must be in the same byte order as the reply we are
  // handling here. So we set the member to be accessed later.
  this->byte_order_ = _tao_retval.byte_order ();
}

const CORBA::Char * CORBA::Request::operation ( void   )  const

Return the operation name for the request.

Definition at line 51 of file Request.inl.

{
  return this->opname_;
}

CORBA::Boolean CORBA::Request::poll_response ( void   )

Definition at line 308 of file Request.cpp.

{
  CORBA::Boolean response_received = false;

  {
    ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
                      ace_mon,
                      this->lock_,
                      false);
    response_received = this->response_received_;
  }

  if (!response_received)
    {
      // If we're single-threaded, the application could starve the ORB,
      // and the response never gets received, so let the ORB do an
      // atom of work, if necessary, each time we poll.
      ACE_Time_Value tv (0, 0);
      (void) this->orb_->perform_work (&tv);

      {
        ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
                          ace_mon,
                          this->lock_,
                          false);
        response_received = this->response_received_;
      }
    }

  return response_received;
}

void CORBA::Request::raw_user_exception ( TAO_InputCDR &  cdr  )

Definition at line 172 of file Request.inl.

{
  this->raw_user_exception_.set (cdr.start ()->rd_ptr (),
                                 cdr.start ()->length (),
                                 1);
}

ACE_CString & CORBA::Request::raw_user_exception ( void   )

Accessor for the input stream containing the exception.

Definition at line 180 of file Request.inl.

{
  return this->raw_user_exception_;
}

CORBA::Boolean CORBA::Request::response_received ( void   )

Proprietary method to check whether a response has been received.

Definition at line 186 of file Request.inl.

{
  ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
                    ace_mon,
                    this->lock_,
                    false);

  return this->response_received_;
}

CORBA::NamedValue_ptr CORBA::Request::result ( void   )

Return the result for the request.

Definition at line 65 of file Request.inl.

{
  return this->result_;
}

CORBA::Any & CORBA::Request::return_value ( void   )

Returns reference to Any for extraction using >>=.

Definition at line 136 of file Request.inl.

{
  return this->result_->any_;
}

void CORBA::Request::send_deferred ( void   )

Definition at line 192 of file Request.cpp.

{
  {
    ACE_GUARD (TAO_SYNCH_MUTEX,
               ace_mon,
               this->lock_);

    this->response_received_ = false;
  }
  CORBA::Boolean const argument_flag = this->args_->count () ? true : false;

  TAO::NamedValue_Argument _tao_retval (this->result_);

  TAO::NVList_Argument _tao_in_list (this->args_,
                                     this->lazy_evaluation_);

  TAO::Argument *_tao_arg_list [] = {
    &_tao_retval,
    &_tao_in_list
  };

  size_t number_args = 0;

  if (argument_flag)
    number_args = 2;
  else
    number_args = 1;

  TAO::DII_Deferred_Invocation_Adapter _tao_call (
      this->target_,
      _tao_arg_list,
      number_args,
      this->opname_,
      static_cast<CORBA::ULong> (ACE_OS::strlen (this->opname_)),
      0,
      this->orb_->orb_core (),
      this);

  _tao_call.invoke (0, 0);
}

void CORBA::Request::send_oneway ( void   )

Send a oneway request.

Note:
A default argument is set, but please note that this not recommended as the user may not be able to propagate the exceptions.

Definition at line 168 of file Request.cpp.

{
  TAO::NamedValue_Argument _tao_retval (this->result_);

  TAO::NVList_Argument _tao_in_list (this->args_,
                                     this->lazy_evaluation_);

  TAO::Argument *_tao_arg_list [] = {
    &_tao_retval,
    &_tao_in_list
  };

  TAO::DII_Oneway_Invocation_Adapter _tao_call (
      this->target_,
      _tao_arg_list,
      sizeof( _tao_arg_list ) / sizeof( TAO::Argument* ),
      this->opname_,
      static_cast<CORBA::ULong> (ACE_OS::strlen (this->opname_)),
      TAO::TAO_SYNCHRONOUS_INVOCATION);

  _tao_call.invoke (0, 0);
}

void CORBA::Request::sendc ( CORBA::Object_ptr  handler  )

The 'asychronous' send method. The object is a DSI based callback handler. This handler must implement Messaging::ReplyHandler

Definition at line 235 of file Request.cpp.

{
  TAO::NamedValue_Argument _tao_retval (this->result_);

  TAO::NVList_Argument _tao_in_list (this->args_,
                                     this->lazy_evaluation_);

  TAO::Argument *_tao_arg_list [] = {
    &_tao_retval,
    &_tao_in_list
  };

  TAO::Asynch_Invocation_Adapter _tao_call (
       this->target_,
       _tao_arg_list,
       sizeof( _tao_arg_list ) / sizeof( TAO::Argument* ),
       const_cast<char *> (this->opname_),
       static_cast<CORBA::ULong> (ACE_OS::strlen (this->opname_)),
       0); // collocation proxy broker

  _tao_call.invoke (dynamic_cast<Messaging::ReplyHandler_ptr>(handler),
                    &CORBA::Request::_tao_reply_stub);
}

void CORBA::Request::set_return_type ( CORBA::TypeCode_ptr  tc  )

Initialize the return type.

Definition at line 130 of file Request.inl.

{
  this->result_->any_._tao_set_typecode (tc);
}

CORBA::Object_ptr CORBA::Request::target ( void   )  const

Return the target of this request.

Definition at line 44 of file Request.inl.

{
  return this->target_;
}

Friends And Related Function Documentation

friend class ::TAO_Dynamic_Adapter_Impl [friend]

Definition at line 205 of file Request.h.

Member Data Documentation

CORBA::NVList_ptr CORBA::Request::args_ [private]

Parameter list.

Definition at line 236 of file Request.h.

int CORBA::Request::byte_order_ [private]

Can be reset by a gateway when passing along a request.

Definition at line 269 of file Request.h.

CORBA::ContextList_ptr CORBA::Request::contexts_ [private]

List of the request's result's contexts.

Definition at line 251 of file Request.h.

CORBA::Context_ptr CORBA::Request::ctx_ [private]

Context associated with this request.

Definition at line 254 of file Request.h.

CORBA::ExceptionList_var CORBA::Request::exceptions_ [private]

List of exceptions raised by the operation.

Deprecated:
Holds exceptions.

Definition at line 248 of file Request.h.

CORBA::Flags CORBA::Request::flags_ [private]

Invocation flags.

Definition at line 242 of file Request.h.

bool CORBA::Request::lazy_evaluation_ [private]

If not zero then the NVList is not evaluated by default.

Definition at line 263 of file Request.h.

TAO_SYNCH_MUTEX CORBA::Request::lock_ [private]

Protect the response_received_.

Definition at line 260 of file Request.h.

const char* CORBA::Request::opname_ [private]

Operation name.

Definition at line 233 of file Request.h.

CORBA::ORB_var CORBA::Request::orb_ [private]

Pointer to our ORB.

Definition at line 230 of file Request.h.

ACE_CString CORBA::Request::raw_user_exception_ [private]

Stores user exception as a CDR stream when this request is used in a TAO gateway.

Definition at line 273 of file Request.h.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, unsigned long> CORBA::Request::refcount_ [private]

Reference counting.

Definition at line 257 of file Request.h.

CORBA::Boolean CORBA::Request::response_received_ [private]

Set to true upon completion of invoke() or handle_response().

Definition at line 266 of file Request.h.

CORBA::NamedValue_ptr CORBA::Request::result_ [private]

Result of the operation.

Definition at line 239 of file Request.h.

CORBA::Object_ptr CORBA::Request::target_ [private]

Target object.

Definition at line 227 of file Request.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on Thu Dec 9 2010 11:42:43 for TAO by  doxygen 1.7.0
