Provides a memory-mapped stream abstraction to simplify parsing of tokens. More...

#include <ACEXML/common/Mem_Map_Stream.h>

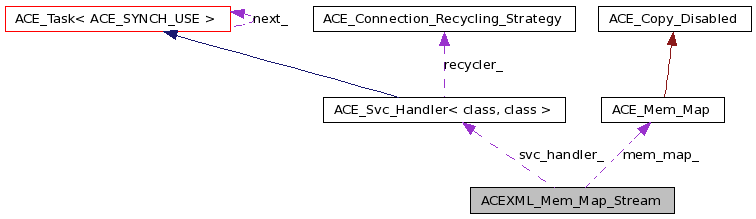

Collaboration diagram for ACEXML_Mem_Map_Stream:

Public Member Functions
	ACEXML_Mem_Map_Stream (void)
	Default constructor.
virtual int	open (Connector *connector, const ACE_INET_Addr &)
	Initialize this object.
virtual	~ACEXML_Mem_Map_Stream (void)
	Destructor.
ACE_SOCK_Stream &	stream (void)
	Returns the underlying <ACE_SOCK_Stream>.
virtual ssize_t	send_n (const void buf, size_t size, ACE_Time_Value tv=0)
virtual int	get_char (void)
virtual const char *	recv (size_t &len)
virtual const char *	recv (void) const
virtual size_t	recv_len (void) const
virtual size_t	available (void) const
virtual void	rewind (void)
virtual int	peek_char (size_t offset)
virtual const char *	peek_str (size_t offset, size_t size)
virtual ACE_OFF_T	seek (ACE_OFF_T offset, int whence=SEEK_CUR)
virtual int	eof (void) const
	Returns 1 if we're at the end of the HTTP stream, else 0.
Svc_Handler *	svc_handler (void)
	Returns the underlying service handler.
Private Member Functions
int	grow_file_and_remap (void)
Private Attributes
Svc_Handler *	svc_handler_
ACE_Mem_Map	mem_map_
	Memory-mapped file that we're iterating over.
char *	recv_pos_
	Pointer to the address where the next <recv> method will start.
char *	get_pos_
char *	end_of_mapping_plus1_
	Address at the end of the file mapping.

Detailed Description

Provides a memory-mapped stream abstraction to simplify parsing of tokens.

This class makes it possible to treat an connection as a stream of bytes, similar to the C library stdio streams. The contents of the connection are buffered incrementally in a memory-mapped file. This class maintains pointers to two positions in the stream:

1. The <recv> position, which keeps track of the beginning of a token that is in the stream.

2. The <get> position, which moves along character-by-character until the end of the token is reached.

Once a token has been located, it can be extracted from the stream by calling the <recv>. The length of the token, i.e., the <recv_len>, is the length in bytes between the <get> position and the <recv> position. Once the token has been extracted, the <recv> and <get> positions can be updated by the <seek> method.

Definition at line 55 of file Mem_Map_Stream.h.

Constructor & Destructor Documentation

ACEXML_Mem_Map_Stream::ACEXML_Mem_Map_Stream ( void )

Default constructor.

Definition at line 9 of file Mem_Map_Stream.cpp.

  : svc_handler_ (0)
{

}

ACEXML_Mem_Map_Stream::~ACEXML_Mem_Map_Stream ( void ) [virtual]

Destructor.

Definition at line 261 of file Mem_Map_Stream.cpp.

{
  // Remove the mapping and the file.
  this->mem_map_.remove ();
  delete this->svc_handler_;
}

Member Function Documentation

size_t ACEXML_Mem_Map_Stream::available ( void ) const [virtual]

Returns the no. of bytes available in the stream.

Definition at line 140 of file Mem_Map_Stream.cpp.

{
  return this->end_of_mapping_plus1_ - this->get_pos_;
}

int ACEXML_Mem_Map_Stream::eof ( void ) const [virtual]

Returns 1 if we're at the end of the HTTP stream, else 0.

Definition at line 29 of file Mem_Map_Stream.cpp.

{
  return this->get_pos_ >= this->end_of_mapping_plus1_;
}

int ACEXML_Mem_Map_Stream::get_char ( void ) [virtual]

Return the next character in the stream and advance the <get> position. Returns EOF when the <get> position reaches the end of the HTTP stream.

Definition at line 35 of file Mem_Map_Stream.cpp.

{
  if (this->eof () && this->grow_file_and_remap () == -1)
    return EOF;
  return *this->get_pos_++;
}

int ACEXML_Mem_Map_Stream::grow_file_and_remap ( void ) [private]

Grow the file by reading another chunk from the HTTP socket and extend the mapping to cover this chunk. Returns -1 on failure or EOF, else 0.

Definition at line 191 of file Mem_Map_Stream.cpp.

{
  char buf[8192];

  // Copy the next chunk of bytes from the socket into the temporary
  // file.
  ACE_Time_Value tv (ACE_DEFAULT_TIMEOUT);
  ssize_t bytes = 0;
  ssize_t n = 0;
  while (1)
    {
      n = this->svc_handler_->peer ().recv (buf, sizeof buf, 0, &tv);
      if (n < 0)
        {
          if (errno != EWOULDBLOCK)
            {
              ACE_ERROR ((LM_ERROR, "%p\n", "recv"));
            }

          return -1;
        }
      bytes += n;
      if (n == 0 && !bytes)
        return -1;
      else if (n == 0)
        break;
      else if (ACE::write_n (this->mem_map_.handle (), buf, n) != n)
        ACE_ERROR_RETURN ((LM_ERROR,
                           "%p\n",
                           "write_n"),
                          -1);
    }

//   ssize_t n = this->svc_handler_->peer ().recv (buf, sizeof buf, 0, &tv);
//   if (n == -1)
//     {
//       ACE_ERROR ((LM_ERROR, "%p\n", "recv"));
//       return -1;
//     }
//   else if (n == 0)
//     return -1;
//   else if (ACE::write_n (this->mem_map_.handle (), buf, n) != n)
//         ACE_ERROR_RETURN ((LM_ERROR,
//                            "%p\n",
//                            "write_n"),
//                           -1);

  // Grow the memory-mapping to encompass the entire temporary file.
  if (this->mem_map_.map (static_cast<size_t> (-1),
                          PROT_RDWR,
                          ACE_MAP_PRIVATE,
                          (void*)0) == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       "%p\n",
                       "map"),
                      -1);
  // MAP_FAILED is used as a "first time in" flag.
  if (this->recv_pos_ == MAP_FAILED)
    {
      this->recv_pos_ = reinterpret_cast<char *> (this->mem_map_.addr ());
      this->get_pos_ = this->recv_pos_;
    }

  this->end_of_mapping_plus1_ =
    reinterpret_cast<char *> (this->mem_map_.addr ())
    + this->mem_map_.size ();

  return 0;
}

int ACEXML_Mem_Map_Stream::open	(	Connector *	connector,
		const ACE_INET_Addr &	addr
	)			`[virtual]`

Initialize this object.

Definition at line 146 of file Mem_Map_Stream.cpp.

{
  svc_handler_ = 0;

  // Connect to the server at <addr>. If the handler has to be
  // connected to the server again, the Caching strategy takes care
  // and uses the same connection.
  if (connector->connect (svc_handler_,
                          addr) == -1)
    {

      ACE_ERROR_RETURN ((LM_ERROR,
                         "%p %s %d\n",
                         "Connect failed",
                         addr.get_host_name (),
                         addr.get_port_number ()),
                        -1);
    }
  // Create a temporary filename.
  ACE_FILE_Addr file (ACE_sap_any_cast (ACE_FILE_Addr &));

  // Create the temporary file via the <ACE_Mem_Map> class API.
  if (this->mem_map_.open (file.get_path_name (),
                           O_RDWR | O_CREAT | O_APPEND,
                           ACE_DEFAULT_FILE_PERMS) == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       "%p\n",
                       "open"),
                      -1);
  // Make sure to unlink this right away so that if this process
  // crashes these files will be removed automatically.
  else if (ACE_OS::unlink (file.get_path_name ()) == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       "%p\n",
                       "unlink"),
                      -1);
  else
    // Initialize all the position pointers to 0.
    this->rewind ();

  return 0;
}

int ACEXML_Mem_Map_Stream::peek_char ( size_t offset ) [virtual]

Returns the nth character <offset> from the <get> position in the stream without advancing the <get> position. Automatically extends the backing store if necessary. Returns EOF if <offset> is past the end of the stream.

Definition at line 51 of file Mem_Map_Stream.cpp.

{
  // We may need to iterate if the size of <n> is large.
  while (this->get_pos_ + offset >= this->end_of_mapping_plus1_)
    if (this->grow_file_and_remap () == -1)
      return EOF;

  return this->get_pos_[offset];
}

const char * ACEXML_Mem_Map_Stream::peek_str	(	size_t	offset,
		size_t	size
	)			`[virtual]`

Return a pointer to an array of <size> characters starting at <offset> characters from the <get> position in the stream without advancing the <get> position. Automatically extends the backing store if necessary. Returns 0 if <offset> or <offset + size> is past the end of the stream.

Definition at line 88 of file Mem_Map_Stream.cpp.

{
  // We will iterate if the size of <offset> is large.
  while (this->get_pos_ + (offset + size) > this->end_of_mapping_plus1_)
    if (this->grow_file_and_remap () == -1)
      return 0;

  return &this->get_pos_[offset];
}

const char * ACEXML_Mem_Map_Stream::recv ( size_t & len ) [virtual]

Returns a pointer to array of at most <len> characters starting at the <recv> position. If the <recv> position + <len> extends past the EOF then <len> is set to the number of characters between the <recv> position and the EOF and both the <get> and <recv> positions are advanced by <len>. Returns 0 if the <recv> position is at the EOF.

Definition at line 68 of file Mem_Map_Stream.cpp.

{
  if (this->eof () && this->grow_file_and_remap () == -1)
    {
      len = 0;
      return 0;
    }
  const char *s = this->recv_pos_;
  this->seek (static_cast<ACE_OFF_T> (len), SEEK_CUR);
  len = this->get_pos_ - s;
  return s;
}

const char * ACEXML_Mem_Map_Stream::recv ( void ) const [virtual]

Returns a pointer to array of characters starting at the <recv> position.

Definition at line 62 of file Mem_Map_Stream.cpp.

{
  return this->recv_pos_;
}

size_t ACEXML_Mem_Map_Stream::recv_len ( void ) const [virtual]

Returns the length in bytes between the <get> position and the <recv> position.

Definition at line 82 of file Mem_Map_Stream.cpp.

{
  return this->get_pos_ - this->recv_pos_;
}

void ACEXML_Mem_Map_Stream::rewind ( void ) [virtual]

Resets the <get> and <recv> positions to the beginning of the stream. This works since all the data has been cached in the memory-mapped backing store.

Definition at line 43 of file Mem_Map_Stream.cpp.

{
  this->recv_pos_ = reinterpret_cast<char *> (this->mem_map_.addr ());
  this->get_pos_ = this->recv_pos_;
  this->end_of_mapping_plus1_ = this->recv_pos_ + this->mem_map_.size ();
}

ACE_OFF_T ACEXML_Mem_Map_Stream::seek	(	ACE_OFF_T	offset,
		int	whence = `SEEK_CUR`
	)			`[virtual]`

Sets the <get> and <recv> positions as follows: o If <whence> is <SEEK_SET>, the positions are set to <offset> bytes from the start of the stream. o If <whence> is <SEEK_CUR>, the positions are set to the current <get> position plus <offset>. o If <whence> is <SEEK_END>, the positions are set to the size of the stream plus <offset>.

If offset is greater than EOF, both <get> and <recv> are set to EOF. Note special return value is returned to indicate this condition.

Definition at line 100 of file Mem_Map_Stream.cpp.

{
  switch (whence)
    {
    case SEEK_SET:
      this->get_pos_ =
        reinterpret_cast<char *> (this->mem_map_.addr ())
        + offset;
      break;

    case SEEK_CUR:
      this->get_pos_ += offset;
      break;

    case SEEK_END:
      this->get_pos_ =
        this->end_of_mapping_plus1_ + offset;
      // @@ Not sure how to implement this (yet).
      ACE_NOTSUP_RETURN (-1);
    }

  // Make sure that the backing store will cover this.
  while (this->get_pos_ > this->end_of_mapping_plus1_)
    if (this->grow_file_and_remap () == -1)
      this->get_pos_ = this->end_of_mapping_plus1_;

  this->recv_pos_ = this->get_pos_;

  return
    ACE_Utils::truncate_cast<ACE_OFF_T> (
      this->recv_pos_ - reinterpret_cast<char *> (this->mem_map_.addr ()));
}

ssize_t ACEXML_Mem_Map_Stream::send_n	(	const void *	buf,
		size_t	size,
		ACE_Time_Value *	tv = `0`
	)			`[virtual]`

Send <size> bytes in <buf> to the connected peer. This is a completely unbuffered call.

Definition at line 22 of file Mem_Map_Stream.cpp.

{
  return svc_handler_->peer ().send_n (buf, size, 0, tv);
}

ACE_SOCK_Stream & ACEXML_Mem_Map_Stream::stream ( void )

Returns the underlying <ACE_SOCK_Stream>.

Definition at line 16 of file Mem_Map_Stream.cpp.

{
  return svc_handler_->peer ();
}

Svc_Handler * ACEXML_Mem_Map_Stream::svc_handler ( void )

Returns the underlying service handler.

Definition at line 134 of file Mem_Map_Stream.cpp.

{
  return this->svc_handler_;
}

Member Data Documentation

char* ACEXML_Mem_Map_Stream::end_of_mapping_plus1_ [private]

Address at the end of the file mapping.

Definition at line 183 of file Mem_Map_Stream.h.

char* ACEXML_Mem_Map_Stream::get_pos_ [private]

Pointer to the address where the next <get_char> method will start.

Definition at line 180 of file Mem_Map_Stream.h.

ACE_Mem_Map ACEXML_Mem_Map_Stream::mem_map_ [private]

Memory-mapped file that we're iterating over.

Definition at line 171 of file Mem_Map_Stream.h.

char* ACEXML_Mem_Map_Stream::recv_pos_ [private]

Pointer to the address where the next <recv> method will start.

Definition at line 174 of file Mem_Map_Stream.h.

Svc_Handler* ACEXML_Mem_Map_Stream::svc_handler_ [private]

Connection to peer. The granularity is at the Svc_Handler level. The Svc_Handler has an SOCK_Stream.

Definition at line 168 of file Mem_Map_Stream.h.

The documentation for this class was generated from the following files:
