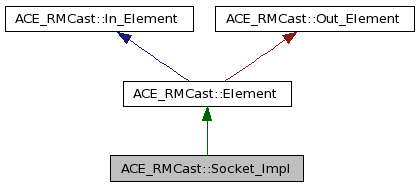

Inheritance diagram for ACE_RMCast::Socket_Impl:

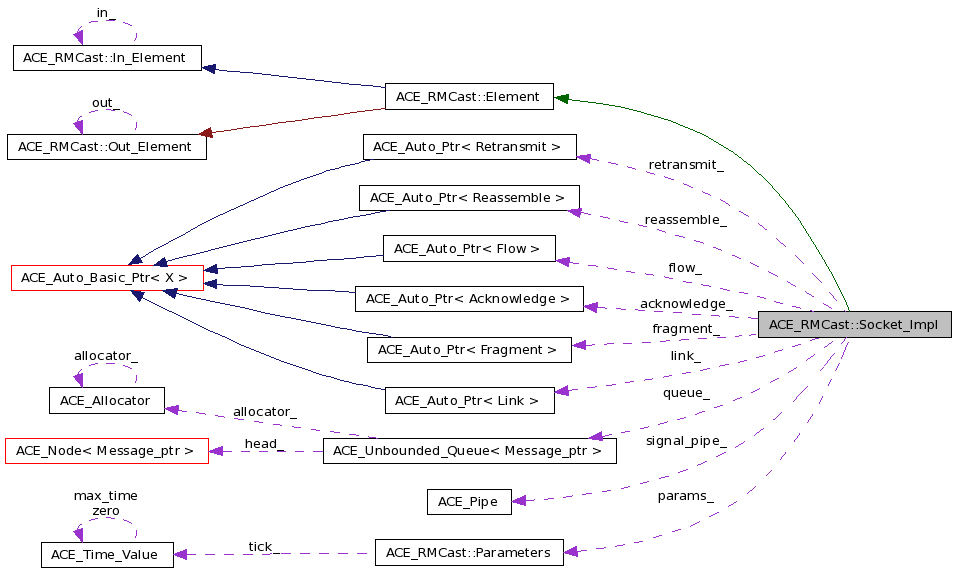

Collaboration diagram for ACE_RMCast::Socket_Impl:

Public Member Functions
	~Socket_Impl ()
	Socket_Impl (Address const &a, bool loop, Parameters const &params)
void	send_ (void const *buf, size_t s)
ssize_t	recv_ (void buf, size_t s, ACE_Time_Value const timeout, ACE_INET_Addr *from)
ssize_t	size_ (ACE_Time_Value const *timeout)
ACE_HANDLE	get_handle_ ()
Private Member Functions
virtual void	recv (Message_ptr m)
Private Attributes
bool	loop_
Parameters const	params_
Mutex	mutex_
Condition	cond_
ACE_Unbounded_Queue< Message_ptr >	queue_
ACE_Pipe	signal_pipe_
ACE_Auto_Ptr< Fragment >	fragment_
ACE_Auto_Ptr< Reassemble >	reassemble_
ACE_Auto_Ptr< Acknowledge >	acknowledge_
ACE_Auto_Ptr< Retransmit >	retransmit_
ACE_Auto_Ptr< Flow >	flow_
ACE_Auto_Ptr< Link >	link_

Detailed Description

Definition at line 29 of file Socket.cpp.

Constructor & Destructor Documentation

ACE_RMCast::Socket_Impl::~Socket_Impl ( )

Definition at line 112 of file Socket.cpp.

    {
      // Stop OUT stack from top to bottom.
      //
      out_stop ();
      fragment_->out_stop ();
      reassemble_->out_stop ();
      acknowledge_->out_stop ();
      retransmit_->out_stop ();
      flow_->out_stop ();
      link_->out_stop ();

      // Stop IN stack from bottom up.
      //
      link_->in_stop ();
      flow_->in_stop ();
      retransmit_->in_stop ();
      acknowledge_->in_stop ();
      reassemble_->in_stop ();

ACE_RMCast::Socket_Impl::Socket_Impl	(	Address const &	a,
		bool	loop,
		Parameters const &	params
	)

Definition at line 78 of file Socket.cpp.

      : loop_ (loop),
        params_ (params),
        cond_ (mutex_)
  {
    fragment_.reset (new Fragment (params_));
    reassemble_.reset (new Reassemble (params_));
    acknowledge_.reset (new Acknowledge (params_));
    retransmit_.reset (new Retransmit (params_));
    flow_.reset (new Flow (params_));
    link_.reset (new Link (a, params_));

    // Start IN stack from top to bottom.
    //
    in_start (0);
    fragment_->in_start (this);
    reassemble_->in_start (fragment_.get ());
    acknowledge_->in_start (reassemble_.get ());
    retransmit_->in_start (acknowledge_.get ());
    flow_->in_start (retransmit_.get ());
    link_->in_start (flow_.get ());

    // Start OUT stack from bottom up.
    //

Member Function Documentation

ACE_HANDLE ACE_RMCast::Socket_Impl::get_handle_ ( )

Definition at line 272 of file Socket.cpp.

void ACE_RMCast::Socket_Impl::recv ( Message_ptr m ) [private, virtual]

Definition at line 283 of file Socket.cpp.

        {
          signal_pipe_.open ();
        }

      return signal_pipe_.read_handle ();
    }


  void Socket_Impl::recv (Message_ptr m)
    {
      if (m->find (Data::id) != 0 || m->find (NoData::id) != 0)
        {
          if (!loop_)
            {
              Address to (static_cast<To const*> (m->find (To::id))->address ());

              Address from (
                            static_cast<From const*> (m->find (From::id))->address ());

              if (to == from)
                return;
            }

          Lock l (mutex_);

          //if (queue_.size () != 0)
          //  cerr << "recv socket queue size: " << queue_.size () << endl;

          //FUZZ: disable check_for_lack_ACE_OS
          bool signal (queue_.is_empty ());
          //FUZZ: enable check_for_lack_ACE_OS

          queue_.enqueue_tail (m);

          if (signal)
            {
              // Also write to the pipe.
              if (signal_pipe_.write_handle () != ACE_INVALID_HANDLE)
                {
                  char c;

                  if (signal_pipe_.send (&c, 1) != 1)
                    {
                      // perror ("write: ");

ssize_t ACE_RMCast::Socket_Impl::recv_	(	void *	buf,
		size_t	s,
		ACE_Time_Value const *	timeout,
		ACE_INET_Addr *	from
	)

Definition at line 154 of file Socket.cpp.

    {
      ACE_Time_Value abs_time;

      if (timeout)
        abs_time = ACE_OS::gettimeofday () + *timeout;

      Lock l (mutex_);

      while (queue_.is_empty ())
        {
          if (timeout)
            {
              if (cond_.wait (&abs_time) != -1)
                break;
            }
          else
            {
              if (cond_.wait () != -1)
                break;
            }

          return -1; // errno is already set
        }


      Message_ptr m;

      if (queue_.dequeue_head (m) == -1)
        ACE_OS::abort ();


      if (queue_.is_empty ())
        {
          // Remove data from the pipe.
          //
          if (signal_pipe_.read_handle () != ACE_INVALID_HANDLE)
            {
              char c;

              if (signal_pipe_.recv (&c, 1) != 1)
                {
                  ACE_OS::perror ("read: ");
                  ACE_OS::abort ();
                }
            }
        }

      if (from)
        *from = static_cast<From const*> (m->find (From::id))->address ();

      if (m->find (NoData::id) != 0)
        {
          errno = ENOENT;
          return -1;
        }

void ACE_RMCast::Socket_Impl::send_	(	void const *	buf,
		size_t	s
	)

Definition at line 142 of file Socket.cpp.

ssize_t ACE_RMCast::Socket_Impl::size_ ( ACE_Time_Value const * timeout )

Definition at line 224 of file Socket.cpp.

                                                                   : s));

      ACE_OS::memcpy (buf, d->buf (), r);

      return r;
    }

  ssize_t Socket_Impl::
    size_ (ACE_Time_Value const* timeout)
    {
      ACE_Time_Value abs_time;

      if (timeout)
        abs_time = ACE_OS::gettimeofday () + *timeout;

      Lock l (mutex_);

      while (queue_.is_empty ())
        {
          if (timeout)
            {
              if (cond_.wait (&abs_time) != -1)
                break;
            }
          else
            {
              if (cond_.wait () != -1)
                break;
            }

          return -1; // errno is already set
        }

      // I can't get the head of the queue without actually dequeuing
      // the element.
      //
      Message_ptr m;

      if (queue_.dequeue_head (m) == -1)
        ACE_OS::abort ();

      if (queue_.enqueue_head (m) == -1)
        ACE_OS::abort ();

      if (m->find (NoData::id) != 0)
        {
