TAO_POA_Manager Class Reference

#include <POAManager.h>

Inheritance diagram for TAO_POA_Manager:

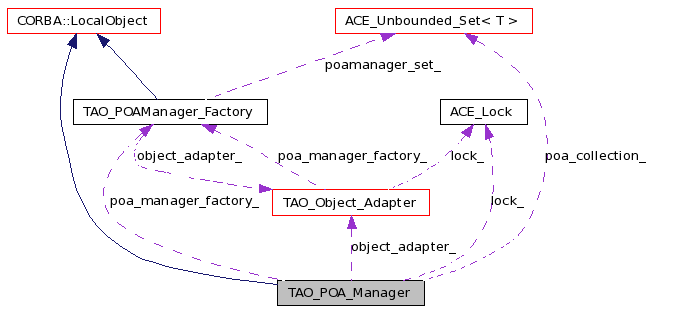

[legend]Collaboration diagram for TAO_POA_Manager:

[legend]List of all members.

Public Member Functions
void	activate (void)
void	hold_requests (CORBA::Boolean wait_for_completion)
void	discard_requests (CORBA::Boolean wait_for_completion)
void	deactivate (CORBA::Boolean etherealize_objects, CORBA::Boolean wait_for_completion)
PortableServer::POAManager::State	get_state (void)
char *	get_id (void)
	TAO_POA_Manager (TAO_Object_Adapter &object_adapter, const char *id, const ::CORBA::PolicyList &policies, PortableServer::POAManagerFactory_ptr poa_manager_factory)
	~TAO_POA_Manager (void)
void	check_state (void)
	Check the state of this POA manager.
PortableServer::POAManager::State	get_state_i ()
virtual CORBA::ORB_ptr	_get_orb (void)
CORBA::PolicyList &	get_policies (void)
Protected Types
typedef ACE_Unbounded_Set< TAO_Root_POA * >	POA_COLLECTION
Protected Member Functions
void	activate_i (void)
void	deactivate_i (CORBA::Boolean etherealize_objects, CORBA::Boolean wait_for_completion)
void	adapter_manager_state_changed (PortableServer::POAManager::State state)
void	hold_requests_i (CORBA::Boolean wait_for_completion)
void	discard_requests_i (CORBA::Boolean wait_for_completion)
ACE_Lock &	lock (void)
int	remove_poa (TAO_Root_POA *poa)
int	register_poa (TAO_Root_POA *poa)
Protected Attributes
PortableServer::POAManager::State	state_
ACE_Lock &	lock_
POA_COLLECTION	poa_collection_
TAO_Object_Adapter &	object_adapter_
CORBA::String_var	id_
TAO_POAManager_Factory &	poa_manager_factory_
CORBA::PolicyList	policies_
Private Member Functions
char *	generate_manager_id (void) const
Friends
class	TAO_Root_POA
class	TAO_Object_Adapter

---

Detailed Description

Definition at line 56 of file POAManager.h.

---

Member Typedef Documentation

typedef ACE_Unbounded_Set<TAO_Root_POA *> TAO_POA_Manager::POA_COLLECTION [protected]

Definition at line 135 of file POAManager.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_POA_Manager::TAO_POA_Manager	(	TAO_Object_Adapter &	object_adapter,
		const char *	id,
		const ::CORBA::PolicyList &	policies,
		PortableServer::POAManagerFactory_ptr	poa_manager_factory
	)

Definition at line 21 of file POAManager.cpp.

  : state_ (PortableServer::POAManager::HOLDING),
    lock_ (object_adapter.lock ()),
    poa_collection_ (),
    object_adapter_ (object_adapter),
#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO)
    id_ (id == 0 ? this->generate_manager_id () : CORBA::string_dup (id)),
    poa_manager_factory_ (* dynamic_cast <TAO_POAManager_Factory*> (poa_manager_factory)),
    policies_ (policies)
{
  poa_manager_factory_._add_ref ();
}

TAO_POA_Manager::~TAO_POA_Manager

(

void

)

Definition at line 48 of file POAManager.cpp.

{
#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO)
  poa_manager_factory_._remove_ref ();
#endif
}

---

Member Function Documentation

CORBA::ORB_ptr TAO_POA_Manager::_get_orb

(

void

)

[virtual]

Reimplemented from CORBA::LocalObject.

Definition at line 379 of file POAManager.cpp.

References CORBA::ORB::_duplicate().

{
  return CORBA::ORB::_duplicate (this->object_adapter_.orb_core ().orb ());
}

ACE_INLINE void TAO_POA_Manager::activate

(

void

)

Definition at line 17 of file POAManager.inl.

References activate_i(), and TAO_OBJECT_ADAPTER_GUARD.

{
  // Lock access to the POAManager for the duration of this transaction
  TAO_OBJECT_ADAPTER_GUARD;

  this->activate_i ();
}

void TAO_POA_Manager::activate_i

(

void

)

[protected]

Definition at line 62 of file POAManager.cpp.

References adapter_manager_state_changed(), ACE_Unbounded_Set_Ex< T, C >::end(), poa_collection_, and state_.

Referenced by activate().

{
  // This operation changes the state of the POA manager to active. If
  // issued while the POA manager is in the inactive state, the
  // AdapterInactive exception is raised.  Entering the active state
  // enables the associated POAs to process requests.

  if (this->state_ == PortableServer::POAManager::INACTIVE)
    {
      throw PortableServer::POAManager::AdapterInactive ();
    }
  else
    {
      this->state_ = PortableServer::POAManager::ACTIVE;
      // Find the poas that applied the custom servant dispatching
      // strategy to launch the dispatching threads.

      for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin ();
       iterator != this->poa_collection_.end ();
       ++iterator)
        {
          (*iterator)->poa_activated_hook ();
        }
    }

  this->adapter_manager_state_changed (this->state_);
}

void TAO_POA_Manager::adapter_manager_state_changed

(

PortableServer::POAManager::State

state

)

[protected]

Method needed for notifying the IORInterceptors that the state of POAManager changed.

Definition at line 160 of file POAManager.cpp.

References TAO_IORInterceptor_Adapter::adapter_manager_state_changed(), TAO_ORB_Core::ior_interceptor_adapter(), object_adapter_, and TAO_Object_Adapter::orb_core().

Referenced by activate_i(), deactivate_i(), discard_requests_i(), and hold_requests_i().

{
  PortableInterceptor::AdapterState adapter_state =
    static_cast<PortableInterceptor::AdapterState> (state);

  TAO_IORInterceptor_Adapter *ior_adapter =
    this->object_adapter_.orb_core ().ior_interceptor_adapter ();

  if (ior_adapter)
    {
      ior_adapter->adapter_manager_state_changed (this->id_.in (),
                                                  adapter_state);
    }
}

void TAO_POA_Manager::check_state

(

void

)

Check the state of this POA manager.

Definition at line 313 of file POAManager.cpp.

References CORBA::SystemException::_tao_minor_code(), CORBA::COMPLETED_NO, state_, TAO_POA_DISCARDING, TAO_POA_HOLDING, and TAO_POA_INACTIVE.

Referenced by TAO::Portable_Server::LifespanStrategyTransient::check_state(), and TAO::Portable_Server::LifespanStrategyPersistent::check_state().

{
  if (state_ == PortableServer::POAManager::ACTIVE)
    {
      // When a POA manager is in the active state, the associated
      // POAs will receive and start processing requests (assuming
      // that appropriate thread resources are available).
      return;
    }

  if (state_ == PortableServer::POAManager::DISCARDING)
    {
      // When a POA manager is in the discarding state, the associated
      // POAs will discard all incoming requests (whose processing has
      // not yet begun). When a request is discarded, the TRANSIENT
      // system exception, with standard minor code 1, must be
      // returned to the client-side to indicate that the request
      // should be re-issued. (Of course, an ORB may always reject a
      // request for other reasons and raise some other system
      // exception.)
      throw
        CORBA::TRANSIENT (
          CORBA::SystemException::_tao_minor_code (
            TAO_POA_DISCARDING,
            1),
          CORBA::COMPLETED_NO);
    }

  if (state_ == PortableServer::POAManager::HOLDING)
    {
      // When a POA manager is in the holding state, the associated
      // POAs will queue incoming requests. The number of requests
      // that can be queued is an implementation limit. If this limit
      // is reached, the POAs may discard requests and return the
      // TRANSIENT system exception, with standard minor code 1, to
      // the client to indicate that the client should reissue the
      // request. (Of course, an ORB may always reject a request for
      // other reasons and raise some other system exception.)

      // Since there is no queuing in TAO, we immediately raise a
      // TRANSIENT exception.
      throw ::CORBA::TRANSIENT (
                CORBA::SystemException::_tao_minor_code (TAO_POA_HOLDING, 1),
                CORBA::COMPLETED_NO);
    }

  if (state_ == PortableServer::POAManager::INACTIVE)
    {
      // The inactive state is entered when the associated POAs are to
      // be shut down. Unlike the discarding state, the inactive state
      // is not a temporary state. When a POA manager is in the
      // inactive state, the associated POAs will reject new
      // requests. The rejection mechanism used is specific to the
      // vendor. The GIOP location forwarding mechanism and
      // CloseConnection message are examples of mechanisms that could
      // be used to indicate the rejection. If the client is
      // co-resident in the same process, the ORB could raise the
      // OBJ_ADAPTER system exception, with standard minor code 1, to
      // indicate that the object implementation is unavailable.
      throw ::CORBA::OBJ_ADAPTER (
                CORBA::SystemException::_tao_minor_code (TAO_POA_INACTIVE, 1),
                CORBA::COMPLETED_NO);
    }
}

ACE_INLINE void TAO_POA_Manager::deactivate	(	CORBA::Boolean	etherealize_objects,
		CORBA::Boolean	wait_for_completion
	)

Definition at line 46 of file POAManager.inl.

References deactivate_i(), and TAO_OBJECT_ADAPTER_GUARD.

{
  // Lock access to the POAManager for the duration of this transaction
  TAO_OBJECT_ADAPTER_GUARD;

  this->deactivate_i (etherealize_objects, wait_for_completion);
}

void TAO_POA_Manager::deactivate_i	(	CORBA::Boolean	etherealize_objects,
		CORBA::Boolean	wait_for_completion
	)			[protected]

Definition at line 91 of file POAManager.cpp.

References adapter_manager_state_changed(), TAO_Root_POA::check_for_valid_wait_for_completions(), ACE_Unbounded_Set_Ex< T, C >::end(), poa_collection_, and state_.

Referenced by deactivate().

{
  // Is the <wait_for_completion> semantics for this thread correct?
  TAO_Root_POA::check_for_valid_wait_for_completions (this->object_adapter_.orb_core (),
                                                      wait_for_completion);

  // This operation changes the state of the POA manager to
  // inactive. If issued while the POA manager is in the inactive
  // state, the AdapterInactive exception is raised.  Entering the
  // inactive state causes the associated POAs to reject requests that
  // have not begun to be executed as well as any new requests.

  if (this->state_ == PortableServer::POAManager::INACTIVE)
    {
      throw PortableServer::POAManager::AdapterInactive ();
    }
  else
    {
      this->state_ = PortableServer::POAManager::INACTIVE;
    }

  // After changing the state, if the etherealize_objects parameter is:
  //
  // a) TRUE - the POA manager will cause all associated POAs that
  // have the RETAIN and USE_SERVANT_MANAGER policies to perform the
  // etherealize operation on the associated servant manager for all
  // active objects.
  //
  // b) FALSE - the etherealize operation is not called. The purpose
  // is to provide developers with a means to shut down POAs in a
  // crisis (for example, unrecoverable error) situation.

  // If the wait_for_completion parameter is FALSE, this operation
  // will return immediately after changing the state. If the
  // parameter is TRUE and the current thread is not in an invocation
  // context dispatched by some POA belonging to the same ORB as this
  // POA, this operation does not return until there are no actively
  // executing requests in any of the POAs associated with this POA
  // manager (that is, all requests that were started prior to the
  // state change have completed) and, in the case of a TRUE
  // etherealize_objects, all invocations of etherealize have
  // completed for POAs having the RETAIN and USE_SERVANT_MANAGER
  // policies. If the parameter is TRUE and the current thread is in
  // an invocation context dispatched by some POA belonging to the
  // same ORB as this POA the BAD_INV_ORDER exception is raised and
  // the state is not changed.

  for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin ();
       iterator != this->poa_collection_.end ();
       ++iterator)
    {
      TAO_Root_POA *poa = *iterator;
      // Notify the poas that applied the custom servant dispatching
      // strategy to stop the dispatching threads.
      poa->poa_deactivated_hook ();

      poa->deactivate_all_objects_i (etherealize_objects, wait_for_completion);
    }

  // If the ORB::shutdown operation is called, it makes a call on
  // deactivate with a TRUE etherealize_objects parameter for each POA
  // manager known in the process; the wait_for_completion parameter
  // to deactivate will be the same as the similarly named parameter
  // of ORB::shutdown.
  this->adapter_manager_state_changed (this->state_);
}

ACE_INLINE void TAO_POA_Manager::discard_requests

(

CORBA::Boolean

wait_for_completion

)

Definition at line 37 of file POAManager.inl.

References discard_requests_i(), and TAO_OBJECT_ADAPTER_GUARD.

{
  // Lock access to the POAManager for the duration of this transaction
  TAO_OBJECT_ADAPTER_GUARD;

  this->discard_requests_i (wait_for_completion);
}

void TAO_POA_Manager::discard_requests_i

(

CORBA::Boolean

wait_for_completion

)

[protected]

Definition at line 229 of file POAManager.cpp.

References adapter_manager_state_changed(), TAO_Root_POA::check_for_valid_wait_for_completions(), ACE_Unbounded_Set_Ex< T, C >::end(), poa_collection_, and state_.

Referenced by discard_requests().

{
  // Is the <wait_for_completion> semantics for this thread correct?
  TAO_Root_POA::check_for_valid_wait_for_completions (this->object_adapter_.orb_core (),
                                                      wait_for_completion);

  // This operation changes the state of the POA manager to
  // discarding. If issued while the POA manager is in the inactive
  // state, the AdapterInactive exception is raised.  Entering the
  // discarding state causes the associated POAs to discard incoming
  // requests.  In addition, any requests that have been queued but
  // have not started executing are discarded. When a request is
  // discarded, a TRANSIENT system exception is returned to the
  // client.

  if (this->state_ == PortableServer::POAManager::INACTIVE)
    {
      throw PortableServer::POAManager::AdapterInactive ();
    }
  else
    {
      this->state_ = PortableServer::POAManager::DISCARDING;
    }

  // If the wait_for_completion parameter is FALSE, this operation
  // returns immediately after changing the state. If the
  // parameter is TRUE and the current thread is not in an
  // invocation context dispatched by some POA belonging to the
  // same ORB as this POA, this operation does not return until
  // either there are no actively executing requests in any of the
  // POAs associated with this POA manager (that is, all requests
  // that were started prior to the state change have completed)
  // or the state of the POA manager is changed to a state other
  // than discarding. If the parameter is TRUE and the current
  // thread is in an invocation context dispatched by some POA
  // belonging to the same ORB as this POA the BAD_INV_ORDER
  // exception is raised and the state is not changed.

  if (wait_for_completion)
    {
      for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin ();
           iterator != this->poa_collection_.end ();
           ++iterator)
        {
          TAO_Root_POA *poa = *iterator;
          poa->wait_for_completions (wait_for_completion);
        }
    }

  this->adapter_manager_state_changed (this->state_);
}

ACE_INLINE char * TAO_POA_Manager::generate_manager_id

(

void

)

const [private]

Generate an id for this POAManager.

Returns:

A value that uniquely identifies the POAManager within a given process.

Note:

: The id_ has the ownership of the memory allocated in this method.

Definition at line 73 of file POAManager.inl.

References ACE_OS::sprintf().

{
  // The AdapterManagerId must be unique across all Adapter Managers
  // (e.g. POAManagers) within a given process.  To avoid locking
  // overhead, the address of the POAManager object is used as the
  // AdapterManagerId.  This guarantees that the AdapterManagerId is
  // unique.
  //
  // For 64-bit platforms, only the lower 32 bits are used.  Hopefully
  // that will be enough to ensure uniqueness.

  // This is basically the same trick used in
  // TAO_GIOP_Invocation::generate_request_id().  However, no right
  // shifting of 64 bit addresses is performed since the
  // TAO_POA_Manager object is not large enough to allow that trick.

  CORBA::Long id = 0;

  // Note that we reinterpret_cast to an "unsigned long" instead of
  // CORBA::ULong since we need to first cast to an integer large
  // enough to hold an address to avoid compile-time warnings on some
  // 64-bit platforms.

  if (sizeof (this) == 4)       // 32 bit address
    id = reinterpret_cast <ptrdiff_t> (this);

  else if (sizeof (this) == 8)  // 64 bit address -- use lower 32 bits
    id = reinterpret_cast <ptrdiff_t> (this) & 0xFFFFFFFFu;

  // @@ If we ever hit a platform where neither of the above cases are
  //    satisfied, we're up the creek!

//   else
//     // Fallback on an atomically incremented variable specific to the
//     // ORB, or perhaps specific to the process.
//     id = ...GENERATE_ID_ATOMICALLY...;  // Fallback

  char* buf = new char [25];
  ACE_OS::sprintf (buf, "POAManager%d", id);
  return buf;
}

char * TAO_POA_Manager::get_id

(

void

)

Definition at line 56 of file POAManager.cpp.

References CORBA::string_dup().

{
  return CORBA::string_dup (this->id_.in ());
}

ACE_INLINE CORBA::PolicyList & TAO_POA_Manager::get_policies

(

void

)

Definition at line 119 of file POAManager.inl.

References policies_.

{
  return this->policies_;
}

ACE_INLINE PortableServer::POAManager::State TAO_POA_Manager::get_state

(

void

)

Definition at line 64 of file POAManager.inl.

References get_state_i(), and TAO_OBJECT_ADAPTER_GUARD_RETURN.

{
  // Lock access to the POAManager for the duration of this transaction
  TAO_OBJECT_ADAPTER_GUARD_RETURN (this->state_);

  return this->get_state_i ();
}

ACE_INLINE PortableServer::POAManager::State TAO_POA_Manager::get_state_i

(

)

Definition at line 58 of file POAManager.inl.

References state_.

Referenced by get_state().

{
  return this->state_;
}

ACE_INLINE void TAO_POA_Manager::hold_requests

(

CORBA::Boolean

wait_for_completion

)

Definition at line 28 of file POAManager.inl.

References hold_requests_i(), and TAO_OBJECT_ADAPTER_GUARD.

{
  // Lock access to the POAManager for the duration of this transaction
  TAO_OBJECT_ADAPTER_GUARD;

  this->hold_requests_i (wait_for_completion);
}

void TAO_POA_Manager::hold_requests_i

(

CORBA::Boolean

wait_for_completion

)

[protected]

Definition at line 178 of file POAManager.cpp.

References adapter_manager_state_changed(), TAO_Root_POA::check_for_valid_wait_for_completions(), ACE_Unbounded_Set_Ex< T, C >::end(), poa_collection_, and state_.

Referenced by hold_requests().

{
  // Is the <wait_for_completion> semantics for this thread correct?
  TAO_Root_POA::check_for_valid_wait_for_completions (this->object_adapter_.orb_core (),
                                                      wait_for_completion);

  // This operation changes the state of the POA manager to
  // holding. If issued while the POA manager is in the inactive
  // state, the AdapterInactive exception is raised.  Entering the
  // holding state causes the associated POAs to queue incoming
  // requests.  Any requests that have been queued but have not
  // started executing will continue to be queued while in the holding
  // state.

  if (this->state_ == PortableServer::POAManager::INACTIVE)
    {
      throw PortableServer::POAManager::AdapterInactive ();
    }
  else
    {
      this->state_ = PortableServer::POAManager::HOLDING;
    }

  // If the wait_for_completion parameter is FALSE, this operation
  // returns immediately after changing the state. If the parameter is
  // TRUE and the current thread is not in an invocation context
  // dispatched by some POA belonging to the same ORB as this POA,
  // this operation does not return until either there are no actively
  // executing requests in any of the POAs associated with this POA
  // manager (that is, all requests that were started prior to the
  // state change have completed) or the state of the POA manager is
  // changed to a state other than holding. If the parameter is TRUE
  // and the current thread is in an invocation context dispatched by
  // some POA belonging to the same ORB as this POA the BAD_INV_ORDER
  // exception is raised and the state is not changed.

  if (wait_for_completion)
    {
      for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin ();
           iterator != this->poa_collection_.end ();
           ++iterator)
        {
          TAO_Root_POA *poa = *iterator;
          poa->wait_for_completions (wait_for_completion);
        }
    }

  this->adapter_manager_state_changed (this->state_);
}

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Lock & TAO_POA_Manager::lock

(

void

)

[protected]

Definition at line 11 of file POAManager.inl.

References lock_.

{
  return this->lock_;
}

int TAO_POA_Manager::register_poa

(

TAO_Root_POA *

poa

)

[protected]

Definition at line 307 of file POAManager.cpp.

References ACE_Unbounded_Set_Ex< T, C >::insert(), and poa_collection_.

Referenced by TAO_Root_POA::TAO_Root_POA().

{
  return this->poa_collection_.insert (poa);
}

int TAO_POA_Manager::remove_poa

(

TAO_Root_POA *

poa

)

[protected]

Definition at line 284 of file POAManager.cpp.

References poa_collection_, and ACE_Unbounded_Set_Ex< T, C >::remove().

Referenced by TAO_Root_POA::TAO_Root_POA().

{
  int const result = this->poa_collection_.remove (poa);

  // The #if really only needs to go around the
  // "this->poa_manager_factory_.remove_poamanager (this);" line, but it's
  // moved out as an optimization for now.  If additional non-CORBA/e and
  // non-minimum POA code needs to go in that clause the #if would have to
  // move back in.

#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO)
  if (result == 0)
    {
      if (this->poa_collection_.is_empty ())
        {
          this->poa_manager_factory_.remove_poamanager (this);
        }
    }
#endif
  return result;
}

---

Friends And Related Function Documentation

friend class TAO_Object_Adapter [friend]

Definition at line 61 of file POAManager.h.

friend class TAO_Root_POA [friend]

Definition at line 60 of file POAManager.h.

---

Member Data Documentation

CORBA::String_var TAO_POA_Manager::id_ [protected]

Definition at line 141 of file POAManager.h.

ACE_Lock& TAO_POA_Manager::lock_ [protected]

Definition at line 133 of file POAManager.h.

Referenced by lock().

TAO_Object_Adapter& TAO_POA_Manager::object_adapter_ [protected]

Definition at line 139 of file POAManager.h.

Referenced by adapter_manager_state_changed().

POA_COLLECTION TAO_POA_Manager::poa_collection_ [protected]

Definition at line 137 of file POAManager.h.

Referenced by activate_i(), deactivate_i(), discard_requests_i(), hold_requests_i(), register_poa(), and remove_poa().

TAO_POAManager_Factory& TAO_POA_Manager::poa_manager_factory_ [protected]

Definition at line 145 of file POAManager.h.

CORBA::PolicyList TAO_POA_Manager::policies_ [protected]

Definition at line 146 of file POAManager.h.

Referenced by get_policies().

PortableServer::POAManager::State TAO_POA_Manager::state_ [protected]

Definition at line 131 of file POAManager.h.

Referenced by activate_i(), check_state(), deactivate_i(), discard_requests_i(), get_state_i(), and hold_requests_i().

---

The documentation for this class was generated from the following files:

• POAManager.h
• POAManager.cpp
• POAManager.inl

---
