TAO_ESF_Proxy_List< PROXY > Class Template Reference

A concrete proxy collection. More...

#include <ESF_Proxy_List.h>

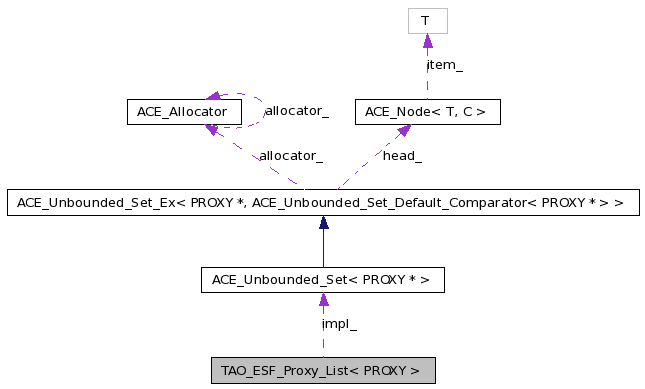

Collaboration diagram for TAO_ESF_Proxy_List< PROXY >:

[legend]List of all members.

Public Types
typedef ACE_Unbounded_Set< PROXY * >	Implementation
	A typedef for the underlying implementaiton class.
typedef ACE_Unbounded_Set_Iterator< PROXY * >	Iterator
	A typedef for the underlying iterator.
Public Member Functions
	TAO_ESF_Proxy_List (void)
	Constructor.
ACE_Unbounded_Set_Iterator< PROXY * >	begin (void)
ACE_Unbounded_Set_Iterator< PROXY * >	end (void)
	Return one past the last element in the collection.
size_t	size (void) const
	Return the number of elements in the collection.
void	connected (PROXY *)
	Insert a new element to the collection.
void	reconnected (PROXY *)
	Insert a new element that could be there already.
void	disconnected (PROXY *)
	Remove an element from the collection.
void	shutdown (void)
Private Attributes
ACE_Unbounded_Set< PROXY * >	impl_
	The underlying implementation object.

---

Detailed Description

template<class PROXY>
class TAO_ESF_Proxy_List< PROXY >

A concrete proxy collection.

Based on the ACE_Unbounded_Set<> collection, used a double linked list internally.

Definition at line 31 of file ESF_Proxy_List.h.

---

Member Typedef Documentation

template<class PROXY>

typedef ACE_Unbounded_Set<PROXY*> TAO_ESF_Proxy_List< PROXY >::Implementation

A typedef for the underlying implementaiton class.

Definition at line 35 of file ESF_Proxy_List.h.

template<class PROXY>

typedef ACE_Unbounded_Set_Iterator<PROXY*> TAO_ESF_Proxy_List< PROXY >::Iterator

A typedef for the underlying iterator.

Definition at line 38 of file ESF_Proxy_List.h.

---

Constructor & Destructor Documentation

template<class PROXY>

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ESF_Proxy_List< PROXY >::TAO_ESF_Proxy_List

(

void

)

Constructor.

Definition at line 15 of file ESF_Proxy_List.cpp.

{
}

---

Member Function Documentation

template<class PROXY>

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Unbounded_Set_Iterator< PROXY * > TAO_ESF_Proxy_List< PROXY >::begin

(

void

)

Return the first element in the collection, or end() if there are none

Definition at line 8 of file ESF_Proxy_List.inl.

References ACE_Unbounded_Set_Ex< T, C >::begin(), and TAO_ESF_Proxy_List< PROXY >::impl_.

{
  return this->impl_.begin ();
}

template<class PROXY>

void TAO_ESF_Proxy_List< PROXY >::connected

(

PROXY *

)

Insert a new element to the collection.

Definition at line 20 of file ESF_Proxy_List.cpp.

References TAO_ESF_Proxy_List< PROXY >::impl_, and ACE_Unbounded_Set_Ex< T, C >::insert().

{
  int r = this->impl_.insert (proxy);
  if (r == 0)
    return;

  if (r == 1)
    {
      // @@ Already there, throw some user exception..
      proxy->_decr_refcnt ();
    }
  if (r == -1)
    {
      // @@ Cannot insert, running out of memory? throw some other
      // user exception
      proxy->_decr_refcnt ();
    }
}

template<class PROXY>

void TAO_ESF_Proxy_List< PROXY >::disconnected

(

PROXY *

)

Remove an element from the collection.

Definition at line 64 of file ESF_Proxy_List.cpp.

References TAO_ESF_Proxy_List< PROXY >::impl_, and ACE_Unbounded_Set_Ex< T, C >::remove().

{
  int r = this->impl_.remove (proxy);
  if (r != 0)
    {
      // @@ Cannot remove, throw some other
      // user exception
      return;
    }
  proxy->_decr_refcnt ();
}

template<class PROXY>

ACE_INLINE ACE_Unbounded_Set_Iterator< PROXY * > TAO_ESF_Proxy_List< PROXY >::end

(

void

)

Return one past the last element in the collection.

Definition at line 14 of file ESF_Proxy_List.inl.

References ACE_Unbounded_Set_Ex< T, C >::end(), and TAO_ESF_Proxy_List< PROXY >::impl_.

Referenced by TAO_ESF_Proxy_List< PROXY >::shutdown().

{
  return this->impl_.end ();
}

template<class PROXY>

void TAO_ESF_Proxy_List< PROXY >::reconnected

(

PROXY *

)

Insert a new element that could be there already.

Definition at line 40 of file ESF_Proxy_List.cpp.

References TAO_ESF_Proxy_List< PROXY >::impl_, and ACE_Unbounded_Set_Ex< T, C >::insert().

{
  int r = this->impl_.insert (proxy);
  if (r == 0)
    return;

  if (r == 1)
    {
      // Reference count is incremented by the callers to [re]connected.
      // @@ Find out if the protocol could be simplified, and decoupling
      //    increased.
      proxy->_decr_refcnt ();
      return;
    }

  if (r == -1)
    {
      // @@ Cannot insert, running out of memory? throw some other
      // user exception
      proxy->_decr_refcnt ();
    }
}

template<class PROXY>

void TAO_ESF_Proxy_List< PROXY >::shutdown

(

void

)

Shutdown the collection, i.e. remove all elements and release resources

Definition at line 77 of file ESF_Proxy_List.cpp.

References ACE_Unbounded_Set_Ex< T, C >::end(), TAO_ESF_Proxy_List< PROXY >::end(), TAO_ESF_Proxy_List< PROXY >::impl_, and ACE_Unbounded_Set_Ex< T, C >::reset().

{
  Iterator end = this->impl_.end ();
  for (Iterator i = this->impl_.begin (); i != end; ++i)
    {
      // Decrement reference count
      (*i)->_decr_refcnt ();
    }
  this->impl_.reset ();
}

template<class PROXY>

ACE_INLINE size_t TAO_ESF_Proxy_List< PROXY >::size

(

void

)

const

Return the number of elements in the collection.

Definition at line 20 of file ESF_Proxy_List.inl.

References TAO_ESF_Proxy_List< PROXY >::impl_, and ACE_Unbounded_Set_Ex< T, C >::size().

{
  return this->impl_.size ();
}

---

Member Data Documentation

template<class PROXY>

ACE_Unbounded_Set<PROXY*> TAO_ESF_Proxy_List< PROXY >::impl_ [private]

The underlying implementation object.

Definition at line 68 of file ESF_Proxy_List.h.

Referenced by TAO_ESF_Proxy_List< PROXY >::begin(), TAO_ESF_Proxy_List< PROXY >::connected(), TAO_ESF_Proxy_List< PROXY >::disconnected(), TAO_ESF_Proxy_List< PROXY >::end(), TAO_ESF_Proxy_List< PROXY >::reconnected(), TAO_ESF_Proxy_List< PROXY >::shutdown(), and TAO_ESF_Proxy_List< PROXY >::size().

---

The documentation for this class was generated from the following files:

• ESF_Proxy_List.h
• ESF_Proxy_List.cpp
• ESF_Proxy_List.inl

---
