TAO_Notify::Topology_Object Class Reference

Base class for Persistent Topology Objects. More...

#include <Topology_Object.h>

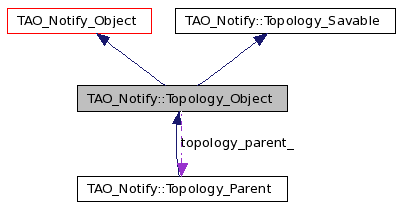

Inheritance diagram for TAO_Notify::Topology_Object:

[legend]Collaboration diagram for TAO_Notify::Topology_Object:

[legend]List of all members.

Public Member Functions
	Topology_Object ()
	The constructor.
virtual	~Topology_Object ()
	The destructor.
virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.
virtual Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const NVPList &attrs)
	Create a child of the appropriate type and return it.
virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object.
void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.
bool	is_changed (void) const
	Is there an unsaved change for this object or its children?
Protected Member Functions
virtual bool	is_persistent (void) const
	Should this object be saved?
bool	self_change (void)
	Method to report change in this object.
Topology_Parent *	topology_parent () const
	pointer to our topological parent
bool	send_change (void)
	Handle details of propagating change.
bool	send_deletion_change ()
	Handle details of propagating change for a deleted object.
Protected Attributes
bool	self_changed_
	true if this object changed since last save_persistent
bool	children_changed_
	true of any of this object's children changed since last save_persistent
Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;.
Private Member Functions
virtual bool	change_to_parent (void)
	Send change to parent.

---

Detailed Description

Base class for Persistent Topology Objects.

Topology objects must be derived from this class to allow themselves to be persisted. Note: virtual inheritance from TopologySavable is unnecessary, but HP ACC compiler warns if it's not there.

Definition at line 107 of file Topology_Object.h.

---

Constructor & Destructor Documentation

TAO_Notify::Topology_Object::Topology_Object

(

)

The constructor.

Definition at line 29 of file Topology_Object.cpp.

    : TAO_Notify_Object ()
    , Topology_Savable ()
    , self_changed_ (false)
    , children_changed_ (false)
    , topology_parent_ (0)
  {
  }

TAO_Notify::Topology_Object::~Topology_Object

(

)

[virtual]

The destructor.

Definition at line 38 of file Topology_Object.cpp.

  {
  }

---

Member Function Documentation

bool TAO_Notify::Topology_Object::change_to_parent

(

void

)

[private, virtual]

Send change to parent.

Override this if you don't expect to have a parent (top level of tree) private virtual because this should only be called from send_change()

Returns:

false if save will never happen

Reimplemented in TAO_Notify_EventChannelFactory.

Definition at line 125 of file Topology_Object.cpp.

References TAO_Notify::Topology_Parent::child_change(), and topology_parent().

Referenced by send_change(), and send_deletion_change().

    {
      bool result = false;
      Topology_Parent * parent = this->topology_parent();
      if (parent != 0)
      {
        result = parent->child_change();
      }
      return result;
    }

TAO_Notify_Object::ID TAO_Notify::Topology_Object::get_id

(

void

)

const [virtual]

Find the id associated with topology object.

A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us.

Reimplemented in TAO_Notify_EventChannel, and TAO_Notify_EventChannelFactory.

Definition at line 147 of file Topology_Object.cpp.

References ACE_ASSERT.

  {
    // If this assert triggers then implement the
    // get_id method in the actual class
    // derived from Topology_Object
    // or else figure out why this method was called
    // on an object that doesn't have an id.
    ACE_ASSERT (false);
    // if it is called in a release build, provide 'em a value
    return -1;
  }

void TAO_Notify::Topology_Object::get_id_path

(

IdVec &

id_path

)

const

Get the path of id's from the root to this object.

Definition at line 137 of file Topology_Object.cpp.

References ACE_Vector< T, DEFAULT_SIZE >::push_back().

  {
    if (this->topology_parent() != 0)
    {
      this->topology_parent()->get_id_path (id_path);
    }
    id_path.push_back (this->get_id ());
  }

void TAO_Notify::Topology_Object::initialize

(

Topology_Parent *

topology_parent

)

[virtual]

Init this object with data from <rhs>.

Definition at line 43 of file Topology_Object.cpp.

References ACE_ASSERT, TAO_Notify_Object::initialize(), topology_parent(), and topology_parent_.

Referenced by TAO_Notify_ProxySupplier::init(), TAO_Notify_ProxyConsumer::init(), TAO_Notify_EventChannel::init(), and TAO_Notify_Admin::init().

  {
    ACE_ASSERT (topology_parent != 0 && this->topology_parent_ == 0);
    this->topology_parent_ = topology_parent;
    TAO_Notify_Object::initialize (topology_parent);
  }

ACE_INLINE bool TAO_Notify::Topology_Object::is_changed

(

void

)

const

Is there an unsaved change for this object or its children?

Definition at line 11 of file Topology_Object.inl.

References children_changed_, and self_changed_.

  {
    return this->self_changed_ | this->children_changed_;
  }

bool TAO_Notify::Topology_Object::is_persistent

(

void

)

const [protected, virtual]

Should this object be saved?

This is a way for send_change() and save_persistent() to find out if this object has a persistent QoS connection property.

Returns:

true (default) if object should be saved.

Reimplemented in TAO_Notify_EventChannelFactory.

Definition at line 66 of file Topology_Object.cpp.

References CosNotification::Persistent.

Referenced by TAO_Notify_Proxy::save_persistent(), TAO_Notify_EventChannel::save_persistent(), TAO_Notify_Admin::save_persistent(), send_change(), and send_deletion_change().

  {
    bool result = false;
    if (this->qos_properties_.event_reliability().is_valid ())
    {
      result = CosNotification::Persistent == this->qos_properties_.event_reliability().value ();
    }
    else if (this->topology_parent () != 0)
    {
      result = this->topology_parent ()->is_persistent ();
    }
    return result;
  }

Topology_Object * TAO_Notify::Topology_Object::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const NVPList &	attrs
	)			[virtual]

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented in TAO_Notify_Admin, TAO_Notify_ConsumerAdmin, TAO_Notify_EventChannel, TAO_Notify_EventChannelFactory, TAO_Notify_EventTypeSeq, TAO_Notify_FilterAdmin, TAO_Notify_Proxy, TAO_Notify::Reconnection_Registry, and TAO_Notify_SupplierAdmin.

Definition at line 58 of file Topology_Object.cpp.

  {
    return 0;
  }

bool TAO_Notify::Topology_Object::self_change

(

void

)

[protected]

Method to report change in this object.

see also Topology_Parent::child_change ()

Returns:

false if save will never happen

Definition at line 81 of file Topology_Object.cpp.

References self_changed_, and send_change().

Referenced by TAO_Notify_SupplierAdmin::add_filter(), TAO_Notify_Proxy_T< SERVANT_TYPE >::add_filter(), TAO_Notify_ConsumerAdmin::add_filter(), TAO_Notify_ProxyPushSupplier::connect_any_push_consumer(), TAO_Notify_ProxyPushConsumer::connect_any_push_supplier(), TAO_Notify_SequenceProxyPushSupplier::connect_sequence_push_consumer(), TAO_Notify_SequenceProxyPushConsumer::connect_sequence_push_supplier(), TAO_Notify_StructuredProxyPushSupplier::connect_structured_push_consumer(), TAO_Notify_StructuredProxyPushConsumer::connect_structured_push_supplier(), TAO_Notify_EventChannelFactory::create_channel(), TAO_Notify_ProxyPushConsumer::disconnect_push_consumer(), TAO_Notify_ProxyPushSupplier::disconnect_push_supplier(), TAO_Notify_SequenceProxyPushConsumer::disconnect_sequence_push_consumer(), TAO_Notify_SequenceProxyPushSupplier::disconnect_sequence_push_supplier(), TAO_Notify_EventChannel::new_for_consumers(), TAO_Notify_EventChannel::new_for_suppliers(), TAO_Notify_SupplierAdmin::obtain_notification_push_consumer(), TAO_Notify_SupplierAdmin::obtain_notification_push_consumer_with_qos(), TAO_Notify_ConsumerAdmin::obtain_notification_push_supplier(), TAO_Notify_ConsumerAdmin::obtain_notification_push_supplier_with_qos(), TAO_Notify_SupplierAdmin::obtain_push_consumer(), TAO_Notify_ConsumerAdmin::obtain_push_supplier(), TAO_Notify_EventChannelFactory::remove(), TAO_Notify_EventChannelFactory::save_topology(), TAO_Notify_ConsumerAdmin::subscription_change(), and TAO_Notify_ProxySupplier_T< SERVANT_TYPE >::suspend_connection().

  {
    this->self_changed_ = true;
    return send_change ();
  }

bool TAO_Notify::Topology_Object::send_change

(

void

)

[protected]

Handle details of propagating change.

Returns:

false if save will never happen

Definition at line 88 of file Topology_Object.cpp.

References change_to_parent(), children_changed_, is_persistent(), and self_changed_.

Referenced by TAO_Notify::Topology_Parent::child_change(), and self_change().

  {
    bool saving = false;
    if (is_persistent ())
    {
      while (this->self_changed_ || this->children_changed_)
      {
        saving = this->change_to_parent ();
        if (!saving)
        {
          this->self_changed_ = false;
          this->children_changed_ = false;
        }
      }
    }
    else
    {
      this->self_changed_ = false;
      this->children_changed_ = false;
    }
    return saving;
  }

bool TAO_Notify::Topology_Object::send_deletion_change

(

)

[protected]

Handle details of propagating change for a deleted object.

Returns:

false if save will never happen

Definition at line 112 of file Topology_Object.cpp.

References change_to_parent(), children_changed_, is_persistent(), and self_changed_.

Referenced by TAO_Notify_StructuredProxyPushConsumer::disconnect_structured_push_consumer(), and TAO_Notify_StructuredProxyPushSupplier::disconnect_structured_push_supplier().

  {
    bool saving = false;
    if (is_persistent ())
    {
      saving = this->change_to_parent ();
    }
    this->self_changed_ = false;
    this->children_changed_ = false;
    return saving;
  }

Topology_Parent * TAO_Notify::Topology_Object::topology_parent

(

)

const [protected]

pointer to our topological parent

Returns:

0 if none

Definition at line 51 of file Topology_Object.cpp.

References topology_parent_.

Referenced by change_to_parent(), TAO_Notify_ProxyConsumer::init(), and initialize().

  {
    return this->topology_parent_;
  }

---

Member Data Documentation

bool TAO_Notify::Topology_Object::children_changed_ [protected]

true of any of this object's children changed since last save_persistent

Definition at line 186 of file Topology_Object.h.

Referenced by TAO_Notify::Topology_Parent::child_change(), is_changed(), TAO_Notify::Reconnection_Registry::save_persistent(), TAO_Notify_Proxy::save_persistent(), TAO_Notify_EventTypeSeq::save_persistent(), TAO_Notify_EventChannelFactory::save_persistent(), TAO_Notify_EventChannel::save_persistent(), TAO_Notify_Admin::save_persistent(), send_change(), and send_deletion_change().

bool TAO_Notify::Topology_Object::self_changed_ [protected]

true if this object changed since last save_persistent

Definition at line 184 of file Topology_Object.h.

Referenced by is_changed(), TAO_Notify::Reconnection_Registry::save_persistent(), TAO_Notify_Proxy::save_persistent(), TAO_Notify_EventTypeSeq::save_persistent(), TAO_Notify_EventChannelFactory::save_persistent(), TAO_Notify_EventChannel::save_persistent(), TAO_Notify_Admin::save_persistent(), self_change(), send_change(), and send_deletion_change().

Topology_Parent* TAO_Notify::Topology_Object::topology_parent_ [protected]

A safely-typed copy of parent_;.

Definition at line 189 of file Topology_Object.h.

Referenced by initialize(), TAO_Notify::Reconnection_Registry::Reconnection_Registry(), and topology_parent().

---

The documentation for this class was generated from the following files:

• Topology_Object.h
• Topology_Object.cpp
• Topology_Object.inl

---
