TAO_Notify_QoSProperties Class Reference

#include <QoSProperties.h>

Inheritance diagram for TAO_Notify_QoSProperties:

Inheritance graph
[legend]

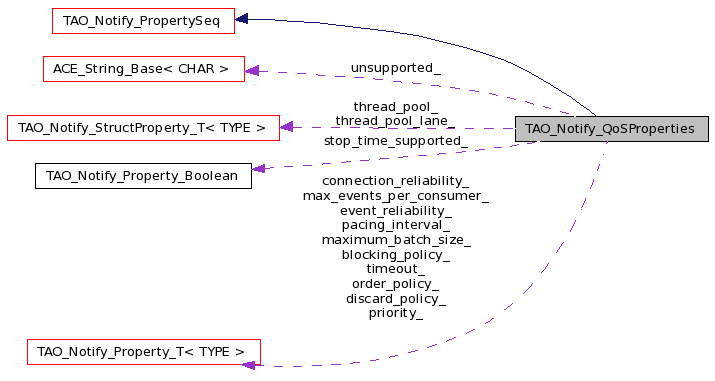

Collaboration diagram for TAO_Notify_QoSProperties:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Notify_QoSProperties (void)
 Constructor.
virtual ~TAO_Notify_QoSProperties (void)
 Destructor.
int init (const CosNotification::PropertySeq &prop_seq, CosNotification::PropertyErrorSeq &err_seq)
 Return 0 on success, 1 if unsupported properties were detected and -1 on error.
void init ()
 This version initializes the base from our members.
int copy (TAO_Notify_QoSProperties &qos_properties)
 Populate <qos_properties> with all properties from this object. Returns -1 on error.
int transfer (TAO_Notify_QoSProperties &qos_properties)
 Populate <qos_properties> with properties that can be transfered.Returns -1 on error.
const TAO_Notify_Property_ThreadPool & thread_pool (void) const
 = Accessors
const TAO_Notify_Property_ThreadPoolLanes & thread_pool_lane (void) const
const TAO_Notify_Property_Short & event_reliability (void) const
const TAO_Notify_Property_Short & connection_reliability (void) const
const TAO_Notify_Property_Short & priority (void) const
const TAO_Notify_Property_Time & timeout (void) const
const TAO_Notify_Property_Boolean & stop_time_supported (void) const
const TAO_Notify_Property_Long & maximum_batch_size (void) const
const TAO_Notify_Property_Time & pacing_interval (void) const
const TAO_Notify_Property_Long & max_events_per_consumer (void) const
const TAO_Notify_Property_Short & discard_policy (void) const
const TAO_Notify_Property_Short & order_policy (void) const
const TAO_Notify_Property_Time & blocking_policy (void) const
TAO_Notify_Property_Short & event_reliability (void)
TAO_Notify_Property_Short & connection_reliability (void)
TAO_Notify_Property_Short & priority (void)
TAO_Notify_Property_Time & timeout (void)
TAO_Notify_Property_Boolean & stop_time_supported (void)
TAO_Notify_Property_Long & maximum_batch_size (void)
TAO_Notify_Property_Time & pacing_interval (void)
TAO_Notify_Property_Long & max_events_per_consumer (void)
TAO_Notify_Property_Short & discard_policy (void)
TAO_Notify_Property_Short & order_policy (void)
TAO_Notify_Property_Time & blocking_policy (void)

Protected Types

 UNSUPPORTED_PROPERTY_COUNT = 1
enum  { UNSUPPORTED_PROPERTY_COUNT = 1 }

Protected Member Functions

int unsupported (ACE_CString &name)
 Return 1 if

is unsupported.


Protected Attributes

ACE_CString unsupported_ [UNSUPPORTED_PROPERTY_COUNT]
 = Unsupported Properties.
TAO_Notify_Property_Short event_reliability_
 = Supported standard properties
TAO_Notify_Property_Short connection_reliability_
TAO_Notify_Property_Short priority_
TAO_Notify_Property_Time timeout_
TAO_Notify_Property_Boolean stop_time_supported_
TAO_Notify_Property_Long maximum_batch_size_
TAO_Notify_Property_Time pacing_interval_
TAO_Notify_Property_Long max_events_per_consumer_
TAO_Notify_Property_Short discard_policy_
TAO_Notify_Property_Short order_policy_
TAO_Notify_Property_ThreadPool thread_pool_
 TAO Extensions.
TAO_Notify_Property_ThreadPoolLanes thread_pool_lane_
TAO_Notify_Property_Time blocking_policy_

Detailed Description

Definition at line 35 of file QoSProperties.h.

Member Enumeration Documentation

anonymous enum [protected]

Enumerator:
UNSUPPORTED_PROPERTY_COUNT

Definition at line 89 of file QoSProperties.h.

00089 {UNSUPPORTED_PROPERTY_COUNT = 1};

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_QoSProperties::TAO_Notify_QoSProperties ( void   )

Constructor.

Definition at line 16 of file QoSProperties.cpp.

References CosNotification::StartTimeSupported, and unsupported_.

00017   : event_reliability_(CosNotification::EventReliability)
00018   , connection_reliability_(CosNotification::ConnectionReliability)
00019   , priority_ (CosNotification::Priority)
00020   , timeout_ (CosNotification::Timeout)
00021   , stop_time_supported_ (CosNotification::StopTimeSupported)
00022   , maximum_batch_size_ (CosNotification::MaximumBatchSize)
00023   , pacing_interval_ (CosNotification::PacingInterval)
00024   , max_events_per_consumer_ (CosNotification::MaxEventsPerConsumer)
00025   , discard_policy_ (CosNotification::DiscardPolicy)
00026   , order_policy_ (CosNotification::OrderPolicy)
00027   , thread_pool_ (NotifyExt::ThreadPool)
00028   , thread_pool_lane_ (NotifyExt::ThreadPoolLanes)
00029   , blocking_policy_(TAO_Notify_Extensions::BlockingPolicy)
00030 {
00031   unsupported_[0] = CosNotification::StartTimeSupported;
00032 }

TAO_Notify_QoSProperties::~TAO_Notify_QoSProperties ( void   )  [virtual]

Destructor.

Definition at line 34 of file QoSProperties.cpp.

00035 {
00036 }

Member Function Documentation

TAO_Notify_Property_Time& TAO_Notify_QoSProperties::blocking_policy ( void   )

ACE_INLINE const TAO_Notify_Property_Time & TAO_Notify_QoSProperties::blocking_policy ( void   )  const

Definition at line 89 of file QoSProperties.inl.

References blocking_policy_.

00090 {
00091   return this->blocking_policy_;
00092 }

ACE_INLINE TAO_Notify_Property_Short & TAO_Notify_QoSProperties::connection_reliability ( void   )

Definition at line 105 of file QoSProperties.inl.

References connection_reliability_.

00106 {
00107   return this->connection_reliability_;
00108 }

ACE_INLINE const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::connection_reliability ( void   )  const

Definition at line 16 of file QoSProperties.inl.

References connection_reliability_.

00017 {
00018   return this->connection_reliability_;
00019 }

int TAO_Notify_QoSProperties::copy ( TAO_Notify_QoSProperties &  qos_properties  )

Populate <qos_properties> with all properties from this object. Returns -1 on error.

Definition at line 178 of file QoSProperties.cpp.

References blocking_policy_, connection_reliability_, discard_policy_, event_reliability_, max_events_per_consumer_, maximum_batch_size_, order_policy_, pacing_interval_, priority_, TAO_Notify_PropertySeq::property_map_, stop_time_supported_, and timeout_.

Referenced by TAO_Notify_Object::set_qos().

00179 {
00180   qos_properties.event_reliability_ = this->event_reliability_;
00181   qos_properties.connection_reliability_ = this->connection_reliability_;
00182   qos_properties.priority_ = this->priority_;
00183   qos_properties.timeout_ = this->timeout_;
00184   qos_properties.stop_time_supported_ = this->stop_time_supported_;
00185   qos_properties.maximum_batch_size_ = this->maximum_batch_size_;
00186   qos_properties.pacing_interval_ = this->pacing_interval_;
00187   qos_properties.max_events_per_consumer_ = this->max_events_per_consumer_;
00188   qos_properties.discard_policy_ = this->discard_policy_;
00189   qos_properties.order_policy_ = this->order_policy_;
00190
00191   qos_properties.blocking_policy_ = this->blocking_policy_;
00192
00193   PROPERTY_MAP::ITERATOR iter (this->property_map_);
00194   PROPERTY_MAP::ENTRY *entry;
00195
00196   for (; iter.next (entry); iter.advance ())
00197     {
00198       if (qos_properties.property_map_.rebind (entry->ext_id_, entry->int_id_) == -1)
00199         return -1;
00200     }
00201
00202   return 0;
00203 }

ACE_INLINE TAO_Notify_Property_Short & TAO_Notify_QoSProperties::discard_policy ( void   )

Definition at line 151 of file QoSProperties.inl.

References discard_policy_.

00152 {
00153   return this->discard_policy_;
00154 }

ACE_INLINE const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::discard_policy ( void   )  const

Definition at line 63 of file QoSProperties.inl.

References discard_policy_.

00064 {
00065   return this->discard_policy_;
00066 }

ACE_INLINE TAO_Notify_Property_Short & TAO_Notify_QoSProperties::event_reliability ( void   )

Definition at line 98 of file QoSProperties.inl.

References event_reliability_.

00099 {
00100   return this->event_reliability_;
00101 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::event_reliability ( void   )  const

Definition at line 9 of file QoSProperties.inl.

References event_reliability_.

00010 {
00011   return this->event_reliability_;
00012 }

void TAO_Notify_QoSProperties::init (  )

This version initializes the base from our members.

Definition at line 50 of file QoSProperties.cpp.

References TAO_Notify_PropertySeq::add(), blocking_policy_, connection_reliability_, discard_policy_, event_reliability_, max_events_per_consumer_, maximum_batch_size_, order_policy_, pacing_interval_, priority_, thread_pool_, thread_pool_lane_, timeout_, TAO_Notify_StructProperty_T< TYPE >::value(), and TAO_Notify_PropertyBase_T< TYPE >::value().

00051 {
00052   if (this->event_reliability_.is_valid())
00053   {
00054     CORBA::Any a;
00055     a <<= this->event_reliability_.value();
00056     this->add(this->event_reliability_.name(), a);
00057   }
00058   if (this->connection_reliability_.is_valid())
00059   {
00060     CORBA::Any a;
00061     a <<= this->connection_reliability_.value();
00062     this->add(this->connection_reliability_.name(), a);
00063   }
00064   if (this->priority_.is_valid())
00065   {
00066     CORBA::Any a;
00067     a <<= this->priority_.value();
00068     this->add(this->priority_.name(), a);
00069   }
00070   if (this->timeout_.is_valid())
00071   {
00072     CORBA::Any a;
00073     a <<= this->timeout_.value();
00074     this->add(this->timeout_.name(), a);
00075   }
00076   if (this->stop_time_supported_.is_valid())
00077   {
00078     CORBA::Any a;
00079     a <<= CORBA::Any::from_boolean (this->stop_time_supported_.value());
00080     this->add(this->stop_time_supported_.name(), a);
00081   }
00082   if (this->maximum_batch_size_.is_valid())
00083   {
00084     CORBA::Any a;
00085     a <<= this->maximum_batch_size_.value();
00086     this->add(this->maximum_batch_size_.name(), a);
00087   }
00088   if (this->pacing_interval_.is_valid())
00089   {
00090     CORBA::Any a;
00091     a <<= this->pacing_interval_.value();
00092     this->add(this->pacing_interval_.name(), a);
00093   }
00094   if (this->max_events_per_consumer_.is_valid())
00095   {
00096     CORBA::Any a;
00097     a <<= this->max_events_per_consumer_.value();
00098     this->add(this->max_events_per_consumer_.name(), a);
00099   }
00100   if (this->discard_policy_.is_valid())
00101   {
00102     CORBA::Any a;
00103     a <<= this->discard_policy_.value();
00104     this->add(this->discard_policy_.name(), a);
00105   }
00106   if (this->order_policy_.is_valid())
00107   {
00108     CORBA::Any a;
00109     a <<= this->order_policy_.value();
00110     this->add(this->order_policy_.name(), a);
00111   }
00112
00113   if (this->thread_pool_.is_valid())
00114   {
00115     CORBA::Any a;
00116     a <<= this->thread_pool_.value();
00117     this->add(this->thread_pool_.name(), a);
00118   }
00119   if (this->thread_pool_lane_.is_valid())
00120   {
00121     CORBA::Any a;
00122     a <<= this->thread_pool_lane_.value();
00123     this->add(this->thread_pool_lane_.name(), a);
00124   }
00125   if (this->blocking_policy_.is_valid())
00126   {
00127     CORBA::Any a;
00128     a <<= this->blocking_policy_.value();
00129     this->add(this->blocking_policy_.name(), a);
00130   }
00131 }

int TAO_Notify_QoSProperties::init ( const CosNotification::PropertySeq &  prop_seq,
CosNotification::PropertyErrorSeq &  err_seq
)

Return 0 on success, 1 if unsupported properties were detected and -1 on error.

Definition at line 134 of file QoSProperties.cpp.

References blocking_policy_, connection_reliability_, discard_policy_, ACE_String_Base< CHAR >::length(), max_events_per_consumer_, maximum_batch_size_, order_policy_, pacing_interval_, priority_, TAO_Notify_StructProperty_T< TYPE >::set(), TAO_Notify_Property_Boolean::set(), TAO_Notify_Property_T< TYPE >::set(), stop_time_supported_, CORBA::string_dup(), thread_pool_, thread_pool_lane_, timeout_, and CosNotification::UNSUPPORTED_PROPERTY.

Referenced by TAO_Notify_Object::load_attrs(), and TAO_Notify_Object::set_qos().

00135 {
00136   int err_index = -1;
00137
00138   ACE_CString name;
00139   for (CORBA::ULong i = 0; i < prop_seq.length (); ++i)
00140     {
00141       name = prop_seq[i].name.in();
00142
00143       if (this->unsupported (name))
00144         {
00145           err_index =  err_seq.length ();
00146           err_seq.length (err_seq.length () + 1);
00147
00148           err_seq[err_index].code = CosNotification::UNSUPPORTED_PROPERTY;
00149           err_seq[err_index].name = CORBA::string_dup (prop_seq[i].name);
00150         }
00151       else if (this->property_map_.rebind (prop_seq[i].name.in (), prop_seq[i].value) == -1)
00152         return -1;
00153       // Note call to rebind. This allows to call <init> to set updates.
00154     }
00155
00156   if (prop_seq.length () > 0)
00157     {
00158         this->event_reliability_.set (*this);
00159         this->connection_reliability_.set (*this);
00160         this->priority_.set (*this);
00161         this->timeout_.set (*this);
00162         this->stop_time_supported_.set (*this);
00163         this->maximum_batch_size_.set (*this);
00164         this->pacing_interval_.set (*this);
00165         this->max_events_per_consumer_.set (*this);
00166         this->discard_policy_.set (*this);
00167         this->order_policy_.set (*this);
00168
00169         this->thread_pool_.set (*this);
00170         this->thread_pool_lane_.set (*this);
00171         this->blocking_policy_.set (*this);
00172   }
00173
00174   return err_index == -1 ? 0 : 1;
00175 }

ACE_INLINE TAO_Notify_Property_Long & TAO_Notify_QoSProperties::max_events_per_consumer ( void   )

Definition at line 144 of file QoSProperties.inl.

References max_events_per_consumer_.

00145 {
00146   return this->max_events_per_consumer_;
00147 }

ACE_INLINE const TAO_Notify_Property_Long & TAO_Notify_QoSProperties::max_events_per_consumer ( void   )  const

Definition at line 56 of file QoSProperties.inl.

References max_events_per_consumer_.

00057 {
00058   return this->max_events_per_consumer_;
00059 }

ACE_INLINE TAO_Notify_Property_Long & TAO_Notify_QoSProperties::maximum_batch_size ( void   )

Definition at line 132 of file QoSProperties.inl.

References maximum_batch_size_.

00133 {
00134   return this->maximum_batch_size_;
00135 }

ACE_INLINE const TAO_Notify_Property_Long & TAO_Notify_QoSProperties::maximum_batch_size ( void   )  const

Definition at line 43 of file QoSProperties.inl.

References maximum_batch_size_.

Referenced by TAO_Notify_Consumer::qos_changed().

00044 {
00045   return this->maximum_batch_size_;
00046 }

ACE_INLINE TAO_Notify_Property_Short & TAO_Notify_QoSProperties::order_policy ( void   )

Definition at line 158 of file QoSProperties.inl.

References order_policy_.

00159 {
00160   return this->order_policy_;
00161 }

ACE_INLINE const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::order_policy ( void   )  const

Definition at line 70 of file QoSProperties.inl.

References order_policy_.

00071 {
00072   return this->order_policy_;
00073 }

ACE_INLINE TAO_Notify_Property_Time & TAO_Notify_QoSProperties::pacing_interval ( void   )

Definition at line 138 of file QoSProperties.inl.

References pacing_interval_.

00139 {
00140   return this->pacing_interval_;
00141 }

ACE_INLINE const TAO_Notify_Property_Time & TAO_Notify_QoSProperties::pacing_interval ( void   )  const

Definition at line 49 of file QoSProperties.inl.

References pacing_interval_.

00050 {
00051   return this->pacing_interval_;
00052 }

ACE_INLINE TAO_Notify_Property_Short & TAO_Notify_QoSProperties::priority ( void   )

Definition at line 112 of file QoSProperties.inl.

References priority_.

00113 {
00114   return this->priority_;
00115 }

ACE_INLINE const TAO_Notify_Property_Short & TAO_Notify_QoSProperties::priority ( void   )  const

Definition at line 23 of file QoSProperties.inl.

References priority_.

00024 {
00025   return this->priority_;
00026 }

ACE_INLINE TAO_Notify_Property_Boolean & TAO_Notify_QoSProperties::stop_time_supported ( void   )

Definition at line 126 of file QoSProperties.inl.

References stop_time_supported_.

00127 {
00128   return this->stop_time_supported_;
00129 }

ACE_INLINE const TAO_Notify_Property_Boolean & TAO_Notify_QoSProperties::stop_time_supported ( void   )  const

Definition at line 37 of file QoSProperties.inl.

References stop_time_supported_.

00038 {
00039   return this->stop_time_supported_;
00040 }

ACE_INLINE const TAO_Notify_Property_ThreadPool & TAO_Notify_QoSProperties::thread_pool ( void   )  const

= Accessors

Definition at line 76 of file QoSProperties.inl.

References thread_pool_.

Referenced by TAO_Notify_Object::set_qos().

00077 {
00078   return this->thread_pool_;
00079 }

ACE_INLINE const TAO_Notify_Property_ThreadPoolLanes & TAO_Notify_QoSProperties::thread_pool_lane ( void   )  const

Definition at line 82 of file QoSProperties.inl.

References thread_pool_lane_.

Referenced by TAO_Notify_Object::set_qos().

00083 {
00084   return this->thread_pool_lane_;
00085 }

ACE_INLINE TAO_Notify_Property_Time & TAO_Notify_QoSProperties::timeout ( void   )

Definition at line 119 of file QoSProperties.inl.

References timeout_.

00120 {
00121   return this->timeout_;
00122 }

ACE_INLINE const TAO_Notify_Property_Time & TAO_Notify_QoSProperties::timeout ( void   )  const

Definition at line 30 of file QoSProperties.inl.

References timeout_.

00031 {
00032   return this->timeout_;
00033 }

int TAO_Notify_QoSProperties::transfer ( TAO_Notify_QoSProperties &  qos_properties  )

Populate <qos_properties> with properties that can be transfered.Returns -1 on error.

Definition at line 206 of file QoSProperties.cpp.

References TAO_Notify_PropertySeq::property_map_.

Referenced by TAO_Notify_Object::initialize().

00207 {
00208   if (this->copy (qos_properties) == -1)
00209     return -1;
00210
00211   // unbind the properties that we don't want to transfer.
00212   qos_properties.property_map_.unbind (NotifyExt::ThreadPool);
00213   qos_properties.property_map_.unbind (NotifyExt::ThreadPoolLanes);
00214
00215   return 0;
00216 }

int TAO_Notify_QoSProperties::unsupported ( ACE_CString &  name  )  [protected]

Return 1 if

is unsupported.

Definition at line 39 of file QoSProperties.cpp.

References UNSUPPORTED_PROPERTY_COUNT.

00040 {
00041   for (int i = 0; i < UNSUPPORTED_PROPERTY_COUNT; ++i)
00042     {
00043       if (this->unsupported_[i] == name)
00044         return 1;
00045     }
00046
00047   return 0;
00048 }

Member Data Documentation

TAO_Notify_Property_Time TAO_Notify_QoSProperties::blocking_policy_ [protected]

Definition at line 109 of file QoSProperties.h.

Referenced by blocking_policy(), copy(), and init().

TAO_Notify_Property_Short TAO_Notify_QoSProperties::connection_reliability_ [protected]

Definition at line 96 of file QoSProperties.h.

Referenced by connection_reliability(), copy(), and init().

TAO_Notify_Property_Short TAO_Notify_QoSProperties::discard_policy_ [protected]

Definition at line 103 of file QoSProperties.h.

Referenced by copy(), discard_policy(), and init().

TAO_Notify_Property_Short TAO_Notify_QoSProperties::event_reliability_ [protected]

= Supported standard properties

Definition at line 95 of file QoSProperties.h.

Referenced by copy(), event_reliability(), and init().

TAO_Notify_Property_Long TAO_Notify_QoSProperties::max_events_per_consumer_ [protected]

Definition at line 102 of file QoSProperties.h.

Referenced by copy(), init(), and max_events_per_consumer().

TAO_Notify_Property_Long TAO_Notify_QoSProperties::maximum_batch_size_ [protected]

Definition at line 100 of file QoSProperties.h.

Referenced by copy(), init(), and maximum_batch_size().

TAO_Notify_Property_Short TAO_Notify_QoSProperties::order_policy_ [protected]

Definition at line 104 of file QoSProperties.h.

Referenced by copy(), init(), and order_policy().

TAO_Notify_Property_Time TAO_Notify_QoSProperties::pacing_interval_ [protected]

Definition at line 101 of file QoSProperties.h.

Referenced by copy(), init(), and pacing_interval().

TAO_Notify_Property_Short TAO_Notify_QoSProperties::priority_ [protected]

Definition at line 97 of file QoSProperties.h.

Referenced by copy(), init(), and priority().

TAO_Notify_Property_Boolean TAO_Notify_QoSProperties::stop_time_supported_ [protected]

Definition at line 99 of file QoSProperties.h.

Referenced by copy(), init(), and stop_time_supported().

TAO_Notify_Property_ThreadPool TAO_Notify_QoSProperties::thread_pool_ [protected]

TAO Extensions.

Definition at line 107 of file QoSProperties.h.

Referenced by init(), and thread_pool().

TAO_Notify_Property_ThreadPoolLanes TAO_Notify_QoSProperties::thread_pool_lane_ [protected]

Definition at line 108 of file QoSProperties.h.

Referenced by init(), and thread_pool_lane().

TAO_Notify_Property_Time TAO_Notify_QoSProperties::timeout_ [protected]

Definition at line 98 of file QoSProperties.h.

Referenced by copy(), init(), and timeout().

ACE_CString TAO_Notify_QoSProperties::unsupported_[UNSUPPORTED_PROPERTY_COUNT] [protected]

= Unsupported Properties.

Definition at line 92 of file QoSProperties.h.

Referenced by TAO_Notify_QoSProperties().

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:46:28 2010 for TAO_CosNotification by  doxygen 1.4.7
