TAO_CEC_Reactive_Pulling_Strategy Class Reference

Dispatch using the caller thread. More...

#include <CEC_Reactive_Pulling_Strategy.h>

Inheritance diagram for TAO_CEC_Reactive_Pulling_Strategy:

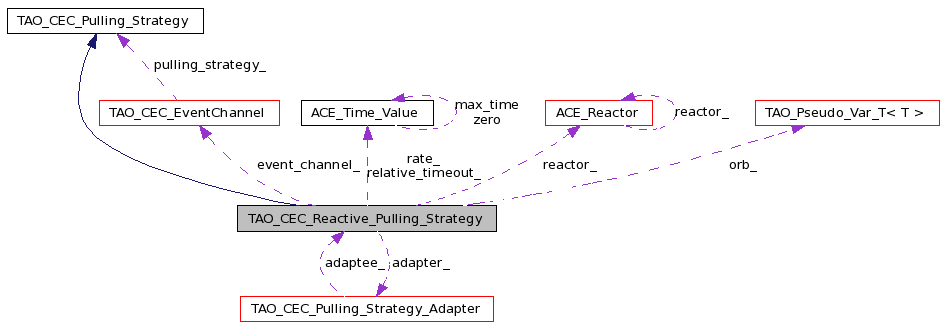

[legend]Collaboration diagram for TAO_CEC_Reactive_Pulling_Strategy:


Public Member Functions
	TAO_CEC_Reactive_Pulling_Strategy (const ACE_Time_Value &rate, const ACE_Time_Value &relative_timeout, TAO_CEC_EventChannel *event_channel, CORBA::ORB_ptr orb)
void	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Receive the timeout from the adapter.
virtual void	activate (void)
virtual void	shutdown (void)
Private Attributes
TAO_CEC_Pulling_Strategy_Adapter	adapter_
	The Adapter for the reactor events.
ACE_Time_Value	rate_
	The polling rate.
ACE_Time_Value	relative_timeout_
	The relative timeout.
TAO_CEC_EventChannel *	event_channel_
	The event channel.
CORBA::ORB_var	orb_
	The ORB.
CORBA::PolicyCurrent_var	policy_current_
	To control the timeout policy in the thread.
CORBA::PolicyList	policy_list_
	Precomputed policy list to the set timeout.
ACE_Reactor *	reactor_
	The ORB reactor.
long	timer_id_
	The timer id.

Detailed Description

Dispatch using the caller thread.

The events are dispatched in FIFO ordering, using the invoking thread to push the event to the consumer.

Definition at line 75 of file CEC_Reactive_Pulling_Strategy.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_CEC_Reactive_Pulling_Strategy::TAO_CEC_Reactive_Pulling_Strategy	(	const ACE_Time_Value &	rate,
		const ACE_Time_Value &	relative_timeout,
		TAO_CEC_EventChannel *	event_channel,
		CORBA::ORB_ptr	orb
	)

The scheduler is used to find the range of priorities and similar info.

Definition at line 29 of file CEC_Reactive_Pulling_Strategy.cpp.

References orb_.

00033   :  adapter_ (this),
00034      rate_ (rate),
00035      relative_timeout_ (relative_timeout),
00036      event_channel_ (event_channel),
00037      orb_ (CORBA::ORB::_duplicate (orb))
00038 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00039    // Initialise timer_id_ to an invalid timer id, so that in case we don't
00040    // schedule a timer, we don't cancel a random timer at shutdown
00041    , timer_id_ (-1)
00042 #endif /* TAO_HAS_CORBA_MESSAGING */
00043 {
00044   this->reactor_ =
00045     this->orb_->orb_core ()->reactor ();
00046 }

Member Function Documentation

void TAO_CEC_Reactive_Pulling_Strategy::activate ( void ) [virtual]

Initialize all the data structures, activate any internal threads, etc.

Implements TAO_CEC_Pulling_Strategy.

Definition at line 91 of file CEC_Reactive_Pulling_Strategy.cpp.

References TAO_Pseudo_Var_T< T >::in(), orb_, policy_current_, policy_list_, reactor_, ACE_Reactor::schedule_timer(), and timer_id_.

00092 {
00093 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00094   timer_id_ = this->reactor_->schedule_timer (&this->adapter_,
00095                                             0,
00096                                             this->rate_,
00097                                             this->rate_);
00098   if (timer_id_ == -1)
00099     return;
00100
00101   try
00102     {
00103       // Get the PolicyCurrent object
00104       CORBA::Object_var tmp =
00105         this->orb_->resolve_initial_references ("PolicyCurrent");
00106
00107       this->policy_current_ =
00108         CORBA::PolicyCurrent::_narrow (tmp.in ());
00109
00110       // Pre-compute the policy list to the set the right timeout
00111       // value...
00112       // We need to convert the relative timeout into 100's of nano seconds.
00113       TimeBase::TimeT timeout;
00114       ORBSVCS_Time::Time_Value_to_TimeT (timeout,
00115                                          this->relative_timeout_);
00116       CORBA::Any any;
00117       any <<= timeout;
00118
00119       this->policy_list_.length (1);
00120       this->policy_list_[0] =
00121         this->orb_->create_policy (
00122                Messaging::RELATIVE_RT_TIMEOUT_POLICY_TYPE,
00123                any);
00124     }
00125   catch (const CORBA::Exception&)
00126     {
00127     }
00128 #endif /* TAO_HAS_CORBA_MESSAGING */
00129 }

void TAO_CEC_Reactive_Pulling_Strategy::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg
	)

Receive the timeout from the adapter.

Definition at line 49 of file CEC_Reactive_Pulling_Strategy.cpp.

References event_channel_, TAO_CEC_SupplierAdmin::for_each(), policy_current_, TAO_CEC_EventChannel::supplier_admin(), and TAO_CEC_EventChannel::supplier_control().

Referenced by TAO_CEC_Pulling_Strategy_Adapter::handle_timeout().

00052 {
00053   try
00054     {
00055       // Query the state of the Current object *before* we initiate
00056       // the iteration...
00057       CORBA::PolicyTypeSeq types;
00058       CORBA::PolicyList_var policies =
00059         this->policy_current_->get_policy_overrides (types);
00060
00061       // Change the timeout
00062       this->policy_current_->set_policy_overrides (this->policy_list_,
00063                                                    CORBA::ADD_OVERRIDE);
00064
00065       try
00066         {
00067           TAO_CEC_Pull_Event worker (this->event_channel_->consumer_admin (),
00068                                      this->event_channel_->supplier_control ());
00069
00070           this->event_channel_->supplier_admin ()->for_each (&worker);
00071         }
00072       catch (const CORBA::Exception&)
00073         {
00074           // Ignore all exceptions
00075         }
00076
00077       this->policy_current_->set_policy_overrides (policies.in (),
00078                                                    CORBA::SET_OVERRIDE);
00079       for (CORBA::ULong i = 0; i != policies->length (); ++i)
00080         {
00081           policies[i]->destroy ();
00082         }
00083     }
00084   catch (const CORBA::Exception&)
00085     {
00086       // Ignore all exceptions
00087     }
00088 }

void TAO_CEC_Reactive_Pulling_Strategy::shutdown ( void ) [virtual]

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_CEC_Pulling_Strategy.

Definition at line 132 of file CEC_Reactive_Pulling_Strategy.cpp.

References adapter_, ACE_Reactor::cancel_timer(), ACE_Event_Handler::reactor(), reactor_, and timer_id_.

00133 {
00134 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00135   this->reactor_->cancel_timer (timer_id_);
00136 #endif /* TAO_HAS_CORBA_MESSAGING */
00137   this->adapter_.reactor (0);
00138 }
