TAO_CEC_ProxyPushConsumer Class Reference

ProxyPushConsumer. More...

#include <CEC_ProxyPushConsumer.h>

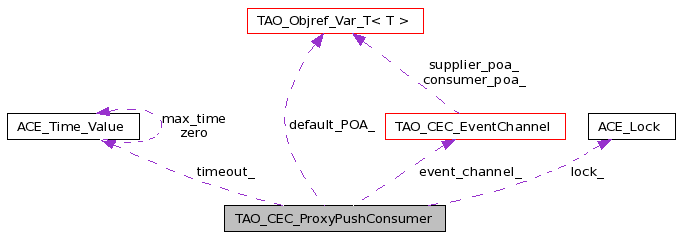

Collaboration diagram for TAO_CEC_ProxyPushConsumer:

Collaboration graph
[legend]
List of all members.

Public Types

typedef CosEventChannelAdmin::ProxyPushConsumer_ptr _ptr_type
typedef CosEventChannelAdmin::ProxyPushConsumer_var _var_type

Public Member Functions

 TAO_CEC_ProxyPushConsumer (TAO_CEC_EventChannel *event_channel, const ACE_Time_Value &timeout)
 constructor...
virtual ~TAO_CEC_ProxyPushConsumer (void)
 destructor...
virtual void activate (CosEventChannelAdmin::ProxyPushConsumer_ptr &activated_proxy)
 Activate in the POA.
virtual void deactivate (void)
 Deactivate from the POA.
CORBA::Boolean is_connected (void) const
 Return false if no supplier is connected...
CosEventComm::PushSupplier_ptr supplier (void) const
CORBA::Boolean supplier_non_existent (CORBA::Boolean_out disconnected)
virtual void shutdown (void)
 The event channel is shutting down.
CORBA::ULong _incr_refcnt (void)
 Increment and decrement the reference count.
CORBA::ULong _decr_refcnt (void)
virtual void connect_push_supplier (CosEventComm::PushSupplier_ptr push_supplier)
virtual void push (const CORBA::Any &event)
virtual void disconnect_push_consumer (void)
virtual PortableServer::POA_ptr _default_POA (void)
virtual void _add_ref (void)
virtual void _remove_ref (void)

Protected Member Functions

void supplier (CosEventComm::PushSupplier_ptr supplier)
void supplier_i (CosEventComm::PushSupplier_ptr supplier)
CORBA::Boolean is_connected_i (void) const
 The private version (without locking) of is_connected().
void cleanup_i (void)
 Release the supplier.
CosEventComm::PushSupplier_ptr apply_policy (CosEventComm::PushSupplier_ptr s)

Private Attributes

TAO_CEC_EventChannel * event_channel_
 The supplier admin, used for activation and memory managment.
ACE_Time_Value timeout_
ACE_Lock * lock_
 The locking strategy.
CORBA::ULong refcount_
 The reference count.
CosEventComm::PushSupplier_var supplier_
CosEventComm::PushSupplier_var nopolicy_supplier_
 The supplier without any policies applied.
bool connected_
PortableServer::POA_var default_POA_
 Store the default POA.

Friends

class TAO_CEC_ProxyPushConsumer_Guard

Detailed Description

ProxyPushConsumer.

Implement the CosEventChannelAdmin::ProxyPushConsumer interface, remember that this class is used to communicate with a PushSupplier, so, in effect, this is the ambassador for a supplier inside the event channel. = MEMORY MANAGMENT The object commits suicide when disconnect_push_consumer() is called.

Definition at line 47 of file CEC_ProxyPushConsumer.h.

Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPushConsumer_ptr TAO_CEC_ProxyPushConsumer::_ptr_type

Definition at line 51 of file CEC_ProxyPushConsumer.h.

typedef CosEventChannelAdmin::ProxyPushConsumer_var TAO_CEC_ProxyPushConsumer::_var_type

Definition at line 52 of file CEC_ProxyPushConsumer.h.

Constructor & Destructor Documentation

TAO_CEC_ProxyPushConsumer::TAO_CEC_ProxyPushConsumer ( TAO_CEC_EventChannel *  event_channel,
const ACE_Time_Value &  timeout
)

constructor...

Definition at line 23 of file CEC_ProxyPushConsumer.cpp.

00025   : event_channel_ (ec),
00026     timeout_(timeout),
00027     refcount_ (1),
00028     connected_ (false)
00029 {
00030   this->lock_ =
00031     this->event_channel_->create_consumer_lock ();
00032
00033   this->default_POA_ =
00034     this->event_channel_->consumer_poa ();
00035
00036   this->event_channel_->get_servant_retry_map ().bind (this, 0);
00037 }

TAO_CEC_ProxyPushConsumer::~TAO_CEC_ProxyPushConsumer ( void   )  [virtual]

destructor...

Definition at line 39 of file CEC_ProxyPushConsumer.cpp.

References TAO_CEC_EventChannel::destroy_consumer_lock(), event_channel_, and TAO_CEC_EventChannel::get_servant_retry_map().

00040 {
00041   this->event_channel_->get_servant_retry_map ().unbind (this);
00042   this->event_channel_->destroy_consumer_lock (this->lock_);
00043 }

Member Function Documentation

void TAO_CEC_ProxyPushConsumer::_add_ref ( void   )  [virtual]

Definition at line 303 of file CEC_ProxyPushConsumer.cpp.

References _incr_refcnt().

00304 {
00305   this->_incr_refcnt ();
00306 }

CORBA::ULong TAO_CEC_ProxyPushConsumer::_decr_refcnt ( void   )

Definition at line 158 of file CEC_ProxyPushConsumer.cpp.

References ACE_GUARD_RETURN, TAO_CEC_EventChannel::destroy_proxy(), event_channel_, and refcount_.

Referenced by _remove_ref().

00159 {
00160   {
00161     ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00162     --this->refcount_;
00163     if (this->refcount_ != 0)
00164       return this->refcount_;
00165   }
00166
00167   // Notify the event channel
00168   this->event_channel_->destroy_proxy (this);
00169   return 0;
00170 }

PortableServer::POA_ptr TAO_CEC_ProxyPushConsumer::_default_POA ( void   )  [virtual]

Definition at line 297 of file CEC_ProxyPushConsumer.cpp.

Referenced by deactivate().

00298 {
00299   return PortableServer::POA::_duplicate (this->default_POA_.in ());
00300 }

CORBA::ULong TAO_CEC_ProxyPushConsumer::_incr_refcnt ( void   )

Increment and decrement the reference count.

Definition at line 151 of file CEC_ProxyPushConsumer.cpp.

References ACE_GUARD_RETURN, and refcount_.

Referenced by _add_ref().

00152 {
00153   ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00154   return this->refcount_++;
00155 }

void TAO_CEC_ProxyPushConsumer::_remove_ref ( void   )  [virtual]

Definition at line 309 of file CEC_ProxyPushConsumer.cpp.

References _decr_refcnt().

00310 {
00311   this->_decr_refcnt ();
00312 }

void TAO_CEC_ProxyPushConsumer::activate ( CosEventChannelAdmin::ProxyPushConsumer_ptr &  activated_proxy  )  [virtual]

Activate in the POA.

Definition at line 46 of file CEC_ProxyPushConsumer.cpp.

00048 {
00049   CosEventChannelAdmin::ProxyPushConsumer_var result;
00050   try
00051     {
00052       result = this->_this ();
00053     }
00054   catch (const CORBA::Exception&)
00055     {
00056       result  =  CosEventChannelAdmin::ProxyPushConsumer::_nil ();
00057     }
00058   activated_proxy =  result._retn ();
00059 }

CosEventComm::PushSupplier_ptr TAO_CEC_ProxyPushConsumer::apply_policy ( CosEventComm::PushSupplier_ptr  s  )  [protected]

Assigns the parameter to both supplier_ and nopolicy_supplier_, and applies policies (when appropriate) to supplier_.

Definition at line 217 of file CEC_ProxyPushConsumer.cpp.

References event_channel_, TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), nopolicy_supplier_, and ACE_Time_Value::zero.

Referenced by connect_push_supplier().

00218 {
00219   if (CORBA::is_nil (pre)) return pre;
00220   this->nopolicy_supplier_ = CosEventComm::PushSupplier::_duplicate (pre);
00221 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00222   CosEventComm::PushSupplier_var post =
00223     CosEventComm::PushSupplier::_duplicate (pre);
00224   if (this->timeout_ > ACE_Time_Value::zero)
00225     {
00226       CORBA::PolicyList policy_list;
00227       policy_list.length (1);
00228       policy_list[0] = this->event_channel_->
00229         create_roundtrip_timeout_policy (this->timeout_);
00230
00231       CORBA::Object_var post_obj = pre->_set_policy_overrides
00232         (policy_list, CORBA::ADD_OVERRIDE);
00233       post = CosEventComm::PushSupplier::_narrow(post_obj.in ());
00234
00235       policy_list[0]->destroy ();
00236       policy_list.length (0);
00237     }
00238   return post._retn ();
00239 #else
00240   return CosEventComm::PushSupplier::_duplicate (pre);
00241 #endif /* TAO_HAS_CORBA_MESSAGING */
00242 }

void TAO_CEC_ProxyPushConsumer::cleanup_i ( void   )  [protected]

Release the supplier.

Definition at line 143 of file CEC_ProxyPushConsumer.cpp.

References connected_, and supplier_.

Referenced by connect_push_supplier(), and disconnect_push_consumer().

00144 {
00145   this->supplier_ =
00146     CosEventComm::PushSupplier::_nil ();
00147   this->connected_ = false;
00148 }

void TAO_CEC_ProxyPushConsumer::connect_push_supplier ( CosEventComm::PushSupplier_ptr  push_supplier  )  [virtual]

Definition at line 173 of file CEC_ProxyPushConsumer.cpp.

References ACE_GUARD_THROW_EX, apply_policy(), cleanup_i(), TAO_CEC_EventChannel::connected(), connected_, TAO_CEC_EventChannel::disconnected(), event_channel_, supplier_, and TAO_CEC_Unlock.

00175 {
00176   {
00177     ACE_GUARD_THROW_EX (
00178         ACE_Lock, ace_mon, *this->lock_,
00179         CORBA::INTERNAL ());
00180     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00181
00182     if (this->is_connected_i ())
00183       {
00184         if (this->event_channel_->supplier_reconnect () == 0)
00185           throw CosEventChannelAdmin::AlreadyConnected ();
00186
00187         // Re-connections are allowed, go ahead and disconnect the
00188         // consumer...
00189         this->cleanup_i ();
00190
00191         // @@ Please read the comments in CEC_ProxyPushSupplier about
00192         //     possible race conditions in this area...
00193         TAO_CEC_Unlock reverse_lock (*this->lock_);
00194
00195         {
00196           ACE_GUARD_THROW_EX (
00197               TAO_CEC_Unlock, ace_mon, reverse_lock,
00198               CORBA::INTERNAL ());
00199           // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00200
00201           this->event_channel_->disconnected (this);
00202         }
00203
00204         // What if a second thread connected us after this?
00205         if (this->is_connected_i ())
00206           return;
00207       }
00208     this->supplier_ = apply_policy (push_supplier);
00209     this->connected_ = true;
00210   }
00211
00212   // Notify the event channel...
00213   this->event_channel_->connected (this);
00214 }

void TAO_CEC_ProxyPushConsumer::deactivate ( void   )  [virtual]

Deactivate from the POA.

Definition at line 62 of file CEC_ProxyPushConsumer.cpp.

References _default_POA().

Referenced by shutdown().

00063 {
00064   try
00065     {
00066       PortableServer::POA_var poa =
00067         this->_default_POA ();
00068       PortableServer::ObjectId_var id =
00069         poa->servant_to_id (this);
00070       poa->deactivate_object (id.in ());
00071     }
00072   catch (const CORBA::Exception&)
00073     {
00074       // Exceptions here should not be propagated.  They usually
00075       // indicate that an object is beign disconnected twice, or some
00076       // race condition, but not a fault that the user needs to know
00077       // about.
00078     }
00079 }

void TAO_CEC_ProxyPushConsumer::disconnect_push_consumer ( void   )  [virtual]

Definition at line 258 of file CEC_ProxyPushConsumer.cpp.

References ACE_GUARD_THROW_EX, cleanup_i(), TAO_CEC_EventChannel::disconnected(), event_channel_, CORBA::is_nil(), supplier(), and supplier_.

Referenced by TAO_CEC_Reactive_SupplierControl::supplier_not_exist().

00259 {
00260   CosEventComm::PushSupplier_var supplier;
00261
00262   {
00263     ACE_GUARD_THROW_EX (
00264         ACE_Lock, ace_mon, *this->lock_,
00265         CORBA::INTERNAL ());
00266     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00267
00268     if (!this->is_connected_i ())
00269       throw CORBA::BAD_INV_ORDER (); // @@ add user exception?
00270
00271     supplier = this->supplier_._retn ();
00272
00273     this->cleanup_i ();
00274   }
00275
00276   // Notify the event channel...
00277   this->event_channel_->disconnected (this);
00278
00279   if (CORBA::is_nil (supplier.in ()))
00280     return;
00281
00282   if (this->event_channel_->disconnect_callbacks ())
00283     {
00284       try
00285         {
00286           supplier->disconnect_push_supplier ();
00287         }
00288       catch (const CORBA::Exception&)
00289         {
00290           // Ignore exceptions, we must isolate other clients from
00291           // failures on this one.
00292         }
00293     }
00294 }

ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPushConsumer::is_connected ( void   )  const

Return false if no supplier is connected...

Definition at line 14 of file CEC_ProxyPushConsumer.inl.

References ACE_GUARD_RETURN, and is_connected_i().

00015 {
00016   ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00017
00018   return this->is_connected_i ();
00019 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPushConsumer::is_connected_i ( void   )  const [protected]

The private version (without locking) of is_connected().

Definition at line 8 of file CEC_ProxyPushConsumer.inl.

References connected_.

Referenced by is_connected(), and TAO_CEC_ProxyPushConsumer_Guard::TAO_CEC_ProxyPushConsumer_Guard().

00009 {
00010   return this->connected_;
00011 }

void TAO_CEC_ProxyPushConsumer::push ( const CORBA::Any &  event  )  [virtual]

Definition at line 245 of file CEC_ProxyPushConsumer.cpp.

References TAO_CEC_EventChannel::consumer_admin(), event_channel_, TAO_CEC_ProxyPushConsumer_Guard::locked(), and TAO_CEC_ConsumerAdmin::push().

00246 {
00247   TAO_CEC_ProxyPushConsumer_Guard ace_mon (this->lock_,
00248                                            this->refcount_,
00249                                            this->event_channel_,
00250                                            this);
00251   if (!ace_mon.locked ())
00252     return;
00253
00254   this->event_channel_->consumer_admin ()->push (event);
00255 }

void TAO_CEC_ProxyPushConsumer::shutdown ( void   )  [virtual]

The event channel is shutting down.

Definition at line 112 of file CEC_ProxyPushConsumer.cpp.

References ACE_GUARD_THROW_EX, connected_, deactivate(), CORBA::is_nil(), supplier(), and supplier_.

00113 {
00114   CosEventComm::PushSupplier_var supplier;
00115
00116   {
00117     ACE_GUARD_THROW_EX (
00118         ACE_Lock, ace_mon, *this->lock_,
00119         CORBA::INTERNAL ());
00120     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00121
00122     supplier = this->supplier_._retn ();
00123     this->connected_ = false;
00124   }
00125
00126   this->deactivate ();
00127
00128   if (CORBA::is_nil (supplier.in ()))
00129     return;
00130
00131   try
00132     {
00133       supplier->disconnect_push_supplier ();
00134     }
00135   catch (const CORBA::Exception&)
00136     {
00137       // Ignore exceptions, we must isolate other clients from
00138       // failures on this one.
00139     }
00140 }

ACE_INLINE void TAO_CEC_ProxyPushConsumer::supplier ( CosEventComm::PushSupplier_ptr  supplier  )  [protected]

Set the supplier, used by some implementations to change the policies used when invoking operations on the supplier.

Definition at line 35 of file CEC_ProxyPushConsumer.inl.

References ACE_GUARD, and supplier_i().

00036 {
00037   ACE_GUARD (ACE_Lock, ace_mon, *this->lock_);
00038
00039   this->supplier_i (supplier);
00040 }

ACE_INLINE CosEventComm::PushSupplier_ptr TAO_CEC_ProxyPushConsumer::supplier ( void   )  const

Return the consumer object reference. It returns nil() if it has not connected yet.

Definition at line 22 of file CEC_ProxyPushConsumer.inl.

References ACE_GUARD_RETURN.

Referenced by disconnect_push_consumer(), shutdown(), and supplier_non_existent().

00023 {
00024   ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00025   return CosEventComm::PushSupplier::_duplicate (this->supplier_.in ());
00026 }

ACE_INLINE void TAO_CEC_ProxyPushConsumer::supplier_i ( CosEventComm::PushSupplier_ptr  supplier  )  [protected]

Definition at line 29 of file CEC_ProxyPushConsumer.inl.

References supplier_.

Referenced by supplier().

00030 {
00031   this->supplier_ = supplier;
00032 }

CORBA::Boolean TAO_CEC_ProxyPushConsumer::supplier_non_existent ( CORBA::Boolean_out  disconnected  )

Invoke the _non_existent() pseudo-operation on the supplier. If it is disconnected then it returns true and sets the <disconnected> flag.

Definition at line 82 of file CEC_ProxyPushConsumer.cpp.

References CORBA::Object::_duplicate(), ACE_GUARD_THROW_EX, CORBA::is_nil(), and supplier().

Referenced by TAO_CEC_Ping_Push_Supplier::work().

00084 {
00085   CORBA::Object_var supplier;
00086   {
00087     ACE_GUARD_THROW_EX (
00088         ACE_Lock, ace_mon, *this->lock_,
00089         CORBA::INTERNAL ());
00090
00091     disconnected = false;
00092     if (!this->is_connected_i ())
00093       {
00094         disconnected = true;
00095         return false;
00096       }
00097     if (CORBA::is_nil (this->nopolicy_supplier_.in ()))
00098       {
00099         return false;
00100       }
00101     supplier = CORBA::Object::_duplicate (this->nopolicy_supplier_.in ());
00102   }
00103
00104 #if (TAO_HAS_MINIMUM_CORBA == 0)
00105   return supplier->_non_existent ();
00106 #else
00107   return false;
00108 #endif /* TAO_HAS_MINIMUM_CORBA */
00109 }

Friends And Related Function Documentation

friend class TAO_CEC_ProxyPushConsumer_Guard [friend]

Definition at line 106 of file CEC_ProxyPushConsumer.h.

Member Data Documentation

bool TAO_CEC_ProxyPushConsumer::connected_ [private]

If the flag is true then we are connected, notice that the supplier can be nil.

Definition at line 141 of file CEC_ProxyPushConsumer.h.

Referenced by cleanup_i(), connect_push_supplier(), is_connected_i(), and shutdown().

PortableServer::POA_var TAO_CEC_ProxyPushConsumer::default_POA_ [private]

Store the default POA.

Definition at line 144 of file CEC_ProxyPushConsumer.h.

TAO_CEC_EventChannel* TAO_CEC_ProxyPushConsumer::event_channel_ [private]

The supplier admin, used for activation and memory managment.

Definition at line 122 of file CEC_ProxyPushConsumer.h.

Referenced by _decr_refcnt(), apply_policy(), connect_push_supplier(), disconnect_push_consumer(), push(), and ~TAO_CEC_ProxyPushConsumer().

ACE_Lock* TAO_CEC_ProxyPushConsumer::lock_ [private]

The locking strategy.

Definition at line 127 of file CEC_ProxyPushConsumer.h.

CosEventComm::PushSupplier_var TAO_CEC_ProxyPushConsumer::nopolicy_supplier_ [private]

The supplier without any policies applied.

Definition at line 137 of file CEC_ProxyPushConsumer.h.

Referenced by apply_policy().

CORBA::ULong TAO_CEC_ProxyPushConsumer::refcount_ [private]

The reference count.

Definition at line 130 of file CEC_ProxyPushConsumer.h.

Referenced by _decr_refcnt(), and _incr_refcnt().

CosEventComm::PushSupplier_var TAO_CEC_ProxyPushConsumer::supplier_ [private]

The supplier -- use apply_policy() instead of assigning directly to supplier_. This will keep supplier_ and nopolicy_supplier_ in sync.

Definition at line 134 of file CEC_ProxyPushConsumer.h.

Referenced by cleanup_i(), connect_push_supplier(), disconnect_push_consumer(), shutdown(), and supplier_i().

ACE_Time_Value TAO_CEC_ProxyPushConsumer::timeout_ [private]

Definition at line 124 of file CEC_ProxyPushConsumer.h.

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:45:00 2010 for TAO_CosEvent by  doxygen 1.4.7
