TAO_Incoming_Message_Queue Class Reference

A queue of the messages in the incoming data path. More...

#include <Incoming_Message_Queue.h>

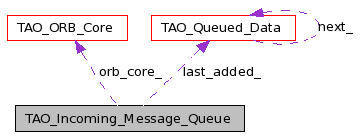

Collaboration diagram for TAO_Incoming_Message_Queue:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Incoming_Message_Queue (TAO_ORB_Core *orb_core)
 Constructor.
 ~TAO_Incoming_Message_Queue (void)
 Destructor.
TAO_Queued_Datadequeue_head (void)
 Adding and deleting a node from the queue.
TAO_Queued_Datadequeue_tail (void)
int enqueue_tail (TAO_Queued_Data *nd)
CORBA::ULong queue_length (void) const
 Return the length of the queue..

Private Attributes

TAO_Queued_Datalast_added_
 A circular linked list of messages awaiting processing.
CORBA::ULong size_
 The size of the queue.
TAO_ORB_Coreorb_core_
 Copy of our ORB Core.

Friends

class TAO_Transport

Detailed Description

A queue of the messages in the incoming data path.

Please read the documentation in the TAO_Transport class to find out more about the design of the incoming data path.

Under certain conditions TAO may have to maintain a queue per-connection. This queue is drained by the pluggable protocols framework, normally under control of the ACE_Reactor, but other configurations are conceivable.

The memory that is allocated for holding the messages comes from the global pool for the following reasons

Definition at line 54 of file Incoming_Message_Queue.h.


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Incoming_Message_Queue::TAO_Incoming_Message_Queue ( TAO_ORB_Core orb_core  )

Constructor.

Definition at line 8 of file Incoming_Message_Queue.inl.

00009   : last_added_ (0),
00010     size_ (0),
00011     orb_core_ (orb_core)
00012 {
00013 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Incoming_Message_Queue::~TAO_Incoming_Message_Queue ( void   )

Destructor.

Definition at line 18 of file Incoming_Message_Queue.cpp.

References TAO_Queued_Data::release().

00019 {
00020   const CORBA::ULong sz = this->size_;
00021
00022   // Delete all the nodes left behind
00023   for (CORBA::ULong i = 0;
00024        i < sz;
00025        ++i)
00026     {
00027       TAO_Queued_Data *qd = this->dequeue_head ();
00028       TAO_Queued_Data::release (qd);
00029     }
00030 }


Member Function Documentation

TAO_Queued_Data * TAO_Incoming_Message_Queue::dequeue_head ( void   )

Adding and deleting a node from the queue.

Definition at line 34 of file Incoming_Message_Queue.cpp.

References last_added_, and TAO_Queued_Data::next().

00035 {
00036   if (this->size_ == 0)
00037     return 0;
00038
00039   // Get the node on the head of the queue...
00040   TAO_Queued_Data * const head = this->last_added_->next ();
00041
00042   // Reset the head node..
00043   this->last_added_->next (head->next ());
00044
00045   // Decrease the size and reset last_added_ if empty
00046   if (--this->size_ == 0)
00047     this->last_added_ = 0;
00048
00049   return head;
00050 }

TAO_Queued_Data * TAO_Incoming_Message_Queue::dequeue_tail ( void   )

Definition at line 53 of file Incoming_Message_Queue.cpp.

References last_added_, and TAO_Queued_Data::next().

00054 {
00055   // This is a bit painful stuff...
00056   if (this->size_ == 0)
00057     return 0;
00058
00059   // Get the node on the head of the queue...
00060   TAO_Queued_Data *head =
00061     this->last_added_->next ();
00062
00063   while (head->next () != this->last_added_)
00064     {
00065       head = head->next ();
00066     }
00067
00068   // Put the head in tmp.
00069   head->next (this->last_added_->next ());
00070
00071   TAO_Queued_Data *ret_qd = this->last_added_;
00072
00073   this->last_added_ = head;
00074
00075   // Decrease the size
00076   if (--this->size_ == 0)
00077     this->last_added_ = 0;
00078
00079  return ret_qd;
00080 }

int TAO_Incoming_Message_Queue::enqueue_tail ( TAO_Queued_Data nd  )

Definition at line 83 of file Incoming_Message_Queue.cpp.

References last_added_, TAO_Queued_Data::next(), and size_.

00084 {
00085   if (this->size_ == 0)
00086     {
00087       this->last_added_ = nd;
00088       this->last_added_->next (this->last_added_);
00089     }
00090   else
00091     {
00092       nd->next (this->last_added_->next ());
00093       this->last_added_->next (nd);
00094       this->last_added_ = nd;
00095     }
00096
00097   ++this->size_;
00098   return 0;
00099 }

ACE_INLINE CORBA::ULong TAO_Incoming_Message_Queue::queue_length ( void   )  const

Return the length of the queue..

Definition at line 16 of file Incoming_Message_Queue.inl.

References size_.

Referenced by TAO_Transport::process_queue_head().

00017 {
00018   return this->size_;
00019 }


Friends And Related Function Documentation

friend class TAO_Transport [friend]

Definition at line 74 of file Incoming_Message_Queue.h.


Member Data Documentation

TAO_Queued_Data* TAO_Incoming_Message_Queue::last_added_ [private]

A circular linked list of messages awaiting processing.

last_message_added_ points to the most recent message added to the list. The earliest addition can be easily accessed via last_message_added_->next_.

Definition at line 84 of file Incoming_Message_Queue.h.

Referenced by dequeue_head(), dequeue_tail(), and enqueue_tail().

TAO_ORB_Core* TAO_Incoming_Message_Queue::orb_core_ [private]

Copy of our ORB Core.

Definition at line 90 of file Incoming_Message_Queue.h.

CORBA::ULong TAO_Incoming_Message_Queue::size_ [private]

The size of the queue.

Definition at line 87 of file Incoming_Message_Queue.h.

Referenced by enqueue_tail(), and queue_length().


The documentation for this class was generated from the following files:
