TAO_GIOP_Message_Generator_Parser_12 Class Reference

Implementation for GIOP v1.2. More...

#include <GIOP_Message_Generator_Parser_12.h>

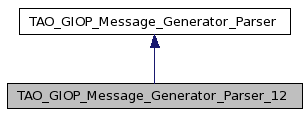

Inheritance diagram for TAO_GIOP_Message_Generator_Parser_12:

Inheritance graph
[legend]
Collaboration diagram for TAO_GIOP_Message_Generator_Parser_12:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual bool write_request_header (const TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Write the request header in to msg.
virtual bool write_locate_request_header (CORBA::ULong request_id, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Write the LocateRequest header.
virtual bool write_reply_header (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply)
 Write the reply header in to output.
virtual bool write_locate_reply_mesg (TAO_OutputCDR &output, CORBA::ULong request_id, TAO_GIOP_Locate_Status_Msg &status)
 Writes the locate _reply message in to the output.
virtual bool write_fragment_header (TAO_OutputCDR &cdr, CORBA::ULong request_id)
virtual int parse_request_header (TAO_ServerRequest &)
virtual int parse_locate_header (TAO_GIOP_Locate_Request_Header &)
virtual int parse_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
 Parse the reply message.
virtual int parse_locate_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
 Parse the locate reply message.
virtual CORBA::Octet major_version (void) const
 Our versions.
virtual CORBA::Octet minor_version (void) const
virtual bool is_ready_for_bidirectional (void) const
virtual size_t fragment_header_length (void) const
 The header length of a fragment.

Private Member Functions

bool marshall_target_spec (TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Marshall the TargetSpecification.

Detailed Description

Implementation for GIOP v1.2.

Definition at line 36 of file GIOP_Message_Generator_Parser_12.h.


Member Function Documentation

size_t TAO_GIOP_Message_Generator_Parser_12::fragment_header_length ( void   )  const [virtual]

The header length of a fragment.

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 502 of file GIOP_Message_Generator_Parser_12.cpp.

References TAO_GIOP_MESSAGE_FRAGMENT_HEADER.

00503 {
00504   return TAO_GIOP_MESSAGE_FRAGMENT_HEADER;
00505 }

bool TAO_GIOP_Message_Generator_Parser_12::is_ready_for_bidirectional ( void   )  const [virtual]

Is the messaging object ready for processing BiDirectional request/response?

Reimplemented from TAO_GIOP_Message_Generator_Parser.

Definition at line 393 of file GIOP_Message_Generator_Parser_12.cpp.

00394 {
00395   // We do support bidirectional
00396   return true;
00397 }

CORBA::Octet TAO_GIOP_Message_Generator_Parser_12::major_version ( void   )  const [virtual]

Our versions.

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 380 of file GIOP_Message_Generator_Parser_12.cpp.

00381 {
00382   return static_cast<CORBA::Octet> (1);
00383 }

bool TAO_GIOP_Message_Generator_Parser_12::marshall_target_spec ( TAO_Target_Specification spec,
TAO_OutputCDR msg
) [private]

Marshall the TargetSpecification.

This method may be required for other GIOP versiona coming out later than 1.2. We need to share this method

Definition at line 400 of file GIOP_Message_Generator_Parser_12.cpp.

References ACE_DEBUG, ACE_TEXT, TAO_Target_Specification::iop_ior(), TAO_Target_Specification::Key_Addr, LM_DEBUG, TAO_Target_Specification::object_key(), TAO_Target_Specification::profile(), TAO_Target_Specification::Profile_Addr, TAO_Target_Specification::Reference_Addr, TAO_Target_Specification::specifier(), and TAO_debug_level.

00403 {
00404   switch (spec.specifier ())
00405     {
00406     case TAO_Target_Specification::Key_Addr:
00407       {
00408         // As this is a union send in the discriminant first
00409         if (!(msg << GIOP::KeyAddr))
00410           return false;
00411
00412         // Get the object key
00413         const TAO::ObjectKey *key = spec.object_key ();
00414
00415         if (key)
00416           {
00417             // Marshall in the object key
00418             if (!(msg << *key))
00419               return false;
00420           }
00421         else
00422           {
00423             if (TAO_debug_level)
00424               {
00425                 ACE_DEBUG ((LM_DEBUG,
00426                             ACE_TEXT ("(%N |%l) Unable to handle this request\n")));
00427               }
00428             return false;
00429           }
00430         break;
00431       }
00432     case TAO_Target_Specification::Profile_Addr:
00433       {
00434         // As this is a union send in the discriminant first
00435         if (!(msg << GIOP::ProfileAddr))
00436           return false;
00437
00438         // Get the profile
00439         const IOP::TaggedProfile *pfile = spec.profile ();
00440
00441         if (pfile)
00442           {
00443             // Marshall in the object key
00444             if (!(msg << *pfile))
00445               return false;
00446           }
00447         else
00448           {
00449             if (TAO_debug_level)
00450               {
00451                 ACE_DEBUG ((LM_DEBUG,
00452                             ACE_TEXT ("(%N |%l) Unable to handle this request\n")));
00453               }
00454             return false;
00455           }
00456         break;
00457       }
00458     case TAO_Target_Specification::Reference_Addr:
00459       {
00460         // As this is a union send in the discriminant first
00461         if (!(msg << GIOP::ReferenceAddr))
00462           return false;
00463
00464         // Get the IOR
00465         IOP::IOR *ior = 0;
00466         CORBA::ULong const index = spec.iop_ior (ior);
00467
00468         if (ior)
00469           {
00470             // This is a struct IORAddressingInfo. So, marshall each
00471             // member of the struct one after another in the order
00472             // defined.
00473             if (!(msg << index))
00474               return false;
00475             if (!(msg << *ior))
00476               return false;;
00477           }
00478         else
00479           {
00480             if (TAO_debug_level)
00481               {
00482                 ACE_DEBUG ((LM_DEBUG,
00483                             ACE_TEXT ("(%N |%l) Unable to handle this request\n")));
00484               }
00485             return false;
00486           }
00487         break;
00488       }
00489     default:
00490       if (TAO_debug_level)
00491         {
00492           ACE_DEBUG ((LM_DEBUG,
00493                       ACE_TEXT ("(%N |%l) Unable to handle this request\n")));
00494         }
00495       return false;
00496     }
00497
00498   return true;
00499 }

CORBA::Octet TAO_GIOP_Message_Generator_Parser_12::minor_version ( void   )  const [virtual]

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 387 of file GIOP_Message_Generator_Parser_12.cpp.

00388 {
00389   return static_cast<CORBA::Octet> (2);
00390 }

int TAO_GIOP_Message_Generator_Parser_12::parse_locate_header ( TAO_GIOP_Locate_Request_Header  )  [virtual]

Parse the LocateRequest Header from the incoming stream. This will do a version specific parsing of the incoming Request header

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 305 of file GIOP_Message_Generator_Parser_12.cpp.

References ACE_InputCDR::align_read_ptr(), TAO_GIOP_Locate_Request_Header::incoming_stream(), TAO_GIOP_Locate_Request_Header::profile(), ACE_InputCDR::read_ulong(), TAO_GIOP_Locate_Request_Header::request_id(), TAO_GIOP_MESSAGE_ALIGN_PTR, and TAO_Tagged_Profile::unmarshall_target_address().

00307 {
00308   // Get the stream .
00309   TAO_InputCDR &msg = request.incoming_stream ();
00310
00311   // Get the request id.
00312   CORBA::ULong req_id = 0;
00313   CORBA::Boolean hdr_status = msg.read_ulong (req_id);
00314
00315   // Store it in the Locate request classes
00316   request.request_id (req_id);
00317
00318   // Unmarshal the target address field.
00319   hdr_status =
00320     hdr_status && request.profile ().unmarshall_target_address(msg);
00321
00322   // Reset the pointer to an 8-byte bouns]dary
00323   msg.align_read_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR);
00324
00325   return hdr_status ? 0 : -1;
00326 }

int TAO_GIOP_Message_Generator_Parser_12::parse_locate_reply ( TAO_InputCDR input,
TAO_Pluggable_Reply_Params params
) [virtual]

Parse the locate reply message.

Reimplemented from TAO_GIOP_Message_Generator_Parser.

Definition at line 358 of file GIOP_Message_Generator_Parser_12.cpp.

References TAO_GIOP_Message_Generator_Parser::parse_locate_reply().

00361 {
00362   if (TAO_GIOP_Message_Generator_Parser::parse_locate_reply (cdr, params) == -1)
00363     return -1;
00364
00365   // Note: We dont align the pointer to an 8 byte boundary for a
00366   // locate reply body. This is due to an urgent issue raised by Michi
00367   // in the OMG. I discussed this with Michi today (09/07/2001) and I
00368   // learn that this has been passed. Hence the change..
00369   /*if (cdr.length () > 0)
00370     {
00371       // Align the read pointer on an 8-byte boundary
00372       cdr.align_read_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR);
00373       }*/
00374
00375   return 0;
00376 }

int TAO_GIOP_Message_Generator_Parser_12::parse_reply ( TAO_InputCDR input,
TAO_Pluggable_Reply_Params params
) [virtual]

Parse the reply message.

Reimplemented from TAO_GIOP_Message_Generator_Parser.

Definition at line 329 of file GIOP_Message_Generator_Parser_12.cpp.

References ACE_ERROR, ACE_TEXT, LM_ERROR, TAO_GIOP_Message_Generator_Parser::parse_reply(), TAO_Pluggable_Reply_Params_Base::svc_ctx_, TAO_debug_level, and TAO_GIOP_MESSAGE_ALIGN_PTR.

00332 {
00333   if (TAO_GIOP_Message_Generator_Parser::parse_reply (cdr, params) == -1)
00334     return -1;
00335
00336   if (!(cdr >> params.svc_ctx_))
00337     {
00338       if (TAO_debug_level)
00339         {
00340           ACE_ERROR ((LM_ERROR,
00341                       ACE_TEXT ("TAO (%P|%t) parse_reply, ")
00342                       ACE_TEXT ("extracting context\n")));
00343         }
00344
00345       return -1;
00346     }
00347
00348   if (cdr.length () > 0)
00349     {
00350       // Align the read pointer on an 8-byte boundary
00351       cdr.align_read_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR);
00352     }
00353
00354   return 0;
00355 }

int TAO_GIOP_Message_Generator_Parser_12::parse_request_header ( TAO_ServerRequest  )  [virtual]

Parse the Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 219 of file GIOP_Message_Generator_Parser_12.cpp.

References ACE_ERROR, ACE_TEXT, ACE_InputCDR::align_read_ptr(), ACE_InputCDR::good_bit(), TAO_ServerRequest::incoming(), ACE_InputCDR::length(), LM_ERROR, TAO_ServerRequest::operation(), TAO_ServerRequest::orb_core(), TAO_ServerRequest::profile(), ACE_InputCDR::rd_ptr(), ACE_InputCDR::read_octet(), ACE_InputCDR::read_ulong(), TAO_ServerRequest::request_id(), TAO_ServerRequest::request_service_info(), TAO_ServerRequest::response_expected(), TAO_ORB_Core::service_context_registry(), ACE_InputCDR::skip_bytes(), TAO_ServerRequest::sync_with_server(), TAO_debug_level, TAO_GIOP_MESSAGE_ALIGN_PTR, and TAO_Tagged_Profile::unmarshall_target_address().

00221 {
00222   // Get the input CDR in the request class
00223   TAO_InputCDR & input = *request.incoming ();
00224
00225   CORBA::Boolean hdr_status = (CORBA::Boolean) input.good_bit ();
00226
00227   CORBA::ULong req_id = 0;
00228   // Get the rest of the request header ...
00229   hdr_status = hdr_status && input.read_ulong (req_id);
00230
00231   request.request_id (req_id);
00232
00233   CORBA::Octet response_flags = CORBA::Octet();
00234   hdr_status = hdr_status && input.read_octet (response_flags);
00235
00236   request.response_expected ((response_flags > 0));
00237
00238   // The high bit of the octet has been set if the SyncScope policy
00239   // value is SYNC_WITH_SERVER.
00240   request.sync_with_server ((response_flags == 1));
00241
00242   // Reserved field
00243   input.skip_bytes (3);
00244
00245   // Unmarshal the target address field.
00246   hdr_status =
00247     hdr_status && request.profile ().unmarshall_target_address(input);
00248
00249   CORBA::ULong length = 0;
00250   hdr_status = hdr_status && input.read_ulong (length);
00251
00252   if (hdr_status)
00253     {
00254       // Do not include NULL character at the end.
00255       // @@ This is not getting demarshaled using the codeset
00256       //    translators!
00257
00258       // Notice that there are no memory allocations involved
00259       // here!
00260       request.operation (input.rd_ptr (),
00261                          length - 1,
00262                          0 /* TAO_ServerRequest does NOT own string */);
00263       hdr_status = input.skip_bytes (length);
00264     }
00265
00266   // Tear out the service context ... we currently ignore it, but it
00267   // should probably be passed to each ORB service as appropriate
00268   // (e.g. transactions, security).
00269   //
00270   // NOTE: As security support kicks in, this is a good place to
00271   // verify a digital signature, if that is required in this security
00272   // environment.  It may be required even when using IPSEC security
00273   // infrastructure.
00274   IOP::ServiceContextList &req_service_info = request.request_service_info ();
00275
00276   if (!(input >> req_service_info))
00277     {
00278       if (TAO_debug_level)
00279         {
00280           ACE_ERROR ((LM_ERROR,
00281                       ACE_TEXT ("TAO (%P|%t) parse_request_header, ")
00282                       ACE_TEXT ("extracting context\n")));
00283         }
00284
00285       return -1;
00286     }
00287
00288   if (req_service_info.length() > 0)
00289     {
00290       request.orb_core ()->service_context_registry ().
00291         process_service_contexts (request);
00292     }
00293
00294   if (input.length () > 0)
00295     {
00296       // Reset the read_ptr to an 8-byte boundary.
00297       input.align_read_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR);
00298     }
00299
00300   return hdr_status ? 0 : -1;
00301 }

bool TAO_GIOP_Message_Generator_Parser_12::write_fragment_header ( TAO_OutputCDR cdr,
CORBA::ULong  request_id
) [virtual]

Write the GIOP fragment message header to the output CDR stream cdr.

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 207 of file GIOP_Message_Generator_Parser_12.cpp.

00210 {
00211   return (cdr << request_id);
00212
00213   // No need to align write pointer to an 8 byte boundary since it
00214   // should already be aligned (12 for GIOP messager + 4 for fragment
00215   // header = 16 -- a multiple of 8)
00216 }

bool TAO_GIOP_Message_Generator_Parser_12::write_locate_reply_mesg ( TAO_OutputCDR output,
CORBA::ULong  request_id,
TAO_GIOP_Locate_Status_Msg status
) [virtual]

Writes the locate _reply message in to the output.

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 145 of file GIOP_Message_Generator_Parser_12.cpp.

References ACE_ERROR, ACE_TEXT, TAO_GIOP_Locate_Status_Msg::forward_location_var, TAO_Pseudo_Var_T< T >::in(), LM_ERROR, TAO_GIOP_Locate_Status_Msg::status, TAO_debug_level, and ACE_OutputCDR::write_ulong().

00149 {
00150   output.write_ulong (request_id);
00151
00152   // Make the header for the locate request
00153   output.write_ulong (status_info.status);
00154
00155   // Note: We dont align the pointer to an 8 byte boundary for a
00156   // locate reply body. This is due to an urgent issue raised by Michi
00157   // in the OMG. I discussed this with Michi today (09/07/2001) and I
00158   // learn that this has been passed. Hence the change..
00159   /*
00160   if (status_info.status == TAO_GIOP_OBJECT_FORWARD ||
00161       status_info.status == TAO_GIOP_OBJECT_FORWARD_PERM)
00162     {
00163       // We have to send some data, so align the pointer
00164       if (output.align_write_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR) == -1)
00165         {
00166           return false;
00167         }
00168     }
00169   */
00170   switch (status_info.status)
00171     {
00172     case GIOP::OBJECT_FORWARD:
00173
00174       // More likely than not we will not have this in TAO
00175     case GIOP::OBJECT_FORWARD_PERM:
00176       {
00177         CORBA::Object_ptr object_ptr =
00178           status_info.forward_location_var.in ();
00179
00180         if ( ! (output << object_ptr))
00181         {
00182           if (TAO_debug_level > 0)
00183             {
00184               ACE_ERROR ((
00185                   LM_ERROR,
00186                   ACE_TEXT ("TAO (%P|%t|%N|%l) write_locate_reply_mesg-")
00187                   ACE_TEXT (" cannot marshal object reference\n")
00188                 ));
00189             }
00190         }
00191       }
00192       break;
00193     case GIOP::LOC_SYSTEM_EXCEPTION:
00194     case GIOP::LOC_NEEDS_ADDRESSING_MODE:
00195       // Do we do these in TAO??
00196       // What to do here???? I dont really know. I have to do a survey
00197       // of the specifications that uses this.
00198       break;
00199     default:
00200       break;
00201     }
00202
00203   return true;
00204 }

bool TAO_GIOP_Message_Generator_Parser_12::write_locate_request_header ( CORBA::ULong  request_id,
TAO_Target_Specification spec,
TAO_OutputCDR msg
) [virtual]

Write the LocateRequest header.

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 95 of file GIOP_Message_Generator_Parser_12.cpp.

00099 {
00100   // Write the request id
00101   if (!(msg << request_id))
00102     return false;
00103
00104   // Write the target address
00105   if (!(this->marshall_target_spec (spec, msg)))
00106     return false;
00107
00108   // I dont think we need to align the pointer to an 8 byte boundary
00109   // here.
00110   // We need to align the pointer
00111   //  if (msg.align_write_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR) == -1)
00112   //  return 0;
00113
00114   // Return success
00115   return true;
00116 }

bool TAO_GIOP_Message_Generator_Parser_12::write_reply_header ( TAO_OutputCDR output,
TAO_Pluggable_Reply_Params_Base reply
) [virtual]

Write the reply header in to output.

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 119 of file GIOP_Message_Generator_Parser_12.cpp.

References ACE_OutputCDR::align_write_ptr(), TAO_Pluggable_Reply_Params_Base::argument_flag_, TAO_Pluggable_Reply_Params_Base::reply_status(), TAO_Pluggable_Reply_Params_Base::request_id_, TAO_Pluggable_Reply_Params_Base::service_context_notowned(), TAO_GIOP_MESSAGE_ALIGN_PTR, and ACE_OutputCDR::write_ulong().

00122 {
00123   // Write the request ID
00124   output.write_ulong (reply.request_id_);
00125
00126   // Write the reply status
00127   output.write_ulong (reply.reply_status ());
00128
00129   if (!(output << reply.service_context_notowned ()))
00130     return false;
00131
00132   if (reply.argument_flag_)
00133     {
00134       // If we have some data to be marshalled, then we align the
00135       // pointer to a 8 byte boundary.  Else, we just leave it throu
00136       if (output.align_write_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR) == -1)
00137         {
00138           return false;
00139         }
00140     }
00141   return true;
00142 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL bool TAO_GIOP_Message_Generator_Parser_12::write_request_header ( const TAO_Operation_Details opdetails,
TAO_Target_Specification spec,
TAO_OutputCDR msg
) [virtual]

Write the request header in to msg.

Implements TAO_GIOP_Message_Generator_Parser.

Definition at line 27 of file GIOP_Message_Generator_Parser_12.cpp.

References TAO_TWOWAY_RESPONSE_FLAG.

00031 {
00032   // First the request id
00033   if (!(msg << opdetails.request_id ()))
00034     return false;
00035
00036   CORBA::Octet const response_flags = opdetails.response_flags ();
00037
00038   // Here are the Octet values for different policies
00039   // '00000000' for SYNC_NONE
00040   // '00000000' for SYNC_WITH_TRANSPORT
00041   // '00000010' for SYNC_WITH_SERVER
00042   // '00000011' for SYNC_WITH_TARGET
00043   // '00000011' for regular two ways, but if they are invoked via a
00044   // DII with INV_NO_RESPONSE flag set then we need to send '00000001'
00045   //
00046   // We have not implemented the policy INV_NO_RESPONSE for DII.
00047   if (response_flags == TAO_TWOWAY_RESPONSE_FLAG)
00048     msg << ACE_OutputCDR::from_octet (3);
00049   // Second the response flags
00050   // Sync scope - ignored by server if request is not oneway.
00051   else if (response_flags == CORBA::Octet (Messaging::SYNC_NONE)
00052            || response_flags == CORBA::Octet (Messaging::SYNC_WITH_TRANSPORT)
00053            || response_flags == CORBA::Octet (TAO::SYNC_DELAYED_BUFFERING))
00054     // No response required.
00055     msg << ACE_OutputCDR::from_octet (0);
00056
00057   else if (response_flags == CORBA::Octet (Messaging::SYNC_WITH_SERVER))
00058     // Return before dispatching to the servant
00059     msg << ACE_OutputCDR::from_octet (1);
00060
00061   else if (response_flags == CORBA::Octet (Messaging::SYNC_WITH_TARGET))
00062     // Return after dispatching servant.
00063     msg << ACE_OutputCDR::from_octet (3);
00064   else
00065     // Until more flags are defined by the OMG.
00066     return false;
00067
00068   // The reserved field
00069   CORBA::Octet reserved[3] = {0, 0, 0};
00070
00071   msg.write_octet_array (reserved, 3);
00072
00073   if (!this->marshall_target_spec (spec, msg))
00074     return false;
00075
00076   // Write the operation name
00077   msg.write_string (opdetails.opname_len (),
00078                     opdetails.opname ());
00079
00080   // Write the service context list
00081   if (!(msg << opdetails.request_service_info ()))
00082     return false;
00083
00084   // We align the pointer only if the operation has arguments.
00085   if (opdetails.argument_flag ()
00086       && msg.align_write_ptr (TAO_GIOP_MESSAGE_ALIGN_PTR) == -1)
00087     {
00088       return false;
00089     }
00090
00091   return true;
00092 }


The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:39:30 2010 for TAO by  doxygen 1.4.7
