TAO_Connect_Creation_Strategy< SVC_HANDLER > Class Template Reference

Creation strategy helper. More...

#include <Connector_Impl.h>

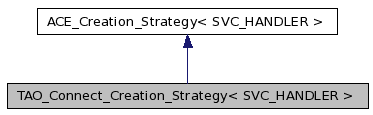

Inheritance diagram for TAO_Connect_Creation_Strategy< SVC_HANDLER >:

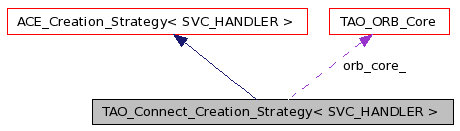

[legend]Collaboration diagram for TAO_Connect_Creation_Strategy< SVC_HANDLER >:

[legend]List of all members.

Public Member Functions
	TAO_Connect_Creation_Strategy (ACE_Thread_Manager *=0, TAO_ORB_Core *orb_core=0)
	Constructor.
virtual int	make_svc_handler (SVC_HANDLER *&sh)
	Makes TAO_*_Client_Connection_Handlers.
Private Attributes
TAO_ORB_Core *const	orb_core_
	Pointer to the ORB_Core on which we are activated.

---

Detailed Description

template<class SVC_HANDLER>
class TAO_Connect_Creation_Strategy< SVC_HANDLER >

Creation strategy helper.

Creates the TAO_*_Connection_Handler object for the TAO_*_Connector objects. This template class can now be used by all the Connector objects instead of having to duplicate code. This class can be used to set any required properties on the connection handlers at creation time.

Definition at line 47 of file Connector_Impl.h.

---

Constructor & Destructor Documentation

template<class SVC_HANDLER>

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Connect_Creation_Strategy< SVC_HANDLER >::TAO_Connect_Creation_Strategy	(	ACE_Thread_Manager *	= 0,
		TAO_ORB_Core *	orb_core = 0
	)

Constructor.

Definition at line 16 of file Connector_Impl.cpp.

    : ACE_Creation_Strategy <SVC_HANDLER> (t),
      orb_core_ (orb_core)
{

}

---

Member Function Documentation

template<class SVC_HANDLER>

int TAO_Connect_Creation_Strategy< SVC_HANDLER >::make_svc_handler

(

SVC_HANDLER *&

sh

)

[virtual]

Makes TAO_*_Client_Connection_Handlers.

Reimplemented from ACE_Creation_Strategy< SVC_HANDLER >.

Definition at line 25 of file Connector_Impl.cpp.

References ACE_NEW_RETURN.

{
  if (sh == 0)
    ACE_NEW_RETURN (sh,
                    SVC_HANDLER (this->orb_core_),
                    -1);

  // We add to the #REFCOUNT# since the Connector needs this. See
  // Connector::make_connection() for details.
  sh->add_reference ();

   // At this point, the #REFCOUNT# is two.

  return 0;
}

---

Member Data Documentation

template<class SVC_HANDLER>

TAO_ORB_Core* const TAO_Connect_Creation_Strategy< SVC_HANDLER >::orb_core_ [private]

Pointer to the ORB_Core on which we are activated.

Definition at line 62 of file Connector_Impl.h.

---

The documentation for this class was generated from the following files:

• Connector_Impl.h
• Connector_Impl.cpp

---
