TAO::ObjectKey_Table Class Reference

Table that maintains the set of ObjectKey's seen by the ORB. More...

#include <ObjectKey_Table.h>

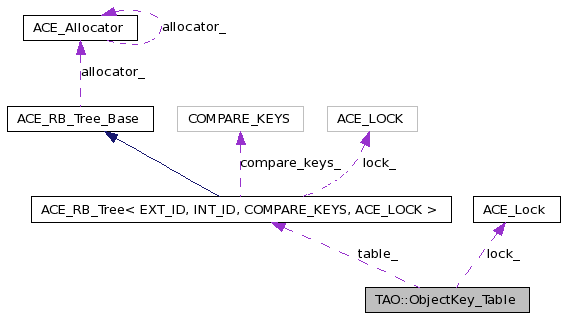

Collaboration diagram for TAO::ObjectKey_Table:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ObjectKey_Table (void)
 Default Constructor and destructor..
 ~ObjectKey_Table (void)
int init (TAO_ORB_Core *orb)
int destroy (void)
 Iterates and unbinds the contents of the table.
int bind (const ObjectKey &key, Refcounted_ObjectKey *&key_new)
 Bind the ObjectKey in the table.
int unbind (TAO::Refcounted_ObjectKey *&key)
 Unbind an ObjectKey from the table.

Protected Member Functions

int bind_i (const ObjectKey &key, Refcounted_ObjectKey *&key_new)
 Implementation for bind ().
int unbind_i (Refcounted_ObjectKey *&key)
 Implementation for unbind ().

Private Types

typedef ACE_RB_Tree< TAO::ObjectKey,
TAO::Refcounted_ObjectKey *,
TAO::Less_Than_ObjectKey,
ACE_Null_Mutex
TABLE

Private Attributes

ACE_Locklock_
 Lock for the table.
TABLE table_
 Table that contains the data.

Detailed Description

Table that maintains the set of ObjectKey's seen by the ORB.

The ORB maintains one table for the whole ORB. ObjectKeys generated by the ORB or the ones seen by the ORB from remote ORB's are stored here. The ObjectKeys are stored through a wrapper which encapsulates the refcount on them. This class actually provides the synchronization mechanism for manipulating the reference counts on the object keys provided by the wrapper class.

This class does not offer a find () call with a reason. The call to bind () will return a pointer which is expected to be cached by the client/caller and use the pointer in every invocation.

Note:
This class uses the ACE_RB_Tree to maintain the table of ObjectKeys. The RB_Tree has good insertion and lookup properties. Its Iteration properties are not that good, but we dont need to do much iteration unless we are closing down the table.

The reasons to use RB_Tree are its good dynamic properties. We should try to strategize the class to use either a Hash_Map or a RB_Tree based on some runtime option. For that we need an adapter class in ACE, like an ACE_Lock_Adapter class. We will do that if our instrumentation shows the need for it.

Definition at line 88 of file ObjectKey_Table.h.


Member Typedef Documentation

typedef ACE_RB_Tree<TAO::ObjectKey, TAO::Refcounted_ObjectKey *, TAO::Less_Than_ObjectKey, ACE_Null_Mutex> TAO::ObjectKey_Table::TABLE [private]

Definition at line 130 of file ObjectKey_Table.h.


Constructor & Destructor Documentation

TAO::ObjectKey_Table::ObjectKey_Table ( void   )

Default Constructor and destructor..

Definition at line 37 of file ObjectKey_Table.cpp.

References ObjectKey_Table().

Referenced by ObjectKey_Table().

00038   : lock_ (0)
00039   , table_ ()
00040 {
00041
00042 }

TAO::ObjectKey_Table::~ObjectKey_Table ( void   )

Definition at line 44 of file ObjectKey_Table.cpp.

References ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::close(), lock_, table_, and ~ObjectKey_Table().

Referenced by ~ObjectKey_Table().

00045 {
00046   this->table_.close ();
00047   delete this->lock_;
00048 }


Member Function Documentation

int TAO::ObjectKey_Table::bind ( const ObjectKey key,
Refcounted_ObjectKey *&  key_new
)

Bind the ObjectKey in the table.

Bind an ObjectKey in the table and return a pointer to the Refcounted_ObjectKey which the client can use. If the ObjectKey is already available in the table, this operation just increments the refcount on the ObjectKey. If the ObjectKey is new it is bounded to the table. Returns a 0 on success and a -1 on failure.

Definition at line 61 of file ObjectKey_Table.cpp.

References ACE_GUARD_RETURN, bind_i(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find(), and table_.

00064 {
00065   key_new = 0;
00066
00067   int retval = 0;
00068
00069   {
00070     ACE_GUARD_RETURN (ACE_Lock,
00071                       ace_mon,
00072                       *this->lock_,
00073                       0);
00074
00075     // This is a tradeoff.. We could avoid this two stage process of
00076     // using a find () and then a bind () , which would make things
00077     // efficient. BUT we may have to do allocation upfront and delete if
00078     // bind () returns with an entry. We take one of the routes that
00079     // avoids allocation.
00080     retval = this->table_.find (key,
00081                                 key_new);
00082
00083     if (retval == -1)
00084       {
00085         return this->bind_i (key,
00086                              key_new);
00087       }
00088
00089     (void) key_new->incr_refcount ();
00090   }
00091
00092   return retval;
00093 }

int TAO::ObjectKey_Table::bind_i ( const ObjectKey key,
Refcounted_ObjectKey *&  key_new
) [protected]

Implementation for bind ().

Definition at line 140 of file ObjectKey_Table.cpp.

References ACE_NEW_RETURN, ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::bind(), bind_i(), and table_.

Referenced by bind(), and bind_i().

00142 {
00143   ACE_NEW_RETURN (key_new,
00144                   TAO::Refcounted_ObjectKey (key),
00145                   -1);
00146
00147   int const retval =  this->table_.bind (key, key_new);
00148
00149   if (retval != -1)
00150     {
00151       key_new->incr_refcount ();
00152     }
00153   else
00154     {
00155       key_new->decr_refcount ();
00156     }
00157
00158   return retval;
00159 }

int TAO::ObjectKey_Table::destroy ( void   )

Iterates and unbinds the contents of the table.

Definition at line 115 of file ObjectKey_Table.cpp.

References ACE_GUARD_RETURN, destroy(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::end(), table_, and ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::unbind().

Referenced by destroy().

00116 {
00117   if (this->table_.current_size ())
00118     {
00119       ACE_GUARD_RETURN (ACE_Lock,
00120                         ace_mon,
00121                         *this->lock_,
00122                         0);
00123
00124       TABLE::ITERATOR end_iter = this->table_.end ();
00125       TABLE::ITERATOR start;
00126
00127       while ((start = this->table_.begin ()) != end_iter)
00128         {
00129           TABLE::ENTRY &ent = (*start);
00130
00131           ent.item ()->decr_refcount ();
00132           this->table_.unbind (&ent);
00133         }
00134     }
00135
00136   return 0;
00137 }

int TAO::ObjectKey_Table::init ( TAO_ORB_Core orb  )

Initialize method that sets up the underlying lock and other related stuff.

Create the lock that is needed for internal usage.

Definition at line 51 of file ObjectKey_Table.cpp.

References TAO_Resource_Factory::create_object_key_table_lock(), lock_, and TAO_ORB_Core::resource_factory().

00052 {
00053   /// Create the lock that is needed for internal usage.
00054   this->lock_ =
00055     oc->resource_factory ()->create_object_key_table_lock ();
00056
00057   return 0;
00058 }

int TAO::ObjectKey_Table::unbind ( TAO::Refcounted_ObjectKey *&  key  )

Unbind an ObjectKey from the table.

Definition at line 96 of file ObjectKey_Table.cpp.

References ACE_GUARD_RETURN, and unbind().

Referenced by unbind().

00098 {
00099   ACE_GUARD_RETURN (ACE_Lock,
00100                     ace_mon,
00101                     *this->lock_,
00102                     0);
00103
00104   // If the refcount has dropped to 1, just go ahead and unbind it
00105   // from the table.
00106   if (key_new && key_new->decr_refcount () == 1)
00107     {
00108       return this->unbind_i (key_new);
00109     }
00110
00111   return 0;
00112 }

int TAO::ObjectKey_Table::unbind_i ( Refcounted_ObjectKey *&  key  )  [protected]

Implementation for unbind ().

Definition at line 162 of file ObjectKey_Table.cpp.

References unbind_i().

Referenced by unbind_i().

00163 {
00164   TAO::Refcounted_ObjectKey *tmp = 0;
00165
00166   if (this->table_.unbind (key_new->object_key (), tmp) != -1)
00167     {
00168       // @@ Cant do much if the unbind fails.
00169       // Remove our refcount on the ObjectKey
00170       (void) tmp->decr_refcount ();
00171     }
00172
00173   return 0;
00174 }


Member Data Documentation

ACE_Lock* TAO::ObjectKey_Table::lock_ [private]

Lock for the table.

Definition at line 133 of file ObjectKey_Table.h.

Referenced by init(), and ~ObjectKey_Table().

TABLE TAO::ObjectKey_Table::table_ [private]

Table that contains the data.

Definition at line 136 of file ObjectKey_Table.h.

Referenced by bind(), bind_i(), destroy(), and ~ObjectKey_Table().


The documentation for this class was generated from the following files:
