TAO::LocateRequest_Invocation_Adapter Class Reference

Adapter class for locate request invocations. More...

#include <LocateRequest_Invocation_Adapter.h>

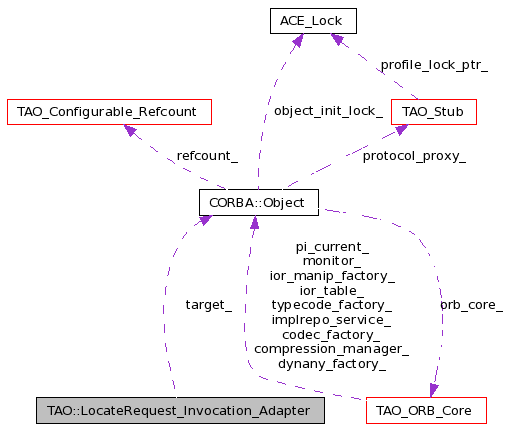

Collaboration diagram for TAO::LocateRequest_Invocation_Adapter:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 LocateRequest_Invocation_Adapter (CORBA::Object_ptr target)
void invoke (void)
 Start the invocation on the target.
CORBA::PolicyList * get_inconsistent_policies (void)
 Accessor to the inconsistent policy list.

Private Member Functions

bool get_timeout (ACE_Time_Value &val)
void object_forwarded (CORBA::Object_var &effective_target, TAO_Stub *stub, CORBA::Boolean permanent_forward)

Private Attributes

CORBA::Object_ptr target_
CORBA::PolicyList_var list_

Detailed Description

Adapter class for locate request invocations.

This class provides a look and feel similar to the TAO::Invocation_Adapter though the functionalities are different. For the record, IDL compiler doesn't know the existence of this class. This class is concerned with the creation and invocation of locate request invocations to the target object

Todo:
Need to think what happens if the target is collocated. Looks like there are no ways to utilize the opportunity that may have been presented.

Definition at line 58 of file LocateRequest_Invocation_Adapter.h.


Constructor & Destructor Documentation

TAO::LocateRequest_Invocation_Adapter::LocateRequest_Invocation_Adapter ( CORBA::Object_ptr  target  )

Definition at line 21 of file LocateRequest_Invocation_Adapter.cpp.

00023     : target_ (target)
00024     , list_ (0)
00025   {
00026   }


Member Function Documentation

CORBA::PolicyList * TAO::LocateRequest_Invocation_Adapter::get_inconsistent_policies ( void   )

Accessor to the inconsistent policy list.

Definition at line 108 of file LocateRequest_Invocation_Adapter.cpp.

References list_.

00109   {
00110     return this->list_._retn ();
00111   }

bool TAO::LocateRequest_Invocation_Adapter::get_timeout ( ACE_Time_Value val  )  [private]

Definition at line 114 of file LocateRequest_Invocation_Adapter.cpp.

References TAO_ORB_Core::call_timeout_hook(), CORBA::Object::orb_core(), and target_.

00115   {
00116     bool has_timeout = false;
00117     this->target_->orb_core ()->call_timeout_hook (this->target_->_stubobj (),
00118                                                    has_timeout,
00119                                                    timeout);
00120
00121     return has_timeout;
00122   }

void TAO::LocateRequest_Invocation_Adapter::invoke ( void   )

Start the invocation on the target.

Definition at line 29 of file LocateRequest_Invocation_Adapter.cpp.

References CORBA::Object::_duplicate(), CORBA::Object::_stubobj(), CORBA::SystemException::_tao_minor_code(), CORBA::COMPLETED_NO, TAO_ORB_Core::configuration(), TAO_Pseudo_Var_T< T >::in(), list_, object_forwarded(), CORBA::OMGVMCID, TAO_Stub::orb_core(), TAO_Operation_Details::request_id(), TAO::TAO_INVOKE_RESTART, TAO::TAO_INVOKE_START, and target_.

00030   {
00031     CORBA::Object_var effective_target =
00032       CORBA::Object::_duplicate (this->target_);
00033
00034     TAO_Stub * const stub =
00035       this->target_->_stubobj ();
00036     if (stub == 0)
00037       throw ::CORBA::INTERNAL (
00038                      CORBA::SystemException::_tao_minor_code (
00039                        0,
00040                          EINVAL),
00041                         CORBA::COMPLETED_NO);
00042
00043     // The invocation has got to be within the context of the
00044     // corresponding ORB's configuration. Otherwise things like
00045     // timeout hooks, etc may not work as expected. Especially if
00046     // there are multiple ORB instances in the process, each with its
00047     // own, local configuration.
00048     ACE_Service_Config_Guard scg (stub->orb_core ()->configuration ());
00049
00050     ACE_Time_Value tmp_wait_time;
00051     ACE_Time_Value *max_wait_time = 0;
00052
00053     if (this->get_timeout (tmp_wait_time))
00054       max_wait_time = &tmp_wait_time;
00055
00056     Invocation_Status s = TAO_INVOKE_START;
00057
00058     while (s == TAO_INVOKE_START ||
00059            s == TAO_INVOKE_RESTART)
00060       {
00061         Profile_Transport_Resolver resolver (effective_target.in (), stub, true);
00062
00063         try
00064           {
00065             resolver.init_inconsistent_policies ();
00066
00067             resolver.resolve (max_wait_time);
00068
00069             if (!resolver.transport ())
00070               {
00071                 // We failed to find a profile we could connect to.
00072                 throw CORBA::TRANSIENT (CORBA::OMGVMCID | 2, CORBA::COMPLETED_NO);
00073               }
00074
00075             // Dummy operation details that is used to instantiate the
00076             // LocateRequest class.
00077             TAO_Operation_Details op (0, 0);
00078
00079             op.request_id (resolver.transport ()->tms ()->request_id ());
00080             TAO::LocateRequest_Invocation synch (this->target_, resolver, op);
00081
00082             s = synch.invoke (max_wait_time);
00083             if (s == TAO_INVOKE_RESTART &&
00084                 (synch.reply_status () == GIOP::LOCATION_FORWARD ||
00085                  synch.reply_status () == GIOP::LOCATION_FORWARD_PERM))
00086               {
00087                 CORBA::Boolean const is_permanent_forward =
00088                   (synch.reply_status () == GIOP::LOCATION_FORWARD_PERM);
00089
00090                 effective_target = synch.steal_forwarded_reference ();
00091
00092                 this->object_forwarded (effective_target,
00093                                         resolver.stub (),
00094                                         is_permanent_forward);
00095               }
00096           }
00097         catch (const ::CORBA::INV_POLICY&)
00098           {
00099             this->list_ = resolver.steal_inconsistent_policies ();
00100             throw;
00101           }
00102       }
00103
00104     return;
00105   }

void TAO::LocateRequest_Invocation_Adapter::object_forwarded ( CORBA::Object_var effective_target,
TAO_Stub stub,
CORBA::Boolean  permanent_forward
) [private]

Helper method that takes care of setting the profiles within the stub object if the target gets forwarded

Definition at line 125 of file LocateRequest_Invocation_Adapter.cpp.

References CORBA::SystemException::_tao_minor_code(), TAO_Stub::add_forward_profiles(), TAO_Stub::base_profiles(), CORBA::COMPLETED_NO, TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), TAO_Stub::next_profile(), TAO_MProfile::size(), and TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE.

Referenced by invoke().

00129   {
00130     // The object pointer has to be changed to a TAO_Stub pointer
00131     // in order to obtain the profiles.
00132     TAO_Stub *stubobj = 0;
00133
00134     bool nil_forward_ref = false;
00135     if (CORBA::is_nil (effective_target.in ()))
00136       nil_forward_ref = true;
00137     else
00138       {
00139         stubobj =
00140           effective_target->_stubobj ();
00141
00142         if (stubobj && stubobj->base_profiles ().size () == 0)
00143           nil_forward_ref = true;
00144       }
00145
00146     if (nil_forward_ref)
00147       throw ::CORBA::TRANSIENT (
00148         CORBA::SystemException::_tao_minor_code (
00149           TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE,
00150           errno),
00151         CORBA::COMPLETED_NO);
00152
00153     if (stubobj == 0)
00154       throw ::CORBA::INTERNAL (
00155         CORBA::SystemException::_tao_minor_code (
00156           TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE,
00157           errno),
00158         CORBA::COMPLETED_NO);
00159
00160     // Reset the profile in the stubs
00161     stub->add_forward_profiles (stubobj->base_profiles (), permanent_forward);
00162
00163     if (stub->next_profile () == 0)
00164       throw ::CORBA::TRANSIENT (
00165         CORBA::SystemException::_tao_minor_code (
00166           TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE,
00167           errno),
00168         CORBA::COMPLETED_NO);
00169
00170     return;
00171   }


Member Data Documentation

CORBA::PolicyList_var TAO::LocateRequest_Invocation_Adapter::list_ [private]

Definition at line 81 of file LocateRequest_Invocation_Adapter.h.

Referenced by get_inconsistent_policies(), and invoke().

CORBA::Object_ptr TAO::LocateRequest_Invocation_Adapter::target_ [private]

Definition at line 80 of file LocateRequest_Invocation_Adapter.h.

Referenced by get_timeout(), and invoke().


The documentation for this class was generated from the following files:
