casacore::TableExprFuncNodeArray Class Reference

Class representing an array function in table select expression. More...

#include <ExprFuncNodeArray.h>

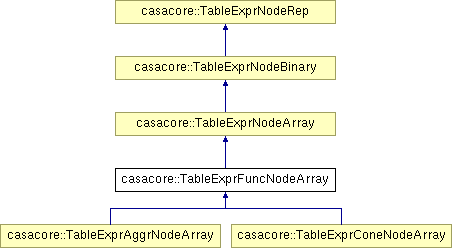

Inheritance diagram for casacore::TableExprFuncNodeArray:

Public Member Functions
	TableExprFuncNodeArray (TableExprFuncNode::FunctionType, NodeDataType, ValueType, const TableExprNodeSet &source, const TaQLStyle &)
	Constructor.
	~TableExprFuncNodeArray ()
	Destructor.
virtual void	getAggrNodes (vector< TableExprNodeRep * > &aggr)
	Get the nodes representing an aggregate function.
virtual void	getColumnNodes (vector< TableExprNodeRep * > &cols)
	Get the nodes representing a table column.
virtual MArray< Bool >	getArrayBool (const TableExprId &id)
	'get' Functions to get the desired result of a function
virtual MArray< Int64 >	getArrayInt (const TableExprId &id)
virtual MArray< Double >	getArrayDouble (const TableExprId &id)
	The default implementation of getArrayDouble does getArrayInt and converts the result.
virtual MArray< DComplex >	getArrayDComplex (const TableExprId &id)
	The default implementation of getArrayDComplex does getArrayDouble and converts the result.
virtual MArray< String >	getArrayString (const TableExprId &id)
virtual MArray< MVTime >	getArrayDate (const TableExprId &id)
TableExprFuncNode *	getChild ()
	Get the function node.
const TableExprFuncNode *	getChild () const
Static Public Member Functions
static TableExprNodeRep *	fillNode (TableExprFuncNodeArray thisNode, PtrBlock< TableExprNodeRep > &nodes, const Block< Int > &dtypeOper)
	Link the children to the node and convert the children to constants if possible.
Protected Member Functions
void	tryToConst ()
	Try if the function gives a constant result.
const PtrBlock < TableExprNodeRep * > &	operands () const
	Some functions to be used by TableExprNodeFuncArray.
PtrBlock< TableExprNodeRep * > &	rwOperands ()
TableExprFuncNode::FunctionType	funcType () const
NodeDataType	argDataType () const
Private Member Functions
void	setScale (Double scale)
	Set unit scale factor (needed for sqrt).
IPosition	getAxes (const TableExprId &id, Int ndim, uInt axarg=1, Bool swapRemove=True)
	Get the collapse axes for the partial functions.
IPosition	removeAxes (const IPosition &axes, Int ndim) const
	Remove axes exceeding ndim.
const IPosition &	getArrayShape (const TableExprId &id, uInt axarg=1)
	Get the shape for the array function.
IPosition	getOrder (const TableExprId &id, Int ndim)
	Get the transpose order of the array axes.
const IPosition &	getDiagonalArg (const TableExprId &id, const IPosition &shp)
	Get the arguments for the diagonals function.
const IPosition &	getAlternate (const TableExprId &id)
	Set the alternate value expandAlt_p for array expand and return it.
template<typename T >
MArray< T >	TEFResize (const MArray< T > &arr, const TableExprId &id)
	Templated fucntion to resize/expand an array.
Private Attributes
TableExprFuncNode	node_p
Int	origin_p
Bool	isCOrder_p
Bool	constAxes_p
Bool	constAlt_p
IPosition	ipos_p
IPosition	iposN_p
IPosition	expandAlt_p

Detailed Description

Class representing an array function in table select expression.

Intended use:

Internal

Review Status

Reviewed By:: UNKNOWN
Date Reviewed:: before2004/08/25

Prerequisite

Synopsis

This class can be seen as a specialization of TableExprFuncNode for functions returning arrays. However, it is derived from TableExprNodeArray to make it possible that the ExprNode classes use all array functionality offered by that base class.
Internally an TableExprFuncNode object is used.

When a TaQL function is used, TableExprFuncNode::checkOperands determines whether the result is a scalar or an array. Thereafter TableExprNode::newFunctionNode creates a TableExprFuncNode for scalars or a TableExprFuncNodeArray for arrays.

Definition at line 70 of file ExprFuncNodeArray.h.

Constructor & Destructor Documentation

casacore::TableExprFuncNodeArray::TableExprFuncNodeArray	(	TableExprFuncNode::FunctionType	,
		NodeDataType	,
		ValueType	,
		const TableExprNodeSet &	source,
		const TaQLStyle &
	)

Constructor.

casacore::TableExprFuncNodeArray::~TableExprFuncNodeArray ( )

Destructor.

Member Function Documentation

NodeDataType casacore::TableExprFuncNodeArray::argDataType ( ) const [inline, protected]

Definition at line 124 of file ExprFuncNodeArray.h.

References casacore::TableExprFuncNode::argDataType(), and node_p.

static TableExprNodeRep* casacore::TableExprFuncNodeArray::fillNode	(	TableExprFuncNodeArray *	thisNode,
		PtrBlock< TableExprNodeRep * > &	nodes,
		const Block< Int > &	dtypeOper
	)			`[static]`

Link the children to the node and convert the children to constants if possible.

Also convert the node to constant if possible.

Reimplemented in casacore::TableExprConeNodeArray.

TableExprFuncNode::FunctionType casacore::TableExprFuncNodeArray::funcType ( ) const [inline, protected]

Definition at line 122 of file ExprFuncNodeArray.h.

References casacore::TableExprFuncNode::funcType(), and node_p.

virtual void casacore::TableExprFuncNodeArray::getAggrNodes ( vector< TableExprNodeRep * > & aggr ) [virtual]

Get the nodes representing an aggregate function.

Reimplemented from casacore::TableExprNodeBinary.

Reimplemented in casacore::TableExprAggrNodeArray.

const IPosition& casacore::TableExprFuncNodeArray::getAlternate ( const TableExprId & id ) [private]

Set the alternate value expandAlt_p for array expand and return it.

virtual MArray<Bool> casacore::TableExprFuncNodeArray::getArrayBool ( const TableExprId & id ) [virtual]

'get' Functions to get the desired result of a function

Reimplemented from casacore::TableExprNodeRep.

Reimplemented in casacore::TableExprAggrNodeArray, and casacore::TableExprConeNodeArray.

virtual MArray<MVTime> casacore::TableExprFuncNodeArray::getArrayDate ( const TableExprId & id ) [virtual]

Reimplemented from casacore::TableExprNodeRep.

Reimplemented in casacore::TableExprAggrNodeArray.

virtual MArray<DComplex> casacore::TableExprFuncNodeArray::getArrayDComplex ( const TableExprId & id ) [virtual]

The default implementation of getArrayDComplex does getArrayDouble and converts the result.

Reimplemented from casacore::TableExprNodeArray.

Reimplemented in casacore::TableExprAggrNodeArray.

virtual MArray<Double> casacore::TableExprFuncNodeArray::getArrayDouble ( const TableExprId & id ) [virtual]

The default implementation of getArrayDouble does getArrayInt and converts the result.

Reimplemented from casacore::TableExprNodeArray.

Reimplemented in casacore::TableExprAggrNodeArray.

virtual MArray<Int64> casacore::TableExprFuncNodeArray::getArrayInt ( const TableExprId & id ) [virtual]

Reimplemented from casacore::TableExprNodeRep.

Reimplemented in casacore::TableExprAggrNodeArray, and casacore::TableExprConeNodeArray.

const IPosition& casacore::TableExprFuncNodeArray::getArrayShape	(	const TableExprId &	id,
		uInt	axarg = `1`
	)			`[private]`

Get the shape for the array function.

axarg gives the argument nr of the shape.

virtual MArray<String> casacore::TableExprFuncNodeArray::getArrayString ( const TableExprId & id ) [virtual]

Reimplemented from casacore::TableExprNodeRep.

Reimplemented in casacore::TableExprAggrNodeArray.

IPosition casacore::TableExprFuncNodeArray::getAxes	(	const TableExprId &	id,
		Int	ndim,
		uInt	axarg = `1`,
		Bool	swapRemove = `True`
	)			`[private]`

Get the collapse axes for the partial functions.

It compares the values with the #dim and removes them if too high. axarg gives the argument nr of the axes.

const TableExprFuncNode* casacore::TableExprFuncNodeArray::getChild ( ) const [inline]

Definition at line 101 of file ExprFuncNodeArray.h.

References node_p.

TableExprFuncNode* casacore::TableExprFuncNodeArray::getChild ( ) [inline]

Get the function node.

Definition at line 99 of file ExprFuncNodeArray.h.

References node_p.

virtual void casacore::TableExprFuncNodeArray::getColumnNodes ( vector< TableExprNodeRep * > & cols ) [virtual]

Get the nodes representing a table column.

Reimplemented from casacore::TableExprNodeBinary.

const IPosition& casacore::TableExprFuncNodeArray::getDiagonalArg	(	const TableExprId &	id,
		const IPosition &	shp
	)			`[private]`

Get the arguments for the diagonals function.

They are checked and if needed adapted if the shape is not empty.

IPosition casacore::TableExprFuncNodeArray::getOrder	(	const TableExprId &	id,
		Int	ndim
	)			`[private]`

Get the transpose order of the array axes.

const PtrBlock<TableExprNodeRep*>& casacore::TableExprFuncNodeArray::operands ( ) const [inline, protected]

Some functions to be used by TableExprNodeFuncArray.

Definition at line 118 of file ExprFuncNodeArray.h.

References node_p, and casacore::TableExprFuncNode::operands().

Referenced by casacore::TableExprAggrNodeArray::operand().

IPosition casacore::TableExprFuncNodeArray::removeAxes	(	const IPosition &	axes,
		Int	ndim
	)			const `[private]`

Remove axes exceeding ndim.

PtrBlock<TableExprNodeRep*>& casacore::TableExprFuncNodeArray::rwOperands ( ) [inline, protected]

Definition at line 120 of file ExprFuncNodeArray.h.

References node_p, and casacore::TableExprFuncNode::rwOperands().

void casacore::TableExprFuncNodeArray::setScale ( Double scale ) [inline, private]

Set unit scale factor (needed for sqrt).

Definition at line 130 of file ExprFuncNodeArray.h.

References node_p, and casacore::TableExprFuncNode::setScale().

template<typename T >

MArray<T> casacore::TableExprFuncNodeArray::TEFResize	(	const MArray< T > &	arr,
		const TableExprId &	id
	)			`[inline, private]`

Templated fucntion to resize/expand an array.

void casacore::TableExprFuncNodeArray::tryToConst ( ) [protected]

Try if the function gives a constant result.

If so, set the expression type to Constant.

Reimplemented in casacore::TableExprConeNodeArray.

Member Data Documentation

Bool casacore::TableExprFuncNodeArray::constAlt_p [private]

Definition at line 167 of file ExprFuncNodeArray.h.

Bool casacore::TableExprFuncNodeArray::constAxes_p [private]

Definition at line 166 of file ExprFuncNodeArray.h.

IPosition casacore::TableExprFuncNodeArray::expandAlt_p [private]

Definition at line 170 of file ExprFuncNodeArray.h.

IPosition casacore::TableExprFuncNodeArray::ipos_p [private]

Definition at line 168 of file ExprFuncNodeArray.h.

IPosition casacore::TableExprFuncNodeArray::iposN_p [private]

Definition at line 169 of file ExprFuncNodeArray.h.

Bool casacore::TableExprFuncNodeArray::isCOrder_p [private]

Definition at line 165 of file ExprFuncNodeArray.h.

TableExprFuncNode casacore::TableExprFuncNodeArray::node_p [private]

Definition at line 163 of file ExprFuncNodeArray.h.

Referenced by argDataType(), funcType(), getChild(), operands(), rwOperands(), and setScale().

Int casacore::TableExprFuncNodeArray::origin_p [private]

Reimplemented in casacore::TableExprConeNodeArray.

Definition at line 164 of file ExprFuncNodeArray.h.

The documentation for this class was generated from the following file:

casacore/tables/TaQL/ExprFuncNodeArray.h
