casacore::Sinusoid1D< T > Class Template Reference

A one dimensional Sinusoid class. More...

#include <Sinusoid1D.h>

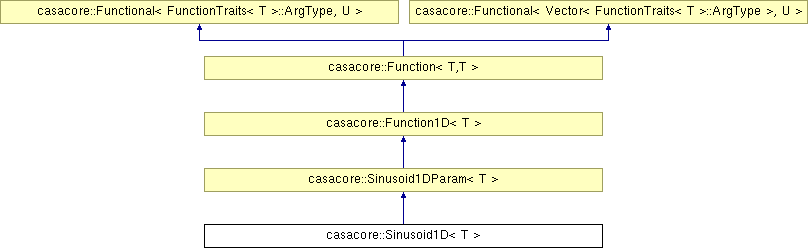

Inheritance diagram for casacore::Sinusoid1D< T >:

List of all members.

Public Member Functions
	Sinusoid1D ()
	Constructs the Sinusoids, Defaults: amplitude=1, period==1, x0=0.
	Sinusoid1D (const T &amplitude)
	Sinusoid1D (const T &amplitude, const T &period)
	Sinusoid1D (const T &amplitude, const T &period, const T &x0)
	Sinusoid1D (const Sinusoid1D &other)
	Copy constructor (deep copy).
template<class W >
	Sinusoid1D (const Sinusoid1D< W > &other)
Sinusoid1D< T > &	operator= (const Sinusoid1D< T > &other)
	Copy assignment (deep copy).
virtual	~Sinusoid1D ()
	Destructor.
virtual T	eval (typename Function1D< T >::FunctionArg x) const
	Evaluate the Sinusoid at x.
virtual Function< T > *	clone () const
	Return a copy of this object from the heap.
virtual Function< typename FunctionTraits< T >::DiffType > *	cloneAD () const
virtual Function< typename FunctionTraits< T >::BaseType > *	cloneNonAD () const

---

Detailed Description

template<class T>
class casacore::Sinusoid1D< T >

A one dimensional Sinusoid class.

Intended use:

Public interface

Review Status

Reviewed By:

UNKNOWN

Date Reviewed:

before2004/08/25

Test programs:

tSinusoid1D

Prerequisite

• Sinusoid1DParam
• Function

Etymology

A Sinusoid1D functional is designed for calculating a Sinusoid in one dimension.

Synopsis

A Sinusoid1D is described by an amplitude, a period, and a location of a peak. Its fundamental operation is evaluating itself at some x. The parameters (amplitude, period, and x0) may be changed at run time.

The functional form is A*cos(2*pi(x-x0)/P)

The parameter interface (see Sinusoid1DParam class), is used to provide an interface to the Fitting classes.

There are 3 parameters that are used to describe the Sinusoid:

1. The amplitude of the Sinusoid. This is the value returned using the amplitude member function.
2. The period of the Sinusoid in the x direction. This is the value returned using the period member function. The period is expressed in full cycles.
3. The location of a peak of the Sinusoid (i.e. where x=pi+k.2pi)

An enumeration for the AMPLITUDE, PERIOD and X0 parameter index is provided, enabling the setting and reading of parameters with the [] operator. The mask() methods can be used to check and set the parameter masks.

Example

 Sinusoid1D<Double> sf(5.0, 25.0, 7);
 sf(25);              // = -0.9369
 sf.setAmplitude(1.0);
 sf[PERIOD] = 2.0;
 sf.setX0(0.0);
 sf(0.5);             // = 0.0

Template Type Argument Requirements (T)

• T should have standard numerical operators and cos() function. Current implementation only tested for real types.
• To obtain derivatives, the derivatives should be defined.

Thrown Exceptions

• AipsError if incorrect parameter number specified.
• Assertion in debug mode if operator(Vector<>) with empty Vector

Definition at line 114 of file Sinusoid1D.h.

---

Constructor & Destructor Documentation

template<class T>

casacore::Sinusoid1D< T >::Sinusoid1D

(

)

[inline]

Constructs the Sinusoids, Defaults: amplitude=1, period==1, x0=0.

I.e. a cosinusoid with cos(x).
Warning: Could not use default arguments that worked both with gcc and IRIX

Definition at line 125 of file Sinusoid1D.h.

template<class T>

casacore::Sinusoid1D< T >::Sinusoid1D

(

const T &

amplitude

)

[inline, explicit]

Definition at line 126 of file Sinusoid1D.h.

template<class T>

casacore::Sinusoid1D< T >::Sinusoid1D	(	const T &	amplitude,
		const T &	period
	)			[inline]

Definition at line 128 of file Sinusoid1D.h.

template<class T>

casacore::Sinusoid1D< T >::Sinusoid1D	(	const T &	amplitude,
		const T &	period,
		const T &	x0
	)			[inline]

Definition at line 130 of file Sinusoid1D.h.

template<class T>

casacore::Sinusoid1D< T >::Sinusoid1D

(

const Sinusoid1D< T > &

other

)

[inline]

Copy constructor (deep copy).

Definition at line 136 of file Sinusoid1D.h.

template<class T>

template<class W >

casacore::Sinusoid1D< T >::Sinusoid1D

(

const Sinusoid1D< W > &

other

)

[inline]

Definition at line 138 of file Sinusoid1D.h.

template<class T>

virtual casacore::Sinusoid1D< T >::~Sinusoid1D

(

)

[inline, virtual]

Destructor.

Definition at line 146 of file Sinusoid1D.h.

---

Member Function Documentation

template<class T>

virtual Function<T>* casacore::Sinusoid1D< T >::clone

(

)

const [inline, virtual]

Return a copy of this object from the heap.

The caller is responsible for deleting this pointer.

Implements casacore::Function< T, U >.

Definition at line 159 of file Sinusoid1D.h.

template<class T>

virtual Function<typename FunctionTraits<T>::DiffType>* casacore::Sinusoid1D< T >::cloneAD

(

)

const [inline, virtual]

Reimplemented from casacore::Function< T, U >.

Definition at line 160 of file Sinusoid1D.h.

template<class T>

virtual Function<typename FunctionTraits<T>::BaseType>* casacore::Sinusoid1D< T >::cloneNonAD

(

)

const [inline, virtual]

Reimplemented from casacore::Function< T, U >.

Definition at line 162 of file Sinusoid1D.h.

template<class T>

virtual T casacore::Sinusoid1D< T >::eval

(

typename Function1D< T >::FunctionArg

x

)

const [virtual]

Evaluate the Sinusoid at x.

If a vector is used as the argument only its first element is used.

template<class T>

Sinusoid1D<T>& casacore::Sinusoid1D< T >::operator=

(

const Sinusoid1D< T > &

other

)

[inline]

Copy assignment (deep copy).

Reimplemented from casacore::Sinusoid1DParam< T >.

Definition at line 142 of file Sinusoid1D.h.

---

The documentation for this class was generated from the following file:

• casacore/scimath/Functionals/Sinusoid1D.h
