casacore::PrimaryArray< TYPE > Class Template Reference

templated primary array base class of given type More...

#include <hdu.h>

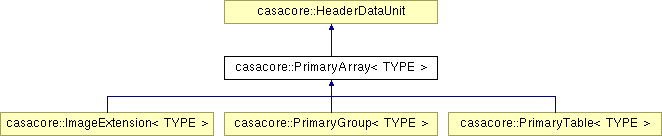

Inheritance diagram for casacore::PrimaryArray< TYPE >:

Public Types
typedef TYPE	ElementType
Public Member Functions
	PrimaryArray (FitsInput &, FITSErrorHandler=FITSError::defaultHandler)
	constructor from a FitsInput
	PrimaryArray (FitsKeywordList &, FITSErrorHandler=FITSError::defaultHandler)
	constructor from a FitsKeywordList
	PrimaryArray (FITSErrorHandler=FITSError::defaultHandler)
	constructor does not require a FitsKeywordList.
virtual	~PrimaryArray ()
	destructor
double	bscale () const
	General access routines for a primary array.
double	bzero () const
char *	bunit () const
Bool	isablank () const
Int	blank () const
char *	ctype (int n) const
double	crpix (int n) const
double	crota (int n) const
double	crval (int n) const
double	cdelt (int n) const
double	datamax () const
double	datamin () const
OFF_T	nelements () const
double	operator() (int, int, int, int, int) const
	The overloaded operator functions `()' all return physical data, i.
double	operator() (int, int, int, int) const
double	operator() (int, int, int) const
double	operator() (int, int) const
double	operator() (int) const
TYPE &	data (int, int, int, int, int)
	The various `data()' functions allow one to access and set the raw data itself.
TYPE &	data (int, int, int, int)
TYPE &	data (int, int, int)
TYPE &	data (int, int)
TYPE &	data (int)
int	store (const TYPE *source, FITS::FitsArrayOption=FITS::NoOpt)
	The `store()', `move()' and `copy()' functions allow bulk data transfer between the internal FITS array and an external data storage area.
void	copy (double *target, FITS::FitsArrayOption=FITS::NoOpt) const
void	copy (float *target, FITS::FitsArrayOption=FITS::NoOpt) const
void	move (TYPE *target, FITS::FitsArrayOption=FITS::NoOpt) const
int	store (const TYPE *source, int npixels)
	Use these versions if you are reading/writing chunk by chunk.
void	copy (double *target, int npixels) const
void	copy (float *target, int npixels) const
void	move (TYPE *target, int npixels) const
int	write_priArr_hdr (FitsOutput &fout, int simple, int bitpix, int naxis, long naxes[], int extend)
virtual int	read ()
	The `read()' and `write()' functions control reading and writing data from the external FITS I/O medium into the FITS array.
virtual int	read (int)
virtual int	write (FitsOutput &)
virtual OFF_T	set_next (OFF_T)
Protected Member Functions
	PrimaryArray (FitsInput &, FITS::HDUType, FITSErrorHandler errhandler=FITSError::defaultHandler)
	construct from a FitsInput with given HDU type
	PrimaryArray (FitsKeywordList &, FITS::HDUType, FITSErrorHandler errhandler=FITSError::defaultHandler)
	construct from a FitsKeywordList with given HDU type
	PrimaryArray (FITS::HDUType, FITSErrorHandler errhandler=FITSError::defaultHandler)
	construct witout FitsKeywordList for given HDU type( for ImageExtension and PrimaryGroup)
int	offset (int, int) const
	compute a linear offset from array indicies
int	offset (int, int, int) const
int	offset (int, int, int, int) const
int	offset (int, int, int, int, int) const
void	pa_assign ()
Protected Attributes
double	bscale_x
double	bzero_x
char *	bunit_x
Bool	isablank_x
Int	blank_x
char **	ctype_x
double *	crpix_x
double *	crota_x
double *	crval_x
double *	cdelt_x
double	datamax_x
double	datamin_x
OFF_T	totsize
int *	factor
OFF_T	alloc_elems
OFF_T	beg_elem
OFF_T	end_elem
TYPE *	array
	the allocated array

Detailed Description

template<class TYPE>
class casacore::PrimaryArray< TYPE >

templated primary array base class of given type

Synopsis

A Primary Data Array is represented by the following:

 <Type> data_array [NAXIS1][NAXIS2]...[NAXISN]

For a PrimaryArray, dims() gives the number of dimensions and dim(i) gives the value of the i-th dimension

WARNING! Multi-dimensional arrays are stored in FORTRAN order, NOT in C order. Options on the store, copy, and move functions exist to convert from one order to the other, if that is necessary.

It is important to understand the proper sequence of operations with respect to I/O and data access. For input, the `read()' functions allocate an internal buffer of the appropriate size, if not already allocated, as well as reading and converting data; a `read()' function must be performed prior to accessing the data, i. e. before executing any `()', `data()', `copy()', or `move()' function. For output, the `store()' function similarly allocates an internal buffer before transfering data, and must be executed prior to any data access or `write()' function. Note: If you call any version of store(), do not call set_next().

Writing portions of an array at a time, rather than the entire array, is a special case. The `set_next()' function is provided for this purpose. It declares the intention to write out the next N elements and must be executed prior to any `data()' function. It allocates a buffer of appropriate size, if not already allocated. Again, via the `data()' functions, one accesses the array as if the entire array were in memory. The `write()' function always writes the number of current elements in the internal buffer. The sequence of operations for each portion of the array written would be:

`set_next(N)',
fill the array using `data(N)' or other `data()' functions
`write(fout)'.

The `set_next()' function must NOT be used with `read()' or `store()' functions; unpredictable results will occur.

Example

The following example illustrates the output cases.

Suppose we have an image array with 512 rows and 1024 columns stored in C-order. The C declaration would be:

 int source[1024][512];

To write out the entire array:

 FitsOutput fout; // some properly constructed FitsOutput
 PrimaryArray<FitsLong> pa; // some properly constructed PrimaryArray
 pa.store(source,CtoF);
 pa.write(fout);

Suppose we wanted to write out the two-dimensional image array a column at a time, rather than write out the entire array. For FITS, dim(0) is 512, dim(1) is 1024. The following code fragment writes one column at a time in the proper FITS Fortran-order.

 for (i = 0; i < dim(1); ++i) {
 pa.set_next(dim(0));
 for (j = 0; j < dim(0); ++j)
 data(j,i) = source[i][j];
 pa.write(fout);
 }

Definition at line 340 of file hdu.h.

Member Typedef Documentation

template<class TYPE>

typedef TYPE casacore::PrimaryArray< TYPE >::ElementType

Reimplemented in casacore::ImageExtension< TYPE >, casacore::PrimaryTable< TYPE >, casacore::PrimaryTable< FitsLong >, casacore::PrimaryTable< Float >, casacore::PrimaryTable< uChar >, and casacore::PrimaryTable< Short >.

Definition at line 342 of file hdu.h.

Constructor & Destructor Documentation

template<class TYPE>

casacore::PrimaryArray< TYPE >::PrimaryArray	(	FitsInput &	,
		FITSErrorHandler	= `FITSError::defaultHandler`
	)

constructor from a FitsInput

template<class TYPE>

casacore::PrimaryArray< TYPE >::PrimaryArray	(	FitsKeywordList &	,
		FITSErrorHandler	= `FITSError::defaultHandler`
	)

constructor from a FitsKeywordList

template<class TYPE>

casacore::PrimaryArray< TYPE >::PrimaryArray ( FITSErrorHandler = FITSError::defaultHandler )

constructor does not require a FitsKeywordList.

call write_priArr_hdr() after construction.

template<class TYPE>

virtual casacore::PrimaryArray< TYPE >::~PrimaryArray ( ) [virtual]

destructor

template<class TYPE>

casacore::PrimaryArray< TYPE >::PrimaryArray	(	FitsInput &	,
		FITS::HDUType	,
		FITSErrorHandler	errhandler = `FITSError::defaultHandler`
	)			`[protected]`

construct from a FitsInput with given HDU type

template<class TYPE>

casacore::PrimaryArray< TYPE >::PrimaryArray	(	FitsKeywordList &	,
		FITS::HDUType	,
		FITSErrorHandler	errhandler = `FITSError::defaultHandler`
	)			`[protected]`

construct from a FitsKeywordList with given HDU type

template<class TYPE>

casacore::PrimaryArray< TYPE >::PrimaryArray	(	FITS::HDUType	,
		FITSErrorHandler	errhandler = `FITSError::defaultHandler`
	)			`[protected]`

construct witout FitsKeywordList for given HDU type( for ImageExtension and PrimaryGroup)

Member Function Documentation

template<class TYPE>

Int casacore::PrimaryArray< TYPE >::blank ( ) const [inline]

Definition at line 361 of file hdu.h.

template<class TYPE>

double casacore::PrimaryArray< TYPE >::bscale ( ) const [inline]

General access routines for a primary array.

Definition at line 357 of file hdu.h.

template<class TYPE>

char* casacore::PrimaryArray< TYPE >::bunit ( ) const [inline]

Reimplemented in casacore::PrimaryTable< TYPE >, casacore::PrimaryTable< FitsLong >, casacore::PrimaryTable< Float >, casacore::PrimaryTable< uChar >, and casacore::PrimaryTable< Short >.

Definition at line 359 of file hdu.h.

template<class TYPE>

double casacore::PrimaryArray< TYPE >::bzero ( ) const [inline]

Reimplemented in casacore::PrimaryTable< TYPE >, casacore::PrimaryTable< FitsLong >, casacore::PrimaryTable< Float >, casacore::PrimaryTable< uChar >, and casacore::PrimaryTable< Short >.

Definition at line 358 of file hdu.h.

template<class TYPE>

double casacore::PrimaryArray< TYPE >::cdelt ( int n ) const [inline]

Definition at line 366 of file hdu.h.

Referenced by casacore::MSPrimaryTableHolder::cdelt(), and casacore::MSPrimaryGroupHolder::cdelt().

template<class TYPE>

void casacore::PrimaryArray< TYPE >::copy	(	float *	target,
		int	npixels
	)			const

template<class TYPE>

void casacore::PrimaryArray< TYPE >::copy	(	double *	target,
		int	npixels
	)			const

template<class TYPE>

void casacore::PrimaryArray< TYPE >::copy	(	float *	target,
		FITS::FitsArrayOption	= `FITS::NoOpt`
	)			const

template<class TYPE>

void casacore::PrimaryArray< TYPE >::copy	(	double *	target,
		FITS::FitsArrayOption	= `FITS::NoOpt`
	)			const

template<class TYPE>

double casacore::PrimaryArray< TYPE >::crota ( int n ) const [inline]

Definition at line 364 of file hdu.h.

template<class TYPE>

double casacore::PrimaryArray< TYPE >::crpix ( int n ) const [inline]

Definition at line 363 of file hdu.h.

Referenced by casacore::MSPrimaryTableHolder::crpix(), and casacore::MSPrimaryGroupHolder::crpix().

template<class TYPE>

double casacore::PrimaryArray< TYPE >::crval ( int n ) const [inline]

Definition at line 365 of file hdu.h.

Referenced by casacore::MSPrimaryTableHolder::crval(), and casacore::MSPrimaryGroupHolder::crval().

template<class TYPE>

char* casacore::PrimaryArray< TYPE >::ctype ( int n ) const [inline]

Definition at line 362 of file hdu.h.

Referenced by casacore::MSPrimaryTableHolder::ctype(), and casacore::MSPrimaryGroupHolder::ctype().

template<class TYPE>

TYPE& casacore::PrimaryArray< TYPE >::data ( int )

template<class TYPE>

TYPE& casacore::PrimaryArray< TYPE >::data	(	int	,
		int
	)

template<class TYPE>

TYPE& casacore::PrimaryArray< TYPE >::data	(	int	,
		int	,
		int
	)

template<class TYPE>

TYPE& casacore::PrimaryArray< TYPE >::data	(	int	,
		int	,
		int	,
		int
	)

template<class TYPE>

TYPE& casacore::PrimaryArray< TYPE >::data	(	int	,
		int	,
		int	,
		int	,
		int
	)

The various `data()' functions allow one to access and set the raw data itself.

template<class TYPE>

double casacore::PrimaryArray< TYPE >::datamax ( ) const [inline]

Definition at line 367 of file hdu.h.

template<class TYPE>

double casacore::PrimaryArray< TYPE >::datamin ( ) const [inline]

Definition at line 368 of file hdu.h.

template<class TYPE>

Bool casacore::PrimaryArray< TYPE >::isablank ( ) const [inline]

Definition at line 360 of file hdu.h.

template<class TYPE>

void casacore::PrimaryArray< TYPE >::move	(	TYPE *	target,
		int	npixels
	)			const

template<class TYPE>

void casacore::PrimaryArray< TYPE >::move	(	TYPE *	target,
		FITS::FitsArrayOption	= `FITS::NoOpt`
	)			const

template<class TYPE>

OFF_T casacore::PrimaryArray< TYPE >::nelements ( ) const [inline]

Definition at line 369 of file hdu.h.

template<class TYPE>

int casacore::PrimaryArray< TYPE >::offset	(	int	,
		int	,
		int	,
		int	,
		int
	)			const `[protected]`

template<class TYPE>

int casacore::PrimaryArray< TYPE >::offset	(	int	,
		int	,
		int	,
		int
	)			const `[protected]`

template<class TYPE>

int casacore::PrimaryArray< TYPE >::offset	(	int	,
		int	,
		int
	)			const `[protected]`

template<class TYPE>

int casacore::PrimaryArray< TYPE >::offset	(	int	,
		int
	)			const `[protected]`

compute a linear offset from array indicies

template<class TYPE>

double casacore::PrimaryArray< TYPE >::operator() ( int ) const

template<class TYPE>

double casacore::PrimaryArray< TYPE >::operator()	(	int	,
		int
	)			const

template<class TYPE>

double casacore::PrimaryArray< TYPE >::operator()	(	int	,
		int	,
		int
	)			const

template<class TYPE>

double casacore::PrimaryArray< TYPE >::operator()	(	int	,
		int	,
		int	,
		int
	)			const

template<class TYPE>

double casacore::PrimaryArray< TYPE >::operator()	(	int	,
		int	,
		int	,
		int	,
		int
	)			const

The overloaded operator functions `()' all return physical data, i.

e., data to which bscale() and bzero() have been applied, via the formula

 physical_data[i] = bscale() * raw_data[i] + bzero().

template<class TYPE>

void casacore::PrimaryArray< TYPE >::pa_assign ( ) [protected]

template<class TYPE>

virtual int casacore::PrimaryArray< TYPE >::read ( int ) [virtual]

Reimplemented in casacore::PrimaryGroup< TYPE >, casacore::PrimaryTable< TYPE >, casacore::PrimaryGroup< FitsLong >, casacore::PrimaryGroup< Float >, casacore::PrimaryGroup< Short >, casacore::PrimaryTable< FitsLong >, casacore::PrimaryTable< Float >, casacore::PrimaryTable< uChar >, and casacore::PrimaryTable< Short >.

template<class TYPE>

virtual int casacore::PrimaryArray< TYPE >::read ( ) [virtual]

The `read()' and `write()' functions control reading and writing data from the external FITS I/O medium into the FITS array.

Appropriate conversions are made between FITS and local data representations. One can read the entire array into memory, or one can only read portions of the array. In the latter case, one must specify that the next N elements are to be read or written. Note that the number of elements must be specified, NOT the number of bytes. If one reads portions of the array, as opposed to the entire array, only that portion is in memory at a given time. One can still access the elements of the array via the `()' and `data()' functions, as if the entire array was in memory; obviously care must be taken in this case to access only those portions that are actually in memory.

Reimplemented in casacore::PrimaryGroup< TYPE >, casacore::PrimaryTable< TYPE >, casacore::PrimaryGroup< FitsLong >, casacore::PrimaryGroup< Float >, casacore::PrimaryGroup< Short >, casacore::PrimaryTable< FitsLong >, casacore::PrimaryTable< Float >, casacore::PrimaryTable< uChar >, and casacore::PrimaryTable< Short >.

template<class TYPE>

virtual OFF_T casacore::PrimaryArray< TYPE >::set_next ( OFF_T ) [virtual]

Reimplemented in casacore::PrimaryGroup< TYPE >, casacore::PrimaryGroup< FitsLong >, casacore::PrimaryGroup< Float >, and casacore::PrimaryGroup< Short >.

template<class TYPE>

int casacore::PrimaryArray< TYPE >::store	(	const TYPE *	source,
		int	npixels
	)

Use these versions if you are reading/writing chunk by chunk.

No FtoC option is available. You are responsible for ensuring that npixels corresponds to he number actually read or written. Note that copy() turns blanks into NaN's.

template<class TYPE>

int casacore::PrimaryArray< TYPE >::store	(	const TYPE *	source,
		FITS::FitsArrayOption	= `FITS::NoOpt`
	)

The `store()', `move()' and `copy()' functions allow bulk data transfer between the internal FITS array and an external data storage area.

The external storage must have already been allocated and it is assumed that the entire data array is in memory. `store()' transfers raw data at `source' into the FITS array; an allowable option is CtoF, which specifies to convert the array from C-order to Fortran-order. `move()' is the opposite of `store()'. `move()' transfers raw data from the FITS array to `target'; an allowable option is FtoC, which specifies to convert the array from Fortran-order to C-order. `copy()' is similar to `move()' except that what is copied is physical data and not raw data; the physical data can be either double or float. copy() also turns blanks into NaN's.

template<class TYPE>

virtual int casacore::PrimaryArray< TYPE >::write ( FitsOutput & ) [virtual]

Reimplemented in casacore::PrimaryGroup< TYPE >, casacore::PrimaryTable< TYPE >, casacore::PrimaryGroup< FitsLong >, casacore::PrimaryGroup< Float >, casacore::PrimaryGroup< Short >, casacore::PrimaryTable< FitsLong >, casacore::PrimaryTable< Float >, casacore::PrimaryTable< uChar >, and casacore::PrimaryTable< Short >.
