casacore::Muvw Class Reference

#include <Muvw.h>

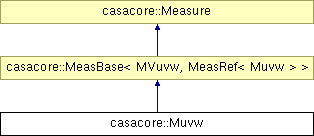

Inheritance diagram for casacore::Muvw:

Public Types
enum	Types { J2000, JMEAN, JTRUE, APP, B1950, B1950_VLA, BMEAN, BTRUE, GALACTIC, HADEC, AZEL, AZELSW, AZELGEO, AZELSWGEO, JNAT, ECLIPTIC, MECLIPTIC, TECLIPTIC, SUPERGAL, ITRF, TOPO, ICRS, N_Types, DEFAULT, AZELNE, AZELNEGEO }
	Types of known Muvws Warning: The order defines the order in the translation matrix FromTo in the getConvert routine; Do not change the order without changing the array; Additions should be made before N_types, and an additional row and column should be coded in FromTo, and in showType(); . More...
typedef MVuvw	MVType
	Measure value container for this class (i.e.
typedef MCuvw	MCType
	Measure conversion routines for this class (i.e.
typedef MeasRef< Muvw >	Ref
	Measure reference (i.e.
typedef MeasConvert< Muvw >	Convert
	MeasConvert use (i.e.
typedef ScalarMeasColumn< Muvw >	ScalarColumn
	Measure table Columns (e.g., Muvw::ScalarColumn).
typedef ArrayMeasColumn< Muvw >	ArrayColumn
Public Member Functions
typedef	WHATEVER_SUN_TYPEDEF (Muvw) Types Types
	Reference enum Types (included originally for gcc 2.95).
	Muvw ()
	Tip: In the following constructors and other functions, all MeasRef* can be replaced with simple `Measure::TYPE` where no offsets or frames are needed in the reference;* Default constructor; generates the ITRF centre
	Muvw (const MVuvw &dt)
	Create from data and reference.
	Muvw (const MVuvw &dt, const Muvw::Ref &rf)
	Muvw (const MVuvw &dt, Muvw::Types rf)
	Muvw (const Measure *dt)
	Muvw (const MeasValue *dt)
	Muvw (const Muvw &)
	Copy constructor and assign.
Muvw &	operator= (const Muvw &)
virtual	~Muvw ()
virtual const String &	tellMe () const
	Tell me your type.
virtual uInt	type () const
	Get the type (== Register() of derived Measure (faster than Strings) All should have: static uInt myType();.
Bool	giveMe (Muvw::Ref &mr, const String &in)
virtual Bool	setOffset (const Measure &in)
	Set the offset in the reference (False if non-matching Measure).
virtual Bool	setRefString (const String &in)
	Set the reference type to the specified String.
virtual const String &	getDefaultType () const
	Get the default reference type.
virtual const String *	allTypes (Int &nall, Int &nextra, const uInt *&typ) const
	Get a list of all known reference codes.
virtual void	checkTypes () const
	Check if all internal tables of types (both enum and String) are complete and correct.
virtual String	getRefString () const
	Get the reference type (for records, including codes like R_).
Quantum< Vector< Double > >	get (const Unit &inunit) const
	Get Measure data.
Quantum< Vector< Double > >	getAngle () const
Quantum< Vector< Double > >	getAngle (const Unit &inunit) const
virtual Measure *	clone () const
	Make copy.
Static Public Member Functions
static const String &	showMe ()
static void	assure (const Measure &in)
static Muvw::Types	castType (uInt tp)
	Translate reference code.
static const String &	showType (Muvw::Types tp)
static const String &	showType (uInt tp)
static Bool	getType (Muvw::Types &tp, const String &in)
	Translate string to reference code.
static const String *	allMyTypes (Int &nall, Int &nextra, const uInt *&typ)
static void	checkMyTypes ()
static Muvw::Types	fromDirType (const MDirection::Types in)
	Get the correct Muvw type from a given direction type (or v.v.
static MDirection::Types	toDirType (const Muvw::Types in)
static uInt	myType ()
	Get my type (as Register).
Friends
class	MeasConvert< Muvw >
	Conversion of data.

Detailed Description

A Measure: uvw on Earth.

Intended use:

Public interface

Review Status

Reviewed By:: UNKNOWN
Date Reviewed:: before2004/08/25
Test programs:: tMuvw

Prerequisite

Measure class

Etymology

From Measure and uvw

Synopsis

Muvw is the derived Measure class for an interferometer uvw. uvws can be given in any of the direction types, or as ITRF, the IERS base.
Note that at the moment no correction for Earth tides (error <~ 0.05 mm/km EW uvw), plate motion (not relevant for telescopes on same plate) and relativistic effects are incorporated. B1950 has the same caveat as in MDirection .

Example

 // Specify an Epoch and a telescope position
 MEpoch tbm(Quantity(50927.92931, "d"));
 MPosition pos(MVPosition(-4750915.84032, 2792906.17778,
 -3200483.75028),
 MPosition::ITRF);
 // Use them in a frame
 MeasFrame mf(tbm, pos);
 // Specify an uvw (note that values here are in m)
 MVuvw mvb0(100 ,10, 0);
 cout << "uvw: " << mvb0 << endl;
 // Specify a reference (type and where and when) for the following uvw
 Muvw::Ref mbref0(Muvw::ITRF, mf);
 Muvw mb0(mvb0, mbref0);
 // Show the uvw
 cout << "uvw: " << mb0 << endl;
 cout << "uvw reference: " << mbref0 << endl;
 // Another reference
 Muvw::Ref mbref1(Muvw::J2000);
 cout << "uvw reference: " << mbref1 << endl;
 // Convert the uvw coordinates to the other reference and show it
 cout << "Test uvw conversion ..." << endl;
 Muvw::Convert bconv(mb0, mbref1);
 cout << "Converted " << mb0 << endl <<
 " to " << mbref1 << endl <<
 " as " << bconv() << endl;

Motivation

To be able to handle conversions between uvw coordinates with different reference directions.

To Do

EW baselines

Definition at line 115 of file Muvw.h.

Member Typedef Documentation

typedef ArrayMeasColumn<Muvw> casacore::Muvw::ArrayColumn

Definition at line 171 of file Muvw.h.

typedef MeasConvert<Muvw> casacore::Muvw::Convert

MeasConvert use (i.e.

Muvw::Convert)

Reimplemented from casacore::Measure.

Definition at line 168 of file Muvw.h.

typedef MCuvw casacore::Muvw::MCType

Measure conversion routines for this class (i.e.

Muvw::MCType)

Definition at line 164 of file Muvw.h.

typedef MVuvw casacore::Muvw::MVType

Measure value container for this class (i.e.

Muvw::MVType)

Definition at line 162 of file Muvw.h.

typedef MeasRef<Muvw> casacore::Muvw::Ref

Measure reference (i.e.

Muvw::Ref)

Definition at line 166 of file Muvw.h.

typedef ScalarMeasColumn<Muvw> casacore::Muvw::ScalarColumn

Measure table Columns (e.g., Muvw::ScalarColumn).

Definition at line 170 of file Muvw.h.

Member Enumeration Documentation

enum casacore::Muvw::Types

Types of known Muvws
Warning: The order defines the order in the translation matrix FromTo in the getConvert routine; Do not change the order without changing the array; Additions should be made before N_types, and an additional row and column should be coded in FromTo, and in showType();
.

Enumerator:

J2000
JMEAN
JTRUE
APP
B1950
B1950_VLA
BMEAN
BTRUE
GALACTIC
HADEC
AZEL
AZELSW
AZELGEO
AZELSWGEO
JNAT
ECLIPTIC
MECLIPTIC
TECLIPTIC
SUPERGAL
ITRF
TOPO
ICRS
N_Types
DEFAULT	Defaults.
AZELNE	Synonyms.
AZELNEGEO

Reimplemented from casacore::Measure.

Definition at line 130 of file Muvw.h.

Constructor & Destructor Documentation

casacore::Muvw::Muvw ( )

Tip: In the following constructors and other functions, all MeasRef can be replaced with simple Measure::TYPE where no offsets or frames are needed in the reference;
Default constructor; generates the ITRF centre

casacore::Muvw::Muvw ( const MVuvw & dt )

Create from data and reference.

casacore::Muvw::Muvw	(	const MVuvw &	dt,
		const Muvw::Ref &	rf
	)

casacore::Muvw::Muvw	(	const MVuvw &	dt,
		Muvw::Types	rf
	)

casacore::Muvw::Muvw ( const Measure * dt )

casacore::Muvw::Muvw ( const MeasValue * dt )

casacore::Muvw::Muvw ( const Muvw & )

Copy constructor and assign.

virtual casacore::Muvw::~Muvw ( ) [virtual]

Member Function Documentation

static const String* casacore::Muvw::allMyTypes	(	Int &	nall,
		Int &	nextra,
		const uInt *&	typ
	)			`[static]`

virtual const String* casacore::Muvw::allTypes	(	Int &	nall,
		Int &	nextra,
		const uInt *&	typ
	)			const `[virtual]`

Get a list of all known reference codes.

nall returns the number in list, nextra the number of specials (like planets) that should be at end of list). typ returns the list of corresponding types.

Reimplemented from casacore::Measure.

static void casacore::Muvw::assure ( const Measure & in ) [static]

static Muvw::Types casacore::Muvw::castType ( uInt tp ) [static]

Translate reference code.

The uInt version has a check for valid codes (i.e. it is a safe cast).

Thrown Exceptions

AipsError in the uInt interface if illegal code given

static void casacore::Muvw::checkMyTypes ( ) [static]

virtual void casacore::Muvw::checkTypes ( ) const [virtual]

Check if all internal tables of types (both enum and String) are complete and correct.

This function is called automatically if and when necessary.

Thrown Exceptions

AipsError if a (programming) error in the types.

Implements casacore::Measure.

virtual Measure* casacore::Muvw::clone ( ) const [virtual]

Make copy.

Implements casacore::Measure.

static Muvw::Types casacore::Muvw::fromDirType ( const MDirection::Types in ) [static]

Get the correct Muvw type from a given direction type (or v.v.

)

Quantum<Vector<Double> > casacore::Muvw::get ( const Unit & inunit ) const

Get Measure data.

Quantum<Vector<Double> > casacore::Muvw::getAngle ( const Unit & inunit ) const

Quantum<Vector<Double> > casacore::Muvw::getAngle ( ) const

virtual const String& casacore::Muvw::getDefaultType ( ) const [virtual]

Get the default reference type.

Implements casacore::Measure.

virtual String casacore::Muvw::getRefString ( ) const [virtual]

Get the reference type (for records, including codes like R_).

Implements casacore::Measure.

static Bool casacore::Muvw::getType	(	Muvw::Types &	tp,
		const String &	in
	)			`[static]`

Translate string to reference code.

Bool casacore::Muvw::giveMe	(	Muvw::Ref &	mr,
		const String &	in
	)

static uInt casacore::Muvw::myType ( ) [static]

Get my type (as Register).

Muvw& casacore::Muvw::operator= ( const Muvw & )

virtual Bool casacore::Muvw::setOffset ( const Measure & in ) [virtual]

Set the offset in the reference (False if non-matching Measure).

virtual Bool casacore::Muvw::setRefString ( const String & in ) [virtual]

Set the reference type to the specified String.

False if illegal string, reference set to DEFAULT.

Implements casacore::Measure.

static const String& casacore::Muvw::showMe ( ) [static]

static const String& casacore::Muvw::showType ( uInt tp ) [static]

static const String& casacore::Muvw::showType ( Muvw::Types tp ) [static]

virtual const String& casacore::Muvw::tellMe ( ) const [virtual]

Tell me your type.

Implements casacore::Measure.

static MDirection::Types casacore::Muvw::toDirType ( const Muvw::Types in ) [static]

virtual uInt casacore::Muvw::type ( ) const [virtual]

Get the type (== Register() of derived Measure (faster than Strings) All should have: static uInt myType();.

Implements casacore::Measure.

typedef casacore::Muvw::WHATEVER_SUN_TYPEDEF ( Muvw )

Reference enum Types (included originally for gcc 2.95).

Friends And Related Function Documentation

friend class MeasConvert< Muvw > [friend]

Conversion of data.

Definition at line 120 of file Muvw.h.

The documentation for this class was generated from the following file:

casacore/measures/Measures/Muvw.h
