casacore::LatticeStatsDataProvider< T > Class Template Reference

Data provider which allows stats framework to iterate through an unmasked lattice. More...

#include <LatticeStatsDataProvider.h>

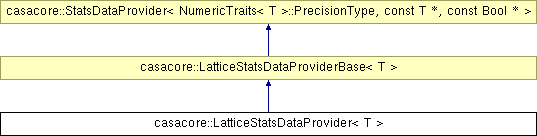

Inheritance diagram for casacore::LatticeStatsDataProvider< T >:
casacore::LatticeStatsDataProviderBase< T > casacore::StatsDataProvider< NumericTraits< T >::PrecisionType, const T *, const Bool * >

List of all members.

Public Member Functions

 LatticeStatsDataProvider ()
 default constructor, must set lattice after construction but before using the object
 LatticeStatsDataProvider (const Lattice< T > &lattice, uInt iteratorLimitBytes=4096 *4096)
 iteratorLimitBytes is related to the size of the lattice.
 ~LatticeStatsDataProvider ()
void operator++ ()
 increment the data provider to the next dataset, mask, range set, and weights.
uInt estimatedSteps () const
 estimated number of steps to iterate through the the lattice
Bool atEnd () const
 Are there any data sets left to provide?
void finalize ()
 Take any actions necessary to finalize the provider.
uInt64 getCount ()
 get the count of elements in the current data set.
const T * getData ()
 get the current data set
const BoolgetMask ()
 Get the associated mask of the current dataset.
Bool hasMask () const
 Does the current data set have an associated mask?
void reset ()
 reset the provider to point to the first data set it manages.
void setLattice (const Lattice< T > &lattice, uInt iteratorLimitBytes=4096 *4096)
 set the lattice.
void updateMaxPos (const std::pair< Int64, Int64 > &maxpos)
 see base class documentation.
void updateMinPos (const std::pair< Int64, Int64 > &minpos)

Private Member Functions

void _freeStorage ()

Private Attributes

CountedPtr< RO_LatticeIterator
< T > >
_iter
Array< T > _currentSlice
const T * _currentPtr
Bool _delData
Bool _atEnd

Detailed Description

template<class T>
class casacore::LatticeStatsDataProvider< T >

Data provider which allows stats framework to iterate through an unmasked lattice.

Definition at line 39 of file LatticeStatsDataProvider.h.


Constructor & Destructor Documentation

default constructor, must set lattice after construction but before using the object

template<class T>
casacore::LatticeStatsDataProvider< T >::LatticeStatsDataProvider ( const Lattice< T > &  lattice,
uInt  iteratorLimitBytes = 4096 *4096
)

iteratorLimitBytes is related to the size of the lattice.

If the lattice is greater than this size, then a lattice iterator will be used to step through the lattice. If less, then all the data in the values in the lattice are retrieved in a single chunk. The advantage of the iterator is that less memory is used. The disadvantage is there is a significant performace cost, so if the lattice is small, it is better to get all its values in a single chunk and forgo the iterator. This is particularly true when looping for a large number of iterations and creating a LatticeStatsDataProvider each loop (in that case, you probably will want to create a single object before the loop and use setLattice() to update its lattice).


Member Function Documentation

template<class T>
void casacore::LatticeStatsDataProvider< T >::_freeStorage (  )  [private]
template<class T>
Bool casacore::LatticeStatsDataProvider< T >::atEnd (  )  const [virtual]
template<class T>
uInt casacore::LatticeStatsDataProvider< T >::estimatedSteps (  )  const [virtual]

estimated number of steps to iterate through the the lattice

Implements casacore::LatticeStatsDataProviderBase< T >.

template<class T>
void casacore::LatticeStatsDataProvider< T >::finalize (  )  [virtual]

Take any actions necessary to finalize the provider.

This will be called when atEnd() returns True.

Reimplemented from casacore::LatticeStatsDataProviderBase< T >.

template<class T>
uInt64 casacore::LatticeStatsDataProvider< T >::getCount (  )  [virtual]

get the count of elements in the current data set.

When implementing this method, be certain to take stride into account; ie for a data set with nominally 100 elements that is to have a stride of two, this method should return 50.

Implements casacore::StatsDataProvider< NumericTraits< T >::PrecisionType, const T *, const Bool * >.

template<class T>
const T* casacore::LatticeStatsDataProvider< T >::getData (  )  [virtual]
template<class T>
const Bool* casacore::LatticeStatsDataProvider< T >::getMask (  )  [virtual]

Get the associated mask of the current dataset.

Only called if hasMask() returns True;

Implements casacore::StatsDataProvider< NumericTraits< T >::PrecisionType, const T *, const Bool * >.

template<class T>
Bool casacore::LatticeStatsDataProvider< T >::hasMask (  )  const [virtual]

Does the current data set have an associated mask?

Implements casacore::StatsDataProvider< NumericTraits< T >::PrecisionType, const T *, const Bool * >.

template<class T>
void casacore::LatticeStatsDataProvider< T >::operator++ (  )  [virtual]

increment the data provider to the next dataset, mask, range set, and weights.

Implements casacore::StatsDataProvider< NumericTraits< T >::PrecisionType, const T *, const Bool * >.

template<class T>
void casacore::LatticeStatsDataProvider< T >::reset (  )  [virtual]

reset the provider to point to the first data set it manages.

Reimplemented from casacore::LatticeStatsDataProviderBase< T >.

template<class T>
void casacore::LatticeStatsDataProvider< T >::setLattice ( const Lattice< T > &  lattice,
uInt  iteratorLimitBytes = 4096 *4096
)

set the lattice.

Automatically resets the lattice iterator iteratorLimitBytes is related to the size of the lattice. If the lattice is greater than this size, then a lattice iterator will be used to step through the lattice. If less, then all the data in the values in the lattice are retrieved in a single chunk. The advantage of the iterator is that less memory is used. The disadvantage is there is a significant performace cost, so if the lattice is small, it is better to get all its values in a single chunk and forgo the iterator. This is particularly true when looping for a large number of iterations and creating a LatticeStatsDataProvider each loop (in that case, you probably will want to create a single object before the loop and use setLattice() to update its lattice).

template<class T>
void casacore::LatticeStatsDataProvider< T >::updateMaxPos ( const std::pair< Int64, Int64 > &  maxpos  )  [virtual]
template<class T>
void casacore::LatticeStatsDataProvider< T >::updateMinPos ( const std::pair< Int64, Int64 > &  minpos  )  [virtual]

Member Data Documentation

template<class T>
Bool casacore::LatticeStatsDataProvider< T >::_atEnd [private]

Definition at line 121 of file LatticeStatsDataProvider.h.

template<class T>
const T* casacore::LatticeStatsDataProvider< T >::_currentPtr [private]

Definition at line 120 of file LatticeStatsDataProvider.h.

template<class T>
Array<T> casacore::LatticeStatsDataProvider< T >::_currentSlice [private]

Definition at line 119 of file LatticeStatsDataProvider.h.

template<class T>
Bool casacore::LatticeStatsDataProvider< T >::_delData [private]

Definition at line 121 of file LatticeStatsDataProvider.h.

Definition at line 118 of file LatticeStatsDataProvider.h.


The documentation for this class was generated from the following file:
