casacore::LSQaips Class Reference

Interface for Casacore Vectors in least squares fitting. More...

#include <LSQaips.h>

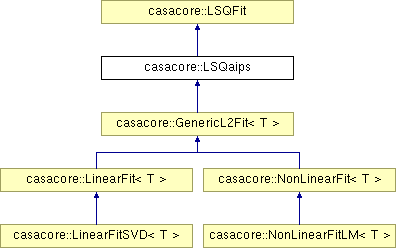

Inheritance diagram for casacore::LSQaips:

List of all members.

Public Member Functions
	LSQaips (uInt nUnknowns, uInt nConstraints=0)
	Construct an object with the number of unknown, knowns and constraints, and type, using the default collinearity factor and the default Levenberg-Marquardt adjustment factor.
	LSQaips (uInt nUnknowns, const LSQReal &, uInt nConstraints=0)
	Allow explicit complex/real specification.
	LSQaips (uInt nUnknowns, const LSQComplex &, uInt nConstraints=0)
	LSQaips ()
	Default constructor (empty, real, only usable after a set(nUnknowns)).
	LSQaips (const LSQaips &other)
	Copy constructor (deep copy).
LSQaips &	operator= (const LSQaips &other)
	Assignment (deep copy).
	~LSQaips ()
template<class U >
void	solve (U *sol)
	Solve normal equations.
template<class U >
void	solve (std::complex< U > *sol)
template<class U >
void	solve (U &sol)
template<class U >
void	solve (Vector< U > &sol)
template<class U >
Bool	solveLoop (uInt &nRank, U *sol, Bool doSVD=False)
	Solve a Levenberg-Marquardt loop.
template<class U >
Bool	solveLoop (uInt &nRank, std::complex< U > *sol, Bool doSVD=False)
template<class U >
Bool	solveLoop (uInt &nRank, U &sol, Bool doSVD=False)
template<class U >
Bool	solveLoop (uInt &nRank, Vector< U > &sol, Bool doSVD=False)
template<class U >
Bool	solveLoop (Double &fit, uInt &nRank, U *sol, Bool doSVD=False)
template<class U >
Bool	solveLoop (Double &fit, uInt &nRank, std::complex< U > *sol, Bool doSVD=False)
template<class U >
Bool	solveLoop (Double &fit, uInt &nRank, U &sol, Bool doSVD=False)
template<class U >
Bool	solveLoop (Double &fit, uInt &nRank, Vector< U > &sol, Bool doSVD=False)
template<class U >
Bool	getCovariance (U *covar)
	Get the covariance matrix.
template<class U >
Bool	getCovariance (std::complex< U > *covar)
template<class U >
Bool	getCovariance (Array< U > &covar)
template<class U >
Bool	getErrors (U *errors)
	Get main diagonal of covariance function (of size nUnknowns).
template<class U >
Bool	getErrors (std::complex< U > *errors)
template<class U >
Bool	getErrors (U &errors)
template<class U >
Bool	getErrors (Vector< U > &errors)

---

Detailed Description

Interface for Casacore Vectors in least squares fitting.

Review Status

Date Reviewed:

2004/04/01

Prerequisite

• LSQFit class

Etymology

From Least SQuares and aips++ (now Casacore)

Synopsis

The interface used in the LSQaips class is in terms of Casacore Vectors directly, rather than an STL iterator (like VectorSTLIterator ) based on it.

Its functionality is identical to that of the LSQFit class, although it will be faster to use the iterator interface directly, since constructing of temporary iterators can be avoided

Example

See the tLSQaips.cc program for extensive examples. Note: this class is in an interim state.

Motivation

The class was written to enable easy tranistion from the current Vector to the Vector::iterator interface.

To Do

• create all the method interfaces

Definition at line 83 of file LSQaips.h.

---

Constructor & Destructor Documentation

casacore::LSQaips::LSQaips	(	uInt	nUnknowns,
		uInt	nConstraints = 0
	)			[inline]

Construct an object with the number of unknown, knowns and constraints, and type, using the default collinearity factor and the default Levenberg-Marquardt adjustment factor.

Assume real

Definition at line 92 of file LSQaips.h.

casacore::LSQaips::LSQaips	(	uInt	nUnknowns,
		const LSQReal &	,
		uInt	nConstraints = 0
	)			[inline]

Allow explicit complex/real specification.

Definition at line 96 of file LSQaips.h.

casacore::LSQaips::LSQaips	(	uInt	nUnknowns,
		const LSQComplex &	,
		uInt	nConstraints = 0
	)			[inline]

Definition at line 98 of file LSQaips.h.

casacore::LSQaips::LSQaips

(

)

[inline]

Default constructor (empty, real, only usable after a set(nUnknowns)).

Definition at line 103 of file LSQaips.h.

casacore::LSQaips::LSQaips

(

const LSQaips &

other

)

[inline]

Copy constructor (deep copy).

Definition at line 105 of file LSQaips.h.

casacore::LSQaips::~LSQaips

(

)

[inline]

Definition at line 112 of file LSQaips.h.

---

Member Function Documentation

template<class U >

Bool casacore::LSQaips::getCovariance

(

Array< U > &

covar

)

[inline]

template<class U >

Bool casacore::LSQaips::getCovariance

(

std::complex< U > *

covar

)

[inline]

Reimplemented from casacore::LSQFit.

Definition at line 172 of file LSQaips.h.

References getCovariance().

template<class U >

Bool casacore::LSQaips::getCovariance

(

U *

covar

)

[inline]

Get the covariance matrix.

False if an error occurred (of size nUnknowns * nUnknowns)

Reimplemented from casacore::LSQFit.

Definition at line 169 of file LSQaips.h.

Referenced by getCovariance().

template<class U >

Bool casacore::LSQaips::getErrors

(

Vector< U > &

errors

)

[inline]

Definition at line 189 of file LSQaips.h.

References casacore::Array< T >::data(), getErrors(), casacore::LSQFit::nUnknowns(), and casacore::Vector< T >::resize().

template<class U >

Bool casacore::LSQaips::getErrors

(

U &

errors

)

[inline]

Reimplemented from casacore::LSQFit.

Definition at line 186 of file LSQaips.h.

References getErrors().

template<class U >

Bool casacore::LSQaips::getErrors

(

std::complex< U > *

errors

)

[inline]

Reimplemented from casacore::LSQFit.

Definition at line 183 of file LSQaips.h.

References getErrors().

template<class U >

Bool casacore::LSQaips::getErrors

(

U *

errors

)

[inline]

Get main diagonal of covariance function (of size nUnknowns).

Reimplemented from casacore::LSQFit.

Definition at line 180 of file LSQaips.h.

Referenced by getErrors().

LSQaips& casacore::LSQaips::operator=

(

const LSQaips &

other

)

[inline]

Assignment (deep copy).

Reimplemented from casacore::LSQFit.

Reimplemented in casacore::GenericL2Fit< T >, casacore::LinearFit< T >, casacore::LinearFitSVD< T >, casacore::NonLinearFit< T >, and casacore::NonLinearFitLM< T >.

Definition at line 107 of file LSQaips.h.

template<class U >

void casacore::LSQaips::solve

(

Vector< U > &

sol

)

[inline]

Definition at line 127 of file LSQaips.h.

References casacore::Array< T >::data(), casacore::LSQFit::nUnknowns(), casacore::Vector< T >::resize(), and solve().

template<class U >

void casacore::LSQaips::solve

(

U &

sol

)

[inline]

Reimplemented from casacore::LSQFit.

Definition at line 125 of file LSQaips.h.

References solve().

template<class U >

void casacore::LSQaips::solve

(

std::complex< U > *

sol

)

[inline]

Reimplemented from casacore::LSQFit.

Definition at line 123 of file LSQaips.h.

References solve().

template<class U >

void casacore::LSQaips::solve

(

U *

sol

)

[inline]

Solve normal equations.

The solution will be given in sol.

Reimplemented from casacore::LSQFit.

Definition at line 121 of file LSQaips.h.

Referenced by solve().

template<class U >

Bool casacore::LSQaips::solveLoop	(	Double &	fit,
		uInt &	nRank,
		Vector< U > &	sol,
		Bool	doSVD = False
	)			[inline]

template<class U >

Bool casacore::LSQaips::solveLoop	(	Double &	fit,
		uInt &	nRank,
		U &	sol,
		Bool	doSVD = False
	)			[inline]

Reimplemented from casacore::LSQFit.

Definition at line 158 of file LSQaips.h.

References solveLoop().

template<class U >

Bool casacore::LSQaips::solveLoop	(	Double &	fit,
		uInt &	nRank,
		std::complex< U > *	sol,
		Bool	doSVD = False
	)			[inline]

Reimplemented from casacore::LSQFit.

Definition at line 154 of file LSQaips.h.

References solveLoop().

template<class U >

Bool casacore::LSQaips::solveLoop	(	Double &	fit,
		uInt &	nRank,
		U *	sol,
		Bool	doSVD = False
	)			[inline]

Reimplemented from casacore::LSQFit.

Definition at line 150 of file LSQaips.h.

References solveLoop().

template<class U >

Bool casacore::LSQaips::solveLoop	(	uInt &	nRank,
		Vector< U > &	sol,
		Bool	doSVD = False
	)			[inline]

template<class U >

Bool casacore::LSQaips::solveLoop	(	uInt &	nRank,
		U &	sol,
		Bool	doSVD = False
	)			[inline]

Reimplemented from casacore::LSQFit.

Definition at line 143 of file LSQaips.h.

References solveLoop().

template<class U >

Bool casacore::LSQaips::solveLoop	(	uInt &	nRank,
		std::complex< U > *	sol,
		Bool	doSVD = False
	)			[inline]

Reimplemented from casacore::LSQFit.

Definition at line 139 of file LSQaips.h.

References solveLoop().

template<class U >

Bool casacore::LSQaips::solveLoop	(	uInt &	nRank,
		U *	sol,
		Bool	doSVD = False
	)			[inline]

Solve a Levenberg-Marquardt loop.

Note that the solution sol is used both and input and output. No check on the size is done.

Reimplemented from casacore::LSQFit.

Definition at line 135 of file LSQaips.h.

Referenced by solveLoop().

---

The documentation for this class was generated from the following file:

• casacore/scimath/Fitting/LSQaips.h
