casacore::FunctionWrapper< T > Class Template Reference

Construct nD function objects from C++ functions. More...

#include <FunctionWrapper.h>

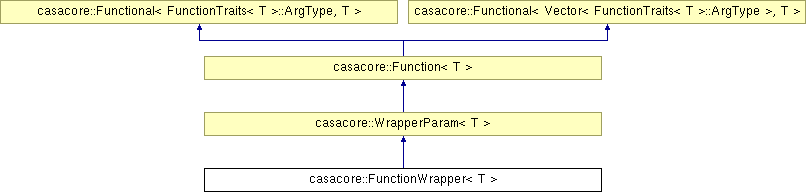

Inheritance diagram for casacore::FunctionWrapper< T >:

List of all members.

Public Member Functions
	FunctionWrapper ()
	Default constructor, to enable arrays.
	FunctionWrapper (T(*f)())
	A function with no parameters and no arguments.
	FunctionWrapper (T(*f)(const T &), const Bool isPar)
	A function with parameter and no arguments (Note value of isPar irrelevant).
	FunctionWrapper (T(*f)(const Vector< T > &), const Bool isPar)
	A function with parameters and no arguments.
	FunctionWrapper (T(*f)(const T &))
	Construct a 1-dimensional function with no parameters.
	FunctionWrapper (T(*f)(const T &, const T &), const T &par)
	Construct a 1-dimensional function with parameter.
	FunctionWrapper (T(*f)(const T &, const Vector< T > &), const Vector< T > &par)
	Construct a 1-dimensional function with parameters.
	FunctionWrapper (T(*f)(const Vector< T > &), const Int dim=1)
	Construct an n-dimensional function with no parameters.
	FunctionWrapper (T(*f)(const Vector< T > &, const T &), const T &par, const uInt dim=1)
	Construct an n-dimensional function with parameter.
	FunctionWrapper (T(*f)(const Vector< T > &, const Vector< T > &), const Vector< T > &par, const uInt dim=1)
	Construct an n-dimensional function with parameters.
	FunctionWrapper (const FunctionWrapper< T > &other)
	Copy constructor (reference semantics).
FunctionWrapper< T > &	operator= (const FunctionWrapper< T > &other)
	Copy assignment (reference semantics).
virtual	~FunctionWrapper ()
	Destructor.
virtual T	eval (typename Function< T >::FunctionArg x) const
	Evaluate the function at x.
virtual uInt	ndim () const
	Get the dimensionality.
virtual Function< T > *	clone () const
	Return a copy of this object from the heap.
Protected Attributes
CountedPtr< WrapperBase< T > >	doit_p
	The function aid object.

---

Detailed Description

template<class T>
class casacore::FunctionWrapper< T >

Construct nD function objects from C++ functions.

Intended use:

Public interface

Review Status

Date Reviewed:

1996/02/22

Prerequisite

• Function class
• FunctionParam

Synopsis

This class is provided so that user can quickly construct a function object from a C++ function pointer without having to write a function class. The constructor constructs a function object from a function pointer, and an optional parameter list. Parameters are necessary if the function has to be used in a functional fitting process (see GenericL2Fit ).

The general function signature is f(x;p), where x represents the arguments, and p the parameters. The allowed signatures of the function include all combinations of arguments and parameters, and are:

• f() no arguments e.g. random number or constant
• f(x) 1-dimensional, e.g. sin(x)
• f(Vectorx) n-dimensional, e.g. sin(x+2y)

Example

 Float func(const Vector<Float>& x) {return x(0)*x(1);}        // x*y
 // Convert C++ functions to Functionals
 FunctionWrapper<Float> Func(func,2);

Definition at line 85 of file FunctionWrapper.h.

---

Constructor & Destructor Documentation

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper

(

)

Default constructor, to enable arrays.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper

(

T(*)()

f

)

A function with no parameters and no arguments.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper	(	T(*)(const T &)	f,
		const Bool	isPar
	)

A function with parameter and no arguments (Note value of isPar irrelevant).

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper	(	T(*)(const Vector< T > &)	f,
		const Bool	isPar
	)

A function with parameters and no arguments.

(Note value of isPar irrelevant)

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper

(

T(*)(const T &)

f

)

Construct a 1-dimensional function with no parameters.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper	(	T(*)(const T &, const T &)	f,
		const T &	par
	)

Construct a 1-dimensional function with parameter.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper	(	T(*)(const T &, const Vector< T > &)	f,
		const Vector< T > &	par
	)

Construct a 1-dimensional function with parameters.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper	(	T(*)(const Vector< T > &)	f,
		const Int	dim = 1
	)

Construct an n-dimensional function with no parameters.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper	(	T(*)(const Vector< T > &, const T &)	f,
		const T &	par,
		const uInt	dim = 1
	)

Construct an n-dimensional function with parameter.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper	(	T(*)(const Vector< T > &, const Vector< T > &)	f,
		const Vector< T > &	par,
		const uInt	dim = 1
	)

Construct an n-dimensional function with parameters.

template<class T>

casacore::FunctionWrapper< T >::FunctionWrapper

(

const FunctionWrapper< T > &

other

)

Copy constructor (reference semantics).

template<class T>

virtual casacore::FunctionWrapper< T >::~FunctionWrapper

(

)

[inline, virtual]

Destructor.

Definition at line 122 of file FunctionWrapper.h.

---

Member Function Documentation

template<class T>

virtual Function<T>* casacore::FunctionWrapper< T >::clone

(

)

const [inline, virtual]

Return a copy of this object from the heap.

The caller is responsible for deleting this pointer.

Implements casacore::Function< T >.

Definition at line 136 of file FunctionWrapper.h.

template<class T>

virtual T casacore::FunctionWrapper< T >::eval

(

typename Function< T >::FunctionArg

x

)

const [virtual]

Evaluate the function at x.

template<class T>

virtual uInt casacore::FunctionWrapper< T >::ndim

(

)

const [virtual]

Get the dimensionality.

Implements casacore::Function< T >.

template<class T>

FunctionWrapper<T>& casacore::FunctionWrapper< T >::operator=

(

const FunctionWrapper< T > &

other

)

Copy assignment (reference semantics).

Reimplemented from casacore::WrapperParam< T >.

---

Member Data Documentation

template<class T>

CountedPtr<WrapperBase<T> > casacore::FunctionWrapper< T >::doit_p [protected]

The function aid object.

Definition at line 143 of file FunctionWrapper.h.

---

The documentation for this class was generated from the following file:

• casacore/scimath/Functionals/FunctionWrapper.h
