casacore::DataManager Class Reference

Abstract base class for a data manager. More...

#include <DataManager.h>

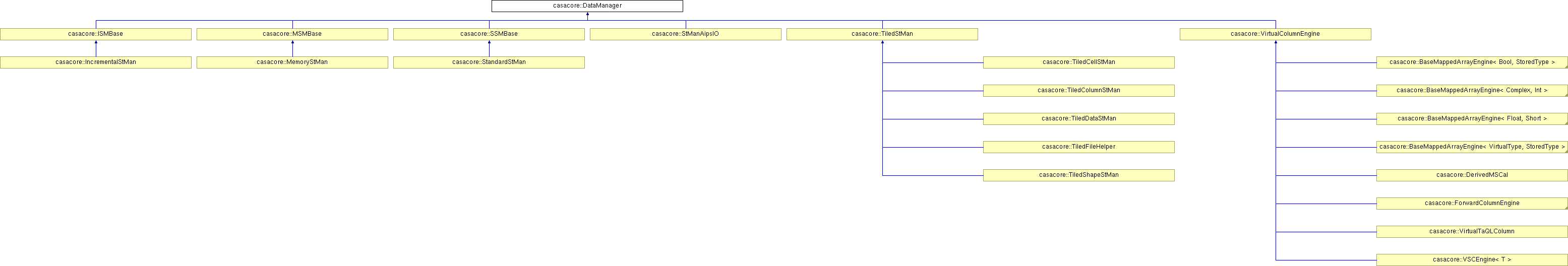

Inheritance diagram for casacore::DataManager:
casacore::ISMBase casacore::MSMBase casacore::SSMBase casacore::StManAipsIO casacore::TiledStMan casacore::VirtualColumnEngine casacore::IncrementalStMan casacore::MemoryStMan casacore::StandardStMan casacore::TiledCellStMan casacore::TiledColumnStMan casacore::TiledDataStMan casacore::TiledFileHelper casacore::TiledShapeStMan casacore::BaseMappedArrayEngine< Bool, StoredType > casacore::BaseMappedArrayEngine< Complex, Int > casacore::BaseMappedArrayEngine< Float, Short > casacore::BaseMappedArrayEngine< VirtualType, StoredType > casacore::DerivedMSCal casacore::ForwardColumnEngine casacore::VirtualTaQLColumn casacore::VSCEngine< T >

List of all members.

Public Member Functions

 DataManager ()
 Default constructor.
virtual ~DataManager ()
virtual DataManagerclone () const =0
 Make a clone of the derived object.
virtual String dataManagerName () const
 Return the name of the data manager.
virtual String dataManagerType () const =0
 Return the type name of the data manager (in fact its class name).
void dataManagerInfo (Record &info) const
 Add SEQNR and SPEC (the DataManagerSpec subrecord) to the info.
virtual Record dataManagerSpec () const
 Return a record containing data manager specifications.
virtual Record getProperties () const
 Get data manager properties that can be modified.
virtual void setProperties (const Record &spec)
 Modify data manager properties given in record fields.
virtual Bool isStorageManager () const
 Is the data manager a storage manager? The default is yes.
virtual Bool canReallocateColumns () const
 Tell if the data manager wants to reallocate the data manager column objects.
virtual DataManagerColumnreallocateColumn (DataManagerColumn *column)
 Reallocate the column object if it is part of this data manager.
uInt sequenceNr () const
 Get the (unique) sequence nr of this data manager.
uInt ncolumn () const
 Get the nr of columns in this data manager (can be zero).
Bool asBigEndian () const
 Have the data to be stored in big or little endian canonical format?
const TSMOptiontsmOption () const
 Get the TSM option.
MultiFileBasemultiFile ()
 Get the MultiFile pointer (can be 0).
String keywordName (const String &keyword) const
 Compose a keyword name from the given keyword appended with the sequence number (e.g.
String fileName () const
 Compose a unique filename from the table name and sequence number.
ByteIO::OpenOption fileOption () const
 Get the AipsIO option of the underlying file.
virtual Bool isRegular () const
 Is this a regular storage manager? It is regular if it allows addition of rows and writing data in them.
Tabletable () const
 Get the table this object is associated with.
virtual void reopenRW ()
 Reopen the data manager for read/write access.
virtual Bool canAddRow () const
 Does the data manager allow to add rows? (default no).
virtual Bool canRemoveRow () const
 Does the data manager allow to delete rows? (default no).
virtual Bool canAddColumn () const
 Does the data manager allow to add columns? (default no).
virtual Bool canRemoveColumn () const
 Does the data manager allow to delete columns? (default no).
virtual Bool canRenameColumn () const
 Does the data manager allow to rename columns? (default yes).
virtual void setMaximumCacheSize (uInt nbytes)
 Set the maximum cache size (in bytes) to be used by a storage manager.
virtual void showCacheStatistics (std::ostream &) const
 Show the data manager's IO statistics.
DataManagerColumncreateScalarColumn (const String &columnName, int dataType, const String &dataTypeId)
 Create a column in the data manager on behalf of a table column.
DataManagerColumncreateDirArrColumn (const String &columnName, int dataType, const String &dataTypeId)
 Create a direct array column.
DataManagerColumncreateIndArrColumn (const String &columnName, int dataType, const String &dataTypeId)
 Create an indirect array column.
virtual void deleteManager ()=0
 The data manager will be deleted (because all its columns are requested to be deleted).
DataManagergetClone () const
 Has the object already been cloned?
void setClone (DataManager *clone) const
 Set the pointer to the clone.

Static Public Member Functions

static void registerCtor (const String &type, DataManagerCtor func)
 Register a mapping of a data manager type to its static construction function.
static DataManagerCtor getCtor (const String &dataManagerType)
 Get the "constructor" of a data manager (thread-safe).
static Bool isRegistered (const String &dataManagerType)
 Test if a data manager is registered (thread-safe).
static void registerMainCtor ()
 Register the main data managers (if not done yet).
static DataManagerunknownDataManager (const String &dataManagerType, const Record &spec)
 Serve as default function for theirRegisterMap, which catches all unknown data manager types.

Protected Member Functions

void decrementNcolumn ()
 Decrement number of columns (in case a column is deleted).
void setEndian (Bool bigEndian)
 Tell the data manager if big or little endian format is needed.
void setTsmOption (const TSMOption &tsmOption)
 Tell the data manager which TSM option to use.
void setMultiFile (MultiFileBase *mfile)
 Tell the data manager that MultiFile can be used.
virtual Bool hasMultiFileSupport () const
 Does the data manager support use of MultiFile? A derived class has to return True if it can use the MultiFile.
void throwDataTypeOther (const String &columnName, int dataType) const
 Throw an exception in case data type is TpOther, because the storage managers (and maybe other data managers) do not support such columns.

Private Member Functions

 DataManager (const DataManager &)
 The copy constructor cannot be used for this base class.
DataManageroperator= (const DataManager &)
 Assignment cannot be used for this base class.
virtual DataManagerColumnmakeScalarColumn (const String &columnName, int dataType, const String &dataTypeId)=0
 Create a column in the data manager on behalf of a table column.
virtual DataManagerColumnmakeDirArrColumn (const String &columnName, int dataType, const String &dataTypeId)=0
 Create a direct array column.
virtual DataManagerColumnmakeIndArrColumn (const String &columnName, int dataType, const String &dataTypeId)=0
 Create an indirect array column.
void checkDataType (const DataManagerColumn *colPtr, const String &columnName, int dataType, const String &dataTypeId) const
 Check if the data type of the created data manager column is correct.
virtual void addRow (uInt nrrow)
 Add rows to all columns.
virtual void removeRow (uInt rownr)
 Delete a row from all columns.
virtual void addColumn (DataManagerColumn *)
 Add a column.
virtual void removeColumn (DataManagerColumn *)
 Delete a column.
void setSeqnr (uInt nr)
 Set the sequence number of this data manager.
void linkToTable (Table &tab)
 Link the data manager to the Table object.
virtual Bool flush (AipsIO &ios, Bool fsync)=0
 Flush and optionally fsync the data.
virtual void create (uInt nrrow)=0
 Let the data manager initialize itself for a new table.
virtual void open (uInt nrrow, AipsIO &ios)=0
 Let the data manager initialize itself for an existing table.
virtual uInt open1 (uInt nrrow, AipsIO &ios)
 Open as above.
virtual void resync (uInt nrrow)=0
 Resync the data by rereading cached data from the file.
virtual uInt resync1 (uInt nrrow)
 Resync as above.
virtual void prepare ()
 Let the data manager initialize itself further.

Static Private Member Functions

static void unlockedRegisterCtor (const String &type, DataManagerCtor func)
 Register a data manager constructor.
static void doRegisterMainCtor (void *)
 Do the actual (thread-safe) registration of the main data managers.

Private Attributes

uInt nrcol_p
uInt seqnr_p
Bool asBigEndian_p
TSMOption tsmOption_p
MultiFileBasemultiFile_p
Tabletable_p
DataManagerclone_p

Static Private Attributes

static SimpleOrderedMap
< String, DataManagerCtor >
theirRegisterMap
 Declare the mapping of the data manager type name to a static "makeObject" function.
static MutexedInit theirMutexedInit

Friends

class SetupNewTable
class ColumnSet

Detailed Description

Abstract base class for a data manager.

Intended use:

Internal

Review Status

Reviewed By:
Gareth Hunt
Date Reviewed:
94Nov17

Synopsis

DataManager is the abstract base class for all kind of table data managers. There are currently 2 classes of data managers:

DataManager contains some common data and defines several virtual functions, which usually have to be implemented in the derived classes. It also contains some helper functions for the derived classes (like fileName().

The actual handling of a column by the data manager is defined in the abstract base class DataManagerColumn . Each data manager must have an associated class (derived from DataManagerColumn) to handle the columns.

There is a protocol defined how a data manager is created and initialized. For a new table it is:

For an existing table the procedure is slightly different:

Motivation

An abstract base class is needed to support data managers and virtual column engines in the table system in a transparant way.

To Do

Definition at line 222 of file DataManager.h.


Constructor & Destructor Documentation

casacore::DataManager::DataManager (  )

Default constructor.

virtual casacore::DataManager::~DataManager (  )  [virtual]
casacore::DataManager::DataManager ( const DataManager  )  [private]

The copy constructor cannot be used for this base class.

The clone function should be used instead. The private declaration of this constructor makes it unusable.


Member Function Documentation

virtual void casacore::DataManager::addColumn ( DataManagerColumn  )  [private, virtual]

Add a column.

The default implementation throws a "not possible" exception.

Reimplemented in casacore::DerivedMSCal, casacore::ForwardColumnEngine, casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, and casacore::StManAipsIO.

virtual void casacore::DataManager::addRow ( uInt  nrrow  )  [private, virtual]
Bool casacore::DataManager::asBigEndian (  )  const [inline]

Have the data to be stored in big or little endian canonical format?

Definition at line 291 of file DataManager.h.

References asBigEndian_p.

virtual Bool casacore::DataManager::canAddColumn (  )  const [virtual]

Does the data manager allow to add columns? (default no).

Reimplemented in casacore::DerivedMSCal, casacore::ForwardColumnEngine, casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, and casacore::StManAipsIO.

virtual Bool casacore::DataManager::canAddRow (  )  const [virtual]
virtual Bool casacore::DataManager::canReallocateColumns (  )  const [virtual]

Tell if the data manager wants to reallocate the data manager column objects.

This is used by the tiling storage manager. By default it returns False.

Reimplemented in casacore::MSMBase, and casacore::TiledStMan.

virtual Bool casacore::DataManager::canRemoveColumn (  )  const [virtual]

Does the data manager allow to delete columns? (default no).

Reimplemented in casacore::DerivedMSCal, casacore::ForwardColumnEngine, casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, and casacore::StManAipsIO.

virtual Bool casacore::DataManager::canRemoveRow (  )  const [virtual]

Does the data manager allow to delete rows? (default no).

Reimplemented in casacore::ForwardColumnEngine, casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, casacore::StManAipsIO, and casacore::VirtualColumnEngine.

virtual Bool casacore::DataManager::canRenameColumn (  )  const [virtual]

Does the data manager allow to rename columns? (default yes).

void casacore::DataManager::checkDataType ( const DataManagerColumn colPtr,
const String columnName,
int  dataType,
const String dataTypeId
) const [private]

Check if the data type of the created data manager column is correct.

virtual DataManager* casacore::DataManager::clone (  )  const [pure virtual]
virtual void casacore::DataManager::create ( uInt  nrrow  )  [private, pure virtual]
DataManagerColumn* casacore::DataManager::createDirArrColumn ( const String columnName,
int  dataType,
const String dataTypeId
)

Create a direct array column.

DataManagerColumn* casacore::DataManager::createIndArrColumn ( const String columnName,
int  dataType,
const String dataTypeId
)

Create an indirect array column.

DataManagerColumn* casacore::DataManager::createScalarColumn ( const String columnName,
int  dataType,
const String dataTypeId
)

Create a column in the data manager on behalf of a table column.

It calls makeXColumn and checks the data type.

Create a scalar column. The dataTypeId argument is gives the id (i.e. name) of the data type of the column. It is only used for virtual columns of a non-standard data type to be able to check if the correctness of the column data type.
Storage managers only handle standard data types and can readily ignore this argument.

void casacore::DataManager::dataManagerInfo ( Record info  )  const

Add SEQNR and SPEC (the DataManagerSpec subrecord) to the info.

virtual String casacore::DataManager::dataManagerName (  )  const [virtual]
virtual Record casacore::DataManager::dataManagerSpec (  )  const [virtual]
virtual String casacore::DataManager::dataManagerType (  )  const [pure virtual]
void casacore::DataManager::decrementNcolumn (  )  [inline, protected]

Decrement number of columns (in case a column is deleted).

Definition at line 381 of file DataManager.h.

References nrcol_p.

virtual void casacore::DataManager::deleteManager (  )  [pure virtual]

The data manager will be deleted (because all its columns are requested to be deleted).

So clean up the things needed (e.g. delete files).

Implemented in casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, casacore::StManAipsIO, casacore::TiledStMan, and casacore::VirtualColumnEngine.

static void casacore::DataManager::doRegisterMainCtor ( void *   )  [static, private]

Do the actual (thread-safe) registration of the main data managers.

String casacore::DataManager::fileName (  )  const

Compose a unique filename from the table name and sequence number.

ByteIO::OpenOption casacore::DataManager::fileOption (  )  const

Get the AipsIO option of the underlying file.

virtual Bool casacore::DataManager::flush ( AipsIO ios,
Bool  fsync
) [private, pure virtual]

Flush and optionally fsync the data.

The AipsIO stream represents the main table file and can be used by virtual column engines to store SMALL amounts of data. It returns a True status if it had to flush (i.e. if data have changed).

Implemented in casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, casacore::StManAipsIO, casacore::TiledCellStMan, casacore::TiledColumnStMan, casacore::TiledDataStMan, casacore::TiledFileHelper, casacore::TiledShapeStMan, and casacore::VirtualColumnEngine.

DataManager* casacore::DataManager::getClone (  )  const [inline]

Has the object already been cloned?

Definition at line 522 of file DataManager.h.

References clone_p.

static DataManagerCtor casacore::DataManager::getCtor ( const String dataManagerType  )  [static]

Get the "constructor" of a data manager (thread-safe).

virtual Record casacore::DataManager::getProperties (  )  const [virtual]

Get data manager properties that can be modified.

It is a subset of the data manager specification. The default implementation returns an empty record.

Reimplemented in casacore::BitFlagsEngine< StoredType >, casacore::ISMBase, casacore::SSMBase, and casacore::TiledStMan.

virtual Bool casacore::DataManager::hasMultiFileSupport (  )  const [protected, virtual]

Does the data manager support use of MultiFile? A derived class has to return True if it can use the MultiFile.

The default implementation returns False.

Reimplemented in casacore::ISMBase, casacore::SSMBase, and casacore::TiledStMan.

static Bool casacore::DataManager::isRegistered ( const String dataManagerType  )  [static]

Test if a data manager is registered (thread-safe).

virtual Bool casacore::DataManager::isRegular (  )  const [virtual]

Is this a regular storage manager? It is regular if it allows addition of rows and writing data in them.


The default implementation returns True.

virtual Bool casacore::DataManager::isStorageManager (  )  const [virtual]

Is the data manager a storage manager? The default is yes.

Reimplemented in casacore::VirtualColumnEngine.

String casacore::DataManager::keywordName ( const String keyword  )  const

Compose a keyword name from the given keyword appended with the sequence number (e.g.

key_0). This makes the keyword name unique if multiple data managers are used with the same type.

void casacore::DataManager::linkToTable ( Table tab  )  [private]

Link the data manager to the Table object.

virtual DataManagerColumn* casacore::DataManager::makeDirArrColumn ( const String columnName,
int  dataType,
const String dataTypeId
) [private, pure virtual]
virtual DataManagerColumn* casacore::DataManager::makeIndArrColumn ( const String columnName,
int  dataType,
const String dataTypeId
) [private, pure virtual]
virtual DataManagerColumn* casacore::DataManager::makeScalarColumn ( const String columnName,
int  dataType,
const String dataTypeId
) [private, pure virtual]
MultiFileBase* casacore::DataManager::multiFile (  )  [inline]

Get the MultiFile pointer (can be 0).

Definition at line 299 of file DataManager.h.

References multiFile_p.

uInt casacore::DataManager::ncolumn (  )  const [inline]

Get the nr of columns in this data manager (can be zero).

Definition at line 287 of file DataManager.h.

References nrcol_p.

virtual void casacore::DataManager::open ( uInt  nrrow,
AipsIO ios
) [private, pure virtual]

Let the data manager initialize itself for an existing table.

The AipsIO stream represents the main table file and must be used by virtual column engines to retrieve the data stored in the flush function.

Implemented in casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, casacore::StManAipsIO, casacore::TiledStMan, and casacore::VirtualColumnEngine.

virtual uInt casacore::DataManager::open1 ( uInt  nrrow,
AipsIO ios
) [private, virtual]

Open as above.

The data manager can return the number of rows it thinks there are. This is particularly useful for data managers like LofarStMan whose data are written outside the table system, thus for which no rows have been added.
By default it calls open and returns nrrow.

DataManager& casacore::DataManager::operator= ( const DataManager  )  [private]
virtual void casacore::DataManager::prepare (  )  [private, virtual]
virtual DataManagerColumn* casacore::DataManager::reallocateColumn ( DataManagerColumn column  )  [virtual]

Reallocate the column object if it is part of this data manager.

It returns a pointer to the new column object. This function is used by the tiling storage manager. By default it does nothing and returns the input pointer.

Reimplemented in casacore::MSMBase, and casacore::TiledStMan.

static void casacore::DataManager::registerCtor ( const String type,
DataManagerCtor  func
) [static]

Register a mapping of a data manager type to its static construction function.

It is fully thread-safe.

static void casacore::DataManager::registerMainCtor (  )  [inline, static]

Register the main data managers (if not done yet).

It is fully thread-safe.

Definition at line 541 of file DataManager.h.

References casacore::MutexedInit::exec(), and theirMutexedInit.

virtual void casacore::DataManager::removeColumn ( DataManagerColumn  )  [private, virtual]

Delete a column.

The default implementation throws a "not possible" exception.

Reimplemented in casacore::DerivedMSCal, casacore::ForwardColumnEngine, casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, and casacore::StManAipsIO.

virtual void casacore::DataManager::removeRow ( uInt  rownr  )  [private, virtual]

Delete a row from all columns.

The default implementation throws a "not possible" exception.

Reimplemented in casacore::ForwardColumnEngine, casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, casacore::StManAipsIO, and casacore::VirtualColumnEngine.

virtual void casacore::DataManager::reopenRW (  )  [virtual]

Reopen the data manager for read/write access.

By default it is assumed that a reopen for read/write does not have to do anything.

Reimplemented in casacore::CompressComplex, casacore::CompressFloat, casacore::ForwardColumnEngine, casacore::ForwardColumnIndexedRowEngine, casacore::ISMBase, casacore::SSMBase, casacore::StManAipsIO, and casacore::TiledStMan.

virtual void casacore::DataManager::resync ( uInt  nrrow  )  [private, pure virtual]

Resync the data by rereading cached data from the file.

This is called when a lock is acquired on the file and it appears that data in this data manager has been changed by another process.

Implemented in casacore::ISMBase, casacore::MSMBase, casacore::SSMBase, casacore::StManAipsIO, casacore::TiledStMan, and casacore::VirtualColumnEngine.

virtual uInt casacore::DataManager::resync1 ( uInt  nrrow  )  [private, virtual]

Resync as above.

The data manager can return the number of rows it thinks there are. This is particularly useful for data managers like LofarStMan whose data are written outside the table system, thus for which no rows have been added.
By default it calls resync and returns nrrow.

uInt casacore::DataManager::sequenceNr (  )  const [inline]

Get the (unique) sequence nr of this data manager.

Definition at line 283 of file DataManager.h.

References seqnr_p.

Referenced by casacore::RODataManAccessor::dataManagerSeqNr().

void casacore::DataManager::setClone ( DataManager clone  )  const [inline]

Set the pointer to the clone.

Definition at line 526 of file DataManager.h.

References clone_p.

void casacore::DataManager::setEndian ( Bool  bigEndian  )  [inline, protected]

Tell the data manager if big or little endian format is needed.

Definition at line 385 of file DataManager.h.

References asBigEndian_p.

virtual void casacore::DataManager::setMaximumCacheSize ( uInt  nbytes  )  [virtual]

Set the maximum cache size (in bytes) to be used by a storage manager.

The default implementation does nothing.

Reimplemented in casacore::TiledStMan.

void casacore::DataManager::setMultiFile ( MultiFileBase mfile  )  [protected]

Tell the data manager that MultiFile can be used.

Because MultiFile cannot be used with mmapped files, it sets the TSMOption accordingly.

virtual void casacore::DataManager::setProperties ( const Record spec  )  [virtual]

Modify data manager properties given in record fields.

Only the properties as returned by getProperties are used, others are ignored. The default implementation does nothing.

Reimplemented in casacore::BitFlagsEngine< StoredType >, casacore::ISMBase, casacore::SSMBase, and casacore::TiledStMan.

void casacore::DataManager::setSeqnr ( uInt  nr  )  [inline, private]

Set the sequence number of this data manager.

Definition at line 466 of file DataManager.h.

References seqnr_p.

void casacore::DataManager::setTsmOption ( const TSMOption tsmOption  )  [protected]

Tell the data manager which TSM option to use.

virtual void casacore::DataManager::showCacheStatistics ( std::ostream &   )  const [virtual]

Show the data manager's IO statistics.

By default it does nothing.

Referenced by casacore::RODataManAccessor::showCacheStatistics().

Table& casacore::DataManager::table (  )  const [inline]

Get the table this object is associated with.

Definition at line 320 of file DataManager.h.

References table_p.

void casacore::DataManager::throwDataTypeOther ( const String columnName,
int  dataType
) const [protected]

Throw an exception in case data type is TpOther, because the storage managers (and maybe other data managers) do not support such columns.

const TSMOption& casacore::DataManager::tsmOption (  )  const [inline]

Get the TSM option.

Definition at line 295 of file DataManager.h.

References tsmOption_p.

static DataManager* casacore::DataManager::unknownDataManager ( const String dataManagerType,
const Record spec
) [static]

Serve as default function for theirRegisterMap, which catches all unknown data manager types.

Thrown Exceptions

  • TableUnknownDataManager
static void casacore::DataManager::unlockedRegisterCtor ( const String type,
DataManagerCtor  func
) [inline, static, private]

Register a data manager constructor.

Definition at line 554 of file DataManager.h.

References casacore::SimpleOrderedMap< K, V >::define(), and theirRegisterMap.


Friends And Related Function Documentation

friend class ColumnSet [friend]

Definition at line 225 of file DataManager.h.

friend class SetupNewTable [friend]

Definition at line 224 of file DataManager.h.


Member Data Documentation

Definition at line 410 of file DataManager.h.

Referenced by asBigEndian(), and setEndian().

Definition at line 414 of file DataManager.h.

Referenced by getClone(), and setClone().

Definition at line 412 of file DataManager.h.

Referenced by multiFile().

Definition at line 408 of file DataManager.h.

Referenced by decrementNcolumn(), and ncolumn().

Definition at line 409 of file DataManager.h.

Referenced by sequenceNr(), and setSeqnr().

Definition at line 413 of file DataManager.h.

Referenced by table().

Definition at line 518 of file DataManager.h.

Referenced by registerMainCtor().

Declare the mapping of the data manager type name to a static "makeObject" function.

Definition at line 517 of file DataManager.h.

Referenced by unlockedRegisterCtor().

Definition at line 411 of file DataManager.h.

Referenced by tsmOption().


The documentation for this class was generated from the following file:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines

Generated on 31 Aug 2016 for casa by  doxygen 1.6.1
