casacore::CombiParam< T > Class Template Reference

Parameters for a linear combination of function objects. More...

#include <CombiParam.h>

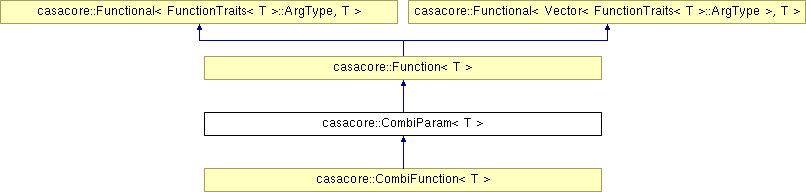

Inheritance diagram for casacore::CombiParam< T >:

Public Member Functions
	CombiParam ()
	The default constructor -- no functions, no parameters, nothing, the function operator returns a 0.
	CombiParam (const CombiParam< T > &other)
	Make this object a (deep) copy of other.
	CombiParam (const CombiParam< T > &other, Bool)
template<class W >
	CombiParam (const CombiParam< W > &other)
template<class W >
	CombiParam (const CombiParam< W > &other, Bool)
CombiParam< T > &	operator= (const CombiParam< T > &other)
	Make this object a (deep) copy of other.
virtual	~CombiParam ()
	Destructor.
virtual const String &	name () const
	Give name of function.
uInt	addFunction (const Function< T > &newFunction)
	Add a function.
uInt	nFunctions () const
	Return the total number of functions.
const Function< T > &	function (uInt which) const
	Return a reference to a specific Function in the combination.
const Function< T > &	function (uInt which)
virtual uInt	ndim () const
	Returns the dimension of functions in the linear combination.
Protected Attributes
uInt	ndim_p
	Number of dimensions of underlying functions.
PtrBlock< Function< T > * >	functionPtr_p
	Pointer to each added function.

Detailed Description

template<class T>
class casacore::CombiParam< T >

Parameters for a linear combination of function objects.

Intended use:

Internal

Review Status

Reviewed By:: UNKNOWN
Date Reviewed:: before2004/08/25
Test programs:: tCombiFunction

Prerequisite

CombiFunction class

Synopsis

Given N function objects, the class describes a linear combination of the form:

 f(x) = a(0)*f(0)(x) + a(1)*f(1)(x) + ... + a(N-1)*f(N-1)(x)

where a = {a(n)} are parameters. If the combi function is used in a functional fitting process (see LinearFit ) these parameters canm be solved for. In all aspects they behave as FunctionParam values.

Member functions are added with the addFunction() method.

Example

In the following example a second order polynomial is built from 3 separate polynomials.

 Polynomial<Double> constant(0);
 Polynomial<Double> linear(1);
 Polynomial<Double> square(2);

 constant.setCoefficient(0, 1.0);   // 1
 linear.setCoefficient(1, 1.0);     // x
 square[2] = 1.0;     // x^2

 CombiParam<Double> combination;

 // form function, e0 + e1*x + e2*x^2
 combination.addFunction(constant);
 combination.addFunction(linear);
 combination.addFunction(square);

Template Type Argument Requirements (T)

T should have standard numerical operators and exp() function. Current implementation only tested for real types.
To obtain derivatives, the derivatives should be defined.

Thrown Exceptions

AipsError if dimensions of functions added different

Motivation

This class was created to allow specialization of the evaluation in a simple way.

To Do

Nothing I know of

Definition at line 111 of file CombiParam.h.

Constructor & Destructor Documentation

template<class T>

casacore::CombiParam< T >::CombiParam ( )

The default constructor -- no functions, no parameters, nothing, the function operator returns a 0.

template<class T>

casacore::CombiParam< T >::CombiParam ( const CombiParam< T > & other )

Make this object a (deep) copy of other.

template<class T>

casacore::CombiParam< T >::CombiParam	(	const CombiParam< T > &	other,
		Bool
	)			`[inline]`

Definition at line 121 of file CombiParam.h.

template<class T>

template<class W >

casacore::CombiParam< T >::CombiParam ( const CombiParam< W > & other ) [inline]

Definition at line 129 of file CombiParam.h.

template<class T>

template<class W >

casacore::CombiParam< T >::CombiParam	(	const CombiParam< W > &	other,
		Bool
	)			`[inline]`

Definition at line 137 of file CombiParam.h.

template<class T>

virtual casacore::CombiParam< T >::~CombiParam ( ) [virtual]

Destructor.

Member Function Documentation

template<class T>

uInt casacore::CombiParam< T >::addFunction ( const Function< T > & newFunction )

Add a function.

All functions must have the same ndim() as the first one. Returns the (zero relative) number (i) of the function just added. The default initial parameter value (a(i)) is initialized to 1. The parameter mask is set True.

template<class T>

const Function<T>& casacore::CombiParam< T >::function ( uInt which ) [inline]
