casacore::ByteSinkSource Class Reference

Class for read/write access to data in a given format. More...

#include <ByteSinkSource.h>

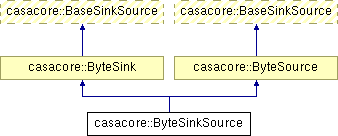

Inheritance diagram for casacore::ByteSinkSource:

Public Member Functions
	ByteSinkSource ()
	Default constructor.
	ByteSinkSource (TypeIO *typeIO, Bool takeOver=False)
	Construct from given TypeIO object.
	ByteSinkSource (const ByteSinkSource &sinkSource)
	The copy constructor uses reference semantics.
ByteSinkSource &	operator= (const ByteSinkSource &sinkSource)
	The assignment operator uses reference semantics.
	~ByteSinkSource ()

Detailed Description

Class for read/write access to data in a given format.

Intended use:

Public interface

Review Status

Reviewed By:: Friso Olnon
Date Reviewed:: 1996/11/06
Test programs:: tByteSinkSource

Prerequisite

ByteSink class
ByteSource class
TypeIO class and derived classes

Etymology

This class combines ByteSink and ByteSource.

Synopsis

ByteSinkSource provides read/write access to a typed byte stream in the Casacore IO framework. It is derived from the classes ByteSink and ByteSource, so it combines their functionality.

The object is constructed using a typed byte stream. This stream is an instance of a class derived from class TypeIO . This makes it possible to store the data in any format (e.g. CanonicalIO or RawIO).
In its turn TypeIO uses an instance of a class derived from class ByteIO . This makes it possible to use any output stream (e.g. file, memory).

Example

 main
 {
 Bool valb = True;
 RegularFileIO regularFileIO ("test.dat", ByteIO::New);
 CanonicalIO canonicalIO(&regularFileIO);
 ByteSinkSource  sinkSource(&canonicalIO);
 sinkSource << valb;     // Write a boolean
 sinkSource.seek (0);    // Reset to begin of IO stream
 sinkSource >> valb;     // Read a boolean
 cout << valb << endl;   // Print the boolean
 }

Motivation

This class makes it transparant to do IO with different devices and in different ways.

Definition at line 92 of file ByteSinkSource.h.

Constructor & Destructor Documentation

casacore::ByteSinkSource::ByteSinkSource ( )

Default constructor.

This creates an invalid object, but is present for convenience.

casacore::ByteSinkSource::ByteSinkSource	(	TypeIO *	typeIO,
		Bool	takeOver = `False`
	)

Construct from given TypeIO object.

The constructor does not copy the object, but only keeps a pointer to it. If takeOver is true the this class will delete the supplied pointer. Otherwise the caller is responsible for this.

casacore::ByteSinkSource::ByteSinkSource ( const ByteSinkSource & sinkSource )

The copy constructor uses reference semantics.

casacore::ByteSinkSource::~ByteSinkSource ( )

Member Function Documentation

ByteSinkSource& casacore::ByteSinkSource::operator= ( const ByteSinkSource & sinkSource )

The assignment operator uses reference semantics.

Reimplemented from casacore::ByteSink.

The documentation for this class was generated from the following file:

casacore/casa/IO/ByteSinkSource.h
