casacore::ArrayIterator< T > Class Template Reference

Iterate an Array cursor through another Array. More...

#include <ArrayIter.h>

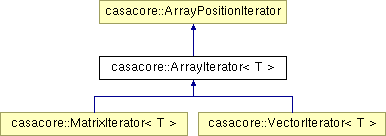

Inheritance diagram for casacore::ArrayIterator< T >:

Public Member Functions
	ArrayIterator (const Array< T > &arr, uInt byDim=1)
	Step through array "arr" over the first byDim axes (using a cursor of dimensionality "byDim").
	ArrayIterator (const Array< T > &arr, const IPosition &axes, Bool axesAreCursor=True)
	Step through an array using the given axes.
virtual	~ArrayIterator ()
virtual void	next ()
	Move the cursor to the next position.
virtual void	set (const IPosition &cursorPos)
	Set the cursor to the given position.
virtual void	reset ()
	Reset the cursor to the beginning.
Array< T > &	array ()
	Return the cursor.
virtual ArrayBase &	getArray ()
	Get the array in the cursor.
Protected Attributes
Array< T > *	ap_p
	A pointer to the cursor.
Private Member Functions
void	init (const Array< T > &)
	helper function to centralize construction work
void	apSetPointer (Int stepDim)
	helper function to set the pointer to the new data position in ap after a step in the given dimension.
	ArrayIterator (const ArrayIterator< T > &)
ArrayIterator< T > &	operator= (const ArrayIterator< T > &)
Private Attributes
Array< T >	pOriginalArray_p
IPosition	offset_p
T *	dataPtr_p

Detailed Description

template<class T>
class casacore::ArrayIterator< T >

Iterate an Array cursor through another Array.

Review Status

Reviewed By:: UNKNOWN
Date Reviewed:: before2004/08/25

ArrayIterator steps an array section (the "cursor") through an array. The cursor "refers" to storage in the array, so that changing the values in the cursor changes values in the original array. Like with ArrayPositionIterator, the cursor presently only moves through the array from bottom to top in the obvious way; however one may of course iterate through a slice ("array section"). This class is derived from ArrayPositionIterator since it also has a position (the blc of the cursor) which moves through the array volume.

Tip: The origin of the cursor, i;e; the subarray that moves through the larger array, is always zero;

 Array<Float> to, from;
 //... set to and from, check that they are conformant
 ArrayIterator toiter(to,1);
 ArrayIterator fromiter(from,1);
 while (! toiter.pastEnd() ) {
 toiter.array() = fromiter.array();  // copy vector by vector
 toiter.next(); fromiter.next();
 }

Definition at line 72 of file ArrayIter.h.

Constructor & Destructor Documentation

template<class T>

casacore::ArrayIterator< T >::ArrayIterator	(	const Array< T > &	arr,
		uInt	byDim = `1`
	)			`[explicit]`

Step through array "arr" over the first byDim axes (using a cursor of dimensionality "byDim").

template<class T>

casacore::ArrayIterator< T >::ArrayIterator	(	const Array< T > &	arr,
		const IPosition &	axes,
		Bool	axesAreCursor = `True`
	)

Step through an array using the given axes.

The axes can be given in two ways:

axesAreCursor=True means that the axes form the cursor axes. The remaining axes will form the iteration axes. This is the default.
axesAreCursor=False means the opposite. In this case the iteration axes can be given in any order.

E.g. when using iteration axes 2,0 for an array with shape [5,3,7], each iteration step returns a cursor (containing the data of axis 1). During the iteration axis 2 will vary most rapidly (as it was given first).

template<class T>

virtual casacore::ArrayIterator< T >::~ArrayIterator ( ) [virtual]

template<class T>

casacore::ArrayIterator< T >::ArrayIterator ( const ArrayIterator< T > & ) [private]

Member Function Documentation

template<class T>

void casacore::ArrayIterator< T >::apSetPointer ( Int stepDim ) [private]

helper function to set the pointer to the new data position in ap after a step in the given dimension.

-1 resets it to the beginning.

template<class T>

Array<T>& casacore::ArrayIterator< T >::array ( ) [inline]

Return the cursor.

(Perhaps we should have a fn() that returns a reference to the original array as well?)

Definition at line 118 of file ArrayIter.h.

References casacore::ArrayIterator< T >::ap_p.

template<class T>

virtual ArrayBase& casacore::ArrayIterator< T >::getArray ( ) [virtual]

Get the array in the cursor.

This is only implemented in the derived ArrayIterator class. By default it throws an exception.

Reimplemented from casacore::ArrayPositionIterator.

template<class T>

void casacore::ArrayIterator< T >::init ( const Array< T > & ) [private]

helper function to centralize construction work

template<class T>

virtual void casacore::ArrayIterator< T >::next ( ) [virtual]

Move the cursor to the next position.

Reimplemented from casacore::ArrayPositionIterator.

template<class T>

ArrayIterator<T>& casacore::ArrayIterator< T >::operator= ( const ArrayIterator< T > & ) [private]

Reimplemented in casacore::MatrixIterator< T >, and casacore::VectorIterator< T >.

template<class T>

virtual void casacore::ArrayIterator< T >::reset ( ) [virtual]

Reset the cursor to the beginning.

Reimplemented from casacore::ArrayPositionIterator.

template<class T>

virtual void casacore::ArrayIterator< T >::set ( const IPosition & cursorPos ) [virtual]

Set the cursor to the given position.

The position can only contain the iteration axes or it can be the full position.
In the first case the position must to be given in the order of the iteration axes as given in the constructor. In the latter case the position must be given in natural order (as given by function pos and only the cursor axes are taken into account.

Reimplemented from casacore::ArrayPositionIterator.
