casa::refim::CFTerms Class Reference

The base class to represent the Aperture-Term of the Measurement Equation. More...

#include <CFTerms.h>

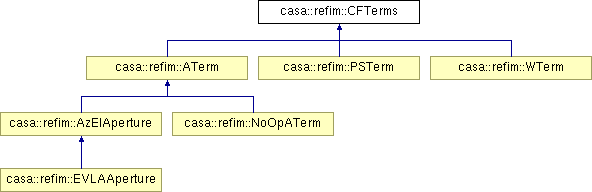

Inheritance diagram for casa::refim::CFTerms:

Public Types
enum	OpCodes { NOOP, NORMAL }
Public Member Functions
	CFTerms ()
virtual	~CFTerms ()
virtual void	setOpCode (OpCodes code)
virtual Bool	isNoOp ()
virtual String	name ()=0
virtual void	applySky (ImageInterface< Float > &outputImages, const VisBuffer2 &vb, const Bool doSquint=True, const Int &cfKey=0, const Int &muellerTerms=0, const Double freqVal=-1)=0
virtual void	applySky (ImageInterface< Complex > &outputImages, const VisBuffer2 &vb, const Bool doSquint=True, const Int &cfKey=0, const Int &muellerTerms=0, const Double freqVal=-1)=0
virtual Vector< Int >	vbRow2CFKeyMap (const VisBuffer2 &vb, Int &nUnique)=0
	Not sure if the following method is requried.
virtual Int	makePBPolnCoords (const VisBuffer2 &vb, const Int &convSize, const Int &convSampling, const CoordinateSystem &skyCoord, const Int &skyNx, const Int &skyNy, CoordinateSystem &feedCoord)=0
virtual Int	getConvSize ()=0
virtual void	setConvSize (const Int val)=0
virtual Int	getOversampling ()=0
virtual void	setOversampling (const Int val)=0
virtual Float	getConvWeightSizeFactor ()=0
virtual Float	getSupportThreshold ()=0
virtual void	normalizeImage (Lattice< Complex > &skyImage, const Matrix< Float > &weights)=0
virtual int	getVisParams (const VisBuffer2 &vb, const CoordinateSystem &skyCoord=CoordinateSystem())=0
virtual void	setPolMap (const Vector< Int > &polMap)
	The mapping from VisBuffer polarizations map to the Image plane polarization.
virtual void	getPolMap (Vector< Int > &polMap)
virtual Bool	rotationallySymmetric ()=0
Protected Member Functions
LogIO &	logIO ()
Protected Attributes
LogIO	logIO_p
Vector< Int >	polMap_p_base
OpCodes	opCode_p

Detailed Description

The base class to represent the Aperture-Term of the Measurement Equation.

Intended use:

Public interface

Etymology

A-Term to account for the effects of the antenna primary beam(s).

Synopsis

Definition at line 57 of file CFTerms.h.

Member Enumeration Documentation

enum casa::refim::CFTerms::OpCodes

Enumerator:

NOOP
NORMAL

Definition at line 60 of file CFTerms.h.

Constructor & Destructor Documentation

casa::refim::CFTerms::CFTerms ( ) [inline]

Definition at line 61 of file CFTerms.h.

virtual casa::refim::CFTerms::~CFTerms ( ) [inline, virtual]

Definition at line 62 of file CFTerms.h.

Member Function Documentation

virtual void casa::refim::CFTerms::applySky	(	ImageInterface< Complex > &	outputImages,
		const VisBuffer2 &	vb,
		const Bool	doSquint = `True`,
		const Int &	cfKey = `0`,
		const Int &	muellerTerms = `0`,
		const Double	freqVal = `-1`
	)			`[pure virtual]`

Implemented in casa::refim::ATerm, casa::refim::EVLAAperture, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual void casa::refim::CFTerms::applySky	(	ImageInterface< Float > &	outputImages,
		const VisBuffer2 &	vb,
		const Bool	doSquint = `True`,
		const Int &	cfKey = `0`,
		const Int &	muellerTerms = `0`,
		const Double	freqVal = `-1`
	)			`[pure virtual]`

Implemented in casa::refim::ATerm, casa::refim::EVLAAperture, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual Int casa::refim::CFTerms::getConvSize ( ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual Float casa::refim::CFTerms::getConvWeightSizeFactor ( ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual Int casa::refim::CFTerms::getOversampling ( ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual void casa::refim::CFTerms::getPolMap ( Vector< Int > & polMap ) [inline, virtual]

Reimplemented in casa::refim::ATerm, casa::refim::EVLAAperture, and casa::refim::NoOpATerm.

Definition at line 132 of file CFTerms.h.

References polMap_p_base.

virtual Float casa::refim::CFTerms::getSupportThreshold ( ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual int casa::refim::CFTerms::getVisParams	(	const VisBuffer2 &	vb,
		const CoordinateSystem &	skyCoord = `CoordinateSystem()`
	)			`[pure virtual]`

Implemented in casa::refim::ATerm, casa::refim::EVLAAperture, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual Bool casa::refim::CFTerms::isNoOp ( ) [inline, virtual]

Reimplemented in casa::refim::NoOpATerm.

Definition at line 65 of file CFTerms.h.

References NOOP, and opCode_p.

LogIO& casa::refim::CFTerms::logIO ( ) [inline, protected]

Reimplemented in casa::refim::ATerm.

Definition at line 137 of file CFTerms.h.

References logIO_p.

virtual Int casa::refim::CFTerms::makePBPolnCoords	(	const VisBuffer2 &	vb,
		const Int &	convSize,
		const Int &	convSampling,
		const CoordinateSystem &	skyCoord,
		const Int &	skyNx,
		const Int &	skyNy,
		CoordinateSystem &	feedCoord
	)			`[pure virtual]`

Implemented in casa::refim::ATerm, casa::refim::EVLAAperture, casa::refim::PSTerm, and casa::refim::WTerm.

virtual String casa::refim::CFTerms::name ( ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::EVLAAperture, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual void casa::refim::CFTerms::normalizeImage	(	Lattice< Complex > &	skyImage,
		const Matrix< Float > &	weights
	)			`[pure virtual]`

Implemented in casa::refim::ATerm, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual Bool casa::refim::CFTerms::rotationallySymmetric ( ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual void casa::refim::CFTerms::setConvSize ( const Int val ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual void casa::refim::CFTerms::setOpCode ( OpCodes code ) [inline, virtual]

Definition at line 64 of file CFTerms.h.

References opCode_p.

virtual void casa::refim::CFTerms::setOversampling ( const Int val ) [pure virtual]

Implemented in casa::refim::ATerm, casa::refim::PSTerm, and casa::refim::WTerm.

virtual void casa::refim::CFTerms::setPolMap ( const Vector< Int > & polMap ) [inline, virtual]

The mapping from VisBuffer polarizations map to the Image plane polarization.

The latter is determined by the user input, which is passed to the FTMachine in Imager.cc

The map is available in the FTMachine which uses this method to set the map for the CFTerms object.

Reimplemented in casa::refim::ATerm, casa::refim::NoOpATerm, casa::refim::PSTerm, and casa::refim::WTerm.

Definition at line 131 of file CFTerms.h.

References polMap_p_base.

virtual Vector<Int> casa::refim::CFTerms::vbRow2CFKeyMap	(	const VisBuffer2 &	vb,
		Int &	nUnique
	)			`[pure virtual]`

Not sure if the following method is requried.

Leaving it in the code for now with an implementation that does nothing.

virtual void applySky(Matrix<Complex>& screen, const Int wPixel, const Vector<Double>& sampling, const Int wConvSize, const Double wScale, const Int inner) {(void)screen; (void)wPixel; (void)sampling; (void)wConvSize; (void)wScale; (void)inner;};

Returns a vector of integers that map each row in the given VisBuffer to an index that is used to pick the appropriate convolution function plane. It also returns the number of unique baselines in the nUnique parameter (unique baselines are defined as the number of baselines each requiring a unique convolution function).

This is required for Heterogeneous antenna arrays (like ALMA) and for all arrays where not all antenna aperture illuminations can be treated as identical.

Implemented in casa::refim::ATerm, casa::refim::EVLAAperture, casa::refim::PSTerm, and casa::refim::WTerm.
