casa::VisJonesMBuf Class Reference

VisJonesMBuf: VisJones calibration main table buffer. More...

#include <VisJonesMBuf.h>

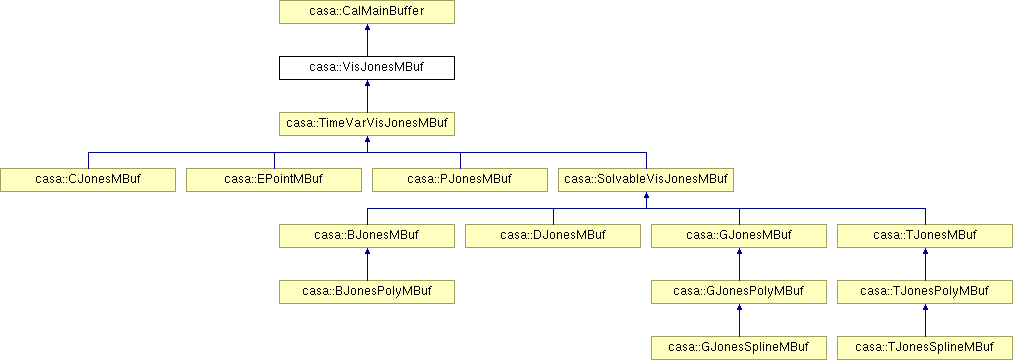

Inheritance diagram for casa::VisJonesMBuf:

Public Member Functions
	VisJonesMBuf ()
	Default constructor.
	VisJonesMBuf (const Vector< Int > &calIndices, const Block< Vector< Int > > &indexValues)
	Construct from a set of calibration buffer indices and their specified values.
	VisJonesMBuf (CalIterBase &calIter)
	Construct from a calibration table iterator.

Detailed Description

VisJonesMBuf: VisJones calibration main table buffer.

Intended use:

Public interface

Prerequisite

CalMainBuffer module

Etymology

From "visibility plane Jones matrix", "calibration main table" and "buffer"

Synopsis

The VisJonesMBuf class holds a buffer, optionally connected to a VisJones calibration main table iterator (of base type CalIterBase). Specializations for time-variable and solvable VisJones calibration table formats are provided through inheritance.

Example

Motivation

Encapsulate VisJones calibration main table data buffers.

Definition at line 72 of file VisJonesMBuf.h.

Constructor & Destructor Documentation

casa::VisJonesMBuf::VisJonesMBuf ( )

Default constructor.

No connection to an underlying calibration table iterator in this case.

casa::VisJonesMBuf::VisJonesMBuf	(	const Vector< Int > &	calIndices,
		const Block< Vector< Int > > &	indexValues
	)

Construct from a set of calibration buffer indices and their specified values.

Non-index columns will be set to default values, and there is no connection to an underlying calibration table iterator in this case.

casa::VisJonesMBuf::VisJonesMBuf ( CalIterBase & calIter )

Construct from a calibration table iterator.

The calibration buffer will remain synchronized with the iterator.

The documentation for this class was generated from the following file:

code/synthesis/CalTables/VisJonesMBuf.h
