casa::TJonesMBuf Class Reference

TJonesMBuf: TJones calibration main table buffer. More...

#include <SolvableVJMBuf.h>

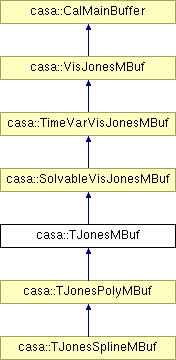

Inheritance diagram for casa::TJonesMBuf:

Public Member Functions
	TJonesMBuf ()
	Default constructor.
	TJonesMBuf (const Vector< Int > &calIndices, const Block< Vector< Int > > &indexValues)
	Construct from a set of calibration buffer indices and their specified values.
	TJonesMBuf (CalIterBase &calIter)
	Construct from a calibration table iterator.

Detailed Description

TJonesMBuf: TJones calibration main table buffer.

Intended use:

Public interface

Prerequisite

CalMainBuffer module
SolvableVisJonesMBuf module

Etymology

From "TJones matrix", "cal main table" and "buffer"

Synopsis

The TJonesMBuf class holds a buffer, optionally connected to a TJones calibration main table iterator (of base type CalIterBase). The TJones matrix contains atmospheric corrections.

Example

Motivation

Encapsulate TJones calibration main table data buffers.

Definition at line 319 of file SolvableVJMBuf.h.

Constructor & Destructor Documentation

casa::TJonesMBuf::TJonesMBuf ( )

Default constructor.

No connection to an underlying calibration table iterator in this case.

casa::TJonesMBuf::TJonesMBuf	(	const Vector< Int > &	calIndices,
		const Block< Vector< Int > > &	indexValues
	)

Construct from a set of calibration buffer indices and their specified values.

Non-index columns will be set to default values, and there is no connection to an underlying calibration table iterator in this case.

casa::TJonesMBuf::TJonesMBuf ( CalIterBase & calIter )

Construct from a calibration table iterator.

The calibration buffer will remain synchronized with the iterator.

The documentation for this class was generated from the following file:

code/synthesis/CalTables/SolvableVJMBuf.h
