casa::SpectralElement Class Reference

Describes (a set of related) spectral lines. More...

#include <SpectralElement.h>

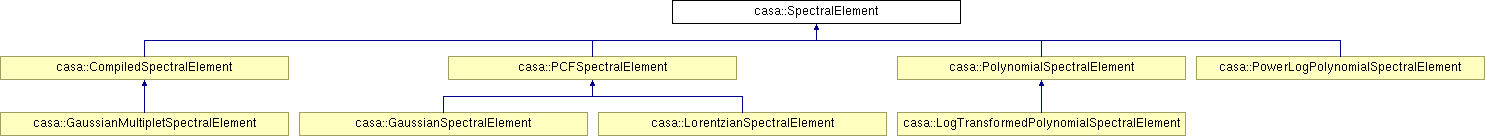

Inheritance diagram for casa::SpectralElement:

Public Types
enum	Types { GAUSSIAN, POLYNOMIAL, COMPILED, GMULTIPLET, LORENTZIAN, POWERLOGPOLY, LOGTRANSPOLY, N_Types }
	Supported spectral components. More...
Public Member Functions
virtual	~SpectralElement ()
virtual SpectralElement *	clone () const =0
virtual Double	operator() (const Double x) const
	Evaluate the value of the element at x.
Bool	operator== (const SpectralElement &other) const
virtual Double	operator[] (const uInt n) const
	Get parameter n.
SpectralElement::Types	getType () const
	Get type of this element.
void	get (Vector< Double > &params) const
	Get all parameters.
Vector< Double >	get () const
void	getError (Vector< Double > &err) const
	Get error estimates of parameters.
Vector< Double >	getError () const
uInt	getOrder () const
	Get the order (i.e.
virtual void	setError (const Vector< Double > &err)
	Set the error fields.
virtual void	fix (const Vector< Bool > &fix)
	Set fixed parameters (True) or unset them (False).
const Vector< Bool > &	fixed () const
	Get the fix state[s].
virtual Bool	toRecord (RecordInterface &out) const
	Save to a record.
virtual void	set (const Vector< Double > &params)
	set parameters
Static Public Member Functions
static const String *	allTypes (Int &nall, const SpectralElement::Types *&typ)
	Get all the types available as String and codes, and number available.
static const String &	fromType (SpectralElement::Types tp)
	Get a string from the type.
static Bool	toType (SpectralElement::Types &tp, const String &typName)
	Get a type from a (non-case sensitive; minimum match) String.
Protected Member Functions
	SpectralElement ()
	SpectralElement (Types type, const Vector< Double > &parms=Vector< Double >(0))
	SpectralElement (const SpectralElement &other)
SpectralElement &	operator= (const SpectralElement &other)
void	_set (const Vector< Double > &params)
void	_setType (const Types type)
void	_setFunction (const SHARED_PTR< Function< Double, Double > > &f)
virtual SHARED_PTR< Function < Double, Double > >	_getFunction () const
Private Attributes
Types	_type
	type of element
Vector< Double >	_params
	The parameters of the function.
Vector< Double >	_errors
	The errors of the parameters.
Vector< Bool >	_fixed
	The indication if the parameter has to be fixed (True) or solved (False).
SHARED_PTR< Function< Double, Double > >	_function

Detailed Description

Describes (a set of related) spectral lines.

Intended use:

Public interface

Review Status

Date Reviewed:: yyyy/mm/dd
Test programs:: tSpectralFit

Prerequisite

Functionals module

Etymology

From spectral line and element

Synopsis

The SpectralElement class is the abstract base class for classes describing spectral components (Gaussian, Polynonomial, etc).

The element can be used in the SpectralFit class and in the SpectralEstimate class.

Example

Motivation

To have a container for fitting of spectral profiles to an observed spectrum

To Do

add more profile types

Definition at line 78 of file SpectralElement.h.

Member Enumeration Documentation

enum casa::SpectralElement::Types

Supported spectral components.

Enumerator:

GAUSSIAN	A gaussian profile.
POLYNOMIAL	A polynomial baseline.
COMPILED	Any compiled string functional.
GMULTIPLET	Gaussian multiplet.
LORENTZIAN	Lorentzian.
POWERLOGPOLY	power log polynomial
LOGTRANSPOLY	log transformed polynomial
N_Types

Definition at line 83 of file SpectralElement.h.

Constructor & Destructor Documentation

virtual casa::SpectralElement::~SpectralElement ( ) [virtual]

casa::SpectralElement::SpectralElement ( ) [inline, protected]

Definition at line 162 of file SpectralElement.h.

casa::SpectralElement::SpectralElement	(	Types	type,
		const Vector< Double > &	parms = `Vector< Double >(0)`
	)			`[protected]`

casa::SpectralElement::SpectralElement ( const SpectralElement & other ) [protected]

Member Function Documentation

virtual SHARED_PTR<Function<Double, Double> > casa::SpectralElement::_getFunction ( ) const [inline, protected, virtual]

Definition at line 176 of file SpectralElement.h.

References _function.

void casa::SpectralElement::_set ( const Vector< Double > & params ) [protected]

Reimplemented in casa::GaussianSpectralElement.

void casa::SpectralElement::_setFunction ( const SHARED_PTR< Function< Double, Double > > & f ) [protected]

void casa::SpectralElement::_setType ( const Types type ) [protected]

static const String* casa::SpectralElement::allTypes	(	Int &	nall,
		const SpectralElement::Types *&	typ
	)			`[static]`

Get all the types available as String and codes, and number available.

virtual SpectralElement* casa::SpectralElement::clone ( ) const [pure virtual]

Implemented in casa::CompiledSpectralElement, casa::GaussianMultipletSpectralElement, casa::GaussianSpectralElement, casa::LogTransformedPolynomialSpectralElement, casa::LorentzianSpectralElement, casa::PolynomialSpectralElement, and casa::PowerLogPolynomialSpectralElement.

virtual void casa::SpectralElement::fix ( const Vector< Bool > & fix ) [virtual]

Set fixed parameters (True) or unset them (False).

Thrown Exceptions

AipsError if incorrect number of parameters (e.g. not 3 for GAUSSIAN)

Fix/unfix all in one go

Reimplemented in casa::GaussianMultipletSpectralElement.

Referenced by casa::PCFSpectralElement::fixFWHM().

const Vector<Bool>& casa::SpectralElement::fixed ( ) const

Get the fix state[s].

static const String& casa::SpectralElement::fromType ( SpectralElement::Types tp ) [static]

Get a string from the type.

Vector<Double> casa::SpectralElement::get ( ) const

void casa::SpectralElement::get ( Vector< Double > & params ) const

Get all parameters.

Vector<Double> casa::SpectralElement::getError ( ) const

void casa::SpectralElement::getError ( Vector< Double > & err ) const

Get error estimates of parameters.

uInt casa::SpectralElement::getOrder ( ) const [inline]

Get the order (i.e.

the number of parameters)

Definition at line 138 of file SpectralElement.h.

References _params.

SpectralElement::Types casa::SpectralElement::getType ( ) const [inline]

Get type of this element.

Definition at line 126 of file SpectralElement.h.

References _type.

virtual Double casa::SpectralElement::operator() ( const Double x ) const [virtual]

Evaluate the value of the element at x.

Reimplemented in casa::CompiledSpectralElement.

SpectralElement& casa::SpectralElement::operator= ( const SpectralElement & other ) [protected]

Reimplemented in casa::CompiledSpectralElement, casa::GaussianMultipletSpectralElement, casa::LogTransformedPolynomialSpectralElement, casa::LorentzianSpectralElement, and casa::PowerLogPolynomialSpectralElement.

Bool casa::SpectralElement::operator== ( const SpectralElement & other ) const

Reimplemented in casa::GaussianMultipletSpectralElement.

virtual Double casa::SpectralElement::operator[] ( const uInt n ) const [virtual]

Get parameter n.

Thrown Exceptions

AipsError if illegal n

virtual void casa::SpectralElement::set ( const Vector< Double > & params ) [virtual]

set parameters

Reimplemented in casa::GaussianMultipletSpectralElement, casa::GaussianSpectralElement, and casa::PCFSpectralElement.

virtual void casa::SpectralElement::setError ( const Vector< Double > & err ) [virtual]

Set the error fields.

Reimplemented in casa::GaussianMultipletSpectralElement.

virtual Bool casa::SpectralElement::toRecord ( RecordInterface & out ) const [virtual]

Save to a record.

Reimplemented in casa::GaussianMultipletSpectralElement, and casa::GaussianSpectralElement.

static Bool casa::SpectralElement::toType	(	SpectralElement::Types &	tp,
		const String &	typName
	)			`[static]`

Get a type from a (non-case sensitive; minimum match) String.

Member Data Documentation

Vector<Double> casa::SpectralElement::_errors [private]

The errors of the parameters.

Definition at line 189 of file SpectralElement.h.

Vector<Bool> casa::SpectralElement::_fixed [private]

The indication if the parameter has to be fixed (True) or solved (False).

Solved is the default.

Definition at line 192 of file SpectralElement.h.

SHARED_PTR<Function<Double, Double> > casa::SpectralElement::_function [private]

Definition at line 194 of file SpectralElement.h.

Referenced by _getFunction().

Vector<Double> casa::SpectralElement::_params [private]

The parameters of the function.

I.e. the polynomial coefficients; amplitude, center and sigma of a Gaussian.

Definition at line 187 of file SpectralElement.h.

Referenced by getOrder().

Types casa::SpectralElement::_type [private]

type of element

Definition at line 183 of file SpectralElement.h.

Referenced by getType().

The documentation for this class was generated from the following file:

code/components/SpectralComponents/SpectralElement.h
