casa::RFDataMapper Class Reference

RFDataMapper: maps complex visibilities to a single real value. More...

#include <RFDataMapper.h>

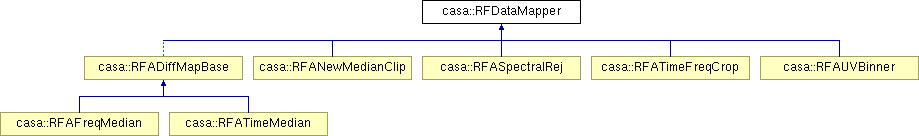

Inheritance diagram for casa::RFDataMapper:

List of all members.

Public Types
enum	MapperType {   MAPROW,   MAPCORR }
	type of data mapper: row or individual correlations More...
typedef Cube< Complex > *(*	CubeMapperFunc )(VisBuffer &)
	a cube mapper function maps a visbuffer to a data cube.
Public Member Functions
	RFDataMapper (const String &col, DDMapper *map)
	construct from a column and a DDMapper
	RFDataMapper (const Vector< String > &expr, const String &defcol="")
	construct from a column and an expression
	~RFDataMapper ()
	destructor
MapperType	type ()
	returns type of mapper
Double	getValueCycle ()
	If the value being mapped into is cyclic (i.e.
Double	getValueBase ()
	Returns base of a cyclic value (e.g.
Float	mapValue (uInt ich, uInt irow)
	gets a value from the DDMapper
Float	mapValue (uInt irow)
	gets a value from the row mapper
RFlagWord	corrMask (const VisibilityIterator &vi)
	uses mapper to compute a correlations mask
void	setVisBuffer (VisBuffer &vb)
	point the datamapper at a visbuffer - called for every new buffer
String	description () const
	returns description
String	descExpression () const
	returns description of expression
Protected Member Functions
Float	dummyRowMapper (uInt)
	various row mappers
Float	U_RowMapper (uInt)
Float	V_RowMapper (uInt)
Float	W_RowMapper (uInt)
Float	AbsU_RowMapper (uInt)
Float	AbsV_RowMapper (uInt)
Float	AbsW_RowMapper (uInt)
Float	UVD_RowMapper (uInt)
Float	UVA_RowMapper (uInt)
Float	HA_RowMapper (uInt)
Static Protected Member Functions
static CubeMapperFunc	getCubeMapper (const String &col, Bool throw_excp=False)
	static helper function to interpret constructor parameters into a cube mapper
Protected Attributes
String	expr_desc
String	desc
DDMapper *	ddm
RowMapperFunc	rowmapper
Cube< Complex > *	pviscube
Vector< RigidVector< Double, 3 > > *	puvw
CubeMapperFunc	cubemap
MapperType	mytype
Double	full_cycle
Double	cycle_base
Double	sin_dec
	required by the HA mapper - sin(declination) of phase center;

---

Detailed Description

RFDataMapper: maps complex visibilities to a single real value.

Intended use:

Internal

Prerequisite

• DDMapper

Synopsis

RFDataMapper provides a mechanism to derive a single real value from a set of complex visibilities in a specific column, using a user-specified expression (i.e. ABS(XX), ABS(XX)-ABS(YY), etc.) This is used by many flagging agents.

Motivation

To provide a common mechanism for all flagging agents

To Do

• add this feature
• fix this bug
• start discussion of this possible extension

Definition at line 73 of file RFDataMapper.h.

---

Member Typedef Documentation

typedef Cube<Complex>*(* casa::RFDataMapper::CubeMapperFunc)(VisBuffer &)

a cube mapper function maps a visbuffer to a data cube.

This belongs in private or protected, but the SGI compiler wouldn't hear of it

Definition at line 114 of file RFDataMapper.h.

---

Member Enumeration Documentation

enum casa::RFDataMapper::MapperType

type of data mapper: row or individual correlations

Enumerator:

MAPROW
MAPCORR

Definition at line 77 of file RFDataMapper.h.

---

Constructor & Destructor Documentation

casa::RFDataMapper::RFDataMapper	(	const String &	col,
		DDMapper *	map
	)

construct from a column and a DDMapper

casa::RFDataMapper::RFDataMapper	(	const Vector< String > &	expr,
		const String &	defcol = ""
	)

construct from a column and an expression

casa::RFDataMapper::~RFDataMapper

(

)

destructor

---

Member Function Documentation

Float casa::RFDataMapper::AbsU_RowMapper

(

uInt

)

[protected]

Float casa::RFDataMapper::AbsV_RowMapper

(

uInt

)

[protected]

Float casa::RFDataMapper::AbsW_RowMapper

(

uInt

)

[protected]

RFlagWord casa::RFDataMapper::corrMask

(

const VisibilityIterator &

vi

)

uses mapper to compute a correlations mask

String casa::RFDataMapper::descExpression

(

)

const [inline]

returns description of expression

Definition at line 162 of file RFDataMapper.h.

References expr_desc.

String casa::RFDataMapper::description

(

)

const [inline]

returns description

Definition at line 160 of file RFDataMapper.h.

References desc.

Float casa::RFDataMapper::dummyRowMapper

(

uInt

)

[protected]

various row mappers

static CubeMapperFunc casa::RFDataMapper::getCubeMapper	(	const String &	col,
		Bool	throw_excp = False
	)			[static, protected]

static helper function to interpret constructor parameters into a cube mapper

Double casa::RFDataMapper::getValueBase

(

)

[inline]

Returns base of a cyclic value (e.g.

-180, if value is an angle -180..180) If value is non-cyclic, the result is undefined.

Definition at line 167 of file RFDataMapper.h.

References cycle_base.

Double casa::RFDataMapper::getValueCycle

(

)

[inline]

If the value being mapped into is cyclic (i.e.

an angle), returns value of full cycle (e.g. 360); otherwise returns 0.

Definition at line 165 of file RFDataMapper.h.

References full_cycle.

Float casa::RFDataMapper::HA_RowMapper

(

uInt

)

[protected]

Float casa::RFDataMapper::mapValue

(

uInt

irow

)

[inline]

gets a value from the row mapper

Definition at line 157 of file RFDataMapper.h.

References rowmapper.

Float casa::RFDataMapper::mapValue	(	uInt	ich,
		uInt	irow
	)			[inline]

gets a value from the DDMapper

Definition at line 149 of file RFDataMapper.h.

References ddm, casa::DDMapper::map(), and pviscube.

void casa::RFDataMapper::setVisBuffer

(

VisBuffer &

vb

)

point the datamapper at a visbuffer - called for every new buffer

Referenced by casa::RFADiffMapBase::setupMapper().

RFDataMapper::MapperType casa::RFDataMapper::type

(

)

[inline]

returns type of mapper

Definition at line 146 of file RFDataMapper.h.

References mytype.

Float casa::RFDataMapper::U_RowMapper

(

uInt

)

[protected]

Float casa::RFDataMapper::UVA_RowMapper

(

uInt

)

[protected]

Float casa::RFDataMapper::UVD_RowMapper

(

uInt

)

[protected]

Float casa::RFDataMapper::V_RowMapper

(

uInt

)

[protected]

Float casa::RFDataMapper::W_RowMapper

(

uInt

)

[protected]

---

Member Data Documentation

CubeMapperFunc casa::RFDataMapper::cubemap [protected]

Definition at line 126 of file RFDataMapper.h.

Double casa::RFDataMapper::cycle_base [protected]

Definition at line 128 of file RFDataMapper.h.

Referenced by getValueBase().

DDMapper* casa::RFDataMapper::ddm [protected]

Definition at line 122 of file RFDataMapper.h.

Referenced by mapValue().

String casa::RFDataMapper::desc [protected]

Definition at line 121 of file RFDataMapper.h.

Referenced by description().

String casa::RFDataMapper::expr_desc [protected]

Definition at line 121 of file RFDataMapper.h.

Referenced by descExpression().

Double casa::RFDataMapper::full_cycle [protected]

Definition at line 128 of file RFDataMapper.h.

Referenced by getValueCycle().

MapperType casa::RFDataMapper::mytype [protected]

Definition at line 127 of file RFDataMapper.h.

Referenced by type().

Vector<RigidVector<Double,3> >* casa::RFDataMapper::puvw [protected]

Reimplemented in casa::RFAUVBinner.

Definition at line 125 of file RFDataMapper.h.

Cube<Complex>* casa::RFDataMapper::pviscube [protected]

Definition at line 124 of file RFDataMapper.h.

Referenced by mapValue().

RowMapperFunc casa::RFDataMapper::rowmapper [protected]

Definition at line 123 of file RFDataMapper.h.

Referenced by mapValue().

Double casa::RFDataMapper::sin_dec [protected]

required by the HA mapper - sin(declination) of phase center;

Definition at line 143 of file RFDataMapper.h.

---

The documentation for this class was generated from the following file:

• code/flagging/Flagging/RFDataMapper.h
