casa::LatticePADisplayMethod< T > Class Template Reference

Partial implementation of PrincipalAxesDM for Lattice-based data. More...

#include <LatticePADM.h>

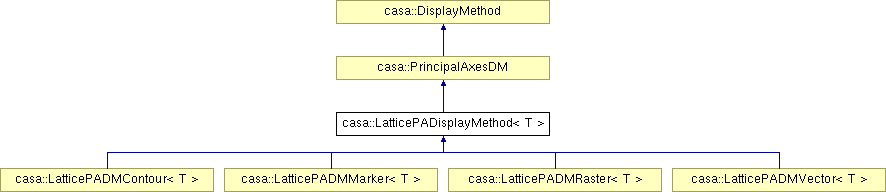

Inheritance diagram for casa::LatticePADisplayMethod< T >:

List of all members.

Public Member Functions
	LatticePADisplayMethod ()
	Constructor do I need the default constructor?
	LatticePADisplayMethod (const uInt xAxis, const uInt yAxis, const uInt mAxis, const IPosition fixedPos, LatticePADisplayData< T > *arDat)
	LatticePADisplayMethod (const uInt xAxis, const uInt yAxis, LatticePADisplayData< T > *arDat)
	2d version
virtual	~LatticePADisplayMethod ()
	Destructor.
virtual Bool	dataGetSlice (Matrix< T > &datMatrix, Matrix< Bool > &mask, const IPosition &start, const IPosition &sliceShape, const IPosition &stride)
	Extract data from the lattice: used by draw() in PrincipalAxesDM this is probably not needed in this class.
Protected Member Functions
virtual IPosition	dataShape ()
	Query the shape of the lattice: used by draw() in PrincipalAxesDM.
virtual Bool	dataGetSlice (Matrix< T > &datMatrix, Matrix< Bool > &mask, const IPosition &start, const IPosition &sliceShape, const IPosition &stride, MaskedLattice< T > &latt)

---

Detailed Description

template<class T>
class casa::LatticePADisplayMethod< T >

Partial implementation of PrincipalAxesDM for Lattice-based data.

Synopsis

This class is a partial (ie. base) implementation of PrincipalAxesDM which adds methods particular to handling Lattice-based data.

Definition at line 54 of file LatticePADM.h.

---

Constructor & Destructor Documentation

template<class T >

casa::LatticePADisplayMethod< T >::LatticePADisplayMethod

(

)

Constructor do I need the default constructor?

template<class T >

casa::LatticePADisplayMethod< T >::LatticePADisplayMethod	(	const uInt	xAxis,
		const uInt	yAxis,
		const uInt	mAxis,
		const IPosition	fixedPos,
		LatticePADisplayData< T > *	arDat
	)

template<class T >

casa::LatticePADisplayMethod< T >::LatticePADisplayMethod	(	const uInt	xAxis,
		const uInt	yAxis,
		LatticePADisplayData< T > *	arDat
	)

2d version

template<class T >

virtual casa::LatticePADisplayMethod< T >::~LatticePADisplayMethod

(

)

[virtual]

Destructor.

---

Member Function Documentation

template<class T >

virtual Bool casa::LatticePADisplayMethod< T >::dataGetSlice	(	Matrix< T > &	datMatrix,
		Matrix< Bool > &	mask,
		const IPosition &	start,
		const IPosition &	sliceShape,
		const IPosition &	stride,
		MaskedLattice< T > &	latt
	)			[protected, virtual]

template<class T >

virtual Bool casa::LatticePADisplayMethod< T >::dataGetSlice	(	Matrix< T > &	datMatrix,
		Matrix< Bool > &	mask,
		const IPosition &	start,
		const IPosition &	sliceShape,
		const IPosition &	stride
	)			[virtual]

Extract data from the lattice: used by draw() in PrincipalAxesDM this is probably not needed in this class.

.\.

template<class T >

virtual IPosition casa::LatticePADisplayMethod< T >::dataShape

(

)

[protected, virtual]

Query the shape of the lattice: used by draw() in PrincipalAxesDM.

Implements casa::PrincipalAxesDM.

---

The documentation for this class was generated from the following file:

• code/display/DisplayDatas/LatticePADM.h
