casa::FlagAgentBase Class Reference

A top level class defining the interface for flagging agents. More...

#include <FlagAgentBase.h>

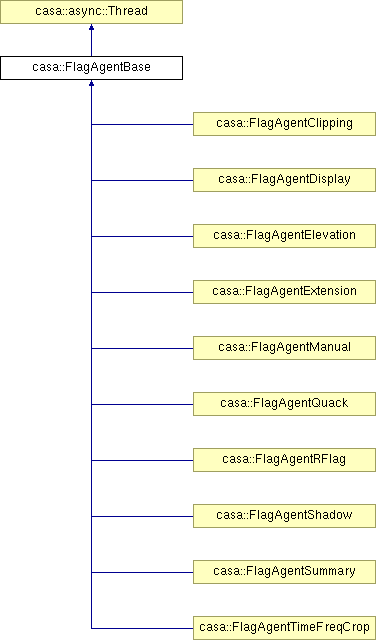

Inheritance diagram for casa::FlagAgentBase:

Public Types
enum	datacolumn { DATA, CORRECTED, MODEL, RESIDUAL, RESIDUAL_DATA, FPARAM, CPARAM, PARAMERR, SNR, WEIGHT_SPECTRUM, FLOAT_DATA }
enum	iteration { ROWS, ROWS_PREPROCESS_BUFFER, IN_ROWS, IN_ROWS_PREPROCESS_BUFFER, ANTENNA_PAIRS, ANTENNA_PAIRS_FLAGS, ANTENNA_PAIRS_INTERACTIVE, ANTENNA_PAIRS_PREPROCESS_BUFFER }
Public Member Functions
	FlagAgentBase (FlagDataHandler *dh, Record config, uShort iterationApproach, Bool writePrivateFlagCube=false, Bool flag=true)
virtual	~FlagAgentBase ()
void	start ()
void	terminate ()
void	queueProcess ()
void	chunkSummary ()
void	tableSummary ()
void	completeProcess ()
void *	run ()
void	setProfiling (bool enable)
	Set function to activate profiling.
void	setCheckMode (bool enable)
	Set function to activate check mode.
virtual FlagReport	getReport ()
	Get a report Record from the agent, at the end of the run The report returned by getReport() can be of multiple types -- a single report of type "none" : FlagReport("none",agentName_p) -- a single report of type "plot" : FlagReport("plot",agentName_p) -- a list of reports : FlagReport repList("list"); repList.addReport( FlagReport("plot",agentName_p) ); repList.addReport( FlagReport("plot",agentName_p) );.
Static Public Member Functions
static FlagAgentBase *	create (FlagDataHandler *dh, Record config)
Public Attributes
Bool	backgroundMode_p
	Externally visible configuration.
LogIO::Command	logLevel_p
Bool	apply_p
Bool	flag_p
Protected Member Functions
void	initialize ()
void	runCore ()
	Convenience function to be shared by parallel/non-parallel mode.
void	setDataSelection (Record config)
virtual void	setAgentParameters (Record config)
	TODO: This class must be re-implemented in the derived classes.
String	sanitizeCorrExpression (String corrExpression, std::vector< String > *corrProducts)
	Method to sanitize correlation expression and keep going.
void	generateAllIndex ()
void	generateRowsIndex (uInt nRows)
void	generateChannelIndex (uInt nChannels)
void	generatePolarizationIndex (uInt nPolarizations)
std::vector< uInt > *	generateAntennaPairRowsIndex (Int antenna1, Int antenna2)
void	indigen (vector< uInt > &index, uInt size)
	Generate index for all rows.
bool	find (Vector< Int > &validRange, Int element)
	For checking ids.
bool	find (Matrix< Double > &validRange, Double element)
	For checking ranges.
bool	find (Matrix< Int > &validPairs, Int element1, Int element2)
	For checking pairs.
bool	find (Block< int > &columns, int col)
	For checking columns.
bool	isNaN (Double number)
	Check if a given number is nan (for visibilities,gains and Tsys primarily).
bool	isNaN (Float number)
bool	isZero (Double number)
bool	isZero (Float number)
bool	isNaNOrZero (Float number)
bool	isNaNOrZero (Double number)
bool	checkIfProcessBuffer ()
	Check if buffer has to be processed.
virtual void	preProcessBuffer (const vi::VisBuffer2 &visBuffer)
	Common functionality for each visBuffer (don't repeat at the row level).
void	iterateRows ()
	Iterate trough list of rows.
void	iterateInRows ()
	Iterate trough visibilities mapper.
void	iterateAntennaPairs ()
	Iterate trough list of antenna pairs.
void	iterateAntennaPairsFlags ()
	Iterate trough list of antenna pairs w/o loading visibilities.
void	processAntennaPair (Int antenna1, Int antenna2)
	Methods to interactively iterate trough list of antenna pairs.
virtual void	iterateAntennaPairsInteractive (antennaPairMap *antennaPairMap_ptr)
virtual void	passIntermediate (const vi::VisBuffer2 &visBuffer)
	Iter-passes method.
virtual void	passFinal (const vi::VisBuffer2 &visBuffer)
void	setVisibilitiesMap (std::vector< uInt > rows, VisMapper visMap)
	Mapping functions as requested by Urvashi.
void	setFlagsMap (std::vector< uInt > rows, FlagMapper flagMap)
Bool	checkVisExpression (polarizationMap *polMap)
virtual bool	computeRowFlags (const vi::VisBuffer2 &visBuffer, FlagMapper &flags, uInt row)
	Compute flags for a given visibilities point.
virtual bool	computeInRowFlags (const vi::VisBuffer2 &visBuffer, VisMapper &visibilities, FlagMapper &flags, uInt row)
	Compute flags for a given visibilities point.
virtual bool	computeAntennaPairFlags (const vi::VisBuffer2 &visBuffer, VisMapper &visibilities, FlagMapper &flags, Int antenna1, Int antenna2, vector< uInt > &rows)
	Compute flags for a given (time,freq) antenna pair map.
virtual bool	computeAntennaPairFlags (const vi::VisBuffer2 &visBuffer, FlagMapper &flags, Int antenna1, Int antenna2, vector< uInt > &rows)
	Compute flags for a given (time,freq) antenna pair map w/o using visibilities.
Protected Attributes
FlagDataHandler *	flagDataHandler_p
	Common used members that must be accessible to derived classes.
casa::LogIO *	logger_p
String	agentName_p
String	summaryName_p
String	mode_p
uInt64	chunkFlags_p
	Flag counters.
uInt64	chunkNaNs_p
uInt64	tableFlags_p
uInt64	tableNaNs_p
uInt64	visBufferFlags_p
bool	flagRow_p
Bool	multiThreading_p
	Multithreading configuration and agent id.
Int	nThreads_p
Int	threadId_p
Bool	prepass_p
	Running configuration.
vector< uInt >	rowsIndex_p
	Lists of elements to process jagonzal (CAS-4312): We need channelIndex_p available for the Rflag agent, in order to take into account channel selection for the frequency mapping.
vector< uInt >	channelIndex_p
vector< uInt >	polarizationIndex_p
String	dataColumn_p
	Needed to be protected for timeavg in clip.
Bool	timeavg_p
	Pre-averaging parameters.
Double	timebin_p
Bool	channelavg_p
Vector< Int >	chanbin_p
Private Attributes
vi::VisBuffer2 *	visibilityBuffer_p
Cube< Bool > *	commonFlagCube_p
	MS-related objects.
Cube< Bool > *	originalFlagCube_p
Cube< Bool > *	privateFlagCube_p
Vector< Bool > *	commonFlagRow_p
Vector< Bool > *	originalFlagRow_p
Vector< Bool > *	privateFlagRow_p
casa::String	arraySelection_p
	Own data selection ranges.
casa::String	fieldSelection_p
casa::String	scanSelection_p
casa::String	timeSelection_p
casa::String	spwSelection_p
casa::String	channelSelection_p
casa::String	baselineSelection_p
casa::String	uvwSelection_p
casa::String	polarizationSelection_p
casa::String	observationSelection_p
casa::String	scanIntentSelection_p
bool	filterRows_p
bool	filterPols_p
bool	filterChannels_p
bool	flagAutoCorrelations_p
Bool	antennaNegation_p
Vector< Int >	arrayList_p
	Own data selection indexes.
Vector< Int >	fieldList_p
Vector< Int >	scanList_p
Matrix< Double >	timeList_p
Vector< Int >	spwList_p
Matrix< Int >	channelList_p
Vector< Int >	antenna1List_p
Vector< Int >	antenna2List_p
Matrix< Int >	baselineList_p
Matrix< Double >	uvwList_p
Bool	uvwUnits_p
OrderedMap< Int, Vector< Int > >	polarizationList_p
Vector< Int >	observationList_p
Vector< Int >	scanIntentList_p
volatile Bool	terminationRequested_p
	Thread state parameters.
volatile Bool	threadTerminated_p
volatile Bool	processing_p
String	expression_p
	Data source configuration.
uShort	dataReference_p
Bool	profiling_p
	Debugging configuration.
Bool	checkFlags_p
uShort	iterationApproach_p
	Running mode configuration.
Bool	writePrivateFlagCube_p
	Flagging mode configuration.

Detailed Description

A top level class defining the interface for flagging agents.

Intended use:

Public interface

Prerequisite

Etymology

FlagAgentBase stands for a generic class, specific to the flagging operations

Synopsis

This is a top-level class defining the interface for flagging agents. There are various methods (virtual) that must be re-implemented by the specific derived classes, depending on the implemented algorithm. Here we find three categories:

Iteration approach methods:

computeRowFlags(const VisBuffer &visBuffer, FlagMapper &flags, uInt row)
For agents that only depend on meta-data for their flagging operations (for FlagAgentManual,FlagAgentElevation,FlagAgentShadow,FlagAgentQuack)
This iteration method can also be used by agents that have to inspect the already existing flags (for FlagAgentSummary, FlagAgentExtension)

computeInRowFlags(const VisBuffer &visBuffer, VisMapper &visibilities,FlagMapper &flags, uInt row);
For agents that have to look into the visibility points, but regardless of their source baseline, like FlagAgentDisplay

computeAntennaPairFlags(const VisBuffer &visBuffer,FlagMapper &flags,Int antenna1,Int antenna2,vector<uInt> &rows);
For agents that have to look into the visibility points grouped by baseline (FlagAgentTimeFreqCrop,FlagAgentRFlag)

computeAntennaPairFlags(const VisBuffer &visBuffer, VisMapper &visibilities,FlagMapper &flags,Int antenna1,Int antenna2,vector<uInt> &rows)
For agents that have to look into the visibility points grouped by baseline, allowing user-driven navigation (FlagAgentDisplay)
NOTE: This method has to be used in combination with iterateAntennaPairsInteractive(antennaPairMap *antennaPairMap_ptr)

Configuration methods:

FlagAgentBase::FlagAgentBase
Even though each derived agent has its specific constructor, it is necessary to call the base class constructor to set:
The FlagDataHandler implementation pointer
The iteration approach: For this the FlagAgentBase class contains an enumeration FlagAgentBase::iteration with the following modes:
FlagAgentBase::ROWS: Iterate row by row and flag depending on the corresponding meta-data (for FlagAgentManual,FlagAgentQuack)
FlagAgentBase::ROWS_PREPROCESS_BUFFER: Iterate row by row doing a pre-processing common to all the rows of each chunk (for FlagAgentElevation, FlagAgentShadow, FlagAgentSummary)
FlagAgentBase::IN_ROWS: Iterate row by row and flag depending on the data column (for FlagAgentClipping)
FlagAgentBase::ANTENNA_PAIRS: Iterate per baselines and flag depending on the data column (for FlagAgentTimeFreqCrop, FlagAgentRFlag)
FlagAgentBase::ANTENNA_PAIRS_FLAGS: Iterate per baselines accessing the individual flag points (for FlagAgentExtension)
FlagAgentBase::ANTENNA_PAIRS_INTERACTIVE: Iterate per baselines interactively accessing the data column (for FlagAgentDisplay)

setAgentParameters(Record config)
To parse the agent-specific parameters, although there is also an implementation of this method in the base class which has to be called to handle the following parameters:
datacolumn: To specify the column in which the agent has to operate (see FlagAgentBase::datacolumn enumeration)
correlation: To specify the correlation to be inspected for flagging (this also includes visibility expressions)
meta-data selection parameters (field, spw, scan, baseline, etc): To feed the agent-level data selection engine (row filtering)

Information methods

FlagReport getReport()
To return a specific report to be shown by the display agent, or containing accumulated information (e.g.: summaries, rflag tresholds)

Additionally there are public non-virtual methods to:

Handle processing in 'background' mode (for parallel flagging)
start(): Start service (start thread run method)
terminate(): Terminate service (forcing run method to finish)
queueProcess(): To signal flagging of the current VisBuffer
completeProcess(): Wait until completion of flagging process for the current VisBuffer

Print out percentage of flags produced by chunk or in total
chunkSummary(): Accumulates statistics for each chunk
tableSummary(): Accumulates statistics across the entire table selection

Motivation

The motivation for the FlagAgentBase class is having all the iteration and filtering capabilities grouped in one single class, with a common interface for all the agents w/o introducing anything specific to the implementation of each algorithm, thus improving modularization and maintainability.

Example

The top level interface of a flagging agent is quite simple once it is configured, this is due to the fact that most of the complexity lies in the FlagDataHandler-FlagAgentBase interaction, which is hidden from the application layer (already explained in the FlagDataHandler documentation).

 // Create FlagDataHandler
 FlagDataHandler *dh = new FlagMSHandler(inputFile,iterationMode);

 // First of all define a configuration record (e.g.: quack)
 Record agentConfig;
 agentConfig.define("mode","quack");
 agentConfig.define("quackinterval",(Double)20);

 // Use the factory method to create the agent, and put it into a FlagAgentList
 FlagAgentList agentList;
 FlagAgentBase *agent = FlagAgentBase::create(dh,agentConfig);
 agentList.push_back(agent);

 // Iterate over chunks
 while (dh->nextChunk())
 {
 // Iterates over buffers
 while (dh->nextBuffer())
 {
 // Apply agents on current VisBuffer
 agentList.apply();

 // Flush flags (only effective if there is a write access to the flag cube)
 dh->flushFlags();
 }

 // Print chunk stats from each agent
 agentList.chunkSummary();
 }

 // Print total stats from each agent
 agentList.tableSummary();

 // Stop flag agent
 agentList.terminate();

Definition at line 168 of file FlagAgentBase.h.

Member Enumeration Documentation

enum casa::FlagAgentBase::datacolumn

Enumerator:

DATA
CORRECTED
MODEL
RESIDUAL
RESIDUAL_DATA
FPARAM
CPARAM
PARAMERR
SNR
WEIGHT_SPECTRUM
FLOAT_DATA

Definition at line 172 of file FlagAgentBase.h.

enum casa::FlagAgentBase::iteration

Enumerator:

ROWS
ROWS_PREPROCESS_BUFFER
IN_ROWS
IN_ROWS_PREPROCESS_BUFFER
ANTENNA_PAIRS
ANTENNA_PAIRS_FLAGS
ANTENNA_PAIRS_INTERACTIVE
ANTENNA_PAIRS_PREPROCESS_BUFFER

Definition at line 187 of file FlagAgentBase.h.

Constructor & Destructor Documentation

casa::FlagAgentBase::FlagAgentBase	(	FlagDataHandler *	dh,
		Record	config,
		uShort	iterationApproach,
		Bool	writePrivateFlagCube = `false`,
		Bool	flag = `true`
	)

virtual casa::FlagAgentBase::~FlagAgentBase ( ) [virtual]

Member Function Documentation

bool casa::FlagAgentBase::checkIfProcessBuffer ( ) [protected]

Check if buffer has to be processed.

Bool casa::FlagAgentBase::checkVisExpression ( polarizationMap * polMap ) [protected]

void casa::FlagAgentBase::chunkSummary ( )

void casa::FlagAgentBase::completeProcess ( )

virtual bool casa::FlagAgentBase::computeAntennaPairFlags	(	const vi::VisBuffer2 &	visBuffer,
		FlagMapper &	flags,
		Int	antenna1,
		Int	antenna2,
		vector< uInt > &	rows
	)			`[protected, virtual]`

Compute flags for a given (time,freq) antenna pair map w/o using visibilities.

Reimplemented in casa::FlagAgentExtension.

virtual bool casa::FlagAgentBase::computeAntennaPairFlags	(	const vi::VisBuffer2 &	visBuffer,
		VisMapper &	visibilities,
		FlagMapper &	flags,
		Int	antenna1,
		Int	antenna2,
		vector< uInt > &	rows
	)			`[protected, virtual]`

Compute flags for a given (time,freq) antenna pair map.

Reimplemented in casa::FlagAgentDisplay, casa::FlagAgentRFlag, and casa::FlagAgentTimeFreqCrop.

virtual bool casa::FlagAgentBase::computeInRowFlags	(	const vi::VisBuffer2 &	visBuffer,
		VisMapper &	visibilities,
		FlagMapper &	flags,
		uInt	row
	)			`[protected, virtual]`

Compute flags for a given visibilities point.

Reimplemented in casa::FlagAgentClipping.

virtual bool casa::FlagAgentBase::computeRowFlags	(	const vi::VisBuffer2 &	visBuffer,
		FlagMapper &	flags,
		uInt	row
	)			`[protected, virtual]`

Compute flags for a given visibilities point.

Reimplemented in casa::FlagAgentElevation, casa::FlagAgentManual, casa::FlagAgentQuack, casa::FlagAgentShadow, and casa::FlagAgentSummary.

static FlagAgentBase* casa::FlagAgentBase::create	(	FlagDataHandler *	dh,
		Record	config
	)			`[static]`

bool casa::FlagAgentBase::find	(	Block< int > &	columns,
		int	col
	)			`[protected]`

For checking columns.

bool casa::FlagAgentBase::find	(	Matrix< Int > &	validPairs,
		Int	element1,
		Int	element2
	)			`[protected]`

For checking pairs.

bool casa::FlagAgentBase::find	(	Matrix< Double > &	validRange,
		Double	element
	)			`[protected]`

For checking ranges.

bool casa::FlagAgentBase::find	(	Vector< Int > &	validRange,
		Int	element
	)			`[protected]`

For checking ids.

void casa::FlagAgentBase::generateAllIndex ( ) [protected]

std::vector<uInt>* casa::FlagAgentBase::generateAntennaPairRowsIndex	(	Int	antenna1,
		Int	antenna2
	)			`[protected]`

void casa::FlagAgentBase::generateChannelIndex ( uInt nChannels ) [protected]

void casa::FlagAgentBase::generatePolarizationIndex ( uInt nPolarizations ) [protected]

void casa::FlagAgentBase::generateRowsIndex ( uInt nRows ) [protected]

virtual FlagReport casa::FlagAgentBase::getReport ( ) [virtual]

Get a report Record from the agent, at the end of the run The report returned by getReport() can be of multiple types -- a single report of type "none" : FlagReport("none",agentName_p) -- a single report of type "plot" : FlagReport("plot",agentName_p) -- a list of reports : FlagReport repList("list"); repList.addReport( FlagReport("plot",agentName_p) ); repList.addReport( FlagReport("plot",agentName_p) );.

Reimplemented in casa::FlagAgentDisplay, casa::FlagAgentRFlag, and casa::FlagAgentSummary.

void casa::FlagAgentBase::indigen	(	vector< uInt > &	index,
		uInt	size
	)			`[protected]`

Generate index for all rows.

void casa::FlagAgentBase::initialize ( ) [protected]

bool casa::FlagAgentBase::isNaN ( Float number ) [protected]

bool casa::FlagAgentBase::isNaN ( Double number ) [protected]

Check if a given number is nan (for visibilities,gains and Tsys primarily).

bool casa::FlagAgentBase::isNaNOrZero ( Double number ) [protected]

bool casa::FlagAgentBase::isNaNOrZero ( Float number ) [protected]

bool casa::FlagAgentBase::isZero ( Float number ) [protected]

bool casa::FlagAgentBase::isZero ( Double number ) [protected]

void casa::FlagAgentBase::iterateAntennaPairs ( ) [protected]

Iterate trough list of antenna pairs.

void casa::FlagAgentBase::iterateAntennaPairsFlags ( ) [protected]

Iterate trough list of antenna pairs w/o loading visibilities.

virtual void casa::FlagAgentBase::iterateAntennaPairsInteractive ( antennaPairMap * antennaPairMap_ptr ) [protected, virtual]

Reimplemented in casa::FlagAgentDisplay.

void casa::FlagAgentBase::iterateInRows ( ) [protected]

Iterate trough visibilities mapper.

void casa::FlagAgentBase::iterateRows ( ) [protected]

Iterate trough list of rows.

virtual void casa::FlagAgentBase::passFinal ( const vi::VisBuffer2 & visBuffer ) [protected, virtual]

Reimplemented in casa::FlagAgentRFlag.

virtual void casa::FlagAgentBase::passIntermediate ( const vi::VisBuffer2 & visBuffer ) [protected, virtual]

Iter-passes method.

Reimplemented in casa::FlagAgentRFlag.

virtual void casa::FlagAgentBase::preProcessBuffer ( const vi::VisBuffer2 & visBuffer ) [protected, virtual]

Common functionality for each visBuffer (don't repeat at the row level).

Reimplemented in casa::FlagAgentDisplay, casa::FlagAgentElevation, casa::FlagAgentShadow, and casa::FlagAgentSummary.

void casa::FlagAgentBase::processAntennaPair	(	Int	antenna1,
		Int	antenna2
	)			`[protected]`

Methods to interactively iterate trough list of antenna pairs.

void casa::FlagAgentBase::queueProcess ( )

void* casa::FlagAgentBase::run ( ) [virtual]

Implements casa::async::Thread.

void casa::FlagAgentBase::runCore ( ) [protected]

Convenience function to be shared by parallel/non-parallel mode.

String casa::FlagAgentBase::sanitizeCorrExpression	(	String	corrExpression,
		std::vector< String > *	corrProducts
	)			`[protected]`

Method to sanitize correlation expression and keep going.

virtual void casa::FlagAgentBase::setAgentParameters ( Record config ) [protected, virtual]

TODO: This class must be re-implemented in the derived classes.

Reimplemented in casa::FlagAgentClipping, casa::FlagAgentDisplay, casa::FlagAgentElevation, casa::FlagAgentExtension, casa::FlagAgentQuack, casa::FlagAgentRFlag, casa::FlagAgentShadow, casa::FlagAgentSummary, and casa::FlagAgentTimeFreqCrop.

void casa::FlagAgentBase::setCheckMode ( bool enable ) [inline]

Set function to activate check mode.

Definition at line 215 of file FlagAgentBase.h.

References checkFlags_p.

void casa::FlagAgentBase::setDataSelection ( Record config ) [protected]

void casa::FlagAgentBase::setFlagsMap	(	std::vector< uInt > *	rows,
		FlagMapper *	flagMap
	)			`[protected]`

void casa::FlagAgentBase::setProfiling ( bool enable ) [inline]

Set function to activate profiling.

Definition at line 212 of file FlagAgentBase.h.

References profiling_p.

void casa::FlagAgentBase::setVisibilitiesMap	(	std::vector< uInt > *	rows,
		VisMapper *	visMap
	)			`[protected]`

Mapping functions as requested by Urvashi.

void casa::FlagAgentBase::start ( )

void casa::FlagAgentBase::tableSummary ( )

void casa::FlagAgentBase::terminate ( ) [virtual]

Reimplemented from casa::async::Thread.

Member Data Documentation

String casa::FlagAgentBase::agentName_p [protected]

Definition at line 321 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::antenna1List_p [private]

Definition at line 379 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::antenna2List_p [private]

Definition at line 380 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::antennaNegation_p [private]

Definition at line 370 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::apply_p

Definition at line 220 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::arrayList_p [private]

Own data selection indexes.

Definition at line 373 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::arraySelection_p [private]

Own data selection ranges.

Definition at line 355 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::backgroundMode_p

Externally visible configuration.

Definition at line 218 of file FlagAgentBase.h.

Matrix<Int> casa::FlagAgentBase::baselineList_p [private]

Definition at line 381 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::baselineSelection_p [private]

Definition at line 361 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::chanbin_p [protected]

Definition at line 422 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::channelavg_p [protected]

Definition at line 421 of file FlagAgentBase.h.

vector<uInt> casa::FlagAgentBase::channelIndex_p [protected]

Definition at line 412 of file FlagAgentBase.h.

Matrix<Int> casa::FlagAgentBase::channelList_p [private]

Definition at line 378 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::channelSelection_p [private]

Definition at line 360 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::checkFlags_p [private]

Definition at line 399 of file FlagAgentBase.h.

Referenced by setCheckMode().

uInt64 casa::FlagAgentBase::chunkFlags_p [protected]

Flag counters.

Definition at line 326 of file FlagAgentBase.h.

uInt64 casa::FlagAgentBase::chunkNaNs_p [protected]

Definition at line 327 of file FlagAgentBase.h.

Cube<Bool>* casa::FlagAgentBase::commonFlagCube_p [private]

MS-related objects.

Definition at line 346 of file FlagAgentBase.h.

Vector<Bool>* casa::FlagAgentBase::commonFlagRow_p [private]

Definition at line 350 of file FlagAgentBase.h.

String casa::FlagAgentBase::dataColumn_p [protected]

Needed to be protected for timeavg in clip.

Definition at line 416 of file FlagAgentBase.h.

uShort casa::FlagAgentBase::dataReference_p [private]

Definition at line 395 of file FlagAgentBase.h.

String casa::FlagAgentBase::expression_p [private]

Data source configuration.

Definition at line 394 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::fieldList_p [private]

Definition at line 374 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::fieldSelection_p [private]

Definition at line 356 of file FlagAgentBase.h.

bool casa::FlagAgentBase::filterChannels_p [private]

Definition at line 368 of file FlagAgentBase.h.

bool casa::FlagAgentBase::filterPols_p [private]

Definition at line 367 of file FlagAgentBase.h.

bool casa::FlagAgentBase::filterRows_p [private]

Definition at line 366 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::flag_p

Definition at line 221 of file FlagAgentBase.h.

bool casa::FlagAgentBase::flagAutoCorrelations_p [private]

Definition at line 369 of file FlagAgentBase.h.

FlagDataHandler* casa::FlagAgentBase::flagDataHandler_p [protected]

Common used members that must be accessible to derived classes.

Definition at line 319 of file FlagAgentBase.h.

bool casa::FlagAgentBase::flagRow_p [protected]

Definition at line 331 of file FlagAgentBase.h.

uShort casa::FlagAgentBase::iterationApproach_p [private]

Running mode configuration.

Definition at line 402 of file FlagAgentBase.h.

casa::LogIO* casa::FlagAgentBase::logger_p [protected]

Definition at line 320 of file FlagAgentBase.h.

LogIO::Command casa::FlagAgentBase::logLevel_p

Definition at line 219 of file FlagAgentBase.h.

String casa::FlagAgentBase::mode_p [protected]

Definition at line 323 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::multiThreading_p [protected]

Multithreading configuration and agent id.

Definition at line 334 of file FlagAgentBase.h.

Int casa::FlagAgentBase::nThreads_p [protected]

Definition at line 335 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::observationList_p [private]

Definition at line 385 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::observationSelection_p [private]

Definition at line 364 of file FlagAgentBase.h.

Cube<Bool>* casa::FlagAgentBase::originalFlagCube_p [private]

Definition at line 347 of file FlagAgentBase.h.

Vector<Bool>* casa::FlagAgentBase::originalFlagRow_p [private]

Definition at line 351 of file FlagAgentBase.h.

vector<uInt> casa::FlagAgentBase::polarizationIndex_p [protected]

Definition at line 413 of file FlagAgentBase.h.

OrderedMap<Int, Vector<Int> > casa::FlagAgentBase::polarizationList_p [private]

Definition at line 384 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::polarizationSelection_p [private]

Definition at line 363 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::prepass_p [protected]

Running configuration.

Definition at line 339 of file FlagAgentBase.h.

Cube<Bool>* casa::FlagAgentBase::privateFlagCube_p [private]

Definition at line 348 of file FlagAgentBase.h.

Vector<Bool>* casa::FlagAgentBase::privateFlagRow_p [private]

Definition at line 352 of file FlagAgentBase.h.

volatile Bool casa::FlagAgentBase::processing_p [private]

Definition at line 391 of file FlagAgentBase.h.

Bool casa::FlagAgentBase::profiling_p [private]

Debugging configuration.

Definition at line 398 of file FlagAgentBase.h.

Referenced by setProfiling().

vector<uInt> casa::FlagAgentBase::rowsIndex_p [protected]

Lists of elements to process jagonzal (CAS-4312): We need channelIndex_p available for the Rflag agent, in order to take into account channel selection for the frequency mapping.

Definition at line 411 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::scanIntentList_p [private]

Definition at line 386 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::scanIntentSelection_p [private]

Definition at line 365 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::scanList_p [private]

Definition at line 375 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::scanSelection_p [private]

Definition at line 357 of file FlagAgentBase.h.

Vector<Int> casa::FlagAgentBase::spwList_p [private]

Definition at line 377 of file FlagAgentBase.h.

casa::String casa::FlagAgentBase::spwSelection_p [private]
