casa::DSRectangle Class Reference

Implementation of a rectangle. More...

#include <DSRectangle.h>

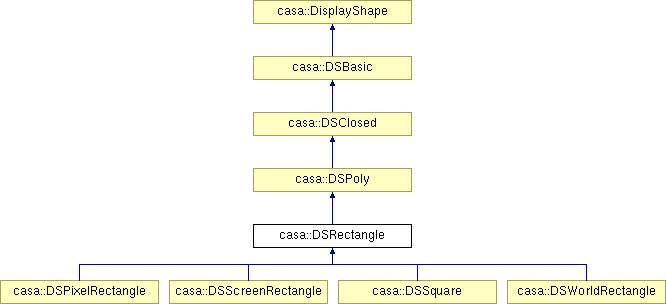

Inheritance diagram for casa::DSRectangle:

Public Member Functions
	DSRectangle ()
	Constructors and Destructors.
	DSRectangle (const Float &xPos, const Float &yPos, const Float &width, const Float &height, const Bool &handles=False, const Bool &drawHandles=False)
	DSRectangle (const DSRectangle &other)
virtual	~DSRectangle ()
virtual void	move (const Float &dX, const Float &dY)
	Standard DisplayShape functions.
virtual void	rotate (const Float &angle)
	Rotate the shape about its center by a set angle (angle in degrees).
virtual void	rotateAbout (const Float &angle, const Float &aboutX, const Float &aboutY)
virtual void	setCenter (const Float &xPos, const Float &yPos)
	Sets the center of the DisplayShape.
virtual void	changePoint (const Vector< Float > &pos)
	Changes the closest point to the supplied location to that location.
virtual void	changePoint (const Vector< Float > &newPoints, const Int whichOne)
	Changes the nth point making up the DisplayShape ot the specified location.
virtual void	addPoint (const Vector< Float > &toAdd)
	Polygon specific functions, add, delete and set points, all in pixels.
virtual void	setHeight (const Float &height)
	Rectangle specific.
virtual void	setWidth (const Float &width)
virtual Float	getHeight ()
virtual Float	getWidth ()
virtual Bool	setOptions (const Record &settings)
	Get and set options.
virtual Record	getOptions ()
	Get and set options.
virtual Matrix< Float >	makeAsPoly (const Float &xPos, const Float &yPos, const Float &width, const Float &height)
	Using supplied parameters, make a polygon of four points representing the rectangle.
Protected Member Functions
virtual Float	getAngle ()
Private Member Functions
virtual void	setDefaultOptions ()
	Used to set up the class when default constructor called.
virtual void	setAngle (const Float &newAngle)
Private Attributes
Float	itsAngle
	Always valid.
Bool	itsValid
Float	itsCenter
	Ony used during the set-up period.
Float	itsWidth
Float	itsHeight

Detailed Description

Implementation of a rectangle.

Prerequisite

Etymology

DSRectangle is a method of managing the drawing of a rectangle onto a PixelCanvas.

Synopsis

DSRectangle is simply a DSPoly with only four points. It has overloaded certain functions however, which cause it to behave as a rectangle when having its points moved etc. It calculates its width and height from points returned from DSPoly when needed.

There are generally two ways to make DisplayShape(s); To create them in "one hit" by providing arguments to the constructor, or by using the default constructor and then the "setOptions" method. A simple interface for all classes inheriting from the DisplayShape class is provided by DisplayShapeInterface .

Motivation

The need to draw rectangles on screen.

Example

To Do

Modify functions like 'changePoint' to allow a special case when angle = 0 for speed reasons.

Definition at line 80 of file DSRectangle.h.

Constructor & Destructor Documentation

casa::DSRectangle::DSRectangle ( )

Constructors and Destructors.

casa::DSRectangle::DSRectangle	(	const Float &	xPos,
		const Float &	yPos,
		const Float &	width,
		const Float &	height,
		const Bool &	handles = `False`,
		const Bool &	drawHandles = `False`
	)

casa::DSRectangle::DSRectangle ( const DSRectangle & other )

virtual casa::DSRectangle::~DSRectangle ( ) [virtual]

Member Function Documentation

virtual void casa::DSRectangle::addPoint ( const Vector< Float > & newPoint ) [virtual]

Polygon specific functions, add, delete and set points, all in pixels.

Add point decides the best place in the array to insert the new point. Similarly, deletePoints(const Vector<Float>& remove) deletes the point closest to that provided.

Reimplemented from casa::DSPoly.
