casa::DSEllipse Class Reference

Implementation of a ellipse. More...

#include <DSEllipse.h>

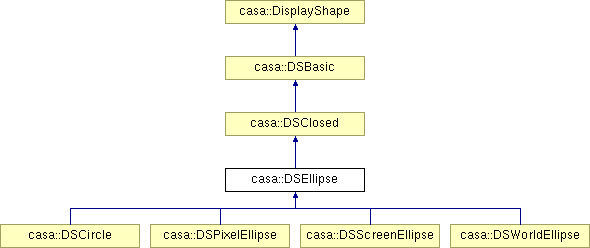

Inheritance diagram for casa::DSEllipse:
casa::DSClosed casa::DSBasic casa::DisplayShape casa::DSCircle casa::DSPixelEllipse casa::DSScreenEllipse casa::DSWorldEllipse

List of all members.

Public Member Functions

 DSEllipse (const Bool &onlyShowOneHandle=False)
 Constructors and destructors.
 DSEllipse (const DSEllipse &other)
 DSEllipse (const Float &xPos, const Float &yPos, const Float &major, const Float &minor, const Bool &hasHandles=False, const Bool &drawHandles=False, const Bool &onlyShowOneHandle=False)
virtual ~DSEllipse ()
virtual void draw (PixelCanvas *pix)
 General DisplayShape functions.
virtual void move (const Float &dX, const Float &dY)
virtual Bool inObject (const Float &xPos, const Float &yPos)
 Is the supplied point within the DisplayShape?
virtual void rotate (const Float &angle)
 Rotate the shape about its center by a set angle (angle in degrees).
virtual void rotateAbout (const Float &angle, const Float &aboutX, const Float &aboutY)
virtual void setCenter (const Float &xPos, const Float &yPos)
 Sets the center of the DisplayShape.
virtual Vector< Float > getCenter ()
 Returns the center of the DisplayShape (x,y).
virtual void changePoint (const Vector< Float > &newPoint)
 Changes the closest point to the supplied location to that location.
virtual void changePoint (const Vector< Float > &newPoint, const Int nPoint)
 Changes the nth point making up the DisplayShape ot the specified location.
virtual void scale (const Float &scaleFactor)
 Scale the shape about its center by the scaleFactor.
virtual Float getMinorAxis ()
 Functions to set / get the minor and major axis of the ellipse (in pixels).
virtual Float getMajorAxis ()
virtual void setMajorAxis (const Float &newMajor)
virtual void setMinorAxis (const Float &newMinor)
virtual Record getOptions ()
 Get and set options.
virtual Bool setOptions (const Record &settings)

Protected Member Functions

virtual void calculateHandlePositions ()
 Required on update.

Private Member Functions

virtual void setDefaultOptions ()
 Called when def.

Private Attributes

Vector< Float > itsCenter
Float itsAngle
Float itsMajorAxis
Float itsMinorAxis
Bool itsValid
Bool itsOneHandle
Matrix< Float > itsHandleLocation

Detailed Description

Implementation of a ellipse.

Prerequisite

Etymology

DSEllipse is a method of managing the drawing of a ellipse onto a PixelCanvas.

Synopsis

DSEllipse is the DisplayShape implementation of the primitive ellipse.

There are generally two ways to make DisplayShape(s); To create them in "one hit" by providing arguments to the constructor, or by using the default constructor and then the "setOptions" method. A simple interface for all classes inheriting from the DisplayShape class is provided by DisplayShapeInterface .

Motivation

To allow the management of ellipses being draw to a pixel canvas.

Example

Definition at line 71 of file DSEllipse.h.


Constructor & Destructor Documentation

casa::DSEllipse::DSEllipse ( const Bool &  onlyShowOneHandle = False  )

Constructors and destructors.

the 'onlyShowOneHandle' flag is primarily for use if the ellipse is intended to remain symmetrical i.e. a circle.

casa::DSEllipse::DSEllipse ( const DSEllipse other  )
casa::DSEllipse::DSEllipse ( const Float &  xPos,
const Float &  yPos,
const Float &  major,
const Float &  minor,
const Bool &  hasHandles = False,
const Bool &  drawHandles = False,
const Bool &  onlyShowOneHandle = False
)
virtual casa::DSEllipse::~DSEllipse (  )  [virtual]

Member Function Documentation

virtual void casa::DSEllipse::calculateHandlePositions (  )  [protected, virtual]

Required on update.

virtual void casa::DSEllipse::changePoint ( const Vector< Float > &  newPoint,
const Int  nPoint
) [virtual]

Changes the nth point making up the DisplayShape ot the specified location.

Implements casa::DisplayShape.

Reimplemented in casa::DSCircle, casa::DSScreenEllipse, and casa::DSWorldEllipse.

virtual void casa::DSEllipse::changePoint ( const Vector< Float > &  newPos  )  [virtual]

Changes the closest point to the supplied location to that location.

Implements casa::DisplayShape.

Reimplemented in casa::DSCircle, casa::DSScreenEllipse, and casa::DSWorldEllipse.

virtual void casa::DSEllipse::draw ( PixelCanvas pix  )  [virtual]

General DisplayShape functions.

Reimplemented from casa::DSClosed.

Reimplemented in casa::DSWorldEllipse.

virtual Vector<Float> casa::DSEllipse::getCenter (  )  [virtual]

Returns the center of the DisplayShape (x,y).

Implements casa::DisplayShape.

virtual Float casa::DSEllipse::getMajorAxis (  )  [virtual]
virtual Float casa::DSEllipse::getMinorAxis (  )  [virtual]

Functions to set / get the minor and major axis of the ellipse (in pixels).

virtual Record casa::DSEllipse::getOptions (  )  [virtual]

Get and set options.

Reimplemented from casa::DSClosed.

Reimplemented in casa::DSCircle, casa::DSPixelEllipse, casa::DSScreenEllipse, and casa::DSWorldEllipse.

virtual Bool casa::DSEllipse::inObject ( const Float &  xPos,
const Float &  yPos
) [virtual]

Is the supplied point within the DisplayShape?

Implements casa::DisplayShape.

Reimplemented in casa::DSCircle.

virtual void casa::DSEllipse::move ( const Float &  dX,
const Float &  dY
) [virtual]

Reimplemented from casa::DSClosed.

Reimplemented in casa::DSScreenEllipse, and casa::DSWorldEllipse.

virtual void casa::DSEllipse::rotate ( const Float &  angle  )  [virtual]

Rotate the shape about its center by a set angle (angle in degrees).

Implements casa::DisplayShape.

Reimplemented in casa::DSCircle, casa::DSScreenEllipse, and casa::DSWorldEllipse.

virtual void casa::DSEllipse::rotateAbout ( const Float &  angle,
const Float &  aboutX,
const Float &  aboutY
) [virtual]

Reimplemented from casa::DSClosed.

virtual void casa::DSEllipse::scale ( const Float &  scaleFactor  )  [virtual]

Scale the shape about its center by the scaleFactor.

Implements casa::DisplayShape.

virtual void casa::DSEllipse::setCenter ( const Float &  xPos,
const Float &  yPos
) [virtual]

Sets the center of the DisplayShape.

Implements casa::DisplayShape.

Reimplemented in casa::DSCircle, casa::DSScreenEllipse, and casa::DSWorldEllipse.

virtual void casa::DSEllipse::setDefaultOptions (  )  [private, virtual]

Called when def.

constructor used

Reimplemented from casa::DSClosed.

Reimplemented in casa::DSCircle.

virtual void casa::DSEllipse::setMajorAxis ( const Float &  newMajor  )  [virtual]

Reimplemented in casa::DSCircle.

virtual void casa::DSEllipse::setMinorAxis ( const Float &  newMinor  )  [virtual]

Reimplemented in casa::DSCircle.

virtual Bool casa::DSEllipse::setOptions ( const Record &  settings  )  [virtual]

Member Data Documentation

Float casa::DSEllipse::itsAngle [private]

Definition at line 122 of file DSEllipse.h.

Vector<Float> casa::DSEllipse::itsCenter [private]

Definition at line 121 of file DSEllipse.h.

Matrix<Float> casa::DSEllipse::itsHandleLocation [private]

Definition at line 126 of file DSEllipse.h.

Definition at line 123 of file DSEllipse.h.

Definition at line 123 of file DSEllipse.h.

Definition at line 124 of file DSEllipse.h.

Bool casa::DSEllipse::itsValid [private]

Definition at line 124 of file DSEllipse.h.


The documentation for this class was generated from the following file:
