casa::AnnPolygon Class Reference

This class represents a single polygon (in position coordinates) annotation specified in an ascii region file as proposed in CAS-2285 <author>Dave Mehringer</author>. More...

#include <AnnPolygon.h>

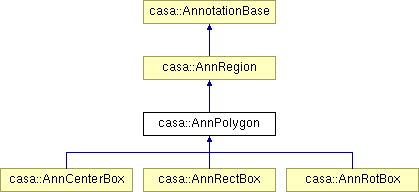

Inheritance diagram for casa::AnnPolygon:
casa::AnnRegion casa::AnnotationBase casa::AnnCenterBox casa::AnnRectBox casa::AnnRotBox

List of all members.

Public Member Functions

 AnnPolygon (const Vector< Quantity > &xPositions, const Vector< Quantity > &yPositions, const String &dirRefFrameString, const CoordinateSystem &csys, const IPosition &imShape, const Quantity &beginFreq, const Quantity &endFreq, const String &freqRefFrameString, const String &dopplerString, const Quantity &restfreq, const Vector< Stokes::StokesTypes > stokes, const Bool annotationOnly)
 AnnPolygon (const Vector< Quantity > &xPositions, const Vector< Quantity > &yPositions, const CoordinateSystem &csys, const IPosition &imShape, const Vector< Stokes::StokesTypes > &stokes)
 Simplified constructor.
AnnPolygonoperator= (const AnnPolygon &other)
 implicit copy constructor and destructor are fine
Vector< MDirection > getCorners () const
 get the vertices converted to the coordinate system used at construction.
void worldVertices (vector< Quantity > &x, vector< Quantity > &y) const
 get the world coordinates of the polygon vertices
void pixelVertices (vector< Double > &x, vector< Double > &y) const
 get the pixel coordinates of the polygon vertices
virtual ostream & print (ostream &os) const

Protected Member Functions

 AnnPolygon (AnnotationBase::Type shape, const Quantity &blcx, const Quantity &blcy, const Quantity &trcx, const Quantity &trcy, const String &dirRefFrameString, const CoordinateSystem &csys, const IPosition &imShape, const Quantity &beginFreq, const Quantity &endFreq, const String &freqRefFrameString, const String &dopplerString, const Quantity &restfreq, const Vector< Stokes::StokesTypes > stokes, const Bool annotationOnly)
 for rectangle subclasses
 AnnPolygon (AnnotationBase::Type shape, const Quantity &blcx, const Quantity &blcy, const Quantity &trcx, const Quantity &trcy, const CoordinateSystem &csys, const IPosition &imShape, const Vector< Stokes::StokesTypes > &stokes)
 Simplified constructor.
 AnnPolygon (AnnotationBase::Type shape, const Quantity &centerx, const Quantity &centery, const Quantity &widthx, const Quantity &widthy, const Quantity &positionAngle, const String &dirRefFrameString, const CoordinateSystem &csys, const IPosition &imShape, const Quantity &beginFreq, const Quantity &endFreq, const String &freqRefFrameString, const String &dopplerString, const Quantity &restfreq, const Vector< Stokes::StokesTypes > stokes, const Bool annotationOnly)
 For centered rectangles.
 AnnPolygon (AnnotationBase::Type shape, const Quantity &centerx, const Quantity &centery, const Quantity &widthx, const Quantity &widthy, const Quantity &positionAngle, const CoordinateSystem &csys, const IPosition &imShape, const Vector< Stokes::StokesTypes > &stokes)
 Simplified constructor.

Private Member Functions

void _init ()
void _initCorners (const Quantity &blcx, const Quantity &blcy, const Quantity &trcx, const Quantity &trcy)
void _initCorners (const MDirection &blc, const MDirection &corner2, const MDirection &trc, const MDirection &corner4)
void _initCenterRectCorners (const Quantity &centerx, const Quantity &centery, const Quantity &widthx, const Quantity &widthy, const Quantity &positionAngle)
void _doCorners (const Quantity &widthx, const Quantity widthy)

Private Attributes

Vector< Quantity > _origXPos
Vector< Quantity > _origYPos

Detailed Description

This class represents a single polygon (in position coordinates) annotation specified in an ascii region file as proposed in CAS-2285 <author>Dave Mehringer</author>.

Intended use:

Public interface

Review Status

Date Reviewed:
yyyy/mm/dd

Etymology

Holds the specification of a polygon annotation.

Synopsis

This class represents a polygon annotation.

Definition at line 46 of file AnnPolygon.h.


Constructor & Destructor Documentation

casa::AnnPolygon::AnnPolygon ( const Vector< Quantity > &  xPositions,
const Vector< Quantity > &  yPositions,
const String &  dirRefFrameString,
const CoordinateSystem &  csys,
const IPosition &  imShape,
const Quantity &  beginFreq,
const Quantity &  endFreq,
const String &  freqRefFrameString,
const String &  dopplerString,
const Quantity &  restfreq,
const Vector< Stokes::StokesTypes >  stokes,
const Bool  annotationOnly
)
casa::AnnPolygon::AnnPolygon ( const Vector< Quantity > &  xPositions,
const Vector< Quantity > &  yPositions,
const CoordinateSystem &  csys,
const IPosition &  imShape,
const Vector< Stokes::StokesTypes > &  stokes
)

Simplified constructor.

all frequencies are used (these can be set after construction). xPositions and yPositions must be in the same frame as the csys direction coordinate. is a region (not just an annotation), although this value can be changed after construction.

casa::AnnPolygon::AnnPolygon ( AnnotationBase::Type  shape,
const Quantity &  blcx,
const Quantity &  blcy,
const Quantity &  trcx,
const Quantity &  trcy,
const String &  dirRefFrameString,
const CoordinateSystem &  csys,
const IPosition &  imShape,
const Quantity &  beginFreq,
const Quantity &  endFreq,
const String &  freqRefFrameString,
const String &  dopplerString,
const Quantity &  restfreq,
const Vector< Stokes::StokesTypes >  stokes,
const Bool  annotationOnly
) [protected]

for rectangle subclasses

casa::AnnPolygon::AnnPolygon ( AnnotationBase::Type  shape,
const Quantity &  blcx,
const Quantity &  blcy,
const Quantity &  trcx,
const Quantity &  trcy,
const CoordinateSystem &  csys,
const IPosition &  imShape,
const Vector< Stokes::StokesTypes > &  stokes
) [protected]

Simplified constructor.

all frequencies are used (these can be set after construction). blcx, blcy, trcx, and trcy must be in the same frame as the csys direction coordinate. is a region (not just an annotation), although this value can be changed after construction.

casa::AnnPolygon::AnnPolygon ( AnnotationBase::Type  shape,
const Quantity &  centerx,
const Quantity &  centery,
const Quantity &  widthx,
const Quantity &  widthy,
const Quantity &  positionAngle,
const String &  dirRefFrameString,
const CoordinateSystem &  csys,
const IPosition &  imShape,
const Quantity &  beginFreq,
const Quantity &  endFreq,
const String &  freqRefFrameString,
const String &  dopplerString,
const Quantity &  restfreq,
const Vector< Stokes::StokesTypes >  stokes,
const Bool  annotationOnly
) [protected]

For centered rectangles.

casa::AnnPolygon::AnnPolygon ( AnnotationBase::Type  shape,
const Quantity &  centerx,
const Quantity &  centery,
const Quantity &  widthx,
const Quantity &  widthy,
const Quantity &  positionAngle,
const CoordinateSystem &  csys,
const IPosition &  imShape,
const Vector< Stokes::StokesTypes > &  stokes
) [protected]

Simplified constructor.

all frequencies are used (these can be set after construction). centerx and centery must be in the same frame as the csys direction coordinate. is a region (not just an annotation), although this value can be changed after construction.


Member Function Documentation

void casa::AnnPolygon::_doCorners ( const Quantity &  widthx,
const Quantity  widthy
) [private]
void casa::AnnPolygon::_init (  )  [private]

Reimplemented from casa::AnnRegion.

void casa::AnnPolygon::_initCenterRectCorners ( const Quantity &  centerx,
const Quantity &  centery,
const Quantity &  widthx,
const Quantity &  widthy,
const Quantity &  positionAngle
) [private]
void casa::AnnPolygon::_initCorners ( const MDirection &  blc,
const MDirection &  corner2,
const MDirection &  trc,
const MDirection &  corner4
) [private]
void casa::AnnPolygon::_initCorners ( const Quantity &  blcx,
const Quantity &  blcy,
const Quantity &  trcx,
const Quantity &  trcy
) [private]
Vector<MDirection> casa::AnnPolygon::getCorners (  )  const

get the vertices converted to the coordinate system used at construction.

AnnPolygon& casa::AnnPolygon::operator= ( const AnnPolygon other  )

implicit copy constructor and destructor are fine

Reimplemented from casa::AnnRegion.

Reimplemented in casa::AnnCenterBox, casa::AnnRectBox, and casa::AnnRotBox.

void casa::AnnPolygon::pixelVertices ( vector< Double > &  x,
vector< Double > &  y
) const

get the pixel coordinates of the polygon vertices

virtual ostream& casa::AnnPolygon::print ( ostream &  os  )  const [virtual]
void casa::AnnPolygon::worldVertices ( vector< Quantity > &  x,
vector< Quantity > &  y
) const

get the world coordinates of the polygon vertices


Member Data Documentation

Vector<Quantity> casa::AnnPolygon::_origXPos [private]

Definition at line 171 of file AnnPolygon.h.

Vector<Quantity> casa::AnnPolygon::_origYPos [private]

Definition at line 171 of file AnnPolygon.h.


The documentation for this class was generated from the following file:
