base/arch/i386/calibration/smi-module.c File Reference

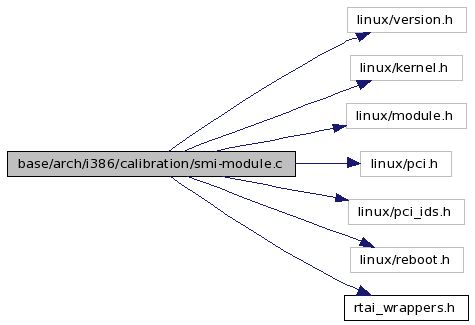

Include dependency graph for smi-module.c:

Go to the source code of this file.

Defines

#define CONFIG_RTAI_HW_SMI_ALL   1

#define CONFIG_RTAI_HW_SMI_INTEL_USB2   0

#define CONFIG_RTAI_HW_SMI_LEGACY_USB2   0

#define CONFIG_RTAI_HW_SMI_PERIODIC   0

#define CONFIG_RTAI_HW_SMI_TCO   0

#define CONFIG_RTAI_HW_SMI_MC   0

#define CONFIG_RTAI_HW_SMI_APMC   0

#define CONFIG_RTAI_HW_SMI_LEGACY_USB   0

#define CONFIG_RTAI_HW_SMI_BIOS   0

#define PCI_DEVICE_ID_INTEL_ICH7_0   0x27b8

#define PCI_DEVICE_ID_INTEL_ICH7_1   0x27b9

#define PCI_DEVICE_ID_INTEL_ICH8_4   0x2815

#define DEVFN   0xf8

#define PMBASE_B0   0x40

#define PMBASE_B1   0x41

#define SMI_CTRL_ADDR   0x30

#define SMI_STATUS_ADDR   0x34

#define SMI_MON_ADDR   0x40

#define INTEL_USB2_EN_BIT   (0x01 << 18)

#define LEGACY_USB2_EN_BIT   (0x01 << 17)

#define PERIODIC_EN_BIT   (0x01 << 14)

#define TCO_EN_BIT   (0x01 << 13)

#define MCSMI_EN_BIT   (0x01 << 11)

#define SWSMI_TMR_EN_BIT   (0x01 << 6)

#define APMC_EN_BIT   (0x01 << 5)

#define SLP_EN_BIT   (0x01 << 4)

#define LEGACY_USB_EN_BIT   (0x01 << 3)

#define BIOS_EN_BIT   (0x01 << 2)

#define GBL_SMI_EN_BIT   (0x01 << 0)

#define mask_bits(v, p)   outl(inl(p) & ~(v), (p))

#define set_bits(v, p)   outl(inl(p) | (v), (p))

Functions

RTAI_MODULE_PARM (smiReset, int)

RTAI_MODULE_PARM (hal_smi_masked_bits, ulong)

static int rtai_smi_notify_reboot (struct notifier_block *nb, unsigned long event, void *p)

void hal_smi_restore (void)

void hal_smi_disable (void)

static unsigned short __devinit get_smi_en_addr (struct pci_dev *dev)

int __devinit hal_smi_init (void)

int init_module (void)

void cleanup_module (void)

MODULE_LICENSE ("GPL")

Variables

int smiReset = 0

static struct pci_device_id hal_smi_pci_tbl []

unsigned long hal_smi_masked_bits

static unsigned long hal_smi_saved_bits

static unsigned short hal_smi_en_addr

static struct pci_dev * smi_dev

static struct notifier_block rtai_smi_reboot_notifier

Define Documentation

#define APMC_EN_BIT (0x01 << 5)

Definition at line 108 of file smi-module.c.

#define BIOS_EN_BIT (0x01 << 2)

Definition at line 111 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_ALL 1

Definition at line 38 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_APMC 0

Definition at line 44 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_BIOS 0

Definition at line 46 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_INTEL_USB2 0

Definition at line 39 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_LEGACY_USB 0

Definition at line 45 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_LEGACY_USB2 0

Definition at line 40 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_MC 0

Definition at line 43 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_PERIODIC 0

Definition at line 41 of file smi-module.c.

#define CONFIG_RTAI_HW_SMI_TCO 0

Definition at line 42 of file smi-module.c.

#define DEVFN 0xf8

Definition at line 87 of file smi-module.c.

Referenced by hal_smi_init().

#define GBL_SMI_EN_BIT (0x01 << 0)

Definition at line 112 of file smi-module.c.

#define INTEL_USB2_EN_BIT (0x01 << 18)

Definition at line 102 of file smi-module.c.

#define LEGACY_USB2_EN_BIT (0x01 << 17)

Definition at line 103 of file smi-module.c.

#define LEGACY_USB_EN_BIT (0x01 << 3)

Definition at line 110 of file smi-module.c.

#define mask_bits	(	v,
		p		)	outl(inl(p) & ~(v), (p))

Definition at line 151 of file smi-module.c.

Referenced by hal_smi_disable().

#define MCSMI_EN_BIT (0x01 << 11)

Definition at line 106 of file smi-module.c.

#define PCI_DEVICE_ID_INTEL_ICH7_0 0x27b8

Definition at line 49 of file smi-module.c.

#define PCI_DEVICE_ID_INTEL_ICH7_1 0x27b9

Definition at line 52 of file smi-module.c.

#define PCI_DEVICE_ID_INTEL_ICH8_4 0x2815

Definition at line 55 of file smi-module.c.

#define PERIODIC_EN_BIT (0x01 << 14)

Definition at line 104 of file smi-module.c.

#define PMBASE_B0 0x40

Definition at line 94 of file smi-module.c.

Referenced by get_smi_en_addr().

#define PMBASE_B1 0x41

Definition at line 95 of file smi-module.c.

Referenced by get_smi_en_addr().

#define set_bits	(	v,
		p		)	outl(inl(p) \| (v), (p))

Definition at line 152 of file smi-module.c.

Referenced by hal_smi_restore(), and rtai_smi_notify_reboot().

#define SLP_EN_BIT (0x01 << 4)

Definition at line 109 of file smi-module.c.

#define SMI_CTRL_ADDR 0x30

Definition at line 97 of file smi-module.c.

Referenced by get_smi_en_addr().

#define SMI_MON_ADDR 0x40

Definition at line 99 of file smi-module.c.

#define SMI_STATUS_ADDR 0x34

Definition at line 98 of file smi-module.c.

#define SWSMI_TMR_EN_BIT (0x01 << 6)

Definition at line 107 of file smi-module.c.

#define TCO_EN_BIT (0x01 << 13)

Definition at line 105 of file smi-module.c.

Function Documentation

void cleanup_module ( void )

Definition at line 241 of file smi-module.c.

static unsigned short __devinit get_smi_en_addr ( struct pci_dev * dev ) [static]

Definition at line 191 of file smi-module.c.

References PMBASE_B0, PMBASE_B1, and SMI_CTRL_ADDR.

void hal_smi_disable ( void )

Definition at line 182 of file smi-module.c.

References hal_smi_en_addr, hal_smi_masked_bits, hal_smi_saved_bits, mask_bits, and rtai_smi_reboot_notifier.

int __devinit hal_smi_init ( void )

Definition at line 200 of file smi-module.c.

References DEVFN, hal_smi_pci_tbl, and printk().

Referenced by init_module().

Here is the call graph for this function:

void hal_smi_restore ( void )

Definition at line 173 of file smi-module.c.

References hal_smi_en_addr, hal_smi_saved_bits, rtai_smi_reboot_notifier, set_bits, and smi_dev.

Referenced by init_module().

int init_module ( void )

Definition at line 228 of file smi-module.c.

References hal_smi_init(), hal_smi_masked_bits, hal_smi_restore(), hal_smi_saved_bits, printk(), and smiReset.

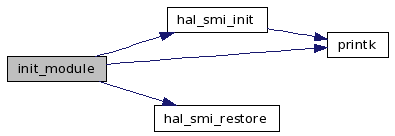

Here is the call graph for this function:

MODULE_LICENSE ( "GPL" )

RTAI_MODULE_PARM	(	hal_smi_masked_bits	,
		ulong
	)

RTAI_MODULE_PARM	(	smiReset	,
		int
	)

static int rtai_smi_notify_reboot	(	struct notifier_block *	nb,
		unsigned long	event,
		void *	p
	)			`[static]`

Definition at line 154 of file smi-module.c.

References hal_smi_en_addr, hal_smi_saved_bits, and set_bits.

Variable Documentation

unsigned short hal_smi_en_addr [static]

Definition at line 148 of file smi-module.c.

Referenced by hal_smi_disable(), hal_smi_restore(), and rtai_smi_notify_reboot().

unsigned long hal_smi_masked_bits

Initial value:

 0

    | GBL_SMI_EN_BIT

Definition at line 114 of file smi-module.c.

Referenced by hal_smi_disable(), and init_module().

struct pci_device_id hal_smi_pci_tbl[] [static]

Initial value:

 {
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801AA_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801AB_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801BA_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801BA_10) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801E_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801CA_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801CA_12) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801DB_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801DB_12) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_82801EB_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_ICH6_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_ICH6_1) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_ICH6_2) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_ICH7_0) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_ICH7_1) },
{ PCI_DEVICE(PCI_VENDOR_ID_INTEL, PCI_DEVICE_ID_INTEL_ICH8_4) },
{ 0, },
}

Definition at line 59 of file smi-module.c.

Referenced by hal_smi_init().

unsigned long hal_smi_saved_bits [static]

Definition at line 147 of file smi-module.c.

Referenced by hal_smi_disable(), hal_smi_restore(), init_module(), and rtai_smi_notify_reboot().

struct notifier_block rtai_smi_reboot_notifier [static]

Initial value:

 {
        .notifier_call  = &rtai_smi_notify_reboot,
        .next           = NULL,
        .priority       = 0
}

Definition at line 167 of file smi-module.c.

Referenced by hal_smi_disable(), and hal_smi_restore().

struct pci_dev* smi_dev [static]

Definition at line 149 of file smi-module.c.

Referenced by hal_smi_restore().

int smiReset = 0

Definition at line 34 of file smi-module.c.

Referenced by init_module().
