base/include/rtai_proxies.h File Reference

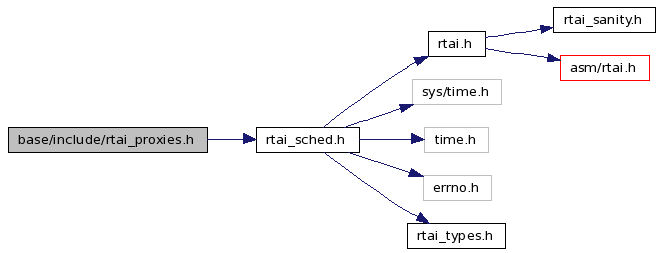

Include dependency graph for rtai_proxies.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
RT_TASK *	__rt_proxy_attach (void(*func)(long), RT_TASK *task, void *msg, int nbytes, int priority)
RTAI_SYSCALL_MODE RT_TASK *	rt_proxy_attach (RT_TASK *task, void *msg, int nbytes, int priority)
RTAI_SYSCALL_MODE int	rt_proxy_detach (RT_TASK *proxy)
RTAI_SYSCALL_MODE RT_TASK *	rt_trigger (RT_TASK *proxy)

---

Function Documentation

RT_TASK* __rt_proxy_attach	(	void(*)(long)	func,
		RT_TASK *	task,
		void *	msg,
		int	nbytes,
		int	priority
	)

Definition at line 1837 of file msg.c.

References rt_free(), rt_kthread_init(), rt_malloc(), RT_SCHED_LINUX_PRIORITY, RT_SCHED_LOWEST_PRIORITY, and task.

Referenced by rt_Proxy_attach(), and rt_proxy_attach().

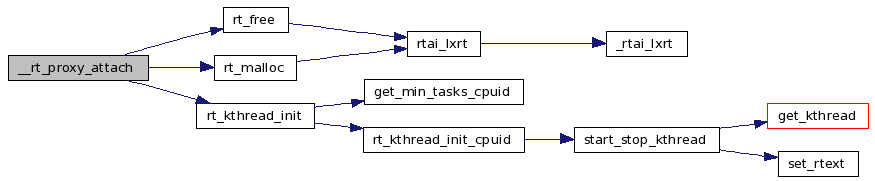

Here is the call graph for this function:

RTAI_SYSCALL_MODE RT_TASK* rt_proxy_attach	(	RT_TASK *	task,
		void *	msg,
		int	nbytes,
		int	priority
	)

Definition at line 1877 of file msg.c.

References __rt_proxy_attach(), proxy_task(), and task.

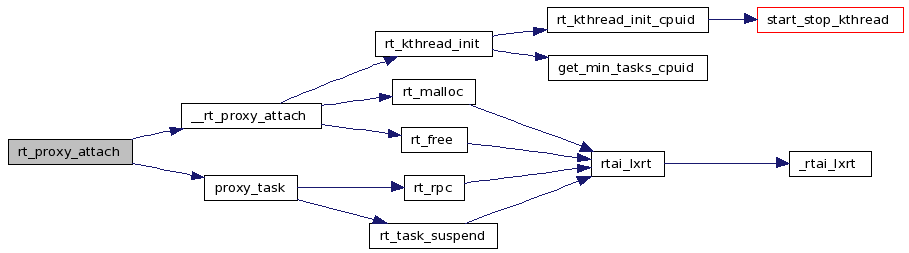

Here is the call graph for this function:

RTAI_SYSCALL_MODE int rt_proxy_detach

(

RT_TASK *

proxy

)

Definition at line 1884 of file msg.c.

References rt_free(), and rt_task_delete.

Here is the call graph for this function:

RTAI_SYSCALL_MODE RT_TASK* rt_trigger

(

RT_TASK *

proxy

)

Definition at line 1894 of file msg.c.

References atomic_inc, and rt_task_resume().

Here is the call graph for this function:

---
