base/include/rtai_shm.h File Reference

Detailed Description

Author:: Paolo Mantegazza

Note:: Copyright © 1999-2004 Paolo Mantegazza <mantegazza@aero.polimi.it>

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

Definition in file rtai_shm.h.#include <fcntl.h>
#include <unistd.h>
#include <sys/mman.h>
#include <sys/ioctl.h>
#include <rtai_lxrt.h>

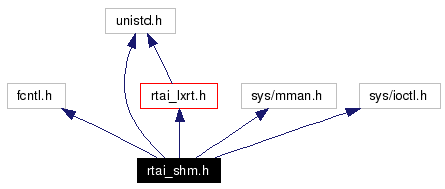

Include dependency graph for rtai_shm.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines

#define GLOBAL_HEAP_ID   0x9ac6d9e5

#define USE_VMALLOC   0

#define USE_GFP_KERNEL   1

#define USE_GFP_ATOMIC   2

#define USE_GFP_DMA   3

#define rtai_kmalloc(name, size)   rt_shm_alloc(name, size, USE_VMALLOC)

Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.

#define rtai_kfree(name)   rt_shm_free(name)

Free a chunk of shared memory being shared inter-intra kernel modules and Linux processes.

#define RTAI_SHM_DEV   "/dev/rtai_shm"

#define rt_shm_alloc(name, size, suprt)   _rt_shm_alloc(0, name, size, suprt, 0)

#define rt_heap_open(name, size, suprt)   _rt_shm_alloc(0, name, size, suprt, 1)

#define rtai_malloc(name, size)   _rt_shm_alloc(0, name, size, USE_VMALLOC, 0)

Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.

#define rt_shm_alloc_adr(start_address, name, size, suprt)   _rt_shm_alloc(start_address, name, size, suprt, 0)

Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.

#define rt_heap_open_adr(start, name, size, suprt)   _rt_shm_alloc(start, name, size, suprt, 1)

#define rtai_malloc_adr(start_address, name, size)   _rt_shm_alloc(start_address, name, size, USE_VMALLOC, 0)

Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.

#define rtai_free(name, adr)   rt_shm_free(name)

Free a chunk of shared memory being shared inter-intra kernel modules and Linux processes.

#define rt_heap_close(name, adr)   rt_shm_free(name)

Close a real time group heap being shared inter-intra kernel modules and Linux processes.

#define rt_heap_init   rt_heap_open

#define rt_heap_create   rt_heap_open

#define rt_heap_acquire   rt_heap_open

#define rt_heap_init_adr   rt_heap_open_adr

#define rt_heap_create_adr   rt_heap_open_adr

#define rt_heap_acquire_adr   rt_heap_open_adr

#define rt_heap_delete   rt_heap_close

#define rt_heap_destroy   rt_heap_close

#define rt_heap_release   rt_heap_close

#define rt_global_heap_open()   rt_heap_open(GLOBAL_HEAP_ID, 0, 0)

Open the global real time heap to be shared inter-intra kernel modules and Linux processes.

#define rt_global_heap_close()   rt_heap_close(GLOBAL_HEAP_ID, 0)

Close the global real time heap being shared inter-intra kernel modules and Linux processes.

Functions

void * _rt_shm_alloc (void *start, unsigned long name, int size, int suprt, int isheap)

int rt_shm_free (unsigned long name)

Free a chunk of shared memory being shared inter-intra kernel modules and Linux processes.

void * rt_halloc (int size)

Allocate a chunk of a group real time heap in kernel/user space.

void rt_hfree (void *addr)

Free a chunk of a group real time heap.

void * rt_named_halloc (unsigned long name, int size)

Allocate a chunk of a group real time heap in kernel/user space.

void rt_named_hfree (void *addr)

Free a chunk of a group real time heap.

void * rt_malloc (int size)

void rt_free (void *addr)

void * rt_named_malloc (unsigned long name, int size)

Allocate a chunk of the global real time heap in kernel/user space.

void rt_named_free (void *addr)

Free a named chunk of the global real time heap.

Generated on Thu Nov 20 11:52:20 2008 for RTAI API by

1.3.8


Defines
#define	GLOBAL_HEAP_ID 0x9ac6d9e5
#define	USE_VMALLOC 0
#define	USE_GFP_KERNEL 1
#define	USE_GFP_ATOMIC 2
#define	USE_GFP_DMA 3
#define	rtai_kmalloc(name, size) rt_shm_alloc(name, size, USE_VMALLOC)
	Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.
#define	rtai_kfree(name) rt_shm_free(name)
	Free a chunk of shared memory being shared inter-intra kernel modules and Linux processes.
#define	RTAI_SHM_DEV "/dev/rtai_shm"
#define	rt_shm_alloc(name, size, suprt) _rt_shm_alloc(0, name, size, suprt, 0)
#define	rt_heap_open(name, size, suprt) _rt_shm_alloc(0, name, size, suprt, 1)
#define	rtai_malloc(name, size) _rt_shm_alloc(0, name, size, USE_VMALLOC, 0)
	Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.
#define	rt_shm_alloc_adr(start_address, name, size, suprt) _rt_shm_alloc(start_address, name, size, suprt, 0)
	Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.
#define	rt_heap_open_adr(start, name, size, suprt) _rt_shm_alloc(start, name, size, suprt, 1)
#define	rtai_malloc_adr(start_address, name, size) _rt_shm_alloc(start_address, name, size, USE_VMALLOC, 0)
	Allocate a chunk of memory to be shared inter-intra kernel modules and Linux processes.
#define	rtai_free(name, adr) rt_shm_free(name)
	Free a chunk of shared memory being shared inter-intra kernel modules and Linux processes.
#define	rt_heap_close(name, adr) rt_shm_free(name)
	Close a real time group heap being shared inter-intra kernel modules and Linux processes.
#define	rt_heap_init rt_heap_open
#define	rt_heap_create rt_heap_open
#define	rt_heap_acquire rt_heap_open
#define	rt_heap_init_adr rt_heap_open_adr
#define	rt_heap_create_adr rt_heap_open_adr
#define	rt_heap_acquire_adr rt_heap_open_adr
#define	rt_heap_delete rt_heap_close
#define	rt_heap_destroy rt_heap_close
#define	rt_heap_release rt_heap_close
#define	rt_global_heap_open() rt_heap_open(GLOBAL_HEAP_ID, 0, 0)
	Open the global real time heap to be shared inter-intra kernel modules and Linux processes.
#define	rt_global_heap_close() rt_heap_close(GLOBAL_HEAP_ID, 0)
	Close the global real time heap being shared inter-intra kernel modules and Linux processes.
Functions
void *	_rt_shm_alloc (void *start, unsigned long name, int size, int suprt, int isheap)
int	rt_shm_free (unsigned long name)
	Free a chunk of shared memory being shared inter-intra kernel modules and Linux processes.
void *	rt_halloc (int size)
	Allocate a chunk of a group real time heap in kernel/user space.
void	rt_hfree (void *addr)
	Free a chunk of a group real time heap.
void *	rt_named_halloc (unsigned long name, int size)
	Allocate a chunk of a group real time heap in kernel/user space.
void	rt_named_hfree (void *addr)
	Free a chunk of a group real time heap.
void *	rt_malloc (int size)
void	rt_free (void *addr)
void *	rt_named_malloc (unsigned long name, int size)
	Allocate a chunk of the global real time heap in kernel/user space.
void	rt_named_free (void *addr)
	Free a named chunk of the global real time heap.
