base/include/rtai_proxies.h File Reference

#include <rtai_sched.h>

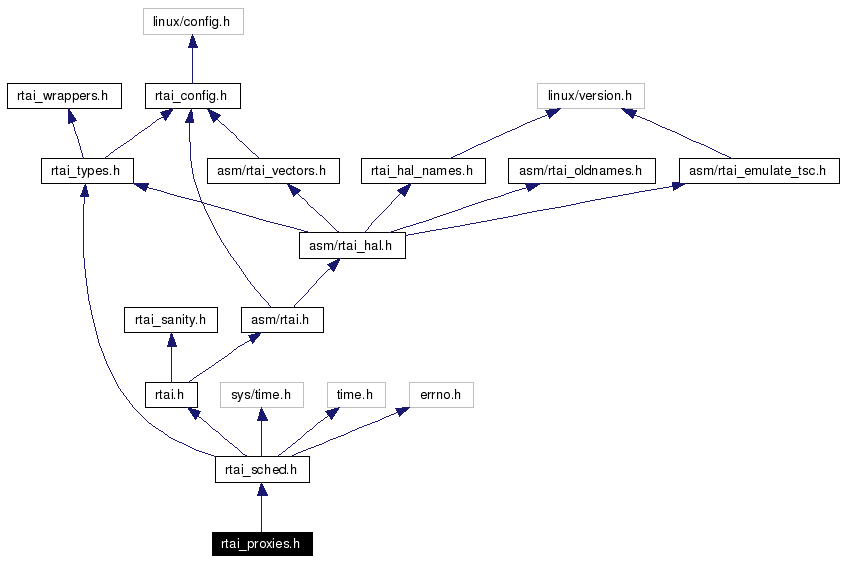

Include dependency graph for rtai_proxies.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
RT_TASK *	__rt_proxy_attach (void(*func)(long), RT_TASK *task, void *msg, int nbytes, int priority)
RT_TASK *	rt_proxy_attach (RT_TASK *task, void *msg, int nbytes, int priority)
int	rt_proxy_detach (RT_TASK *proxy)
RT_TASK *	rt_trigger (RT_TASK *proxy)

---

Function Documentation

RT_TASK* __rt_proxy_attach (  void(*  func)(long), RT_TASK *  task, void *  msg, int  nbytes, int  priority )

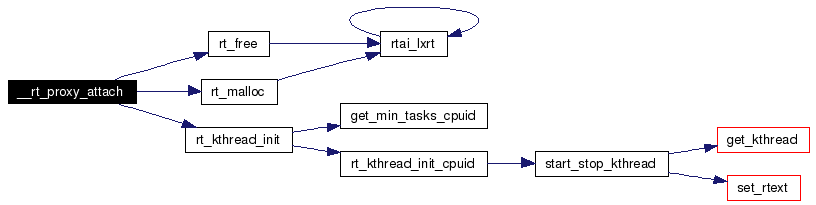

Definition at line 1836 of file msg.c. References rt_free(), rt_kthread_init(), rt_malloc(), RT_SCHED_LINUX_PRIORITY, RT_SCHED_LOWEST_PRIORITY, RT_TASK, and task. Referenced by rt_proxy_attach(), and rt_Proxy_attach(). Here is the call graph for this function:

RT_TASK* rt_proxy_attach (  RT_TASK *  task, void *  msg, int  nbytes, int  priority )

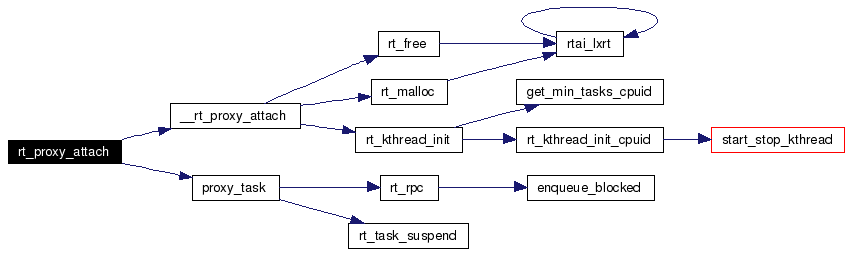

Definition at line 1876 of file msg.c. References __rt_proxy_attach(), proxy_task(), RT_TASK, and task. Here is the call graph for this function:

int rt_proxy_detach (  RT_TASK *  proxy  )

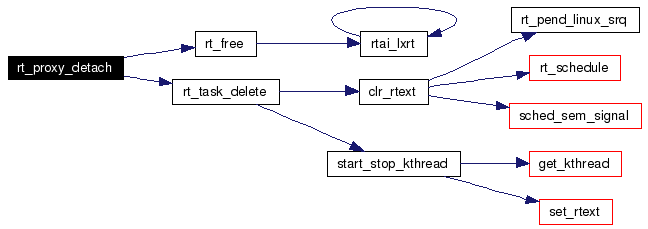

Definition at line 1883 of file msg.c. References rt_free(), RT_TASK, and rt_task_delete(). Here is the call graph for this function:

RT_TASK* rt_trigger (  RT_TASK *  proxy  )

Definition at line 1893 of file msg.c. References atomic_inc(), RT_TASK, and rt_task_resume(). Here is the call graph for this function:

---
