Definition in file rtai_mbx.h.#include <rtai_sem.h>
#include <rtai_lxrt.h>

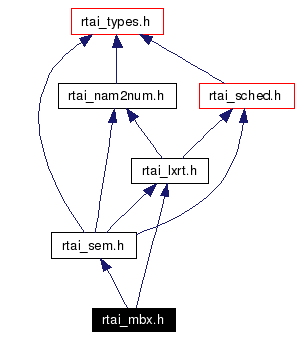

Include dependency graph for rtai_mbx.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | rt_mailbox |
Defines | |
| #define | RT_MBX_MAGIC 0x3f81aab |
| #define | rt_mbx_init(name, size) rt_typed_mbx_init(name, size, FIFO_Q) |
| #define | rt_named_mbx_init(mbx_name, size) rt_typed_named_mbx_init(mbx_name, size, FIFO_Q) |
Typedefs | |
| typedef rt_mailbox | MBX |
Functions | |
| void * | rt_typed_mbx_init (unsigned long name, int size, int qtype) |
| int | rt_mbx_delete (struct rt_mailbox *mbx) |
| rt_mailbox * | rt_typed_named_mbx_init (const char *name, int size, int type) |
| int | rt_named_mbx_delete (struct rt_mailbox *mbx) |
| int | rt_mbx_send (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_send_wp (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_send_if (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_send_until (struct rt_mailbox *mbx, void *msg, int msg_size, RTIME time) |
| int | rt_mbx_send_timed (struct rt_mailbox *mbx, void *msg, int msg_size, RTIME delay) |
| int | rt_mbx_ovrwr_send (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_evdrp (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_receive (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_receive_wp (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_receive_if (struct rt_mailbox *mbx, void *msg, int msg_size) |
| int | rt_mbx_receive_until (struct rt_mailbox *mbx, void *msg, int msg_size, RTIME time) |
| int | rt_mbx_receive_timed (struct rt_mailbox *mbx, void *msg, int msg_size, RTIME delay) |
|
|
Definition at line 29 of file rtai_mbx.h. Referenced by mbx_send_if(), and rt_typed_mbx_init(). |
|
|
Definition at line 199 of file rtai_mbx.h. |
|
|
|
Definition at line 181 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, LXRT_MBX_DELETE, rtai_lxrt(), and SIZARG. Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 238 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_EVDRP, rtai_lxrt(), and SIZARG. Referenced by RT_mbx_evdrp(). Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 232 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_OVRWR_SEND, rtai_lxrt(), and SIZARG. Referenced by RT_mbx_ovrwr_send(). Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 244 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_RECEIVE, rtai_lxrt(), and SIZARG. Referenced by rt_get_net_rpc_ret(), and RT_mbx_receive(). Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 256 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_RECEIVE_IF, rtai_lxrt(), and SIZARG. Referenced by rt_get_net_rpc_ret(), and RT_mbx_receive_if(). Here is the call graph for this function:  |
|
||||||||||||||||||||
|
Definition at line 268 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_RECEIVE_TIMED, rtai_lxrt(), RTIME, and SIZARG. Referenced by rt_get_net_rpc_ret(), and RT_mbx_receive_timed(). Here is the call graph for this function:  |
|
||||||||||||||||||||
|
Definition at line 262 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_RECEIVE_UNTIL, rtai_lxrt(), RTIME, and SIZARG. Referenced by rt_get_net_rpc_ret(), and RT_mbx_receive_until(). Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 250 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_RECEIVE_WP, rtai_lxrt(), and SIZARG. Referenced by rt_get_net_rpc_ret(), and RT_mbx_receive_wp(). Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 202 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_SEND, rtai_lxrt(), and SIZARG. Referenced by RT_mbx_send(). Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 214 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_SEND_IF, rtai_lxrt(), and SIZARG. Referenced by RT_mbx_send_if(). Here is the call graph for this function:  |
|
||||||||||||||||||||
|
Definition at line 226 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_SEND_TIMED, rtai_lxrt(), RTIME, and SIZARG. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
Definition at line 220 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_SEND_UNTIL, rtai_lxrt(), RTIME, and SIZARG. Referenced by RT_mbx_send_timed(), and RT_mbx_send_until(). Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 208 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, MBX_SEND_WP, rtai_lxrt(), and SIZARG. Referenced by RT_mbx_send_wp(). Here is the call graph for this function:  |
|
|
Definition at line 193 of file rtai_mbx.h. References BIDX, rtai_lxrt_t::i, LOW, NAMED_MBX_DELETE, rtai_lxrt(), and SIZARG. Here is the call graph for this function:  |
|
||||||||||||||||
|
Definition at line 159 of file rtai_mbx.h. References BIDX, LOW, LXRT_MBX_INIT, rtai_lxrt(), SIZARG, and rtai_lxrt_t::v. Here is the call graph for this function:  |
|
||||||||||||||||
|

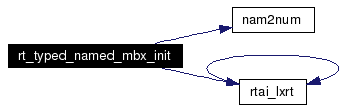

Definition at line 187 of file rtai_mbx.h. References BIDX, LOW, nam2num(), NAMED_MBX_INIT, rtai_lxrt(), SIZARG, and rtai_lxrt_t::v. Referenced by RT_typed_named_mbx_init(). Here is the call graph for this function:  |
