base/ipc/mq/mq.c File Reference

#include <linux/module.h>
#include <linux/kernel.h>
#include <linux/version.h>
#include <linux/errno.h>
#include <linux/stat.h>
#include <asm/uaccess.h>
#include <rtai_schedcore.h>
#include <rtai_proc_fs.h>

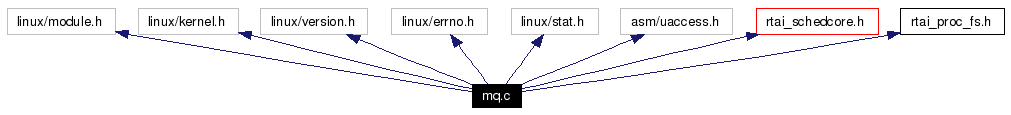

Include dependency graph for mq.c:

Go to the source code of this file.

Defines
#define	pthread_cond_t   SEM
#define	pthread_mutex_t   SEM
#define	pthread_mutex_init(mutex, attr)   rt_mutex_init(mutex)
#define	pthread_mutex_unlock   rt_mutex_unlock
#define	pthread_mutex_lock   rt_mutex_lock
#define	pthread_mutex_destroy   rt_mutex_destroy
#define	pthread_cond_init(cond, attr)   rt_cond_init(cond)
#define	pthread_cond_wait   rt_cond_wait
#define	pthread_cond_signal   rt_cond_signal
#define	pthread_cond_destroy   rt_cond_destroy
#define	OK   0
#define	ERROR   -1
#define	MAX_RT_TASKS   128
#define	mqueues   system_data_ptr
Functions
	MODULE_LICENSE ("GPL")
int	name_to_id (char *name)
mq_bool_t	is_empty (struct queue_control *q)
mq_bool_t	is_full (struct queue_control *q)
MSG_HDR *	getnode (Q_CTRL *queue)
int	freenode (void *node, Q_CTRL *queue)
void	insert_message (Q_CTRL *q, MSG_HDR *this_msg)
mq_bool_t	is_blocking (MSG_QUEUE *q)
mq_bool_t	can_access (MSG_QUEUE *q, Q_ACCESS access)
void	initialise_queue (Q_CTRL *q)
void	delete_queue (int q_index)
mqd_t	mq_open (char *mq_name, int oflags, mode_t permissions, struct mq_attr *mq_attr)
size_t	_mq_receive (mqd_t mq, char *msg_buffer, size_t buflen, unsigned int *msgprio, int space)
size_t	_mq_timedreceive (mqd_t mq, char *msg_buffer, size_t buflen, unsigned int *msgprio, const struct timespec *abstime, int space)
int	_mq_send (mqd_t mq, const char *msg, size_t msglen, unsigned int msgprio, int space)
int	_mq_timedsend (mqd_t mq, const char *msg, size_t msglen, unsigned int msgprio, const struct timespec *abstime, int space)
int	mq_close (mqd_t mq)
int	mq_getattr (mqd_t mq, struct mq_attr *attrbuf)
int	mq_setattr (mqd_t mq, const struct mq_attr *new_attrs, struct mq_attr *old_attrs)
int	mq_notify (mqd_t mq, const struct sigevent *notification)
int	mq_unlink (char *mq_name)
int	set_rt_fun_entries (struct rt_native_fun_entry *entry)
void	reset_rt_fun_entries (struct rt_native_fun_entry *entry)
int	__rtai_mq_init (void)
void	__rtai_mq_exit (void)
	module_init (__rtai_mq_init)
	module_exit (__rtai_mq_exit)
	EXPORT_SYMBOL (mq_open)
	EXPORT_SYMBOL (_mq_receive)
	EXPORT_SYMBOL (_mq_timedreceive)
	EXPORT_SYMBOL (_mq_send)
	EXPORT_SYMBOL (_mq_timedsend)
	EXPORT_SYMBOL (mq_close)
	EXPORT_SYMBOL (mq_getattr)
	EXPORT_SYMBOL (mq_setattr)
	EXPORT_SYMBOL (mq_notify)
	EXPORT_SYMBOL (mq_unlink)
Variables
int	num_pqueues = 0
_pqueue_descr_struct	rt_pqueue_descr [MAX_PQUEUES] = {{0}}
_pqueue_access_struct	task_pqueue_access [MAX_RT_TASKS] = {{0}}
MQ_ATTR	default_queue_attrs = { MAX_MSGS, MAX_MSGSIZE, MQ_NONBLOCK, 0 }
pthread_mutex_t	pqueue_mutex
rt_native_fun_entry	rt_pqueue_entries []

---

Define Documentation

#define ERROR   -1

Definition at line 60 of file mq.c. Referenced by _mq_receive(), _mq_timedreceive(), mq_notify(), and name_to_id().

#define MAX_RT_TASKS   128

Definition at line 67 of file mq.c. Referenced by mq_open().

#define mqueues   system_data_ptr

Definition at line 162 of file mq.c.

#define OK   0

Definition at line 57 of file mq.c. Referenced by __rtai_mq_init(), mq_close(), mq_getattr(), mq_notify(), mq_setattr(), and mq_unlink().

#define pthread_cond_destroy   rt_cond_destroy

Definition at line 54 of file mq.c. Referenced by delete_queue().

#define pthread_cond_init (  cond, attr   )     rt_cond_init(cond)

Definition at line 51 of file mq.c. Referenced by mq_open().

#define pthread_cond_signal   rt_cond_signal

Definition at line 53 of file mq.c. Referenced by _mq_receive(), _mq_send(), _mq_timedreceive(), and _mq_timedsend().

#define pthread_cond_t   SEM

Definition at line 45 of file mq.c. Referenced by pthread_cond_open_rt().

#define pthread_cond_wait   rt_cond_wait

Definition at line 52 of file mq.c. Referenced by _mq_receive(), and _mq_send().

#define pthread_mutex_destroy   rt_mutex_destroy

Definition at line 50 of file mq.c. Referenced by __rtai_mq_exit(), and delete_queue().

#define pthread_mutex_init (  mutex, attr   )     rt_mutex_init(mutex)

Definition at line 47 of file mq.c. Referenced by __rtai_mq_init(), and mq_open().

#define pthread_mutex_lock   rt_mutex_lock

Definition at line 49 of file mq.c. Referenced by _mq_receive(), _mq_send(), _mq_timedreceive(), _mq_timedsend(), mq_close(), mq_notify(), mq_open(), mq_setattr(), and mq_unlink().

#define pthread_mutex_t   SEM

Definition at line 46 of file mq.c. Referenced by pthread_mutex_open_rt().

#define pthread_mutex_unlock   rt_mutex_unlock

Definition at line 48 of file mq.c. Referenced by _mq_receive(), _mq_send(), _mq_timedreceive(), _mq_timedsend(), delete_queue(), mq_close(), mq_notify(), mq_open(), mq_setattr(), and mq_unlink().

---

Function Documentation

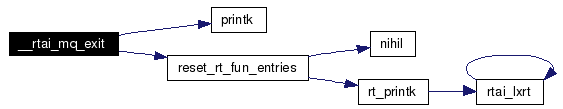

void __rtai_mq_exit (  void   )

Definition at line 926 of file mq.c. References pqueue_mutex, printk(), pthread_mutex_destroy, reset_rt_fun_entries(), and rt_pqueue_entries. Here is the call graph for this function:

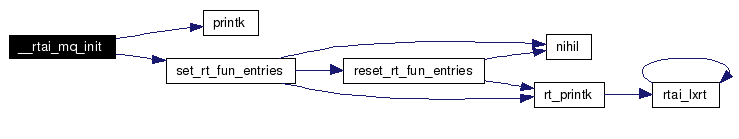

int __rtai_mq_init (  void   )

Definition at line 914 of file mq.c. References num_pqueues, OK, pqueue_mutex, printk(), pthread_mutex_init, rt_pqueue_entries, and set_rt_fun_entries(). Here is the call graph for this function:

size_t _mq_receive (  mqd_t  mq, char *  msg_buffer, size_t  buflen, unsigned int *  msgprio, int  space )

Definition at line 427 of file mq.c. References can_access(), ERROR, freenode(), is_blocking(), is_empty(), MAX_PQUEUES, mqd_t, pthread_cond_signal, pthread_cond_wait, pthread_mutex_lock, pthread_mutex_unlock, rt_pqueue_descr, and TRACE_RTAI_POSIX. Here is the call graph for this function:

int _mq_send (  mqd_t  mq, const char *  msg, size_t  msglen, unsigned int  msgprio, int  space )

Definition at line 546 of file mq.c. References can_access(), getnode(), insert_message(), is_blocking(), is_empty(), is_full(), MAX_PQUEUES, MQ_PRIO_MAX, mqd_t, pthread_cond_signal, pthread_cond_wait, pthread_mutex_lock, pthread_mutex_unlock, rt_pqueue_descr, and TRACE_RTAI_POSIX. Here is the call graph for this function:

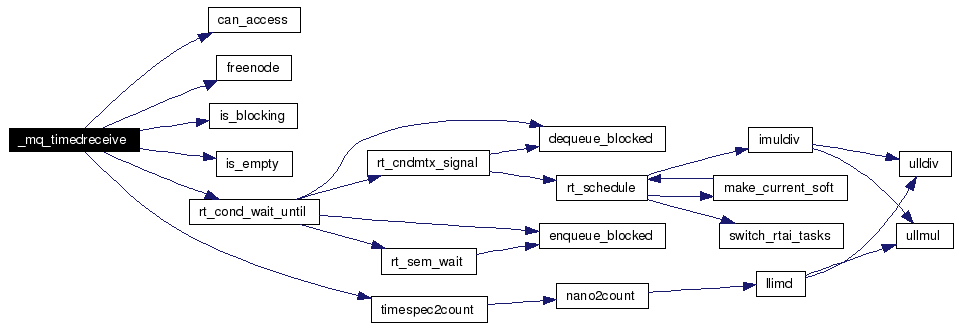

size_t _mq_timedreceive (  mqd_t  mq, char *  msg_buffer, size_t  buflen, unsigned int *  msgprio, const struct timespec *  abstime, int  space )

Definition at line 481 of file mq.c. References can_access(), ERROR, freenode(), is_blocking(), is_empty(), MAX_PQUEUES, mqd_t, pthread_cond_signal, pthread_mutex_lock, pthread_mutex_unlock, rt_cond_wait_until(), rt_pqueue_descr, timespec2count(), and TRACE_RTAI_POSIX. Here is the call graph for this function:

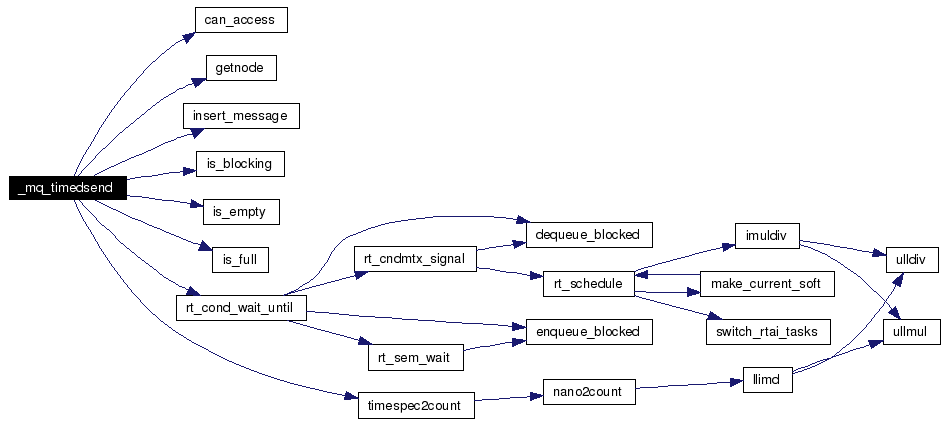

int _mq_timedsend (  mqd_t  mq, const char *  msg, size_t  msglen, unsigned int  msgprio, const struct timespec *  abstime, int  space )

Definition at line 608 of file mq.c. References can_access(), getnode(), insert_message(), is_blocking(), is_empty(), is_full(), MAX_PQUEUES, MQ_PRIO_MAX, mqd_t, pthread_cond_signal, pthread_mutex_lock, pthread_mutex_unlock, rt_cond_wait_until(), rt_pqueue_descr, timespec2count(), and TRACE_RTAI_POSIX. Here is the call graph for this function:

mq_bool_t can_access (  MSG_QUEUE *  q, Q_ACCESS  access )  [static]

Definition at line 179 of file mq.c. References MQ_OPEN_MAX, and RT_TASK. Referenced by _mq_receive(), _mq_send(), _mq_timedreceive(), and _mq_timedsend().

void delete_queue (  int  q_index  )  [static]

Definition at line 232 of file mq.c. References INVALID_PQUEUE, MQ_ATTR, num_pqueues, pthread_cond_destroy, pthread_mutex_destroy, pthread_mutex_unlock, rt_free(), and rt_pqueue_descr. Referenced by mq_close(), and mq_unlink(). Here is the call graph for this function:

EXPORT_SYMBOL (  mq_unlink   )

EXPORT_SYMBOL (  mq_notify   )

EXPORT_SYMBOL (  mq_setattr   )

EXPORT_SYMBOL (  mq_getattr   )

EXPORT_SYMBOL (  mq_close   )

EXPORT_SYMBOL (  _mq_timedsend   )

EXPORT_SYMBOL (  _mq_send   )

EXPORT_SYMBOL (  _mq_timedreceive   )

EXPORT_SYMBOL (  _mq_receive   )

EXPORT_SYMBOL (  mq_open   )

int freenode (  void *  node, Q_CTRL *  queue )  [inline, static]

Definition at line 114 of file mq.c. Referenced by _mq_receive(), and _mq_timedreceive().

MSG_HDR* getnode (  Q_CTRL *  queue  )  [inline, static]

Definition at line 109 of file mq.c. Referenced by _mq_send(), and _mq_timedsend().

void initialise_queue (  Q_CTRL *  q  )  [inline, static]

Definition at line 213 of file mq.c. References MQ_MIN_MSG_PRIORITY. Referenced by mq_open().

void insert_message (  Q_CTRL *  q, MSG_HDR *  this_msg )  [static]

Definition at line 124 of file mq.c. Referenced by _mq_send(), and _mq_timedsend().

mq_bool_t is_blocking (  MSG_QUEUE *  q  )  [static]

Definition at line 164 of file mq.c. References MQ_OPEN_MAX. Referenced by _mq_receive(), _mq_send(), _mq_timedreceive(), and _mq_timedsend().

mq_bool_t is_empty (  struct queue_control *  q  )  [inline, static]

Definition at line 97 of file mq.c. Referenced by _mq_receive(), _mq_send(), _mq_timedreceive(), and _mq_timedsend().

mq_bool_t is_full (  struct queue_control *  q  )  [inline, static]

Definition at line 103 of file mq.c. Referenced by _mq_send(), and _mq_timedsend().

module_exit (  __rtai_mq_exit   )

module_init (  __rtai_mq_init   )

MODULE_LICENSE (  "GPL"   )

int mq_close (  mqd_t  mq  )

Definition at line 680 of file mq.c. References delete_queue(), INVALID_PQUEUE, MAX_PQUEUES, MQ_OPEN_MAX, mqd_t, OK, pqueue_mutex, pthread_mutex_lock, pthread_mutex_unlock, rt_pqueue_descr, RT_TASK, and TRACE_RTAI_POSIX. Here is the call graph for this function:

int mq_getattr (  mqd_t  mq, struct mq_attr *  attrbuf )

Definition at line 723 of file mq.c. References MAX_PQUEUES, mqd_t, OK, rt_pqueue_descr, and TRACE_RTAI_POSIX.

int mq_notify (  mqd_t  mq, const struct sigevent *  notification )

Definition at line 778 of file mq.c. References ERROR, MAX_PQUEUES, mqd_t, OK, pthread_mutex_lock, pthread_mutex_unlock, rt_pqueue_descr, and TRACE_RTAI_POSIX.

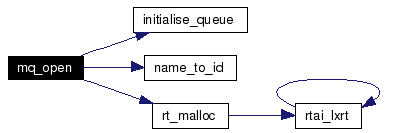

mqd_t mq_open (  char *  mq_name, int  oflags, mode_t  permissions, struct mq_attr *  mq_attr )

Definition at line 260 of file mq.c. References default_queue_attrs, initialise_queue(), INVALID_PQUEUE, MAX_PQUEUES, MAX_RT_TASKS, mq_attr::mq_maxmsg, mq_attr::mq_msgsize, MQ_NAME_MAX, MQ_OPEN_MAX, mqd_t, name_to_id(), num_pqueues, pqueue_mutex, pthread_cond_init, pthread_mutex_init, pthread_mutex_lock, pthread_mutex_unlock, rt_malloc(), rt_pqueue_descr, RT_TASK, task_pqueue_access, and TRACE_RTAI_POSIX. Here is the call graph for this function:

int mq_setattr (  mqd_t  mq, const struct mq_attr *  new_attrs, struct mq_attr *  old_attrs )

Definition at line 737 of file mq.c. References MAX_PQUEUES, MQ_BLOCK, mq_attr::mq_flags, MQ_NONBLOCK, MQ_OPEN_MAX, mqd_t, OK, pthread_mutex_lock, pthread_mutex_unlock, rt_pqueue_descr, RT_TASK, and TRACE_RTAI_POSIX.

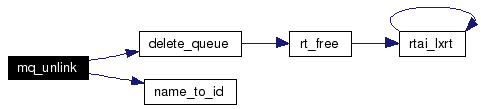

int mq_unlink (  char *  mq_name  )

Definition at line 809 of file mq.c. References delete_queue(), name_to_id(), OK, pqueue_mutex, pthread_mutex_lock, pthread_mutex_unlock, rt_pqueue_descr, and TRACE_RTAI_POSIX. Here is the call graph for this function:

int name_to_id (  char *  name  )  [static]

Definition at line 84 of file mq.c. References ERROR, MAX_PQUEUES, and rt_pqueue_descr. Referenced by mq_open(), and mq_unlink().

---

Variable Documentation

MQ_ATTR default_queue_attrs = { MAX_MSGS, MAX_MSGSIZE, MQ_NONBLOCK, 0 } [static]

Definition at line 76 of file mq.c. Referenced by mq_open().

int num_pqueues = 0 [static]

Definition at line 73 of file mq.c. Referenced by __rtai_mq_init(), delete_queue(), and mq_open().

pthread_mutex_t pqueue_mutex [static]

Definition at line 78 of file mq.c. Referenced by __rtai_mq_exit(), __rtai_mq_init(), mq_close(), mq_open(), and mq_unlink().

struct _pqueue_descr_struct rt_pqueue_descr[MAX_PQUEUES] = {{0}} [static]

Definition at line 74 of file mq.c. Referenced by _mq_receive(), _mq_send(), _mq_timedreceive(), _mq_timedsend(), delete_queue(), mq_close(), mq_getattr(), mq_notify(), mq_open(), mq_setattr(), mq_unlink(), and name_to_id().

struct rt_native_fun_entry rt_pqueue_entries[]

Initial value: { { { UR1(1, 5) | UR2(4, 6), mq_open }, MQ_OPEN }, { { 1, _mq_receive }, MQ_RECEIVE }, { { 1, _mq_send }, MQ_SEND }, { { 1, mq_close }, MQ_CLOSE }, { { UW1(2, 3), mq_getattr }, MQ_GETATTR }, { { UR1(2, 4) | UW1(3, 4), mq_setattr }, MQ_SETATTR }, { { UR1(2, 3), mq_notify }, MQ_NOTIFY }, { { UR1(1, 2), mq_unlink }, MQ_UNLINK }, { { 1, _mq_timedreceive }, MQ_TIMEDRECEIVE }, { { 1, _mq_timedsend }, MQ_TIMEDSEND }, { { 0, 0 }, 000 } } Definition at line 897 of file mq.c. Referenced by __rtai_mq_exit(), and __rtai_mq_init().

struct _pqueue_access_struct task_pqueue_access[MAX_RT_TASKS] = {{0}} [static]

Definition at line 75 of file mq.c. Referenced by mq_open().

---
