base/ipc/mbx/mbx.c File Reference

---

Detailed Description

Mailbox functions.

Author:

Paolo Mantegazza

Note:

Copyright (C) 1999-2003 Paolo Mantegazza <mantegazza@aero.polimi.it>

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

Definition in file mbx.c.#include <asm/uaccess.h>
#include <rtai_schedcore.h>
#include <rtai_registry.h>

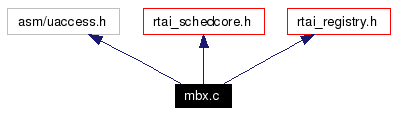

Include dependency graph for mbx.c:

Go to the source code of this file.

Defines
#define	MOD_SIZE(indx)   ((indx) < mbx->size ? (indx) : (indx) - mbx->size)
#define	CHK_MBX_MAGIC   { if (mbx->magic != RT_MBX_MAGIC) { return -EINVAL; } }
Functions
	MODULE_LICENSE ("GPL")
void	mbx_delete_signal (MBX *mbx)
void	mbx_signal (MBX *mbx)
int	mbx_wait (MBX *mbx, int *fravbs, RT_TASK *rt_current)
int	mbx_wait_until (MBX *mbx, int *fravbs, RTIME time, RT_TASK *rt_current)
int	mbxput (MBX *mbx, char **msg, int msg_size, int space)
int	mbxovrwrput (MBX *mbx, char **msg, int msg_size, int space)
int	mbxget (MBX *mbx, char **msg, int msg_size, int space)
int	mbxevdrp (MBX *mbx, char **msg, int msg_size, int space)
int	_rt_mbx_evdrp (MBX *mbx, void *msg, int msg_size, int space)
	Receives bytes as many as possible leaving the message available for another receive.
int	rt_typed_mbx_init (MBX *mbx, int size, int type)
	Initializes a fully typed mailbox queueing tasks according to the specified type.
int	rt_mbx_init (MBX *mbx, int size)
	Initializes a mailbox.
int	rt_mbx_delete (MBX *mbx)
	Deletes a mailbox.
int	_rt_mbx_send (MBX *mbx, void *msg, int msg_size, int space)
	Sends a message unconditionally.
int	_rt_mbx_send_wp (MBX *mbx, void *msg, int msg_size, int space)
	Sends as many bytes as possible without blocking the calling task.
int	_rt_mbx_send_if (MBX *mbx, void *msg, int msg_size, int space)
	Sends a message, only if the whole message can be passed without blocking the calling task.
int	_rt_mbx_send_until (MBX *mbx, void *msg, int msg_size, RTIME time, int space)
	Sends a message with absolute timeout.
int	_rt_mbx_send_timed (MBX *mbx, void *msg, int msg_size, RTIME delay, int space)
	Sends a message with relative timeout.
int	_rt_mbx_receive (MBX *mbx, void *msg, int msg_size, int space)
	Receives a message unconditionally.
int	_rt_mbx_receive_wp (MBX *mbx, void *msg, int msg_size, int space)
	Receives bytes as many as possible, without blocking the calling task.
int	_rt_mbx_receive_if (MBX *mbx, void *msg, int msg_size, int space)
	Receives a message only if the whole message can be passed without blocking the calling task.
int	_rt_mbx_receive_until (MBX *mbx, void *msg, int msg_size, RTIME time, int space)
	Receives a message with absolute timeout.
int	_rt_mbx_receive_timed (MBX *mbx, void *msg, int msg_size, RTIME delay, int space)
	Receives a message with relative timeout.
int	_rt_mbx_ovrwr_send (MBX *mbx, void *msg, int msg_size, int space)
	Sends a message overwriting what already in the buffer if there is no place for the message.
MBX *	_rt_typed_named_mbx_init (unsigned long mbx_name, int size, int qtype)
	Initializes a specifically typed (fifo queued, priority queued or resource queued) mailbox identified by a name.
int	rt_named_mbx_delete (MBX *mbx)
	Deletes a named mailbox.
int	set_rt_fun_entries (struct rt_native_fun_entry *entry)
void	reset_rt_fun_entries (struct rt_native_fun_entry *entry)
int	__rtai_mbx_init (void)
void	__rtai_mbx_exit (void)
	module_init (__rtai_mbx_init)
	module_exit (__rtai_mbx_exit)
	EXPORT_SYMBOL (_rt_mbx_evdrp)
	EXPORT_SYMBOL (rt_typed_mbx_init)
	EXPORT_SYMBOL (rt_mbx_init)
	EXPORT_SYMBOL (rt_mbx_delete)
	EXPORT_SYMBOL (_rt_mbx_send)
	EXPORT_SYMBOL (_rt_mbx_receive)
	EXPORT_SYMBOL (_rt_mbx_ovrwr_send)
	EXPORT_SYMBOL (_rt_typed_named_mbx_init)
	EXPORT_SYMBOL (rt_named_mbx_delete)
Variables
rt_native_fun_entry	rt_mbx_entries []

---

Function Documentation

EXPORT_SYMBOL (  rt_named_mbx_delete   )

EXPORT_SYMBOL (  _rt_typed_named_mbx_init   )

EXPORT_SYMBOL (  _rt_mbx_ovrwr_send   )

EXPORT_SYMBOL (  _rt_mbx_receive   )

EXPORT_SYMBOL (  _rt_mbx_send   )

EXPORT_SYMBOL (  rt_mbx_delete   )

EXPORT_SYMBOL (  rt_mbx_init   )

EXPORT_SYMBOL (  rt_typed_mbx_init   )

EXPORT_SYMBOL (  _rt_mbx_evdrp   )

module_exit (  __rtai_mbx_exit   )

module_init (  __rtai_mbx_init   )

---
