TAO_PSDL_Struct_Scope Class Reference

#include <PSDL_Struct_Scope.h>

Inheritance diagram for TAO_PSDL_Struct_Scope:

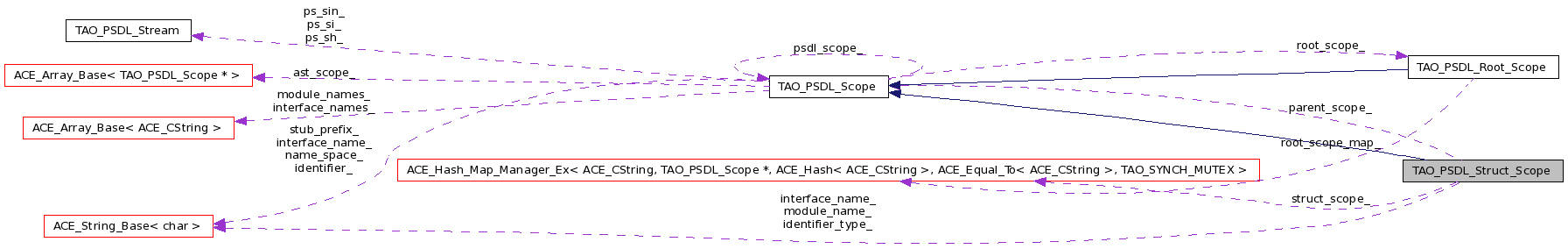

Collaboration diagram for TAO_PSDL_Struct_Scope:

List of all members.

Public Member Functions
	TAO_PSDL_Struct_Scope (TAO_PSDL_Scope *parent_scope)
int	add_module (ACE_CString identifier)
int	add_struct (ACE_CString identifier)
int	add_typedef (ACE_CString identifier, ACE_CString identifier_type)
int	add_const_decl (ACE_CString identifier, ACE_CString identifier_type)
int	add_except_decl (ACE_CString identifier, ACE_CString identifier_type)
void	dump (CORBA::ULong depth)
	Function to help indent the output of the parse tree.
int	find (const ACE_CString &identifier_name, ACE_CString &identifier_type)
	Function to find the TAO_PSDL_Scope for the given identifier_name.
int	find (const ACE_CString &identifier_name)
TAO_PSDL_Scope *	parent_scope (void)
	Return the pointer to the parent scope.
Scope_Map *	scope_map (void)
	Return the pointer to Scope_Map of the instance.
ACE_CString	identifier_type (void)
ACE_CString	module_name (void)
ACE_CString	interface_name (void)
Private Attributes
Scope_Map	struct_scope_
TAO_PSDL_Scope *	parent_scope_
ACE_CString	identifier_type_
ACE_CString	module_name_
ACE_CString	interface_name_

---

Detailed Description

Definition at line 28 of file PSDL_Struct_Scope.h.

---

Constructor & Destructor Documentation

TAO_PSDL_Struct_Scope::TAO_PSDL_Struct_Scope

(

TAO_PSDL_Scope *

parent_scope

)

Definition at line 8 of file PSDL_Struct_Scope.cpp.

  : struct_scope_ (),
    parent_scope_ (parent_scope),
    identifier_type_ ("struct")
{
}

---

Member Function Documentation

int TAO_PSDL_Struct_Scope::add_const_decl	(	ACE_CString	identifier,
		ACE_CString	identifier_type
	)			[virtual]

Reimplemented from TAO_PSDL_Scope.

Definition at line 39 of file PSDL_Struct_Scope.cpp.

{
  return TAO_PSDL_Scope::instance ()->add_const_decl_to_scope (identifier,
                                                               identifier_type,
                                                               this);
}

int TAO_PSDL_Struct_Scope::add_except_decl	(	ACE_CString	identifier,
		ACE_CString	identifier_type
	)			[virtual]

Reimplemented from TAO_PSDL_Scope.

Definition at line 48 of file PSDL_Struct_Scope.cpp.

{
  return TAO_PSDL_Scope::instance ()->add_except_decl_to_scope (identifier,
                                                                identifier_type,
                                                                this);
}

int TAO_PSDL_Struct_Scope::add_module

(

ACE_CString

identifier

)

[virtual]

The add functions are overridden by the derived classes to add the respective types in their scopes. The return value is a '0' if successful and '-1' if it ends up as a failure.

Reimplemented from TAO_PSDL_Scope.

Definition at line 16 of file PSDL_Struct_Scope.cpp.

{
  return TAO_PSDL_Scope::instance ()->add_module_to_scope (identifier,
                                                           this);
}

int TAO_PSDL_Struct_Scope::add_struct

(

ACE_CString

identifier

)

[virtual]

Reimplemented from TAO_PSDL_Scope.

Definition at line 23 of file PSDL_Struct_Scope.cpp.

{
  return TAO_PSDL_Scope::instance ()->add_struct_to_scope (struct_name,
                                                           this);
}

int TAO_PSDL_Struct_Scope::add_typedef	(	ACE_CString	identifier,
		ACE_CString	identifier_type
	)			[virtual]

Reimplemented from TAO_PSDL_Scope.

Definition at line 30 of file PSDL_Struct_Scope.cpp.

{
  return TAO_PSDL_Scope::instance ()->add_typedef_to_scope (identifier,
                                                            identifier_type,
                                                            this);
}

void TAO_PSDL_Struct_Scope::dump

(

CORBA::ULong

depth

)

[virtual]

Function to help indent the output of the parse tree.

Reimplemented from TAO_PSDL_Scope.

Definition at line 57 of file PSDL_Struct_Scope.cpp.

{
  depth = depth + 5;

  for (Scope_Map_Iterator i = this->struct_scope_.begin ();
       i != this->struct_scope_.end ();
       ++i)
    {
      this->print_depth (depth);
      ACE_DEBUG ((LM_DEBUG,
                  "%s (struct)\n",
                  (*i).ext_id_.c_str ()));
      (*i).int_id_->dump (depth);
    }
}

int TAO_PSDL_Struct_Scope::find

(

const ACE_CString &

identifier_name

)

[virtual]

Function to check if a particular identifier_name exists in the scope.

Reimplemented from TAO_PSDL_Scope.

Definition at line 100 of file PSDL_Struct_Scope.cpp.

{
  for (Scope_Map_Iterator i = this->struct_scope_.begin ();
       i != this->struct_scope_.end ();
       ++i)
    {
      if (ACE_OS::strcmp (identifier_name.c_str (), (*i).ext_id_.c_str ()) == 0)
        {
          return 0;
        }
      else
        {
          if ((*i).int_id_->find (identifier_name) == 0)
            {
              // #@@@@ deal
              //      identifier_type = identifier_info->type;
              return 0;
            }
        }
    }

  return -1;
}

int TAO_PSDL_Struct_Scope::find	(	const ACE_CString &	identifier_name,
		ACE_CString &	identifier_type
	)			[virtual]

Function to find the TAO_PSDL_Scope for the given identifier_name.

Reimplemented from TAO_PSDL_Scope.

Definition at line 74 of file PSDL_Struct_Scope.cpp.

{
  for (Scope_Map_Iterator i = this->struct_scope_.begin ();
       i != this->struct_scope_.end ();
       ++i)
    {
      if (ACE_OS::strcmp (identifier_name.c_str (), (*i).ext_id_.c_str ()) == 0)
        {
          identifier_type = (*i).int_id_->identifier_type ();
          return 0;
        }
      else
        {
          if ((*i).int_id_->find (identifier_name,
                                  identifier_type) == 0)
            {
              return 0;
            }
        }
    }

  return -1;
}

ACE_CString TAO_PSDL_Struct_Scope::identifier_type

(

void

)

[virtual]

Each identifier will have an instance of a derived type of TAO_PSDL_Scope *.. the following method is an accessor to the type of the identifier name

Reimplemented from TAO_PSDL_Scope.

Definition at line 137 of file PSDL_Struct_Scope.cpp.

{
  return this->identifier_type_;
}

ACE_CString TAO_PSDL_Struct_Scope::interface_name

(

void

)

[virtual]

Reimplemented from TAO_PSDL_Scope.

Definition at line 149 of file PSDL_Struct_Scope.cpp.

{
  return this->interface_name_;
}

ACE_CString TAO_PSDL_Struct_Scope::module_name

(

void

)

[virtual]

Reimplemented from TAO_PSDL_Scope.

Definition at line 143 of file PSDL_Struct_Scope.cpp.

{
  return this->module_name_;
}

TAO_PSDL_Scope * TAO_PSDL_Struct_Scope::parent_scope

(

void

)

[virtual]

Return the pointer to the parent scope.

Reimplemented from TAO_PSDL_Scope.

Definition at line 125 of file PSDL_Struct_Scope.cpp.

{
  return this->parent_scope_;
}

Scope_Map * TAO_PSDL_Struct_Scope::scope_map

(

void

)

[virtual]

Return the pointer to Scope_Map of the instance.

Reimplemented from TAO_PSDL_Scope.

Definition at line 131 of file PSDL_Struct_Scope.cpp.

{
  return &this->struct_scope_;
}

---

Member Data Documentation

ACE_CString TAO_PSDL_Struct_Scope::identifier_type_ [private]

Definition at line 66 of file PSDL_Struct_Scope.h.

ACE_CString TAO_PSDL_Struct_Scope::interface_name_ [private]

Reimplemented from TAO_PSDL_Scope.

Definition at line 68 of file PSDL_Struct_Scope.h.

ACE_CString TAO_PSDL_Struct_Scope::module_name_ [private]

Definition at line 67 of file PSDL_Struct_Scope.h.

TAO_PSDL_Scope* TAO_PSDL_Struct_Scope::parent_scope_ [private]

Definition at line 65 of file PSDL_Struct_Scope.h.

Scope_Map TAO_PSDL_Struct_Scope::struct_scope_ [private]

Definition at line 64 of file PSDL_Struct_Scope.h.

---

The documentation for this class was generated from the following files:

• PSDL_Struct_Scope.h
• PSDL_Struct_Scope.cpp
